INSTALLATION AND OPERATING INSTRUCTIONS

Gas Char Broilers

INTENDED FOR OTHER THAN HOUSEHOLD USE

RETAIN THIS MANUAL FOR FUTURE REFERENCE

This equipment has been engineered to provide you with year round dependable service

when used according to the instructions in this manual and standard commercial kitchen

practices.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

WARNING

Improper installation, adjustment, alteration, service or Maintenance can cause property

damage, injury or death. Read the Installation, Operating and Maintenance Instructions

thoroughly before installing or servicing this equipment.

P/N U4010A 5/97

Model: SGBR and GG

Instructions must be posted in a prominent location. All safety precautions must be

taken in the event the user smells gas. Safety information can be obtained from your

local gas supplier.

CERTIFIED

1. INSTALLATION INSTRUCTIONS

PAGE

2. OPERATING INSTRUCTIONS

TABLE OF CONTENTS

SECTION

Additional Installation Requirements

Installation with Casters

5 Warranty 12

1. INSTALLATION INSTRUCTIONS

1. INSTALLATION:

USA, In Canada,

2.ACCEPTABLE CLEARANCES:

MINIMUM CLEARANCE FROM NON-COMBUSTIBLE"CONSTRUCTION:

3. GAS CONNECTION:

(a) In installation of this broiler must conform with the latest edition of theAmerican

National Standard Z-223.1 National Fuel Gas Code and/or local codes.

installation must conform with the latest edition of CAN/CGA-B149.1 or 2 Installation

Code and/or local codes.

(b) This broiler when installed, must be electrically grounded in accordance with local

codes, and/or the latest edition of the National Electrical CodeANSI/NFPANo. 70 in

USA(Canadian Electrical Code CSAC22.2 in Canada).

Due to intense heat generated by radiation, these broilers should be installed in noncombustible

locations only, including above the grate level.

RIGHT SIDE

000

The gas pressure regulator supplied must be installed at the gas inlet of each broiler. Each

regulator is adjusted to yield a manifold pressure of 5" water column (12.5 mbar) for Natural Gas or

10" water column (25 mbar) for Propane Gas. No pressure regulator is required for propane gas in

Canada.

Recommended minimum gas supply lines are listed below:

All GG Models

SGBR-1 thru SGBR-3 1" (25 mm)

SGBR-4 thru SGBR-9

LEFT SIDE BACK

1" (25 mm)

1 1/2" (38 mm)

For units using Propane Gas, supply lines with less than 1/2D (12.7 mm) inside diameter

should not be used, even for a small unit.

NOTE: Be

sure plug is installed in the connection not being used.

Be sure to cap whichever side is not connected.

NOTE:

4. BURNERS:

On the GG Series, the gas may be connected either in the rear or the bottom of the unit.

On the SGBR Series the gas manifold extends out on each side near the front of the unit. Gas can

be connected from either side.

A shut-off valve in a readily accessible location must be mounted on the gas supply line

before the unit.

When making gas pipe connections, pipe joint compound resistant to the action ofJiquefied

petroleum gases should be used.

The broiler and its individual shutoff valve must be disconnected from the gas supply piping

system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.45

kpa).

The broiler must be isolated from the gas supply piping system by closing its individual manual

shutoff valve during any pressure testing of the gas supply piping system at test pressures

equal to or less than 1/2 psig (3.45 kpa).

Check to see thatAIR MIXER CAPS on the front of all burners are adjusted and tightened allowing

half the opening in the burner to show.

Install burners following the steps below:

Please note that the straight burner (without the arm) is installed on the extreme right side on

models GG-2, GG-4 and GG-6 (see figure 5 ).

On the model GG-8 which has two straight burners (without arms), install one burner to the

extreme right of the unit and the second straight burner to the left of the center divider.

On the SGBR Series, only straight burners are used.

Step 1. Place the front of the burner (flat side up) into the valve assembly by fitting the center

hole of the air mixer cap over the brass orifice.

Step 2. Swing the rear end of the burner and seat it into place over the burner support pin on

the back of the unit.

Due to the compactness of the design, it is usually necessary to swing

one burner away to get the next one out.

GG Series: Place the Cast Iron Bottom Grates on the front and rear ledge of the bucket

assembly above the burners with the flat side facing up and the tapered edge

facing down toward the burners.

SGBR Series: Place the Stainless Steel Mesh Bottom Grates on the angle iron supports

above the burners.

Spread one layer of Glo-Stones covering all bottom grates. Do not use more

than one ,layer as this will reduce the amount of heat reaching the top grates

and could reduce the life of the bottom grates.

Place the Top Grates over the glo-stones with the wavy ribs face up. These grates are designed to

give a minimum of meat to metal contact. The top grates should be positioned so that the grease

drains built into each rib carry excess fat to the grease chute. The grease chute is located in the

rear on the GG series and in the front on theSGBR Series.

If Griddle Plates are used, they should not cover more than 50% of the broiling area. Each Griddle

Plate covers the same area as two top grates.

For GG Series broilers, the Griddle Plates should be placed on top of the top grates.

For SGBR Series broilers, the Griddle Plates should replace the top grates.

NOTE:

5. ASSEMBLY PROCEDURES:

a. Bottom Grates:

b. Glo-Stones:

c. Top Grates:

d. Griddle Plates

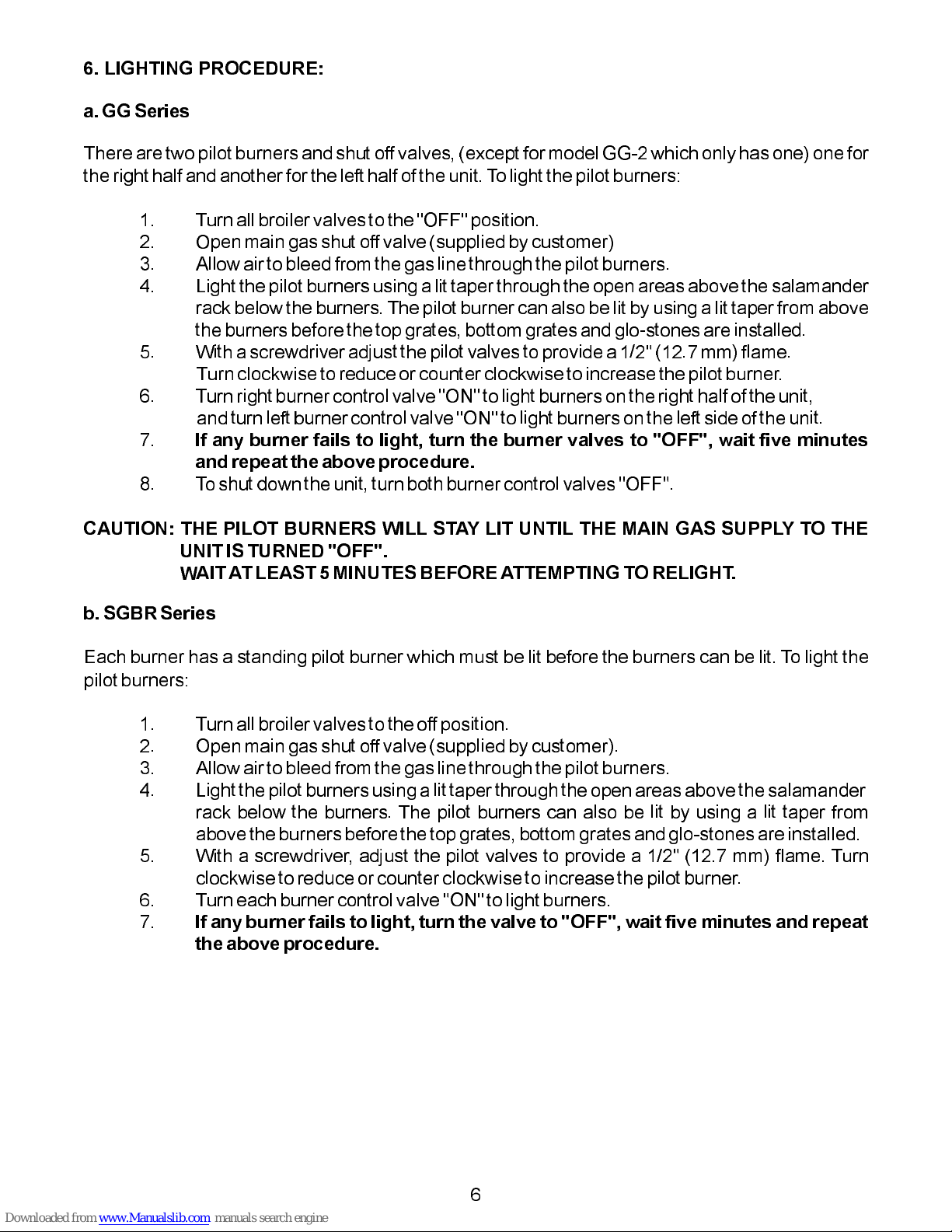

6. LIGHTING PROCEDURE:

a. GG Series

If any burner fails to light, turn the burner valves to "OFF", wait five minutes

and repeat the above procedure.

CAUTION: THE PILOT BURNERS WILL STAY LIT UNTIL THE MAIN GAS SUPPLY TO THE

UNIT IS TURNED "OFF".

WAITAT LEAST 5 MINUTES BEFOREATTEMPTING TO RELIGHT.

b. SGBR Series

If any burner fails to light, turn the valve to "OFF", wait five minutes and repeat

the above procedure.

There are two pilot burners and shut off valves, (except for model GG-2 which only has one) one for

the right half and another for the left half of the unit.To light the pilot burners:

1. Turn all broiler valves to the "OFF" position.

2. Open main gas shut off valve (supplied by customer)

3. Allow air to bleed from the gas line through the pilot burners.

4. Light the pilot burners using a lit taper through the open areas above the salamander

rack below the burners. The pilot burner can also be lit by using a lit taper from above

the burners before the top grates, bottom grates and glo-stones are installed.

5. With a screwdriver adjust the pilot valves to provide a 1/2" (12.7 mm) flame.

Turn clockwise to reduce or counter clockwise to increase the pilot burner.

6. Turn right burner control valve "ON" to light burners on the right half of the unit,

and turn left burner control valve "ON" to light burners on the left side of the unit.

8. To shut down the unit, turn both burner control valves "OFF".

Each burner has a standing pilot burner which must be lit before the burners can be lit. To light the

pilot burners:

1. Turn all broiler valves to the off position.

2. Open main gas shut off valve (supplied by customer).

3. Allow air to bleed from the gas line through the pilot burners.

4. Light the pilot burners using a lit taper through the open areas above the salamander

rack below the burners. The pilot burners can also be lit by using a lit taper from

above the burners before the top grates, bottom grates and glo-stones are installed.

5. With a screwdriver, adjust the pilot valves to provide a 1/2" (12.7 mm) flame. Turn

clockwise to reduce or counter clockwise to increase the pilot burner.

6. Turn each burner control valve "ON" to light burners.

8. Each burner may now be adjusted to the desired flame size by turning the individual burner

valve handle.

9. To shut down the unit, turn all valves "OFF".

THE PILOT BURNERS WILL STAY LIT UNTIL THE MAIN GAS SUPPLY TO THE

UNIT ISTURNED "OFF".

AFTER TURNING BROILER CONTROLVALVES OFF,ALWAYS WAITAT LEAST5

MINUTES BEFOREATTEMPTING TO RELIGHTIF PILOTBURNER GOES OUT.

a. Keep the area around the broiler free and clear of combustible materials.

b. The provisions of an adequate air supply to your broiler is essential. Provide for

sufficient air to enter the broiling area and assure that this air flow is not obstructed.

c. Air enters the burner area from the front and bottom of your broiler.Assure that

these areas are kept open and unobstructed. .

d. Servicing is accomplished through the front and top of the broiler.Assure. that

these areas are kept unobstructed for proper servicing and operation.

a. Install the casters with wheel brakes on the front of the appliance.

b. Installation should be made with a connector that complies with the latest edition

of the Standard connectors for Movable Gas Appliances ANSI Z21.69 in USA (CAN CGA-

6.16 in Canada) and a quick disconnect Device that complies with the latest edition of the

Standard for Quick Disconnect Devices for use with gas fuel ANSI Z21.41 in USA (CAN 1-

6.7 in Canada) and adequate means must be provided to limit the movement of the

appliance without depending on the connector and any quick disconnect device or its

associated piping to limit the appliance movement.

c. The restraint should be attached to one of the legs on which the casters are mounted.

d. If disconnection of the restraint is necessary, the restraint should be reconnected after the

appliance has been returned to its originally installed position.

NOTE:

CAUTION:

7. ADDITIONAL INSTALLATION REQUIREMENTS:

8. INSTALLATION WITH CASTERS:

II. OPERATING INSTRUCTIONS

1. LIGHTING PROCEDURE:

2. BROILING PROCEDURE:

BROILER TOP GRATES MUST BE HOT ENOUGH TO MAKE BLACK CHAR-MARKS WHEN

STARTING TO BROIL.

3. MAINTENANCE:

(a) SERVICE:

See Section 6 of Installation Instructions.

Once the pilot burners are lit, the broiler may be turned ON or OFF by turning the control valves ON

or OFF as necessary.

Adequate pre-heating time is necessary for the food to release from the broiler and to cook

properly.Allow the unit to pre-heat for 45 minutes to 1 hour before broiling.

(a) Do not press the juice out of the meat because that will cause dry products.

(b) After broiling, allow the meat to sit covered on a heated platter for 2-5 minutes before

cutting. This will allow the juices to "Settle" and the product will be more moist.

as it cooks.

(d) Thick pieces of meat require a longer broiling time with less flare-up. Reduce flare up

by trimming excess fat for a longer broiling time without burning.

(e) Keep the unit clean. Food caught between the grate will not allow hot air to rise

around the product. This will result in uneven heating and increase the cooking time.

Shut off the main gas supply before attempting any maintenance on the unit. If required, contact

your Dealer, the Factory, or a local Service Company to obtain qualified maintenance and repairs.

(b) CAREAND CLEANING OF TOP GRATES:

Under no circumstances should the grates be placed in a

dishwasher. Soap, water, or any detergent should never be used on the cast iron grates.

NOTE: The following procedures should only be done when the unit is cold. DO NOT

attempt steps c, d, or e when the unit is hot.

(d) CARE OF BOTTOM GRATES:

(e) CARE OF THE BURNERS:

(f) GREASE COLLECTION:

(g) CLEANING TOOLS:

The top grates should be cleaned using a stiff wire brush. If this is done daily, the accumulation of

food and fat caught in the grates and work necessary to keep them clean will be reduced.

Periodically they should be turned over and brushed and then put back. In the event that an extra

amount of fat is accumulated on the top, due to use of low heat, we recommend turning up the

flame of this section for about an hour, which will burn off much of the fat and residue and the

brushing operation will be easier.

On a weekly basis, the top grates should be removed and the Glo-Stones mixed about to break

away any carbon deposit so that it falls through the bottom grates. Spread the Glo-Stones evenly

and add only the amount necessary for a single layer.

Periodically,'push all the Glo-Stones to one side and inspect the bottom grates. If necessary brush

the grates with a wire brush. If the grates are cracked, broken or deteriorated they should be

replaced.

All the burners should be checked at the same time as the bottom grates. Grease build up on the

burners should be removed with a wire brush. Make sure all the burner ports are clean.Athin sharp

object can be used to clean the burner ports if necessary.

GG series char-broilers are designed to bring grease to the rear of unit from where the grease drips

into the grease collection pan in the lower section of the broiler.

SGBR Series char-broilers are designed to bring grease into the front channel which in turn drains

the grease into the grease collection pan in the lower section of the broiler.

The grease collection pans in the lower section should be cleaned daily or more often if necessary.

The channel should be cleaned periodically with a stiff brush or scraper.

Several models of specially designed top grate brushes and grease drain scrapers are available

from Bakers Pride. Contact Bakers Pride for more information.

FIG. 3 GG SERIES

PILOT BURNER

BURNER

MANIFOLD

VALVE HANDLE

ORIFICE

VALVE

FIG. 4 GG SERIES - TYP. SIDE VIEW

BURNER

AIR MIXER

CAP

PILOT BURNERS

PILOT FLAME

ADJUSTING SCREW

MANIFOLD

FIG. 1 SGBR SERIES

AIR MIXER CAP AND PILOT BURNERS

BURNER VALVE

BURNER

ORIFICE HOLDER

VALVE

EXTENSION

(STRAIGHT)

VALVE HANDLE

ORIFICE MANIFOLD

VALVE

EXTENSION

(CURVED)

4. ILLUSTRATIONS

Autres manuels pour SGBR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bakers Pride Gril

Bakers Pride

Bakers Pride L-24GS Manuel utilisateur

Bakers Pride

Bakers Pride Dante XXE-10 Manuel utilisateur

Bakers Pride

Bakers Pride Dante FLB-24GS Manuel utilisateur

Bakers Pride

Bakers Pride Dante SGBR-2 Manuel utilisateur

Bakers Pride

Bakers Pride COUNTERTOP GAS RADIANT XX-10 Manuel utilisateur

Bakers Pride

Bakers Pride Dante CBBQ-30S Manuel utilisateur

Bakers Pride

Bakers Pride Dante XXE-10 Manuel utilisateur

Bakers Pride

Bakers Pride CH Dante Series Manuel utilisateur

Bakers Pride

Bakers Pride Dante FLB-48R/GS Manuel utilisateur

Bakers Pride

Bakers Pride Dante XXE-10 Manuel utilisateur

Bakers Pride

Bakers Pride DANTE LCB-24R/GS Manuel utilisateur

Bakers Pride

Bakers Pride Dante C-48R Manuel utilisateur

Bakers Pride

Bakers Pride GG Series Manuel utilisateur

Bakers Pride

Bakers Pride DANTE XX Manuel utilisateur

Bakers Pride

Bakers Pride DANTE Series Manuel utilisateur

Bakers Pride

Bakers Pride Dante FLB-60GS Manuel utilisateur

Bakers Pride

Bakers Pride CH-10J Manuel utilisateur

Bakers Pride

Bakers Pride Dante CBBQ-30S-CP Manuel utilisateur

Bakers Pride

Bakers Pride Dante CH-10 Manuel utilisateur

Bakers Pride

Bakers Pride Dante SGBR-2 Manuel utilisateur

Bakers Pride

Bakers Pride DANTE CG Manuel utilisateur

Bakers Pride

Bakers Pride Dante CTB-60GS Manuel utilisateur

Bakers Pride

Bakers Pride CH-4 XX-4 Manuel utilisateur

Bakers Pride

Bakers Pride Dante Series XXE Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
