Proﬁle Travel System

MODEL # 1836CT

Instruction Manual

Convenience through Innovation and thoughtful design

Read all instructions BEFORE assembly and USE of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

08-04

WARNING: Please follow all of these instructions to ensure the

safety of your child. Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result in

serious injury or death. Avoid serious injury from falling or sliding out.

Always use the seat belt and insure that the child is properly positioned

according to these instructions.

WARNING: Never leave child unattended.

* Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and

cause hazardous unstable conditions.

* The maximum weight that can be carried in the basket is 5 lbs. The maximum weight that can be carried

in the Parent Tray is 3lbs. Excessive weight may cause a hazardous unstable condition to exist.

* Be certain the stroller is fully erect and latched in the open position before allowing the child near the

stroller.

* Use of the stroller with a child weighing more than 45 pounds will cause excessive wear and stress on the

stroller and may cause a hazardous unstable condition to exist.

* DO NOT use the stroller on stairways or escalators.

* Never allow your stroller to be used as a toy

* To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.

* Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or

repair parts as needed

* Discontinue use of stroller should it malfunction or become damaged. Please contact our customer service

Parts Hotline to arrange for repair or obtain replacement parts.

Please: If you experience any difﬁculty with the use of our product or have a question regarding these instruc-

tions, please contact our Customer Service Department at (800) 328-7363 between the hours of 8:00 am and

4:30 pm Paciﬁc Coast Time. Please do not return to the store as once it is returned it cannot be resold and the

materials and energy used to make it are wasted.

To Contact Us:

Baby Trend, Inc. Customer Service Hot Line

1567 S. Campus Ave. (800) 328-7363

Ontario, CA 91761 8:00 a.m. to 4:30 p.m. Paciﬁc Standard Time

WARNINGS

* Remove stroller from box. The front wheels, rear wheels, child tray, and

parent tray need to be installed prior to use.

* To attach the front wheels, unfold stroller as described in the section

following. See ﬁgure 1.

Lean the stroller backwards so that it rests on the handle and rear frame

tubes and the front wheel tubes are pointing upward.

* Position the front wheel assembly at the front tube such that the hole in the

swivel assembly will slide onto the front tube. Pull upward on the boot

to expose the push button. Push each front wheel assembly onto the front

tube being careful that wheel assembly locks onto the push button on the

front leg. Pull on the wheel assembly to ensure that it is securely attached

to the stroller. Please see ﬁgure 2a and 2b.

* Assemble the rear axle as follows: Insert the axle through each wheel and

lock in place with the light colored locking washer. Please see ﬁgure 3a.

Snap the cap into the recess in the wheel. Please see ﬁgure 3b. Pull on

each wheel to ensure that each is ﬁrmly attached to the axle.

* Lean the stroller forward to rest on the front wheels. Lift upward on the

rear tube of the basket to lock in the up position. See ﬁgure 11. To attach

the rear wheels, position the rear axle and wheel assembly such that the

brake levers are facing to the rear of the stroller. Press the rear wheel

assembly onto the rear frame tubes being careful that the push buttons on

the front of each rear tube engage the hole on the front of each rear wheel

housing. Pull on the rear wheel assembly to ensure that it is securely

attached to the stroller. Please see ﬁgure 4.

Ensure that the wheels are ﬁrmly locked into place. Do Not use the stroller

if the wheels are not locked into place, but rather contact our customer

service department immediately at (800) 328-7363, between the hours of

8:00am and 4:30pm PCT, for assistance

TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE FOLLOW THESE

INSTRUCTIONS CAREFULLY. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Car Seat

Front Wheels

Parent Tray

PARTS

TO ASSEMBLE STROLLER

Child Tray

Rear Axle

Solid Cap

Locking Cap

Rear Wheels

Stroller

Figure 1.

Base

Car Seat

Hub Cap

Front Wheels

Locking

Cap

Solid

Cap

Fig. 2bFig. 2a

Fig. 3a

Fig. 3b

Fig. 4

* To attach the front child tray, push the angled tray onto the post at the

end of right armrest, while pressing downward on the snap button, until

locked into place. Please see ﬁgure 5. Rotate the tray downward until

latched onto the left armrest. Please check that the snap button comes

through and securely latches the tray in place. Please see ﬁgure 6.

* To remove front child tray, press inward on the left side tray release button

and rotate upward on the tray. Please see ﬁgure 7. Please note that you

may remove the tray completely by depressing the snap button on the

right side as shown in ﬁgure 8 while pulling forward on the tray. Please

see ﬁgure 5.

* To attach the parent tray, align the ﬁttings on the ends of the parent tray

with the ﬁttings on the outsides of the handle. Push downward on the tray

until locked into place. Please see ﬁgure 9. To remove the parent tray,

pull outward on the bottom edges of the tray and lift upward. Please see

ﬁgure 10.

* The Drop-Top storage basket swings downward to allow easy access to

the basket contents. Lift upward on the rear tube of the basket to lock in

the up position. Please see ﬁgure 11. To lower the basket, pull rearward

on the center of the basket tube and press downward. Please see ﬁgure

12.

* Push forward on the front frame of the canopy to open. Please see ﬁgure

13.

Your stroller is now ready to use.

Figure 7.

Figure 5.

Figure 6.

Figure 9. Figure 10.

Figure 11. Figure 12.

Figure 8.

Figure 13.

Front frame

tube

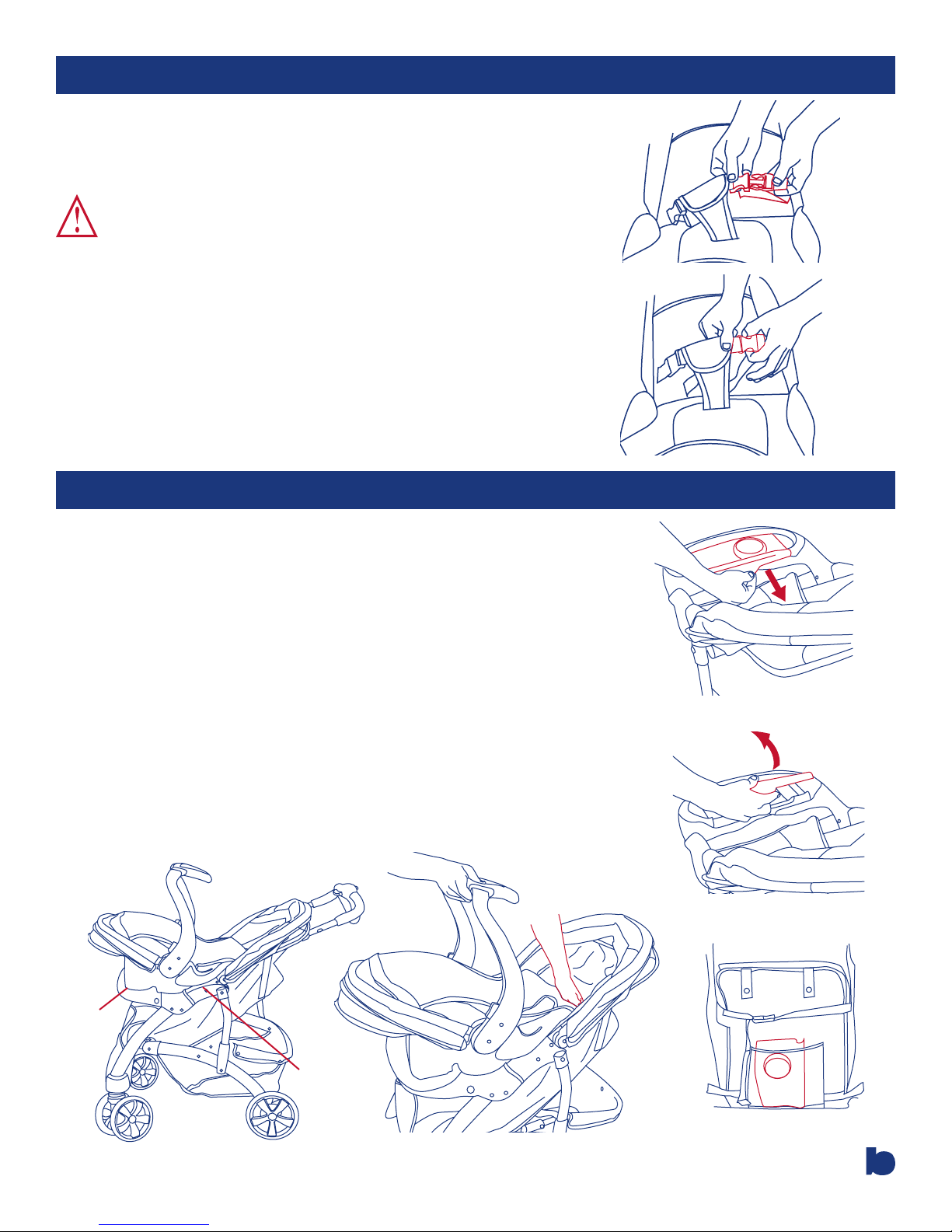

* Carefully place the child in the stroller seat and bring the seat belt around

the child’s waist. Place the crotch strap between the child’s legs. Insert the

male end of each waist belt into the buckle on the crotch strap. Tighten

the seat belt to be snug around the child’s waist. Please see ﬁgure 14.

WARNING: Avoid serious injury from

falling or sliding out. Always use the seat belt.

* To release, apply pressure to both sides of each male clip until the clip

is released. This process requires a moderate amount of effort so as to

prevent an accidental release by your child. Please see ﬁgure 15.

Figure 14.

TO SECURE THE CHILD

ATTACHMENT OF THE BABY TREND INFANT CAR SEAT

* To attach the Baby Trend Infant Car Seat, place seat back in the partially

reclined position as described in the seat back positioning section

following. Please see ﬁgure 22 and 23.

* Check that the front child tray is ﬁrmly attached to the stroller

armrests. Pull rearward on the rear edge of the front child tray cover

while lifting upward on the tray cover. Please see ﬁgure 16 and 17.

Remove the tray cover and store in the pocket in the rear of the seat.

Please see ﬁgure 18.

* Position the Infant Car Seat, facing toward the rear of the stroller, so

that the seat shell goes into the front tray and latches into place. The

sides of the car seat will rest on fold joints. Please see ﬁgure 19. Check

that the Infant Car Seat is ﬁrmly locked onto the front tray before

using.

* To remove the Infant Car Seat, squeeze the release handle located at the

foot-end of the seat and carefully lift upward on the seat. Please see

ﬁgure 20.

Figure 15.

Figure 16.

Figure 17.

Figure 18.

Figure 19. Figure 20.

Rest on

fold joints

Locks

into tray

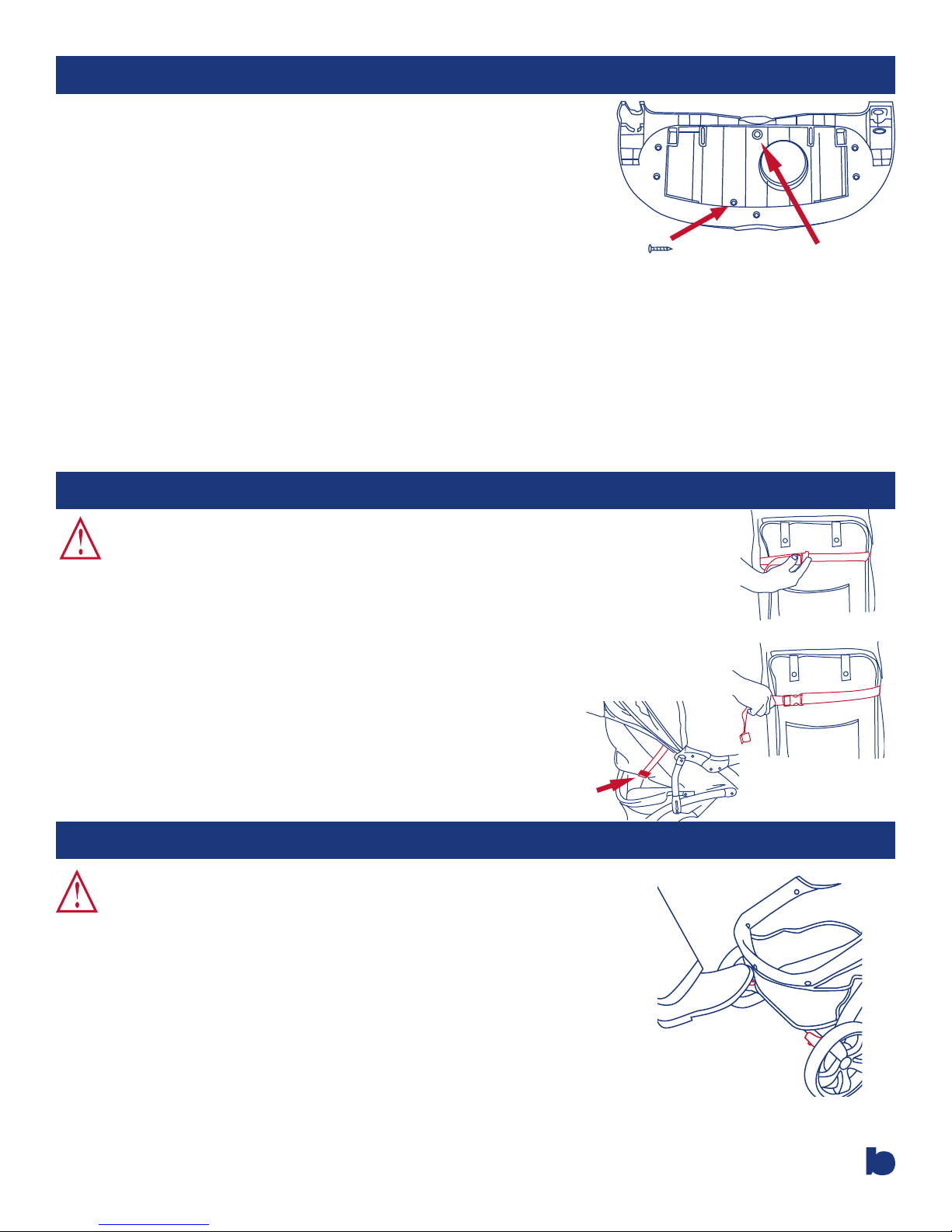

* The cover of the child/car seat tray may be fastened in the closed position

after your child outgrows the infant car seat. This will prevent an older

child from opening the child tray. To secure the tray cover, remove the

tray from the stroller as shown in the to remove front child tray section.

Install the tray cover. Place the tray with the lid side down on a soft

ﬂat surface. Remove the screw stored under the tray as shown in ﬁgure

21. Insert the screw into the hole in the bottom of the tray and into the

matching hole in the cover. Tighten until snug. Do not over tighten. If

you wish to use the car seat tray function at a later date (for a second

child) remove the screw and store in the tray bottom as before. Please

see ﬁgure 21.

FRONT CHILD / CAR SEAT TRAY COVER

SEAT BACK POSITIONING

WARNING: The upright position should be

used only for a child that is at least 6 months old.

* The seat has a multiple position recline that is controlled by a strap and

buckle assembly behind the seat. To recline the seat, loosen the strap

through the buckle and adjust to the required recline position. Please see

ﬁgure 22. To place the seat back in a more upright position, press upward

on the seat back with one hand while pulling the straps through the buckle

with the other. See ﬁgure 23. The strap will lock automatically.

Strap must go across slot on either side of central seat body when

adjusting seat back height. See ﬁgure 23a.

BRAKES

WARNING: Always set brakes when the

stroller is not being pushed so that the stroller will

not roll away. Never leave stroller unattended on a

hill or incline as the stroller may slide down the hill.

* To engage brakes, apply light downward pressure to the brake lever

located on each rear wheel. The stroller may require slight forward or

rearward movement in order to line up the teeth on the brake with each

wheel brake cluster. See ﬁgure 24. Check that the stroller will not move

and that the brakes are properly applied. To release, gently lift up on the

brake lever.

Figure 22.

Figure 23.

Figure 24.

Figure 21.

Screw storage

boss-factory

installed screw

for later use

Hole in tray to lock down lid

after car seat use

Figure 23a.

Figure 25.

* To open the canopy, push forward on the front frame of the canopy. To

close canopy, pull the front edge toward the rear of the stroller until

folded. Always fold the canopy prior to folding the stroller frame. Please

see ﬁgure 25.

CANOPY

TO REMOVE FRONT CHILD TRAY

* To remove front child tray, press inward on the tray release button on the

left armrest and pull up on the tray. Please see ﬁgure 7. Also, the tray

may be completely removed by depressing the snap button on the right

side as shown in Figure 8 while pulling forward on the tray

BASKET

* The Drop-Top storage basket swings downward to allow easy access to the

basket contents. Lift upward on the rear tube of the basket to lock in the up

position. Please see ﬁgure 26. To lower the basket, pull rearward on the

center of the basket tube and press downward. Please see ﬁgure 27.

Figure 26.

Figure 27.

Front frame

tube

TO UNFOLD STROLLER

Figure 29.

TO FOLD STROLLER

Figure 28.

* Close the canopy as described in the Canopy section above. Place seat

back in fully reclined position by unbuckling recline strap. Pull

stroller backward several inches to rotate the front wheels to the front.

Please see ﬁgure 28. To fold the stroller slide the red fold lock with

your thumb while squeezing the large red fold button in the center of the

handle and push downward on the handle. Once the stroller begins to

fold, release the red handle and pull rearward on the child tray until the

stroller is folded. Please see ﬁgure 29. Secure the stroller in the folded

position by fastening the fold locking latch, located on the right side of

the stroller on the frame below the parent tray, over the extended rivet on

the frame tube. Please see ﬁgure 30.

Figure 31.

Figure 32.

* Release the folding latch, which is located on the right side. See ﬁgure

31.

* Lift up on the stroller handle with both hands until the stroller frame is

erect and locked in the open position. See ﬁgure 32. The stroller has

spring-loaded latches on both sides of the frame. Test that both latches are

fully engaged prior to placing your child in the stroller.

Figure 30.

CLEANING SEAT PAD

* The seat pad may be removed for washing. To remove the seat pad, unsnap

the two straps on the rear of the seat as shown in ﬁgure 33. Unfasten the

seat belt and pull the waist belts and crotch strap through the cutouts in

the pad as shown in ﬁgure 34. Pull downward on the front edge of the

seat pad to remove from the stroller as shown in ﬁgure 35. Please see the

care label on the rear of the seat for washing instructions. To re-install the

pad, follow these instructions in reverse order.

IF YOU EXPERIENCE ANY DIFFICULTY IN USING THIS PRODUCT,

PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT (800) 328-7363

BETWEEN THE HOURS OF 8:00AM AND 4:30PM PACIFIC COAST TIME FOR ASSISTANCE.

STOP

Figure 33.

Figure 34.

Figure 35.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Baby Trend Poussette

Baby Trend

Baby Trend Safari 1866CT Manuel utilisateur

Baby Trend

Baby Trend TS42 A Series Manuel utilisateur

Baby Trend

Baby Trend EZ Ride TS40 A Series Manuel utilisateur

Baby Trend

Baby Trend Expedition EX JG86A Manuel utilisateur

Baby Trend

Baby Trend Trendsport Lite 1510 Manuel utilisateur

Baby Trend

Baby Trend SS86 Manuel utilisateur

Baby Trend

Baby Trend 1305 Manuel utilisateur

Baby Trend

Baby Trend SNAP N GO 1305 Manuel utilisateur

Baby Trend

Baby Trend Sonar Cargo TS13 D Series Manuel utilisateur

Baby Trend

Baby Trend TS44 A Series Manuel utilisateur

Baby Trend

Baby Trend Tango 3 All-Terrain Travel System Manuel utilisateur

Baby Trend

Baby Trend 1st Debut TS86 Manuel utilisateur

Baby Trend

Baby Trend TJ50B Manuel utilisateur

Baby Trend

Baby Trend Expedition LX Manuel utilisateur

Baby Trend

Baby Trend Expedition CW01 Series Manuel utilisateur

Baby Trend

Baby Trend TS44 C Series Manuel utilisateur

Baby Trend

Baby Trend Sit N' Stand 2.0 SS27 Series Manuel utilisateur

Baby Trend

Baby Trend Expedition sport Manuel utilisateur

Baby Trend

Baby Trend TS43 C Series Manuel utilisateur

Baby Trend

Baby Trend JG50 Manuel utilisateur

Baby Trend

Baby Trend 7311 LX Manuel utilisateur

Baby Trend

Baby Trend MUV Expedition WG01 M Series Manuel utilisateur

Baby Trend

Baby Trend Expedition 9199 Manuel utilisateur

Baby Trend

Baby Trend Expedition 9178TW Manuel utilisateur

Manuels Poussette populaires d'autres marques

Hauck

Hauck Priya Trioset Manuel utilisateur

CHILDHOME

CHILDHOME CWQDN Manuel utilisateur

Dreamer Design

Dreamer Design Rebound GST Manuel utilisateur

Britax

Britax STEELCRAFT AGILE Manuel utilisateur

Graco

Graco 7427 Manuel utilisateur

Comfort

Comfort COMPASS Manuel utilisateur

OBaby

OBaby Aura Manuel utilisateur

Tutek

Tutek Tirso Manuel utilisateur

Babify

Babify Dual Plus Manuel utilisateur

Graco

Graco Stroller Manuel utilisateur

Special Tomato

Special Tomato Jogger Manuel utilisateur

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuel utilisateur

Otto Bock

Otto Bock Kimba neo Manuel utilisateur

Milly Mally

Milly Mally ROYAL Guide de démarrage rapide

Hauck

Hauck DUETT 3 PRAM Manuel utilisateur

BOB

BOB DUALLIE Manuel utilisateur

Nuna

Nuna Pepp Manuel utilisateur

Britax

Britax B2 Manuel utilisateur
