BTEK AquaShield Series Bench Scale Instruction Manual

- 2 -

Table of Contents

1. Safety First……………………………………………………….…………………………. 3

2. Introduction……………………………………………………….………………………… 4

3. Specifications…………………………………………………….………………………… 5

4. AquaShield Bench Scale Assembly…………………………….…………………. 6, 7, 8

5. Indicator Installation…………………………………………….………………………. 8, 9

6. Scale Setup……………………………………………………………………………. 10,18

7. Scale Calibration……………………………………………………………………….19, 21

8. Load Cell Replacement………………………….……………….………………………. 22

9. Stack Light Installation…...……………………….………………………………………. 23

10. Exploded View……………………………………………………………………………. 24

11. Replacement Part Numbers…………………………………………………………….. 25

12. T-Series Reference Manual Links……………………………………………………… 26

13. BTEK Contact Information……….….………………………………………………….. 27

BTEK AquaShield Series Bench Scale Instruction Manual

- 3 -

Safety First

•Please call a BTEK authorized service provider for service or repairs.

•Ensure that the area used for this equipment, is safe for this equipment.

•Allow only qualified personnel to work on electric / electronic components.

•Do not use this equipment for anything other than its intended use.

•Ensure equipment is plugged into stable power sources.

•Keep equipment away from high voltage, vibration, and high draft areas.

•Keep equipment cords and cables secured and protected.

•Perform periodic inspections to keep equipment in good working order.

•Never apply a load over the capacity of your scale.

•Keep the area around your scale free of debris.

SAFETY WARNING

Always unplug or remove power source from equipment before cleaning with water

unless it has been installed by professionals that determine otherwise.

After cleaning is done always ensure equipment is completely dry before returning to

or plugging into power source unless it has been installed by professionals that determine

otherwise.

BTEK AquaShield Series Bench Scale Instruction Manual

- 4 -

Introduction

The information provided in this manual is a guide on installing the B-TEK, LLC. NB series

single point bench scale. This document is intended as a guide only, and the actual installation

should be performed by qualified personnel only.

All sales of goods are subject to the standard warranty and the standard terms and conditions

published by B-TEK, LLC.

Should you have any questions regarding the NB series single point bench scale, contact your

local B-TEK, LLC. scale representative.

oAvailable in 10” X 10”, 12” X 12” and 18” X 18” sizes.

oAquaShield IP65 can be used in non-high pressure washdown applications.

oAquaShield Max IP69K can be used in high pressure wash down applications.

oAvailable in 5lb/2.5kg, 20lb/10kg, 50lb/25kg, 100lb/50kg, 200lb/100kg and

capacities.

oStructure stainless steel.

oSingle point aluminum load cell or stainless steel IP69K load cell.

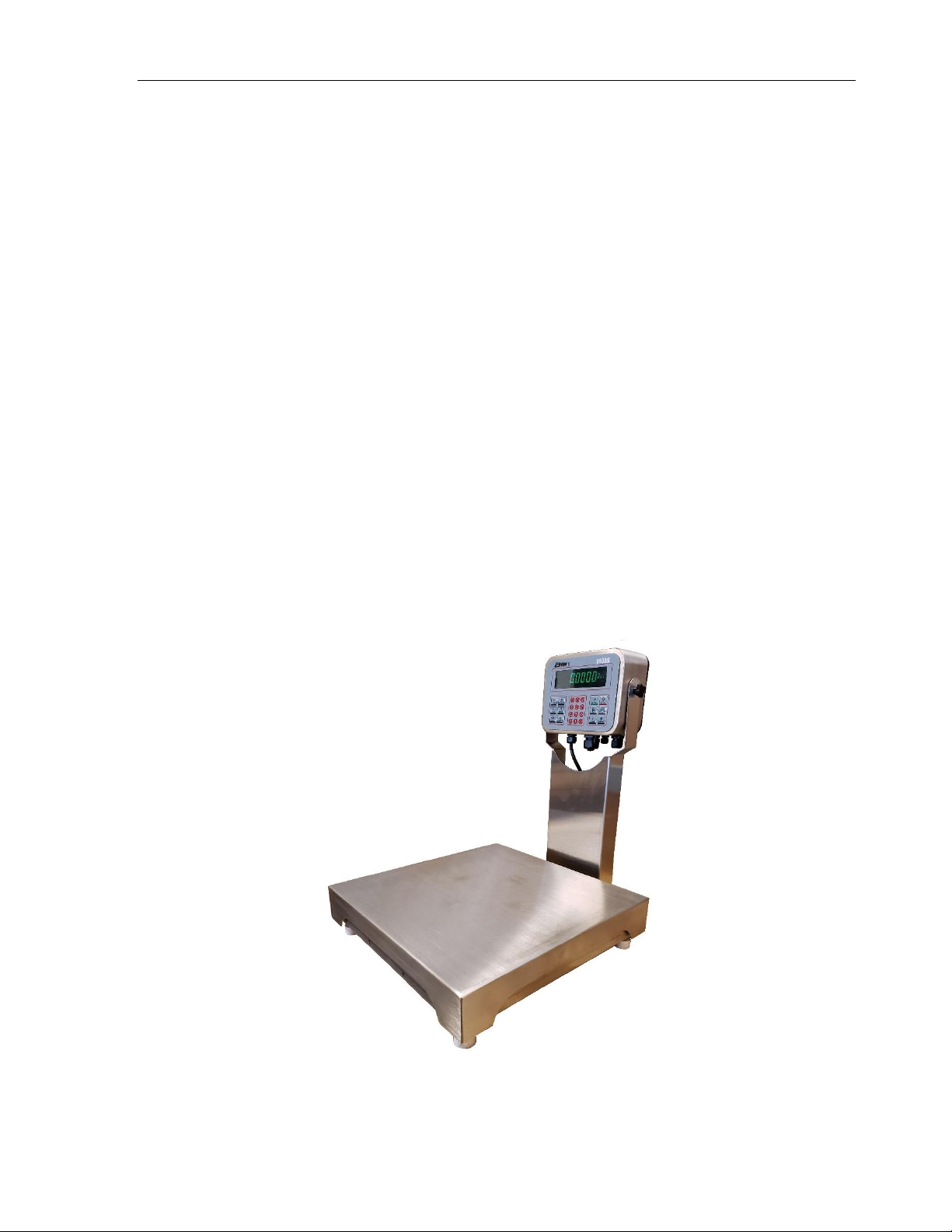

BTEK AquaShield Bench Scale Shown with T405S

Indicator

BTEK AquaShield Series Bench Scale Instruction Manual

- 5 -

Specifications

MODEL

NB-1010

NB1212

NB1818

Capacities

5lb/2.5kg, 20lb/10kg,

50lb/25kg

50lb/25kg,

100lb/50kg,

200lb/100kg

50lb/25kg,

100lb/50kg,

200lb/100kg

Readability

.001lb/.0005kg, .005lb/.002kg,

.01lb/.005kg

.01lb/.005kg,

.02lb/.01kg,

.05lb/.02kg

.01lb/.005kg,

.02lb/.01kg,

.05lb/.02kg

Max. Divisions

5000e

Weighing Units

lb, kg

Platter sizes

10” x 10”, 12” x 12”, 18” x 18”

Construction

Stainless Steel

Load Cell Operating

Temperature

14°F - 104°F / -10°C - + 40°C

Weight Base

11.5lbs.

15.5lbs.

44.5lbs.

Weight Column

3.5lbs.

Weight Indicator

T401,T403 5.5lbs

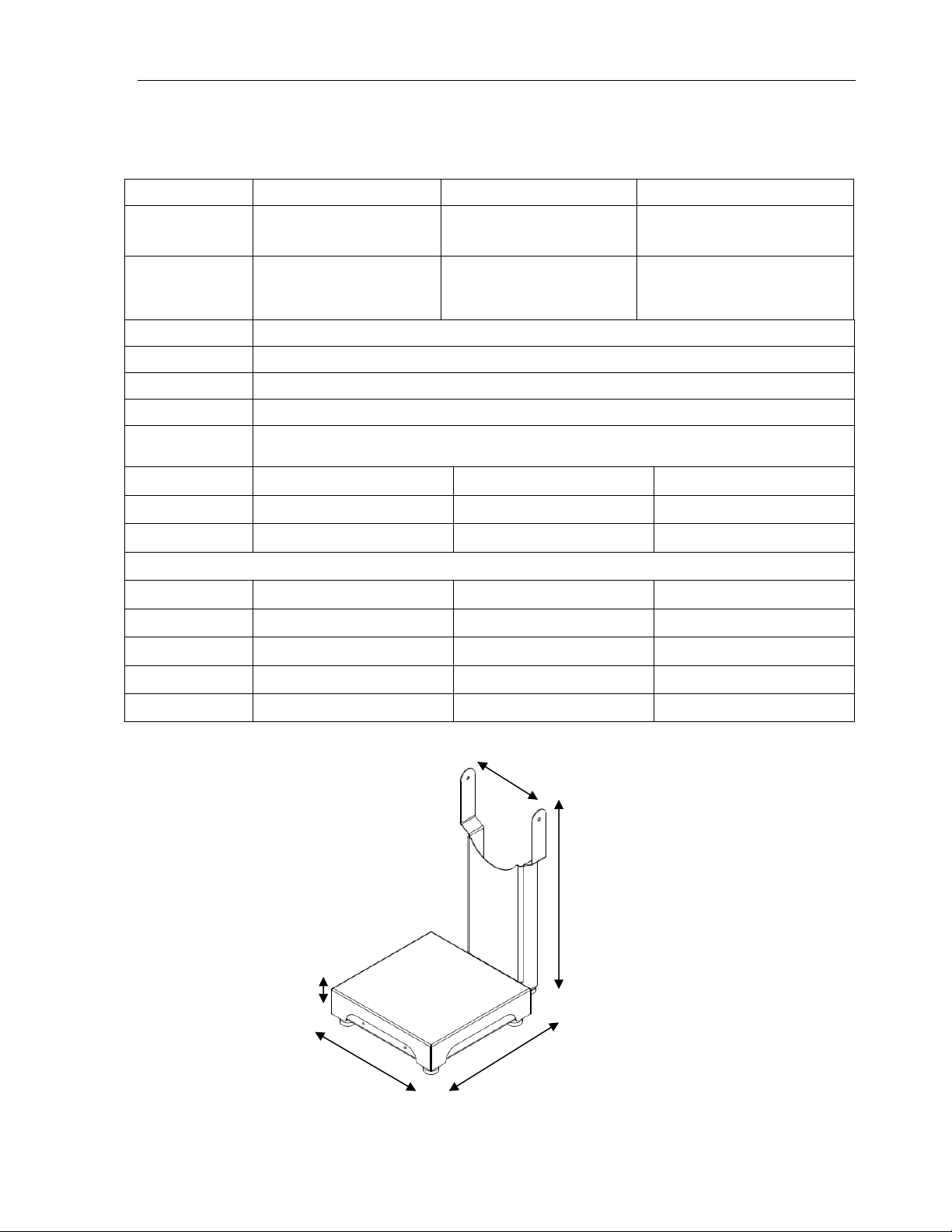

DIMENSIONS

8.5 inches

20.5 inches

14.0 inches

16.0 inches

22.0 inches

10.0 inches

12.0 inches

18.0 inches

3.5 –4.0 in.

4.0 –4.5 in.

3.75 –4.25 in.

BTEK AquaShield Series Bench Scale Instruction Manual

- 6 -

Assembly

Unpacking

Carefully remove the bench scale out of its box, ensure that it is not damaged, and all

parts are included.

•Bench scale with load cell and spider assembly.

•Column (Optional)

•Platter

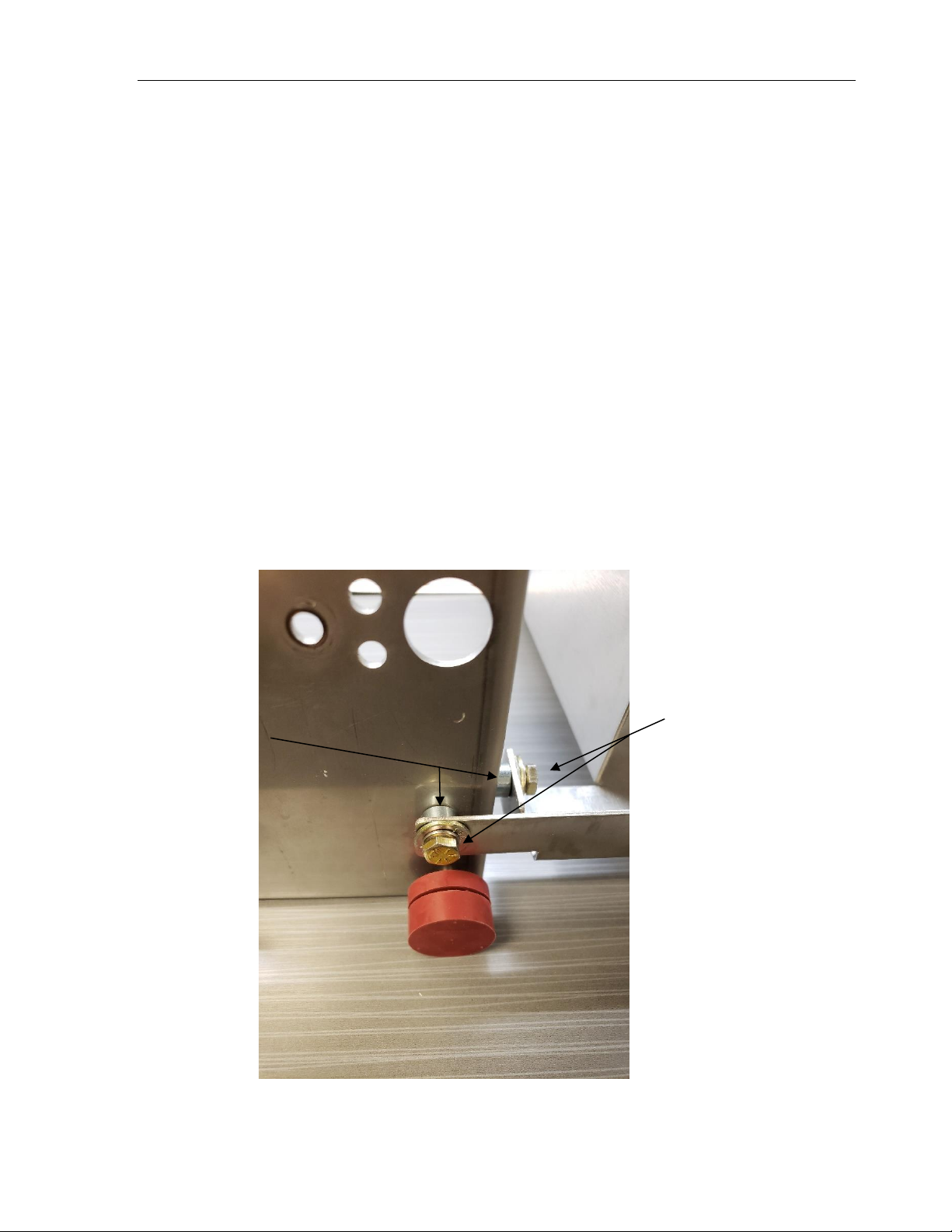

Assemble the bench scale and the column by inserting bolts spacers as shown in image

below. Put lock washers and nuts on the bolts and tighten until lock washer snaps in its

lock position.

Spacers

Bolts

BTEK AquaShield Series Bench Scale Instruction Manual

- 7 -

After fastening the column to the base install all the bench scale and column leveling

feet as shown in the image below.

Place the bench scale on a level surface and adjust the feet on the bench base only.

(Do not adjust the column feet at this point) until the bullseye level shows that it is

level as shown in the image below. Once the scale is positioned and level adjust the

column feet until they sit firm to the surface (It is important to make sure that the

column feet are taking the pressure off the column only). Finally, tighten all lock

nuts.

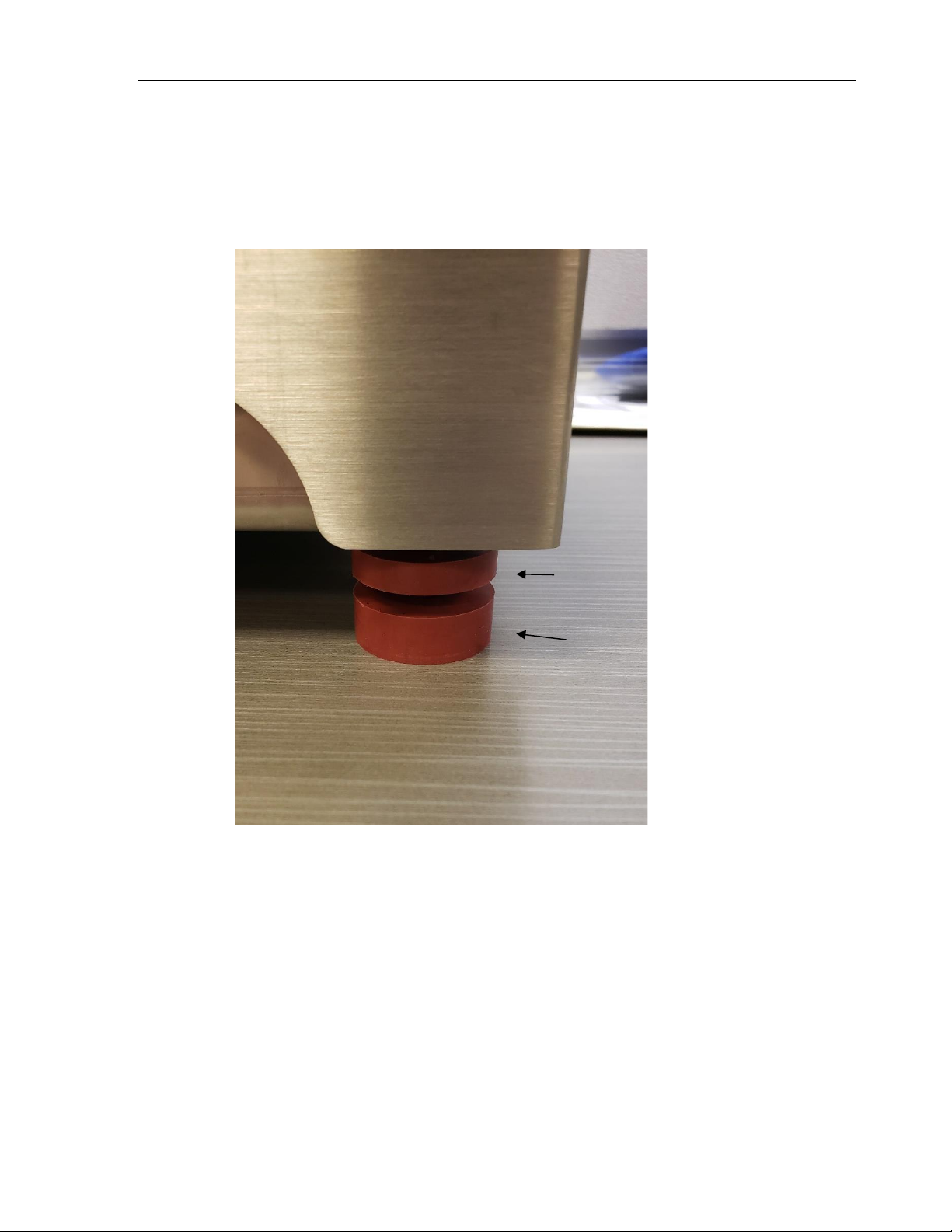

Leveling Foot

Leveling Foot Lock Nut

BTEK AquaShield Series Bench Scale Instruction Manual

- 8 -

Bullseye Level Adjusting

Overload Stop

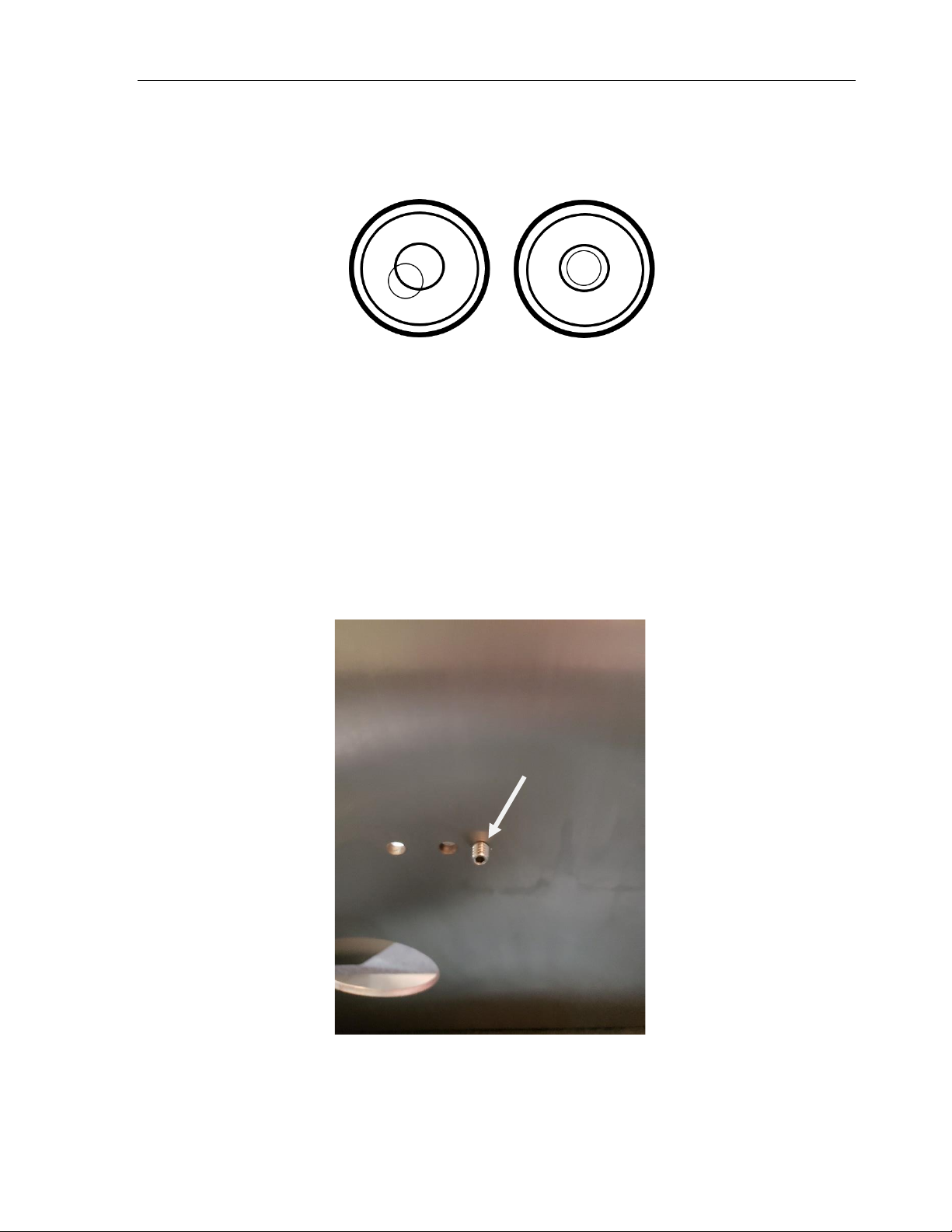

The overload stop is a set crew placed on the underside of the base and is designed so

that the load cell bottoms out when more weight is applied than the scales capacity. To

adjust this screw simply apply the weight that matches the capacity of the scale plus 5%

and adjust the screw in until it hits the cell. The overload stop is now set to stop at

anything over 105% of the scale’s capacity.

Unlevel

Level

Overload Screw

BTEK AquaShield Series Bench Scale Instruction Manual

- 9 -

Indicator Installation

Mount the indicator on the column indicator mounting bracket. Tighten the wing nuts to

secure the indicator to the column.

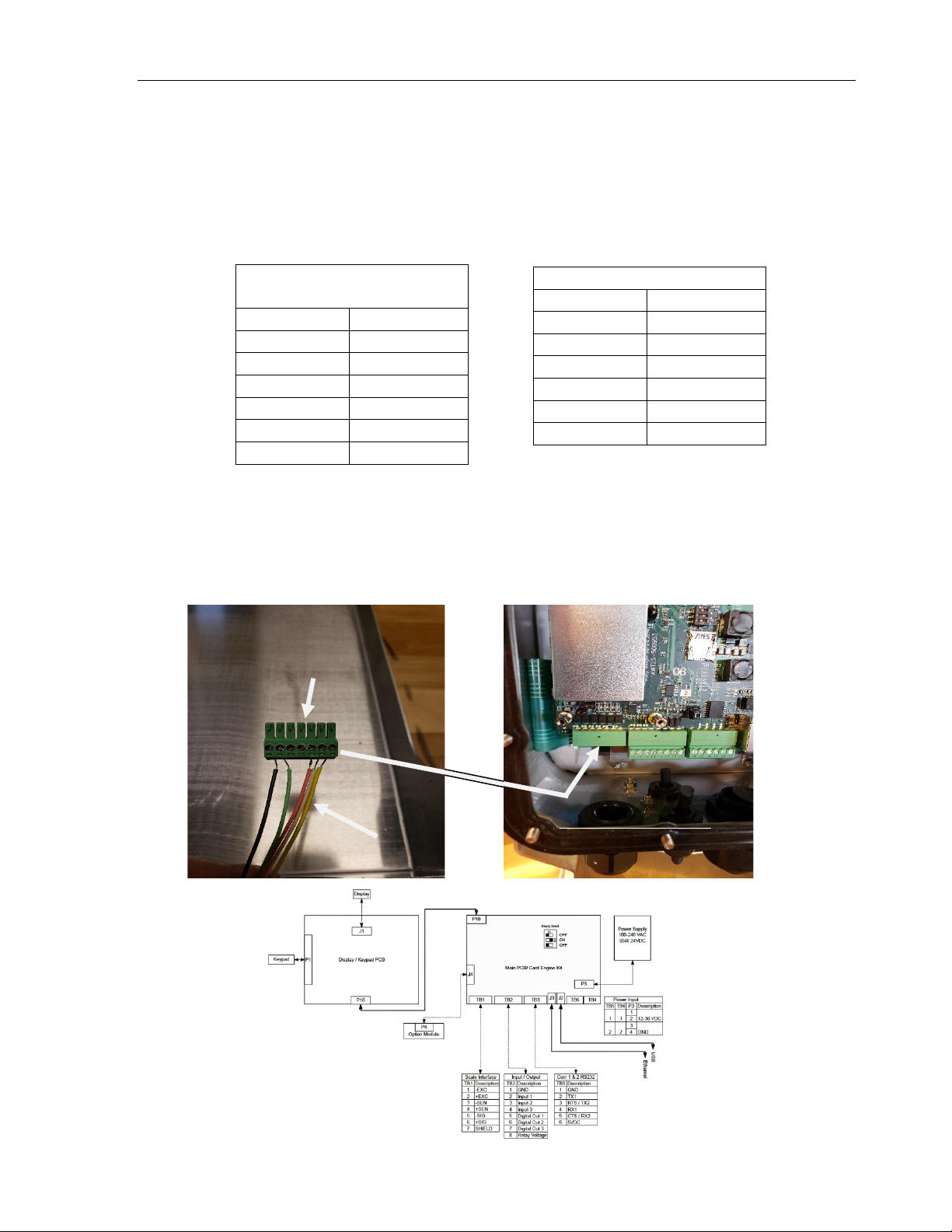

Terminate the load cell wires to the load cell terminal located on the main board of the

indicator. See diagram below for load cell wire color code.

After calibrating the scale, test it at the low end, middle and high end to insure it is

working proper. Once the scale is confirmed working, the scale is now ready for use.

Note: The screws on the backside of the T401S and T403S should be tightened to

6 in lbs.

B-TEK BT-ASP-1 Load

Cell

+ Input

RED

- Input

BLACK

+ Sense

BLUE

- Sense

BROWN

+ Output

GREEN

- Output

WHITE

Shield

CLEAR

Flintec PC6 Load Cell

+ Input

GREEN

- Input

BLACK

+ Sense

- Sense

+ Output

WHITE

- Output

RED

Shield

YELOW

INDICATOR EXAMPLE

BTEK T405S Indicator

Load Cell Terminal.

Load cell Cable

Load cell terminal

T401, T403 terminals

BTEK AquaShield Series Bench Scale Instruction Manual

- 10 -

Setup Procedure

BTEK T401S and T403S Indicators

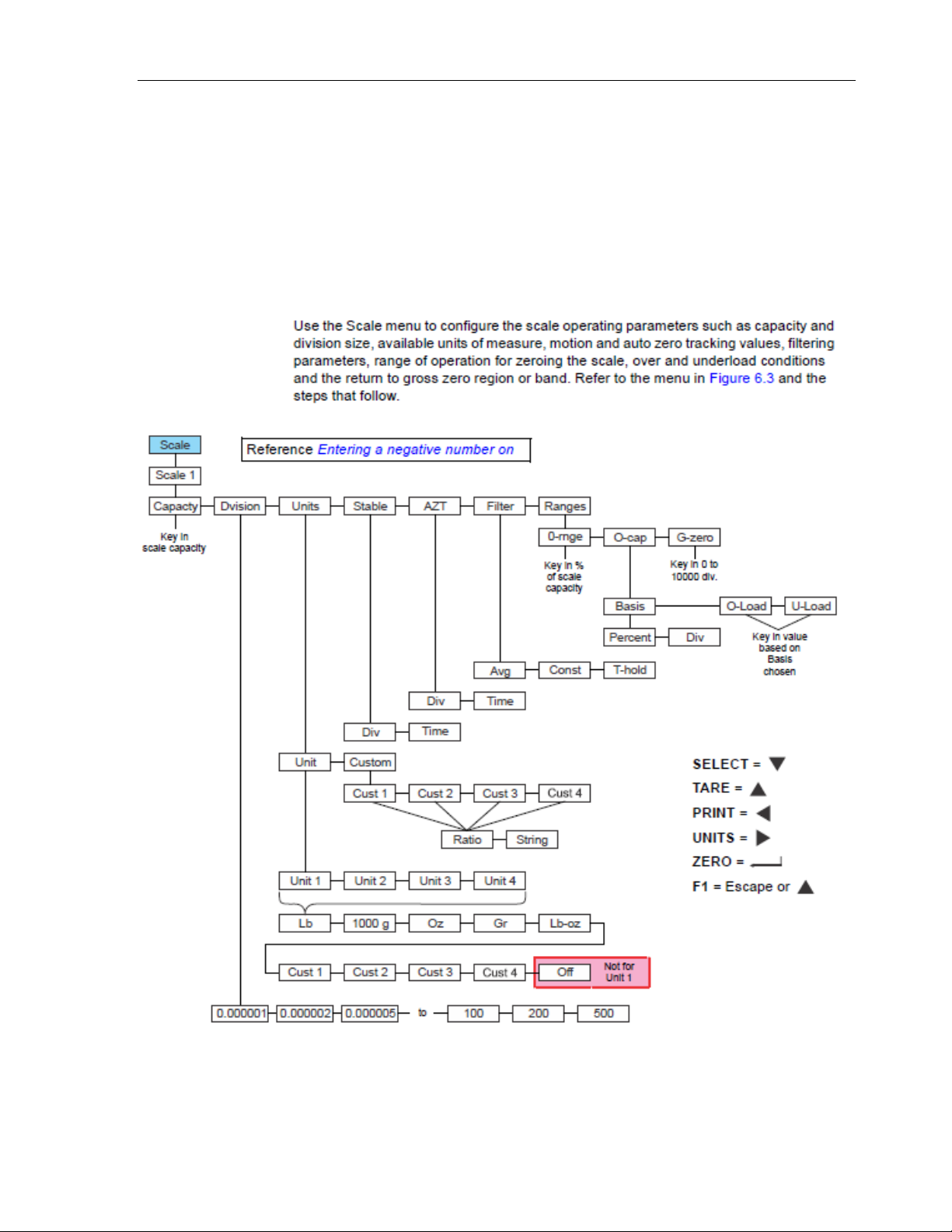

Scale Menu

Referenced with BTEK T401S and 403S Series Manuals

Scroll to page 26 for a complete manual download on these indicators.

Press and hold the setup button until PASS is displayed, type in 3088 and press enter or zero button to enter

the setup menu.
