B-Tech BT893 Manuel utilisateur

B-TECH AV MOUNTS

www.btechavmounts.com

PLEASE KEEP THIS FOR FUTURE REFERENCE

BT893

HEAVY DUTY PROJECTOR CEILING MOUNT

WITH MICRO-ADJUSTMENT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

CONTENTS

INSTALLATION TOOLS REQUIRED

FEATURES

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Typical Pole Installations..................................................................................................................14

Portrait Mounting............................................................................................................... ...............13

Product Dimensions..........................................................................................................................14

B-Tech Contact Details.....................................................................................................................16

• Heavy duty ceiling mount for projectors up to 70kg (154lbs)

• Can be mounted direct to ceiling or onto Ø50mm

extension poles

• +20°/-10° Tilt (Pitch) incremented adjustment

+/-5° Additional Tilt (Pitch) micro-adjustment

+/-5° Roll micro-adjustment

25° Yaw adjustment (ceiling mounted)

45° Yaw adjustment (pole mounted)

• Extendable mounting plate features 4-point micro-adjustment

for perfect alignment of projected images

• Micro-adjustment is altered using handwheels for better

grip and more controlled adjustment

• Optional extension legs can be used to accommodate

larger fixing patterns

• Can mount projector upright for portrait or vertical projections

• Max. distance between projector fixings: 873mm

• Suitable for projectors using M6, M8, M10 and M12 fixings

• Ideal for use with projection mapping projectors

• Quick and easy assembly

15˚

25˚ 25° 45°

5˚

70kg

COMPATIBLE

POLE MOUNTED

DrillPencil

BT893

PARTS LIST

Suitable for loads

up to 70kg

PLEASE KEEP THIS FOR FUTURE REFERENCE

REF PART NAME QTY

POLE MOUNT

LONG LEG

SHORT LEG

M8 x 12mm SCREW

M8 x 60mm SCREW

4mm HEX KEY

SQUARE NUT

5mm HEX KEY

6mm HEX KEY

8mm HEX KEY

M8 WASHER

CEILING MOUNT

PROJECTOR MOUNT

166

129

101

111

121

131

INTERFACE KIT

6M6 x 16mm SCREW

M6 x 30mm SCREW

M8 x 16mm SCREW

M8 x 30mm SCREW

M10 x 16mm SCREW

M10 x 30mm SCREW

M12 x 30mm SCREW

M12 x 16mm SCREW

M6 WASHER

M8 WASHER

M10 WASHER

M12 WASHER

M12 x 5mm SPACER

M12 x 10mm SPACER

M12 x 20mm SPACER

INSTALLATION INSTRUCTIONS

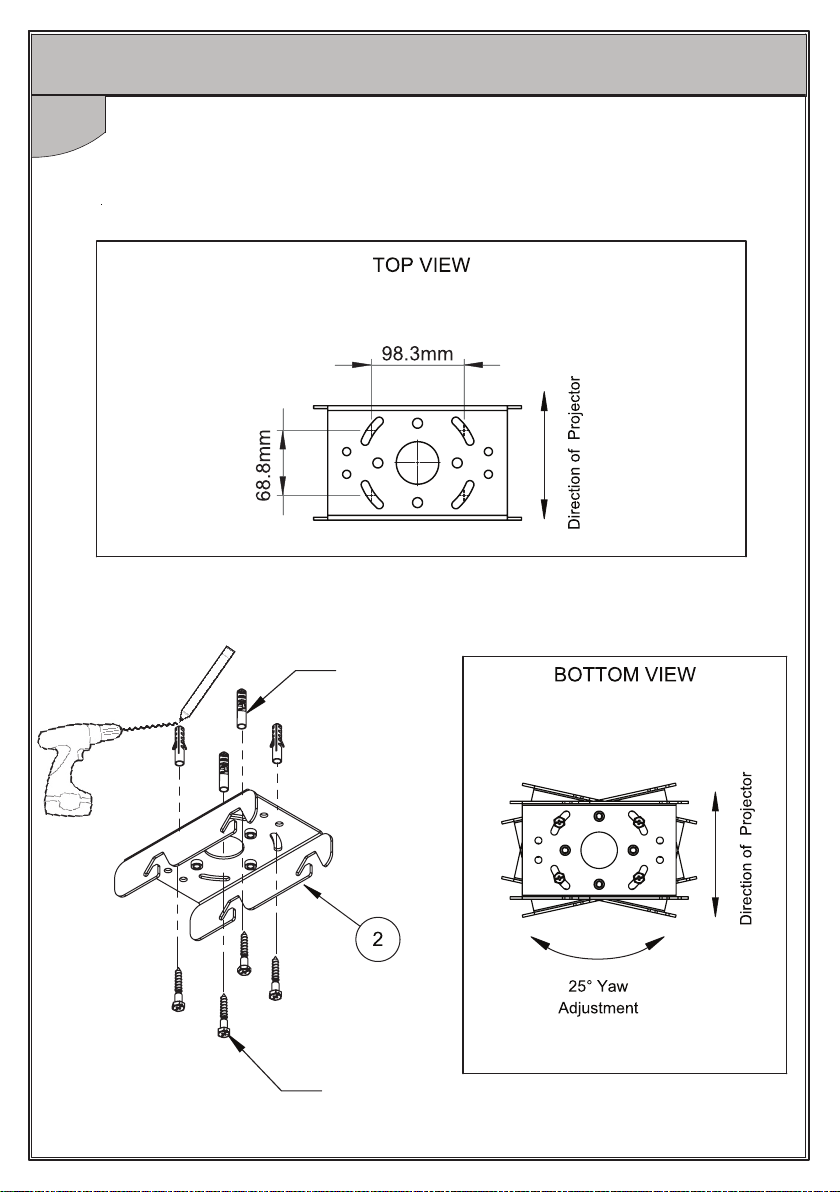

Fix Ceiling Mount in Place

A. Directly to ceiling.

Fix item 2 directly to the ceiling using suitable fixings (not supplied).

Holes should be drilled into the ceiling at these positions to allow for 25° yaw adjustment.

Ceiling Mount slots allow for adjustment

as shown.

Optional

depending on

type of ceiling

Ceiling fixings

not supplied

B. Using a pole mount.

i) Fix item 2 to item 3 using items 6 & 7.

ii) Insert a BT7850 Ø50mm pole (sold separately) into item 3 and secure in place with item 8.

Tighten grub screws using item 10.

GRUB

SCREW

BT7850 POLE

(sold separately)

To use yaw adjustment on the pole mount, loosen

4 x item 6 by 1 turn. Ensure screws are

tightened fully after adjustment has been made.

NOTE: Item 8 can be replaced with item 6

to prevent cables being obstructed.

WARNING

loosened only

2Attach Projector Mount to Projector

A. Without legs (up to 200 x 200mm fixing centres).

Attach item 1 directly to the projector using items A - D & I - J with items 10 -13.

Fix mount by using suitable holes and / or slots on the bottom of the projector mount.

PROJECTOR

Arrow indicates

front of mount

Note: The tilt adjustment feature can be used to help access fixing holes.

Remove the M8 x 12mm screw as shown and pull the plunger to change tilt adjustment.

PLUNGER

M8 x 12mm

SCREW

B. Using legs

Attach items 4 / 5 to item 1 using items 6 & 9.

Fix items 4 / 5 to the projector using items A - O.

Arrow

indicates

front of

mount

Spacers (items M, N, O)

are to be used where

fixing holes on the

projector are uneven.

PROJECTOR

Interface Screws

Note: Where possible, use

all fixing holes on projector

(4 minimum).

Note: Where possible, use

2 x item 6 and 2 x item 9

for each leg.

Projector Mount attached to

projector using 4 long legs and

2 short legs:

3Hook Projector Mount onto Ceiling Mount

Hook the 4 M8 x 12mm screws (attached to item 1) into

the 4 hook-in slots on item 2.

Fully tighten all 4 screws once hooked on.

Use gap to

hook onto item 2.

M8 x 12mm

SCREW

(Do not

remove

these screws). IMPORTANT

All 4 M8 x 12mm screws

must be fully tightened

once hooked on.

CEILING

Set Adjustments

A. Set main tilt angle adjustment (-10° / +20°)*.

*An +/-5° additional tilt is available when the micro-adjustment is used.

Remove M8 x 12mm screw.

Hold projector steady, pull plunger to disengage and change tilt. When desired tilt is

reached, ensure plunger is fully engaged and replace M8 x 12mm screw.

WARNING

M8 x 12mm SCREW

PLUNGER

Main tilt angle

guidelines are

located on the

side of the

projector mount.
