Aztech HomePlug Turbo Fiche d'information produit

Easy Start

85Mbps High Speed HomePlug Ethernet

Adapter

Easy Start

Easy Start Page 1 of 20

Easy Start

Easy Start Page 2 of 20

Table of Contents

Preliminary Pages Page

Table of Contents...................................................................................................................2

Chapter 1 – Introduction......................................................................................................5

Chapter 2 – Installation & Connection ................................................................................6

2.1 System Requirements.......................................................................6

2.2 Installation & Uninstallation of Configuration Utilty......................6

2.3 Connection & Indicator Lights.........................................................8

Chapter 3 – All About The Home Network.........................................................................9

3.1 Remove/Disable Conflicts................................................................9

3.1.1 TCP/IP..............................................................................................9

3.1.2 Internet Properties ............................................................................9

3.2 Examples Of Applications..............................................................10

3.2.1 Home Networking – Option 1........................................................10

3.2.2 Home Networking – Option 2........................................................10

3.2.3 Home Networking- Option 3..........................................................11

3.2.4 Home Networking – Option 4........................................................11

3.3 Care Instructions.............................................................................12

3.3.1 Network Volume............................................................................12

3.3.2 Network Security............................................................................12

3.3.3 How to Use Passwords Correctly...................................................12

Chapter 4 – Configuration Utility For Windows...............................................................13

4.1 Main Screen....................................................................................13

4.2 Privacy Screen................................................................................17

4.3 QoS Screen.....................................................................................18

4.4 Diagnostics Screen .........................................................................19

4.5 About Screen..................................................................................20

All the pictures shown in this Easy Start Manual are for illustration only.

Easy Start

Safety Summary Messages

WARNING

Easy Start Page 3 of 20

HIGH VOLTAGE

is used in the equipment. Make sure equipment is properly grounded

BEFORE opening. Failure to observe safety precautions may result in electric

shock to user.

CAUTION

Check voltages before connecting equipment to power supplies. Wrong

voltages applied may result in damage to equipment.

Easy Start

Easy Start Page 4 of 20

Important Safety Instructions

Please read these instructions carefully:

1. Unplug the HomePlug Ethernet Adaptor from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2. Do not use the HomePlug Ethernet Adaptor near water.

3. The HomePlug Ethernet Adaptor should never be placed near or over a radiator or heat

4. The HomePlug Ethernet Adaptor should be operated from the type of power indicated on

the marking label. If you are not sure of the type of power available, consult your dealer

or local power company.

5. The HomePlug Ethernet Adaptor relies on the building’s electrical installation for short-

circuit (over current) protection. Ensure that a fuse or circuit breaker no larger than 120

VAC or 230 VAC (depends on the power supply type in your country) is used on the

phase conductors (all current-carrying conductors).

6. Plug the HomePlug Ethernet Adaptor directly into a 120V AC or 230V AC (depends on

the power supply type in your country) wall outlet. Do not use an extension cord between

the adapter and the AC power source.

7. Do not attempt to service the HomePlug Ethernet Adaptor yourself, as opening or

removing covers may expose you to dangerous voltage points or other risks as well as

ruin the product warranty. Refer all servicing to qualified service personnel only.

8. Unplug the HomePlug Ethernet Adaptor from the wall outlet and refer the product to

qualified service personnel for the following conditions:

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally when the operating instructions are

followed.

• If the product exhibits a distinct change in performance.

Easy Start

Chapter 1 – Introduction

One of the major drawbacks in setting up home network is the absence of required wiring inside

the house to interconnect networked computers. In recent years several technologies have

attempted to address the issue. The most prominent technology so far is the family of WIFI

(802.11 X) products. Recently, however, another technology called HomePlug has come forth. It

uses electrical grids, already available inside walls to transmit data from computer to computer.

HomePlug technology modulates computer data in a way to enable them use power grid as a

medium of transmission from point to point. Using this technology, two computers have a virtual

Ethernet connection without the need to be physically connected to each other.

The HomePlug Ethernet Adaptor provides No New Wires ®communications to any rooms, over

any powerline wires, at the speed of up to 85Mbps. It has 3 indicator lights (LEDs) and an

Ethernet port. The LEDs depict the connection status, as well as other information, enabling

detailed diagnosis of system malfunction. The Ethernet port is to connect to a device in the home

network. The HomePlug Ethernet Adaptor has a standard power plug for connection to a power

outlet. There are three main kinds of power plugs:

• (UK) – 3 pins UK plug with integrated 100-240V AC power supply.

• (EUR) – 2 pins Euro plug with integrated 100-240V AC power supply.

• (US) – 2 pins US plug with integrated 100-240V AC power supply.

Computer networking in the office or at home has the following advantages:

1. Share centrally stored data

2. Share one printer

3. Multi-access to one Internet connection

4. Multi-user games over the network.

Package Contents

Make sure that you have the following items. If any of the items is damaged or missing, please

contact your dealer immediately.

85Mbps High Speed HomePlug Ethernet Adaptor Easy Start (Qty:1)

(QTY:1 for Single Pack ; QTY:2 for Twin Pack)

Networkcable ResourceCD

(QTY:1 for Single Pack ; QTY:2 for Twin Pack) (Qty:1)

Easy Start Page 5 of 20

Easy Start

Chapter 2 – Installation & Connection

2.1 System Requirements

HomePlug Ethernet Adaptor is applicable with all TCP/IP operating systems with Ethernet port.

Drivers are not required for this adapter. But the supplied software and the network password

operates only with Windows operating systems.

Your computer must meet the below mentioned minimum requirements in order to use the

HomePlug Ethernet Adaptor Configuration Utility:

• Windows Operating Systems:

• Windows 98SE, Windows Me, Windows 2000 Windows XP, or Windows Vista

with Ethernet connection

• Pentium III 300 MHz MMX-Compatible PC or greater

• 128MB hard disk space and memory

• CD-ROM drive

Note…

Your computer or the device to which you want to connect the HomePlug

Ethernet Adaptor must have an Ethernet port, i.e. a network card or a network

adaptor.

2.2 Installation & Uninstallation of Configuration Utilty

Windows Operating Systems

Installation:

1. Connect the HomePlug Ethernet Adaptor to the computer or the device with the Network

cable.

2. Connect the HomePlug Ethernet Adaptor to the Power Outlet.

3. Install the Configuration Utility (PowerPacket). The Resource CD has auto run feature. If

the Resource CD auto run fails, please run the Setup.exe file in the CD.

4. Follow the on screen instructions to install the utility drivers.

Easy Start Page 6 of 20

Easy Start

Note…

1. Before connecting the HomePlug Ethernet Adaptor, please note its Security

ID / Device Password and keep it available for configuration of the network.

2. No drivers are required for installation of the HomePlug Ethernet Adaptor.

Note…

If there is no connection/link among the HomePlugs with the Network cable

inserted onto the HomePlugs OR the ping test among the HomePlugs are not

successful, please power off and on again for the HomePlugs.

You can also plug out the HomePlugs and then plug in again with the present of

the Network cable.

Uninstallation:

1. To uninstall the Configuration Utility, go to the Control Panel of your system.

2. Open the Add/Remove Programs.

3. Select and double click on the PowerPacket Ethernet Adapter in the Add/Remove

Programs Properties.

4. Follow the on screen instructions to uninstall the PowerPacket Utility.

Easy Start Page 7 of 20

Easy Start

2.3 Connection & Indicator Lights

The HomePlug Ethernet Adaptor has three lights indicator (LEDs) and an Ethernet port. See

Figure 1-1 below.

Power LED

ACT LED

ETH

LINK/ACT LED

ETHERNET

CONNECTION POINT

Figure 1-1 : 85Mbps High Speed Homeplug Ethernet Adapter

PWR: Lights up when connected to AC power supply.

PL-ACT: Lights up when detected and connected with another HomePlug adaptor

within the network. Flashes during data transfer.

ETH-LINK/ACT: Lights up when connected to the Ethernet port of the computer or other

Ethernet devices. Flashes during data transfer.

ETHERNET: 10/100 Base-T Auto-MDI/MDIX (allows either cross or straight Network

cable) Network jack to connect to your Ethernet Network card or Ethernet

Hub / Switch.

Easy Start Page 8 of 20

Easy Start

Easy Start Page 9 of 20

Chapter 3 – All About The Home Network

This chapter contains important and useful information on networks—from the configuration of

your computer to examples of applications to general tips.

3.1 Remove/Disable Conflicts

You may need to check the TCP/IP and Internet properties to make sure there are no conflicts

with the way devices in the network are identified.

3.1.1 TCP/IP

High Speed HomePlug Ethernet Adapter’s IP Address should be obtained automatically.

To set the TCP/IP properties:

1. Select Start > Run. This opens the Run dialog box.

2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in your

computer.

3. Right-click LAN and then select Properties. This opens the Local Area Connection

Properties dialog box.

4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet

Protocol (TCP/IP) dialog box.

5. Select Obtain an IP address automatically.

6. Click OK to close the Internet Protocol (TCP/IP) dialog box.

7. Click OK to close the Local Area Connection Properties dialog box.

3.1.2 Internet Properties

To set the Internet Properties:

1. Select Start > Run. This opens the Run dialog box.

2. Enter control inetcpl.cpl and then click OK. This opens the Internet Properties dialog

box.

3. Click Connections tab.

4. In the Dial-up and Virtual Private Network settings pane, select Never dial a

connection.

5. Click OK to close the Internet Properties dialog box.

Easy Start

3.2 Examples Of Applications

This section demonstrates some of the application scenarios

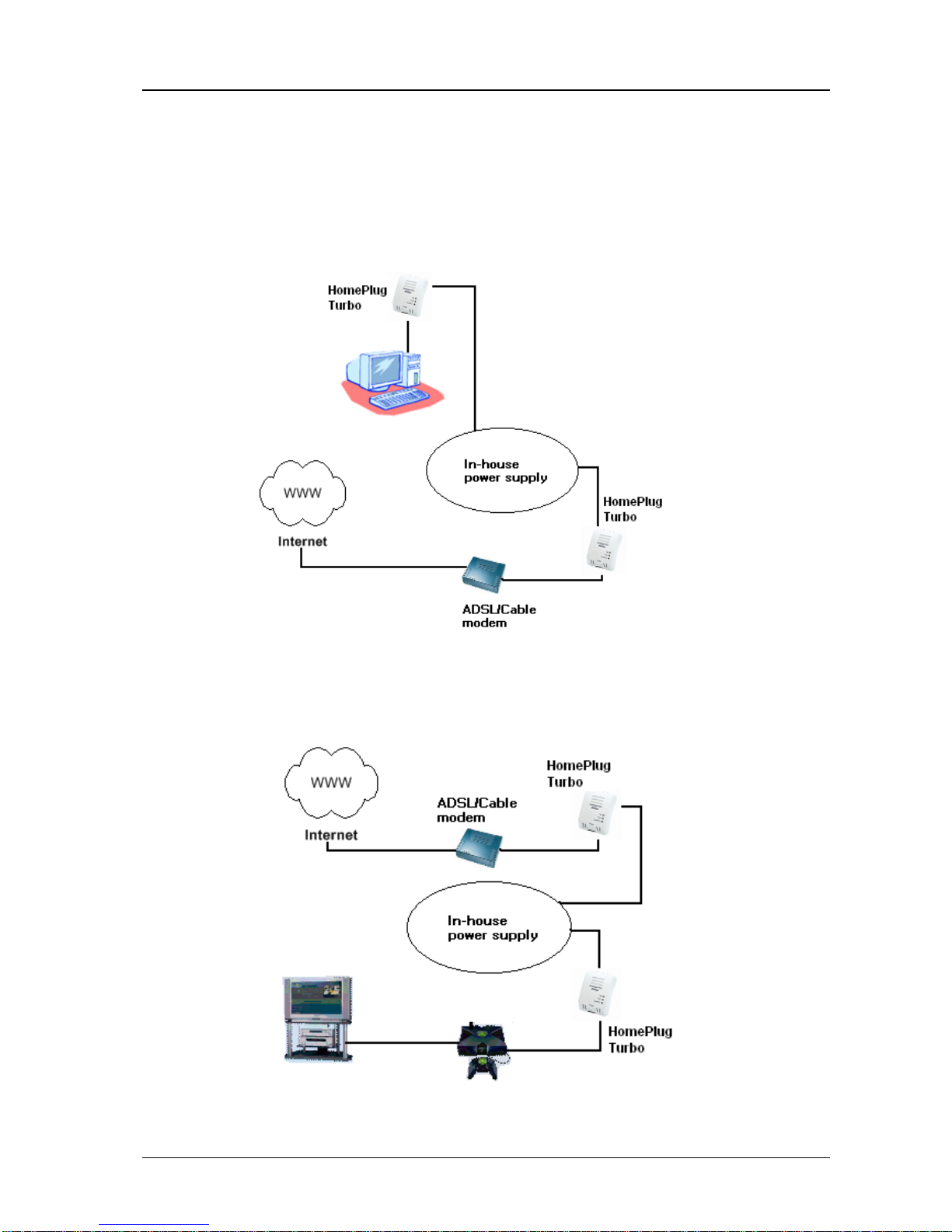

3.2.1 Home Networking – Option 1

Workstation with Internet connection over an ADSL/Cable modem. See Figure 1-2 below.

Figure 1-2 : Home Networking Option 1

3.2.2 Home Networking – Option 2

Networking for Online Gaming. See Figure 1-3 below.

Figure 1-3 : Home Networking Option 2

Easy Start Page 10 of 20

Autres manuels pour HomePlug Turbo

Table des matières

Autres manuels Aztech Adaptateur

Aztech

Aztech 200Mbps HomePlug AV Ethernet Adaptor Manuel utilisateur

Aztech

Aztech Easy Mode d’emploi

Aztech

Aztech HL113EP Instructions d'utilisation

Aztech

Aztech 500Mbps 4-Port HomePlugAV Ethernet Adaptor Manuel utilisateur

Aztech

Aztech Wireless N USB Adapter Instructions d'utilisation

Aztech

Aztech HomePlug AV Manuel utilisateur

Aztech

Aztech HL112E Mode d’emploi

Aztech

Aztech WL592USB Instructions d'utilisation

Aztech

Aztech WL630USB Manuel utilisateur

Aztech

Aztech WL578USB Instructions d'utilisation

Aztech

Aztech HomePlug Mediaxtream Ethernet Adapter Manuel utilisateur

Aztech

Aztech HomePlug AV Manuel utilisateur

Aztech

Aztech WL635USB Manuel utilisateur

Aztech

Aztech HL129EP Instructions d'utilisation

Aztech

Aztech 200Mbps HomePlug AV Ethernet Adaptor Manuel utilisateur

Aztech

Aztech WL572USB Instructions d'utilisation

Aztech

Aztech WL593USB Manuel utilisateur

Aztech

Aztech HL106E Manuel du propriétaire

Aztech

Aztech WL558USB Manuel utilisateur

Aztech

Aztech 500Mbps HomePlug AV Manuel utilisateur

Aztech

Aztech WL562 Manuel utilisateur

Aztech

Aztech HL113EW Instructions d'utilisation

Aztech

Aztech HL117E Instructions d'utilisation

Aztech

Aztech WL590E Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
