Aztech Easy Mode d’emploi

HomePlug Wireless Adapter

All manuals and user guides at all-guides.com

all-guides.com

Easy Start Guide

Page 2 of 14

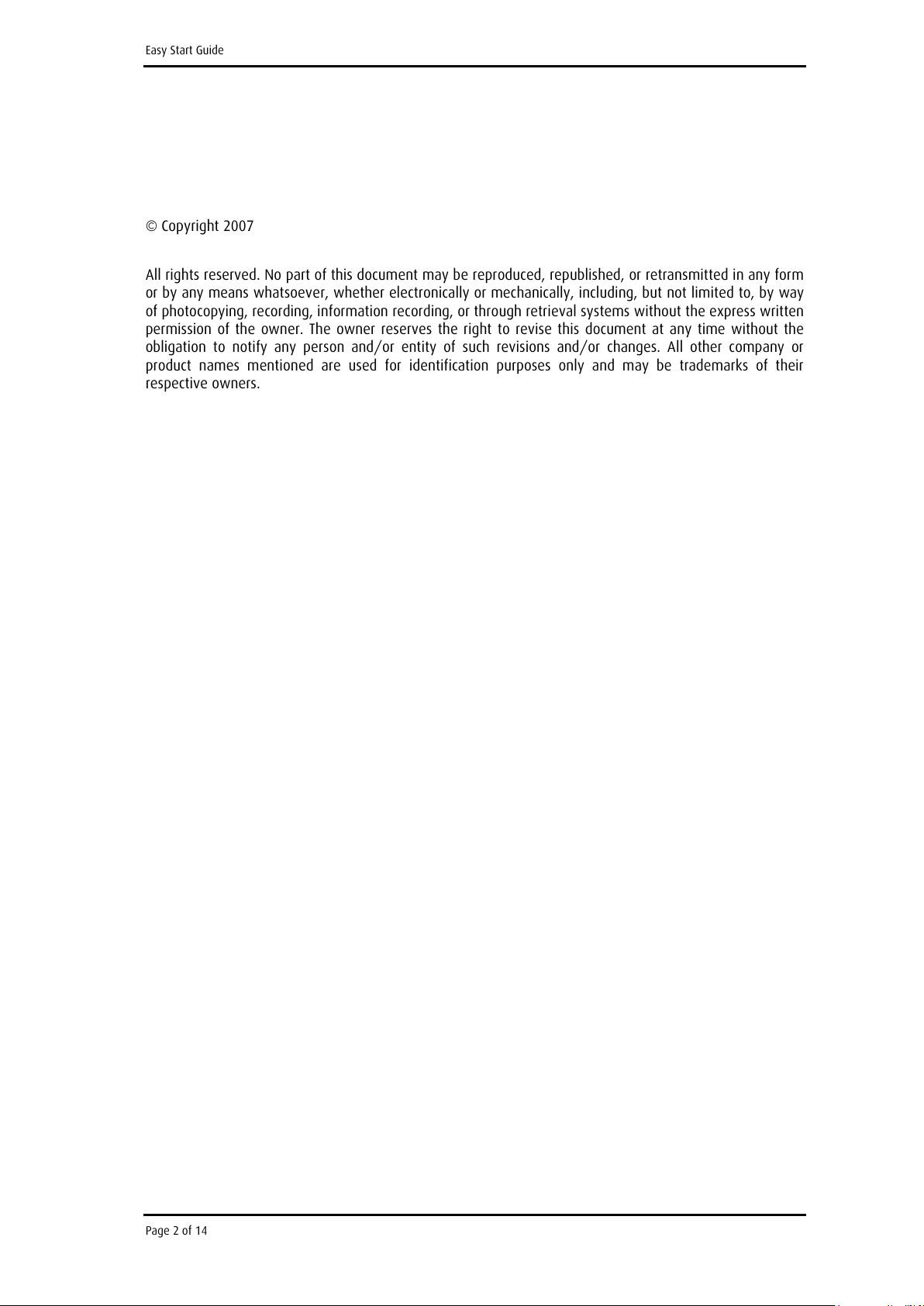

All rights reser ed. No part of this document may be reproduced, republished, or retransmitted in any form

or by any means whatsoe er, whether electronically or mechanically, including, but not limited to, by way

of photocopying, recording, information recording, or through retrie al systems without the express written

permission of the owner. The owner reser es the right to re ise this document at any time without the

obligation to notify any person and/or entity of such re isions and/or changes. All other company or

product names mentioned are used for identification purposes only and may be trademarks of their

respecti e owners.

All manuals and user guides at all-guides.com

Easy Start Guide

Page 3 of 14

Contents

About the Product ...................................................................................................... 4

System Requirements ................................................................................. 4

Device Design.............................................................................................. 5

HomePlug Turbo (Starter it Bundle).......................................................... 6

Getting Started........................................................................................................... 7

Hardware Installation.................................................................................. 8

Hardware Installation (Starter it).............................................................. 9

Using the CD Setup Utility.......................................................................... 10

Accessing the Web User Interface ............................................................. 11

Configuring TCP/IP..................................................................................................12

Connecting Wireless Devices ..................................................................... 13

All manuals and user guides at all-guides.com

Easy Start Guide

Page 4 of 14

About the Product

HomePlug Wireless Adapter is a networking de ice that allows secure transmission of

data through existing power circuits and radio frequencies. It features an Ethernet port

for wired connection and an Access Point for connecting with wireless-enabled de ices.

HomePlug Wireless Adapter is a de ice that utilizes the existing electrical wiring in the

house as a path to create a secured network of computers and Ethernet de ices.

HomePlug Wireless Adapter does not require a de ice dri er to work. With a maximum

data rate of 85 Mbps, HomePlug Wireless Adapter can reliably pro ide Internet

connection among linked de ices.

System Requirements

HomePlug Wireless Adapter can be used out of the box regardless of operating system.

Howe er, you need a computer using Windows 98 SE, Me, 2000, XP, or Vista with a CD-

ROM dri e to use the CD Setup Utility.

All manuals and user guides at all-guides.com

Easy Start Guide

Page 5 of 14

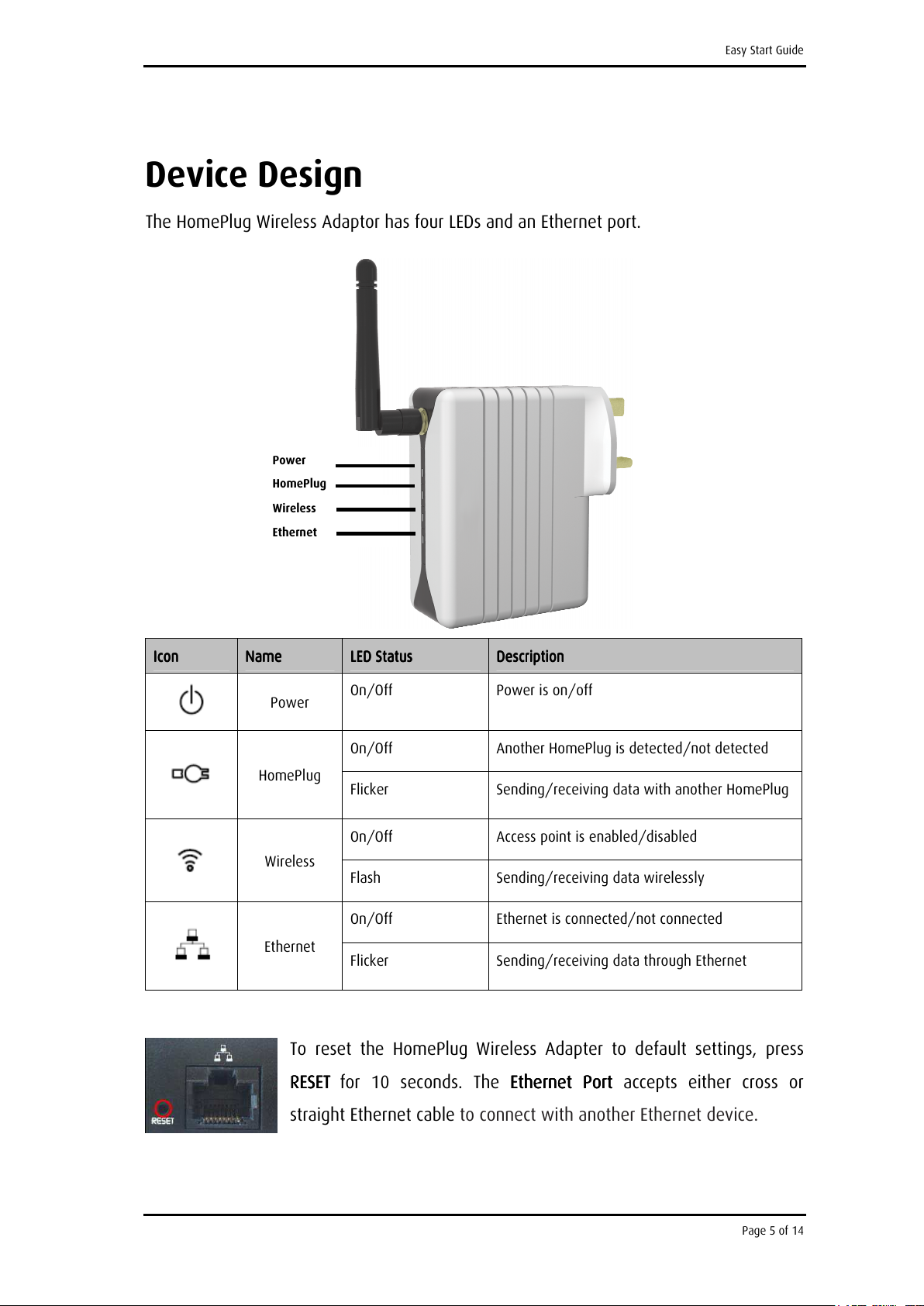

Device Design

The HomePlug Wireless Adaptor has four LEDs and an Ethernet port.

Icon

IconIcon

Icon

Name

NameName

Name

LED Status

LED StatusLED Status

LED Status

Description

DescriptionDescription

Description

Power On/Off Power is on/off

On/Off Another HomePlug is detected/not detected

HomePlug Flicker Sending/recei ing data with another HomePlug

On/Off Access point is enabled/disabled

Wireless

Flash Sending/recei ing data wirelessly

On/Off Ethernet is connected/not connected

Ethernet Flicker Sending/recei ing data through Ethernet

To reset the HomePlug

Wireless Adapter to default settings, press

RESET

RESETRESET

RESET

for 10 seconds. The Ethernet Port

Ethernet PortEthernet Port

Ethernet Port accepts either cross or

straight Ethernet cable to connect with another Ethernet de ice.

HomePlug

Ethernet

Wireless

Power

All manuals and user guides at all-guides.com

Easy Start Guide

Page 6 of 14

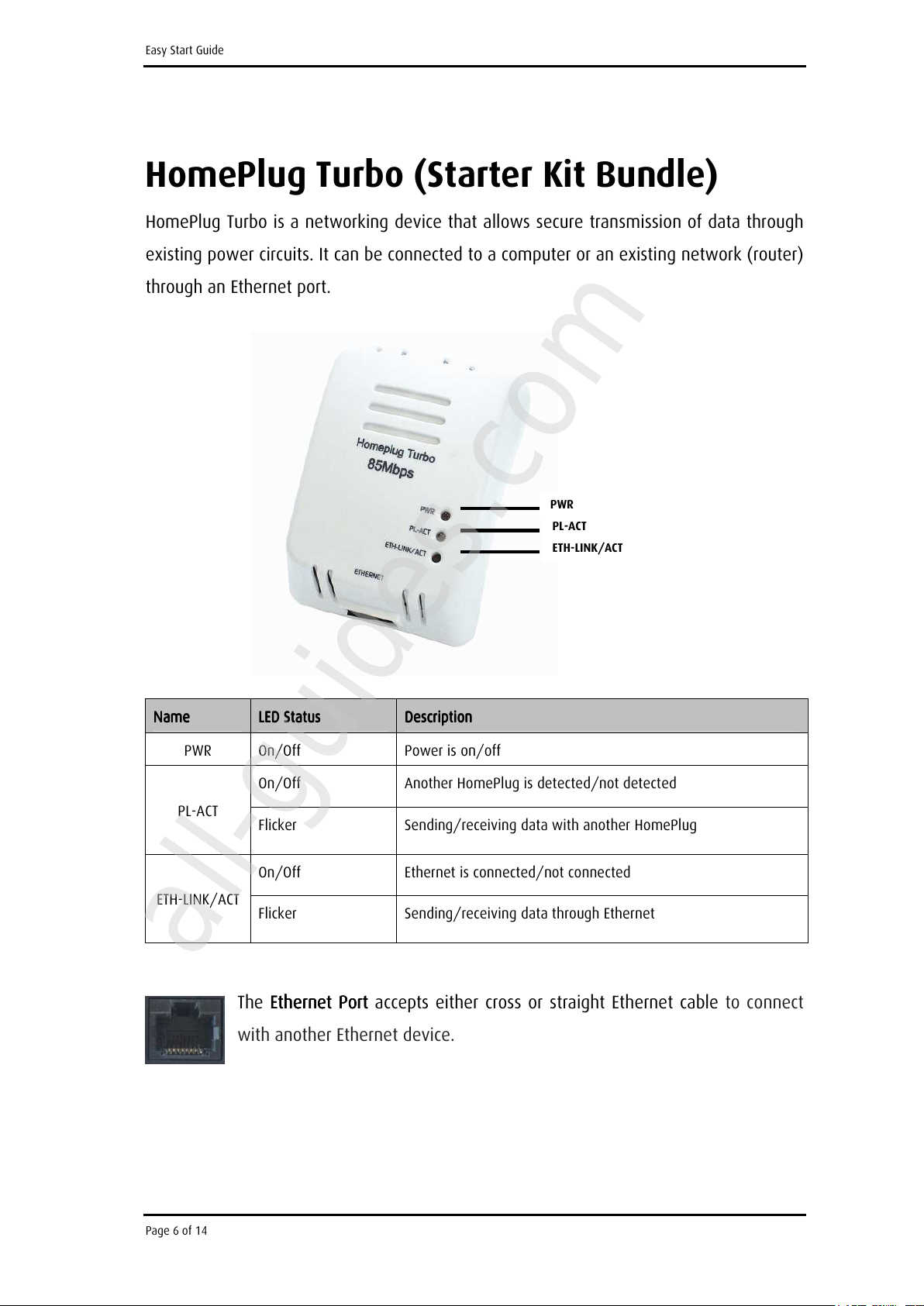

HomePlug Turbo (Starter it Bundle)

HomePlug Turbo is a networking de ice that allows secure transmission of data through

existing power circuits. It can be connected to a computer or an existing network (router)

through an Ethernet port.

Name

NameName

Name

LED Status

LED StatusLED Status

LED Status

Description

DescriptionDescription

Description

PWR On/Off Power is on/off

On/Off Another HomePlug is detected/not detected

PL-ACT Flicker Sending/recei ing data with another HomePlug

On/Off Ethernet is connected/not connected

ETH-LINK/ACT Flicker Sending/recei ing data through Ethernet

The Ethernet Port

Ethernet PortEthernet Port

Ethernet Port accepts either cross or straight Ethernet cable to connect

with another Ethernet de ice.

PWR

PL-ACT

ETH-LIN /ACT

All manuals and user guides at all-guides.com

all-guides.com

Easy Start Guide

Page 7 of 14

Getting Started

You can use your HomePlug Wireless Adapter immediately out of the box. Howe er, if

you want to configure the de ice, you can use the CD Setup Utility or the Web User

Interface. Here are the installation steps you will go through:

Tip:

Tip: Tip:

Tip: As shown in the flowchart, there are se eral ways to configure the HomePlug

settings. We recommend you to use the CD Setup Utility to help you change the

Wireless Network Name (ESSID/SSID) and wireless security option. It helps you to

easily secure your wireless network from ea esdroppers and enjoy using your

HomePlug de ice immediately.

All manuals and user guides at all-guides.com

Easy Start Guide

Page 8 of 14

Hardware Installation

You can install the HomePlug Wireless Adapter in se eral ways:

To connect the HomePlug Wireless Adapter with a computer:

1. Insert one end of an Ethernet cable from the computer’s Ethernet port and then

insert the other end into the HomePlug Wireless Adapter’s Ethernet port ( ).

Note:

Note: Note:

Note: When you connect the HomePlug Wireless Adapter with a computer, you ha e

to set the static IP Address in the computer’s network card. For instructions, please

refer to Configuring TCP/IP.

2. Plug the HomePlug Wireless Adapter into the electrical outlet.

To connect the HomePlug Wireless Adapter with an existing network/router:

1. Insert one end of an Ethernet cable from the router’s Ethernet port and then insert

the other end into the HomePlug’s Ethernet port ( ).

2. Plug the HomePlug Wireless Adapter into the electrical outlet.

All manuals and user guides at all-guides.com

Easy Start Guide

Page 9 of 14

Hardware Installation (Starter it)

A Starter Kit package includes a HomePlug Turbo and a HomePlug Wireless Adapter.

To install the Starter it:

1. Insert one end of an Ethernet cable from the router’s Ethernet port and then insert

the other end into the HomePlug Turbo’s Ethernet port.

2. Plug the HomePlug into the electrical outlet.

3. Plug the HomePlug Wireless Adapter into the electrical outlet.

If you need to connect through wires with the HomePlug Wireless Adapter, insert

one end of an Ethernet cable into the computer’s Ethernet port and then insert

the other end into the HomePlug Wireless Adapter’s Ethernet port ( ).

If you need to connect wirelessly with the HomePlug Wireless Adapter, check if

the wireless LED is on and then log into the wireless network.

All manuals and user guides at all-guides.com

Easy Start Guide

Page 10 of 14

Using the CD Setup Utility

The CD Setup Utility pro ides easy to follow step-by-step instructions to help you change

the wireless network name and wireless security settings. It opens on Windows

operating systems.

Note:

Note: Note:

Note: Using the CD Setup Utility is optional. Right out of the box, you can already use

your HomePlug Wireless Adapter.

To use the CD Setup Utility:

1. Insert the Resource CD

Resource CDResource CD

Resource CD into your CD dri e.

2. If the utility does not open automatically, select Start

StartStart

Start > Run

RunRun

Run, enter D:

D:D:

D:\

\Setup.exe

Setup.exe Setup.exe

Setup.exe

(where D:

D:D:

D: is your CD-ROM dri e), and then click OK

OKOK

OK.

3. Follow the instructions from the CD Setup Utility.

All manuals and user guides at all-guides.com
