Axis 25254 Manuel utilisateur

Installation Instructions

This document is an addendum to the Camera Housing Operating Instructions and

describes how to connect power to a Axis network camera installed in the housing. Please

read through both instructions before proceeding with the installation.

This description applies to the following articles:

• Verso Cool Outdoor Housing, HPV42K0A017 Housing 0217-141

• VT Outdoor Power Supply OHEGBPS1B Power supply 0217-151

• VT Heater 110/230VAC OHPVH1 Heater 0217-161

• 230V cable Power cable not supplied

• 12V cable Power cable (min. area 0.5mm2)not supplied

• AXIS 210/210A/211/211A Network Camera

•AXIS221 Network Camera

Important!

High voltage - the apparatus works on 230V AC. Always ensure that the power is discon-

nected before starting any work or opening the housing.

This product should be installed by certified electrical technicians in compliance with local

laws and regulations.

Use cable glands and/or cables that are suitable for external use and are in compliance with

local laws and regulations.

Product Description Part number

Installation Instructions

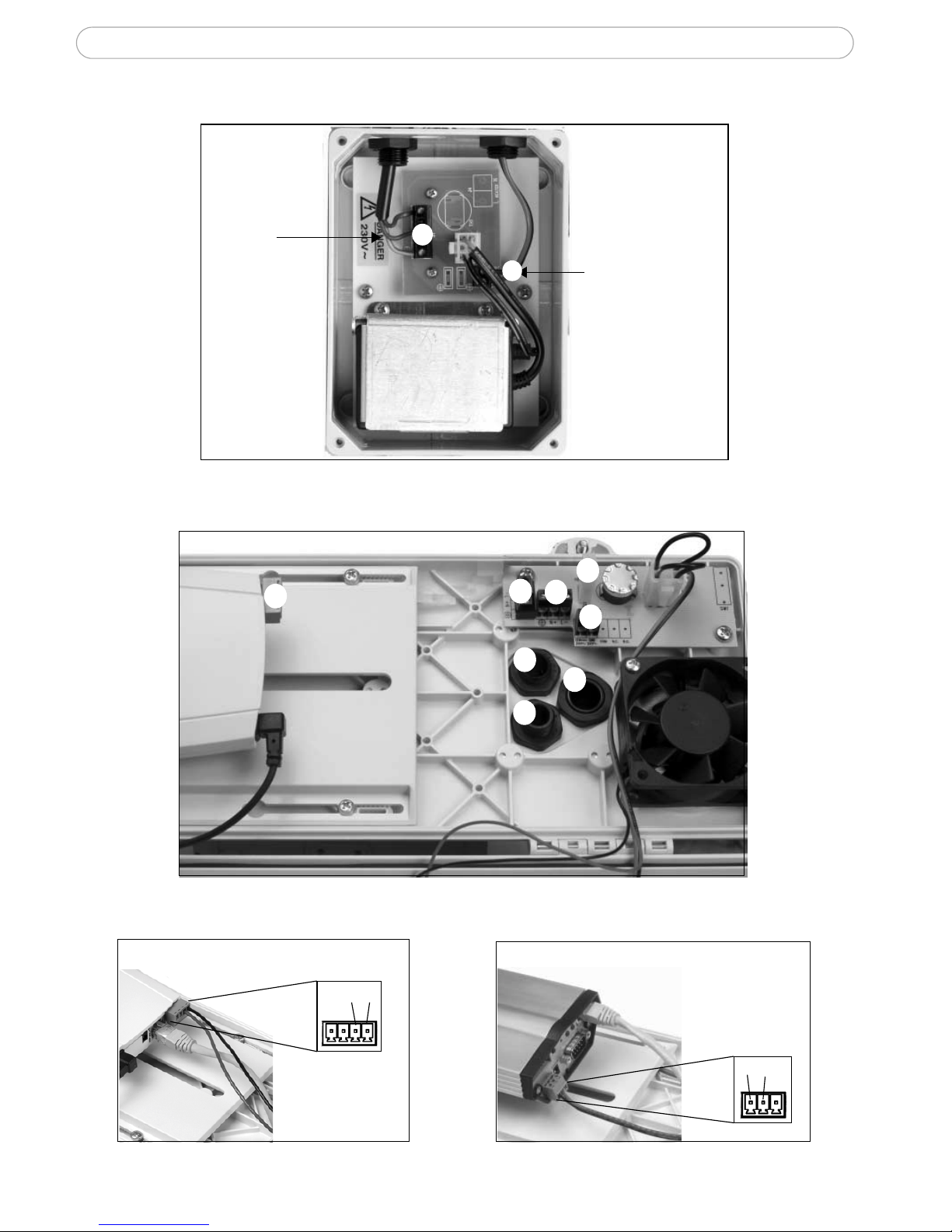

Power supply connectors

Mains power

cable

12V power cable

to housing/camera

Housing connectors

J4 J3 J2

Camera connectors (8)

(-)(+)

(+)(-)

AXIS 221

AXIS 210/210A/211/211A

Installation Instructions

Powering the Axis network camera, housing and heater

Note - this installation requires 2 x 230V power cables and 2 x 12V cables (not supplied).

1. Pull the mains power cable through the gland (5) to the housing connector (J4).

2. Connect a 230V cable to the housing connector (J3) and pull through the gland (6).

Connect to the external power supply connector (A).

3. Connect a 12V power cable to the connector (B) in the power supply, pull the 12V cable

through the gland (7) in the housing and connect to the 12V connector (J1).

4. Connect a 12V cable from the connector (J1) to the green connector on the camera (8).

Important! Ensure that the (+) and (-) wires are connected according to the camera

model installed in the housing (see images above).

5. To connect the heater, follow the supplied instructions and connect the cable to the

connector (J2) in the housing.

6. Proceed with the installation according to the instructions in the Installation Guide

supplied with the camera.

Wiring diagram

PCB

Power supply

PCB

Housing

230V AC in

12V DC

to camera

230V AC

out

230V AC

Heater 230V AC

Installation Instructions

Powering the Axis network camera and housing (no heater)

Note - this installation requires one 230V power cable and 2 x 12V cables (not supplied).

1. Connect the mains power cable to the connector (A) in the power supply.

2. Connect a 12V power cable to the connector (B) in the power supply, pull the 12V cable

through the gland (6) in the housing and connect to the 12V connector (J1).

3. Connect a 12V cable from the connector (J1) to the green connector on the camera (8).

Important! Ensure that the (+) and (-) wires are connected according to the camera

model installed in the housing (see images above).

Proceed with the installation according to the instructions in the Installation Guide

supplied with the camera.

Wiring diagram

PCB

Power supply

PCB

Housing

230V AC in

12V DC

to camera

INSTALL GUIDE VT HOUSING FAN R1.0 PART NO. 25254

Date: July 2005 COPYRIGHT AXIS COMMUNICATIONS AB 2005
