Pendant Kit for
AXIS P33-VE Series
AXIS P3343-VE Network Camera
AXIS P3344-VE Network Camera
AXIS P3346-VE Network Camera
About this Document
This document includes instructions for installing the
AXIS P33-VE Series Pendant Kit.
Equipment Modifications
This equipment must be installed and used in strict
accordance with the instructions given in the user
documentation.
Liability
Every care has been taken in the preparation of this
document. Please inform your local Axis office of any
inaccuracies or omissions. Axis Communications AB
cannot be held responsible for any technical or
typographical errors and reserves the right to make
changes to the product and documentation without
prior notice. Axis Communications AB makes no
warranty of any kind with regard to the material
contained within this document, including, but not
limited to, the implied warranties of merchantability
and fitness for a particular purpose. Axis
Communications AB shall not be liable nor responsible
for incidental or consequential damages in connection
with the furnishing, performance or use of this material.
Support
Should you require any technical assistance, please
contact your Axis reseller. If your questions cannot be
answered immediately, your reseller will forward your
queries through the appropriate channels to ensure a
rapid response. If you are connected to the Internet, you
can:
• find answers to resolved problems in the FAQ database.
Search by product, category, or phrases
• report problems to Axis support by logging in to your
private support area.
Pendant Kit Installation Guide Page 3
ENGLISH
Pendant Kit Installation Guide
This installation guide provides instructions for installing the Pendant Kit for the AXIS P3343-VE,
AXIS P3344-VE, and AXIS P3346-VE. The Pendant Kit is designed to be installed with the mounting
of your choice; for details about the types of mounting go to Accessories at www.axis.com
Please read through the entire guide before proceeding with the installation. For all other aspects
of using the Axis network camera, please see the Installation Guide and User’s Manual, available
from www.axis.com/techsup
Installation steps
• Check the package contents against
the list on page 4.
• Installation instructions. See page 5.
Important!
This product must be used in
compliance with local laws and
regulations.
Page 4 Pendant Kit Installation Guide
Package contents
•1Weathershield
• 1 Pendant adapter
•4M4x8screws
Weather shield
Pendant adapter
M4x8 screws
(Bottom view)
Pendant adapter
(Side view)
Pendant Kit Installation Guide Page 5
ENGLISH
Install pendant kit
1. Install the mount of your choice according to the instructions included with the mounting kit.
Use the network cable included with the network camera, or follow the instructions for prepar-
ing a network cable in the camera’s installation guide.
2. Attach the weather shield (optional) to the pendant adapter with the 4 M4x8 screws included
with this kit. The weather shield is optional and protects against direct sunlight and rain.
Page 6 Pendant Kit Installation Guide
3. Attach the pendant adapter to the mount and secure it using the stop screw.
4. Remove the camera unit from the unit casing by pushing the springs aside. Pull the network
cable through the gasket hole of the unit casing.
stop screw
Pendant Kit Installation Guide Page 7
ENGLISH

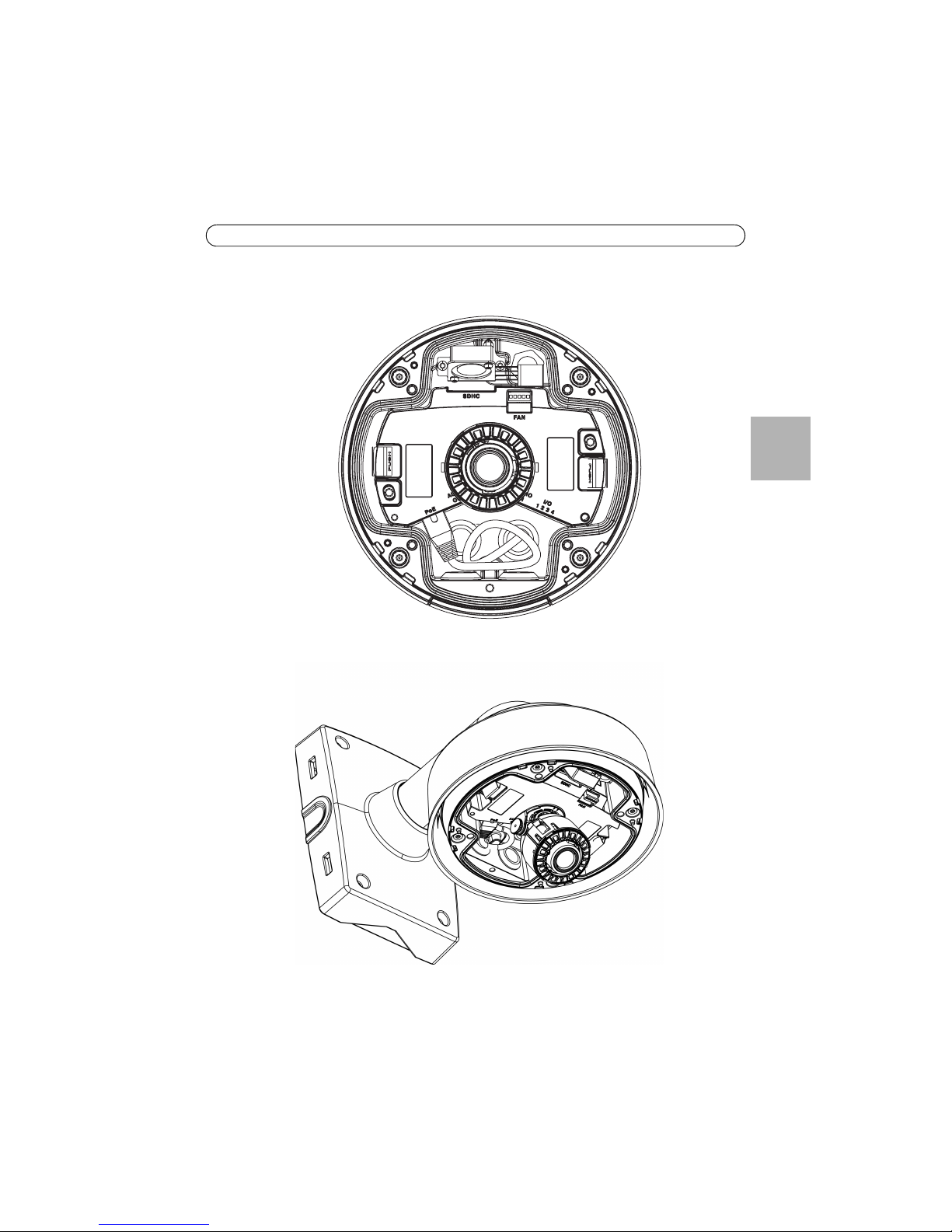

5. Attach all the necessary cables to the camera unit. Pull aside the springs in the unit casing and
click the camera unit in place.
6. Insert the unit casing/camera into the pendant adapter and attach by tightening the captive
screws. Follow the instructions in the camera’s Installation Guide for adjusting the lens.
Page 8 Pendant Kit Installation Guide
7. Place the dome cover and attach by tightening the captive screws.
Guide d’installation du kit de suspension Page 9
FRANÇAIS
Guide d’installation du kit de suspension
Ce guide d’installation fournit des instructions pour l’installation du kit de suspension pour les
caméras réseau AXIS P3343-VE, AXIS P3344-VE, et AXIS P3346-VE. Le kit de suspension est conçu
pour être installé avec le montage de votre choix : accédez à la section Accessoires sur
www.axis.com
Veuillez lire l’intégralité de ce guide avant de procéder à l’installation. Pour plus d’informations sur
tous les autres aspects liés à l’utilisation de la caméra réseau Axis, reportez-vous au guide
d’installation et au manuel de l’utilisateur, disponible sur le site web www.axis.com/techsup
Procédure d’installation
• Vérifiez le contenu de l’emballage par rapport à
la liste de la page 10.
• Instructions d’installation. Cf. page 11.
Important !
Ce produit doit être utilisé
conformément aux lois et
dispositions locales en vigueur.
Page 10 Guide d’installation du kit de suspension
Contenu de l’emballage
• 1 protection étanche
• 1 adaptateur de suspension
•4visM4x8
Protection étanche
Adaptateur de suspension
Vis M4x8
(Vue de dessous)
Adaptateur de suspension
(Vue de profil)
