AXIOMTEK CAPA13R Manuel utilisateur

Version A1 January 2020

Printed in aiwan

Quick Start

The basic procedures required to power on CAPA13R:

(1). Require power at minimum 2.68A. Check to ensure that power

supply is OFF before connecting to CAPA13R and that all

necessary peripheral devices are plugged properly.

(2). Install suitable cooling fan.

(3). Make sure all of the jumper and switch are at default settings;

especially SSW1 (1-2 close).

(4). Install DDR4 memory module into connector DIMM1 until fully

seated.

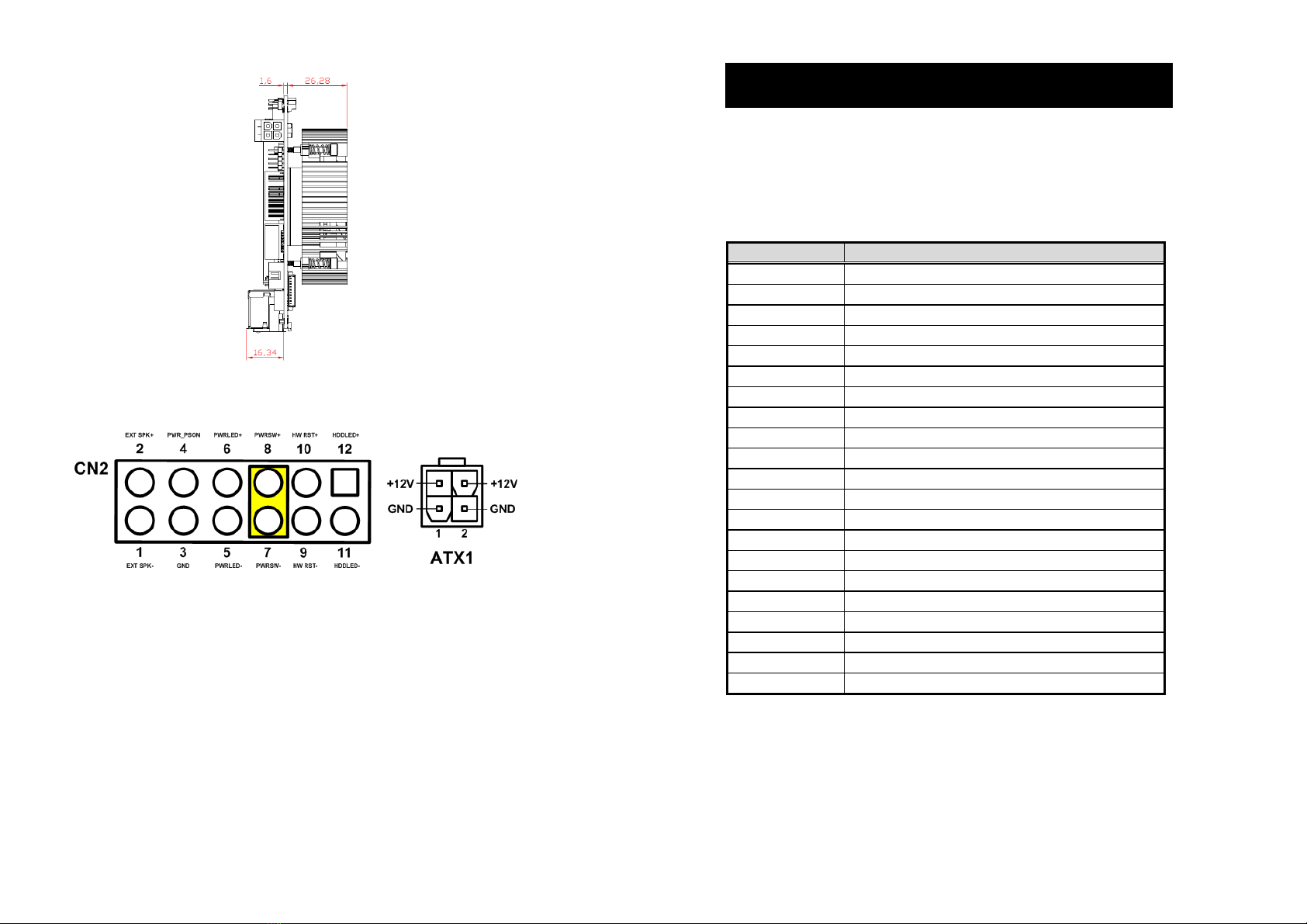

(5). Firmly insert power to ATX1.

(6). Install a momentary on/off button/switch onto CN2, pin 7 and 8.

(7). Turn on the power supply.

(8). Press the on/off button/switch to power on CAPA13R.

CAPA13R Series Quick Installation Guide

Version A1 January 2020

Printed in aiwan

Checklist



CPU

oard x1



Cooling Fan

(Optional)



Cooling Fan Cable

(Optional)

Connectors

Connector Description

CN1 LVDS Connector

CN2 Front Panel Connector

CN4 Inverter Connector

CN5 USB 2.0 Wafer Connector

CN7 SIM Card Wafer Connector

CN8 Digital I/O Connector

CN9, CN11 COM1 and COM2 Wafer Connectors

CN10 M.2 2242/3042 Key B Connector

CN12 SATA Connector

CN13 M.2 2230 Key E Connector

CN14, CN16 Ethernet Port 4 and Port 3 Wafer Connectors

CN15 SATA Power Connector

CN17 Audio Wafer Connector

CN18 USB 3.1 Port 1 and 2

CN19 DisplayPort Connector

CN20, CN21 HDMI Connectors

CN22, CN23 Ethernet Port 1 and 2

ATX1 ATX Power Connector

SCN1 Fan Connector

SCN2 DC +5V/15W Power Output Connector

DIMM1 DDR4 SO-DIMM Connector

CAPA

AMD

RYZEN

Embedded

C1605B/V1807B 3.5

”

Board

Version A1 January 2020

Printed in aiwan

Jumper and Switch Settings

Before applying power to the CAPA13R, please make sure all of the

jumper and switch are in factory default positions.

Jumper/Switch

Description Setting

JP1 LVDS Voltage Selection

Default: +3.3V Level 1-2 Close

SW1 Restore BIOS Optimal Defaults

Default: Normal Operation Release

SSW1 Auto Power On

Default: Disable 1-2 Close

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Board Layout

Top View

Rear I/O

Version A1 January 2020

Printed in aiwan

Bottom View

Note: Please refer to the CAPA13R series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.

Installing Cooling Fan
