AXIOMTEK CEM310 Manuel utilisateur

4 9418D310000E

Versio A3 October 2018

Pri ted i Taiwa

Quick Start

The basic procedures required to power on CEM310/311:

(1). Require DC +4.75V~20V power at minimum 6.75A (4.75V) and 1.6A

(20V). Make sure the power is OFF before connecting the

CEM310/311.

(2). Check to ensure the onboard switch SW1 is set to default (ON (up)

position).

(3). Attach thermal solution to the CEM310/311, refer to section Installing

Thermal Solution.

(4). Install the CEM310/311 onto COM Express

baseboard, for example,

CEB94008 or CEB94017 baseboard.

(5). Properly install all necessary peripheral devices such as hard disk,

display, keyboard and etc. to the baseboard.

(6). Firmly attach power supply to the baseboard power connector.

(7). Turn on the system power.

(8). Press power button on the baseboard to start CEM310/311.

CEM310 / CEM311 Quick Installation Guide

9418D310000E 1

Versio A3 October 2018

Pri ted i Taiwa

Checklist



EM3

0/311

Board x1



Product Information



uick Installation Guide

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Please refer to the product information DVD for the complete user’s

manual, drivers and utilities. User’s manual and related documents are

in Acrobat PDF format.

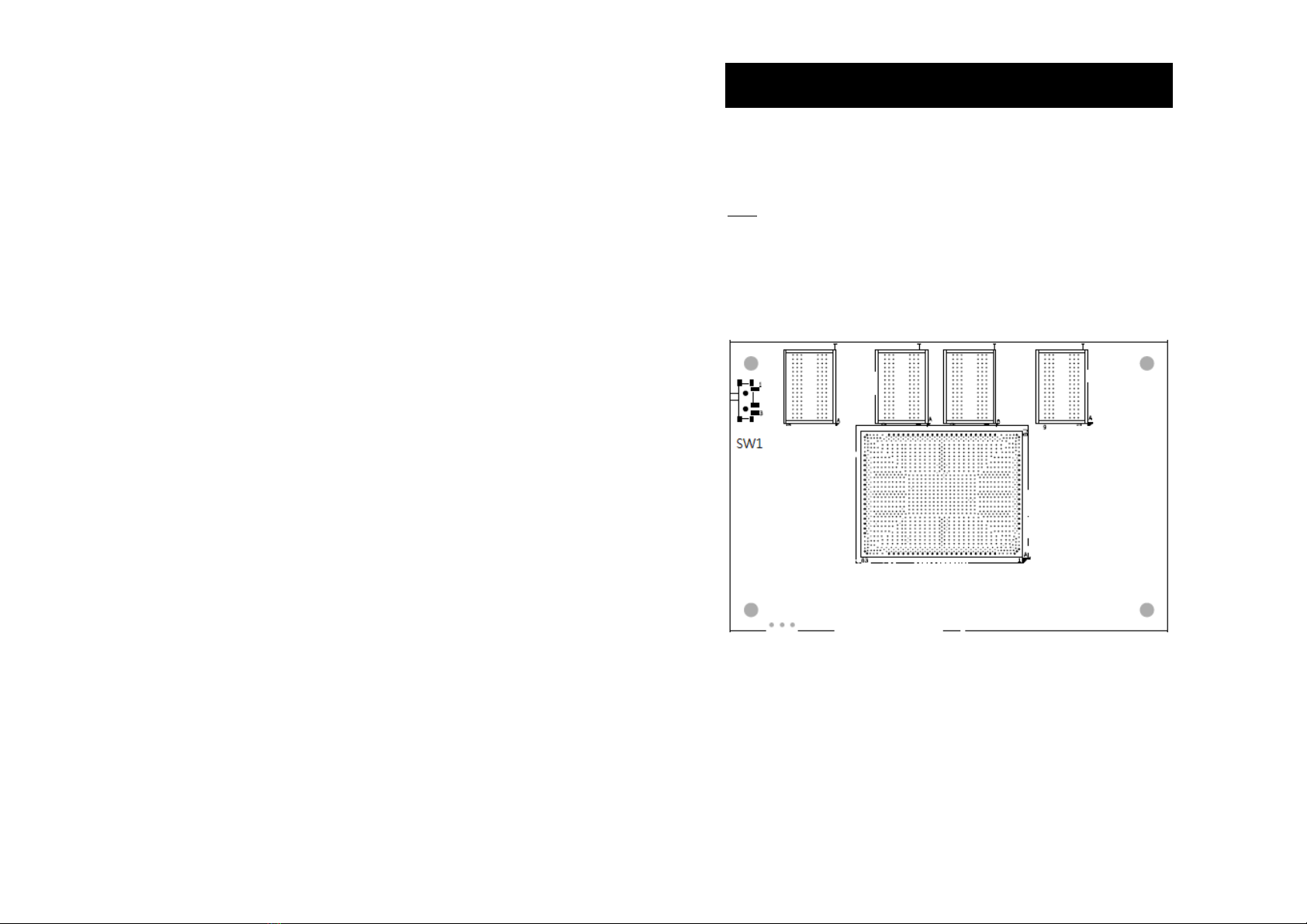

Module Layout

op View

CEM310/311 COM Express

Type 10 Mini Module

2 9418D310000E

Versio A3 October 2018

Pri ted i Taiwa

Bottom View

Switch Setting

Before applying power to the CEM310/311, please make sure onboard

switch is in factory default position.

Switch Description Setting

SW1 Auto Power On

Default: Disable

SW1 ON (Up)

Connector

Connector Description

SJ1

COM Express

Connector

9418D310000E 3

Versio A3 October 2018

Pri ted i Taiwa

Installing Thermal Solution

For thermal dissipation, a thermal solution enables the CEM310/311’s

components to dissipate heat efficiently. All heat generating components

are thermally conducted to the heatspreader in order to avoid hot spots.

Below images illustrate how to install the thermal solution on CEM310/311.

1. There is a protective plastic covering on the thermal pads. This must

be removed before the heatspreader can be mounted.

2. Each thermal solution is designed for a specific CEM module. The

thermal pads on the heatspreader are designed to make contact with

the necessary components on the CEM module. When mounting the

heatspreader you must make sure that the thermal pads on the

heatspreader make complete contact (no space between thermal pad

and component) with the corresponding components on the CEM

module. This is especially critical for CEM modules that have higher

CPU speeds (for example 1.46GHz or more) to ensure that the

heatspreader acts as a proper thermal interface for cooling solutions.

3. Before installing the heatspreader to the CPU module, please apply

thermal grease on the CPU die. This CPU module has four assembly

holes for installing heatspreader plate. Use the four screws to secure

the heatspreader plate to the CEM310/311. Be careful not to over-

tighten the screws. Then, apply thermal grease at the bottom of

heatsink and secure the heatsink on the heatspreader by another four

screws.
