AXIOMTEK EBOX532-100-FL Series Manuel utilisateur

Version A3 Jan 2016

Printed in Taiwan

9416K532020E

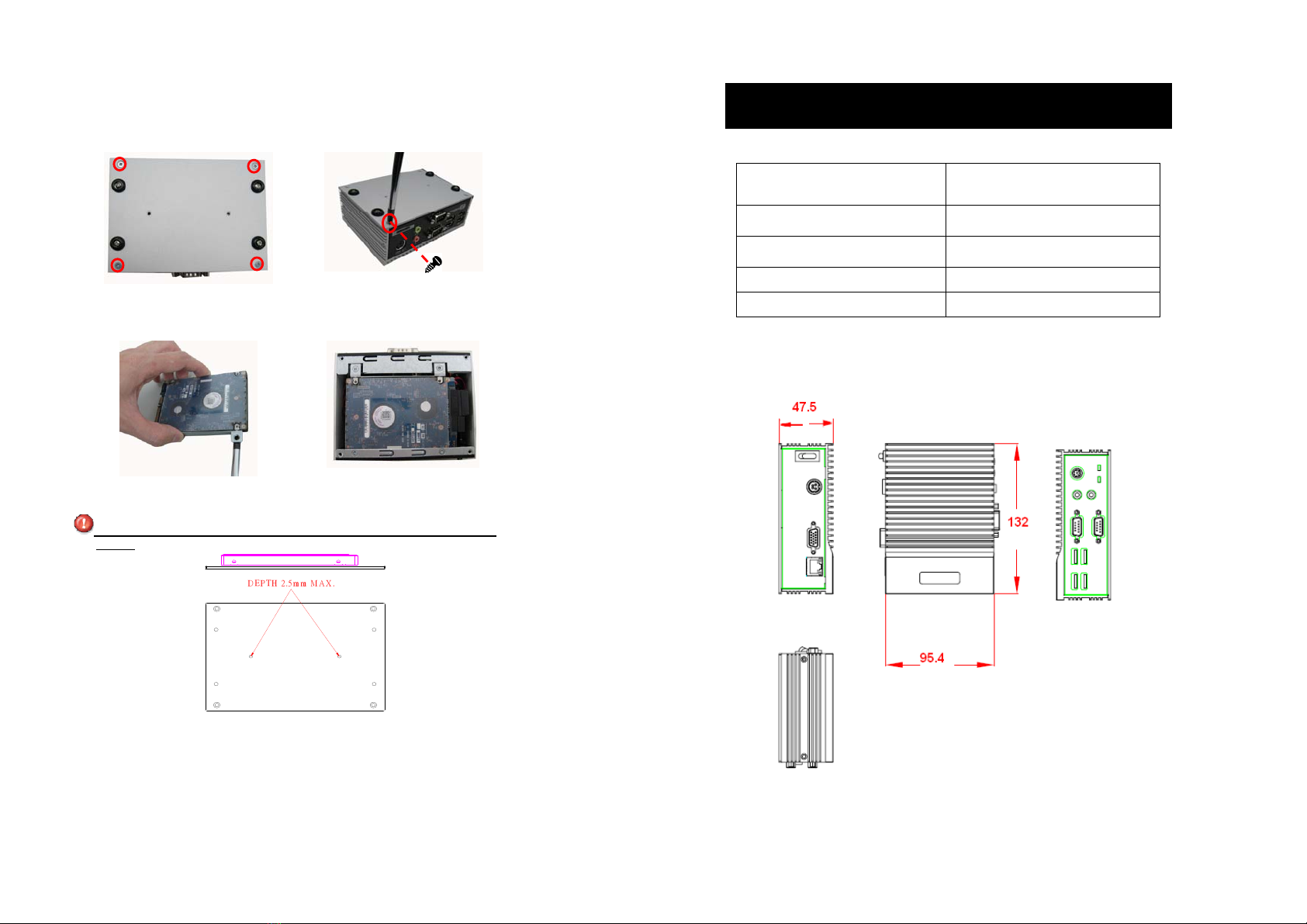

Installing the Hard Disk Drive

Step 1 Turn off the system, and unplug the power cord.

Step 2 Turn the system upside down to locate screws at the bottom,

loosen screws to remove the back cover.

Step 3 Assembly the HDD bracket, together with the HDD Mylar, and fix it

all into the system, and plug the power cable in HDD.

Step 4 Close the cover to the chassis, and fasten all screws.

MAXIMUM DEPTH OF THE HDD BRACKET : 2.5mm (when installing DIN

Mount)

eBOX532-100-FL Quick Installation Guide

Version A3 Jan 2016

Printed in Taiwan

9416K532020E

Packing List

eBOX532-100-FL System Unit

x 1 Y Cable for PS/2 Keyboard &

Mouse x 1

eBOX532-100-FL Quick

Installation Guide x 1 CD x 1 (for Driver and User’s

Manual)

Power Cord x 1 25W 5V AC/DC Power Adapter

x 1

Wallmount Bracket x 2 HDD Mylar x1

M3x4 Screws x 4

Do not try to apply power to the system if any damaged

components.

Dimensions

eBOX532-100-FL Series Fanless Embedded System

Version A3 Jan 2016

Printed in Taiwan

9416K532020E

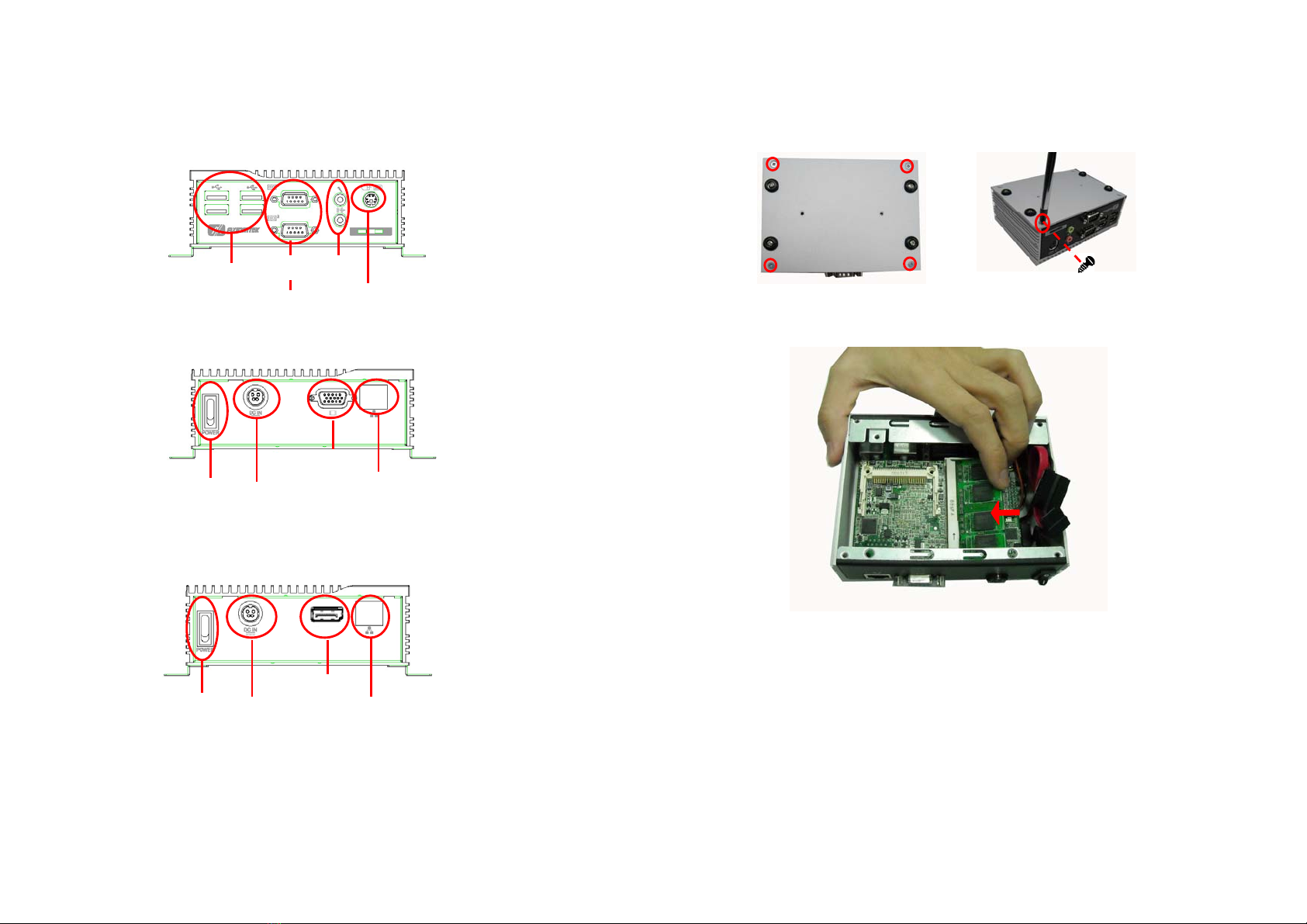

I/O Outlets

The following figures show you I/O outlets on front and rear panels of the

eBOX532-100-FL Series

Front View

Rear View (eBOX532-100-VGA-FL)

Rear View (eBOX532-100-PGA-FL)

COM1/2

CONNECTORS

4 x USB 2.0

CONNECTORS

AUDIO

CONNECTOR

PS/2

CONNECTOR

POWER-ON

SWITCH

VGA

CONNECTOR RJ-45

CONNECTOR FOR

ETHERNET

5V DC-IN POWER

INPUT

CONNECTOR

POWER-ON

SWITCH

DISPLAYPORT

CONNECTOR RJ-45

CONNECTOR

FOR ETHERNET

5V DC-IN POWER

INPUT

CONNECTOR

Version A3 Jan 2016

Printed in Taiwan

9416K532020E

Installing the Memory Module

Step 1 Turn off the system, and unplug the power cord.

Step 2 Turn the system upside down to locate screws at the bottom,

loosen screws to remove the back cover.

Step 3 Locate the memory module, insert the gold colored contact into the

socket. Push the module down, until it is firmly seated by locking

two latches on the sides.

Step 4 Close the cover to the chassis, and fasten all screws.
