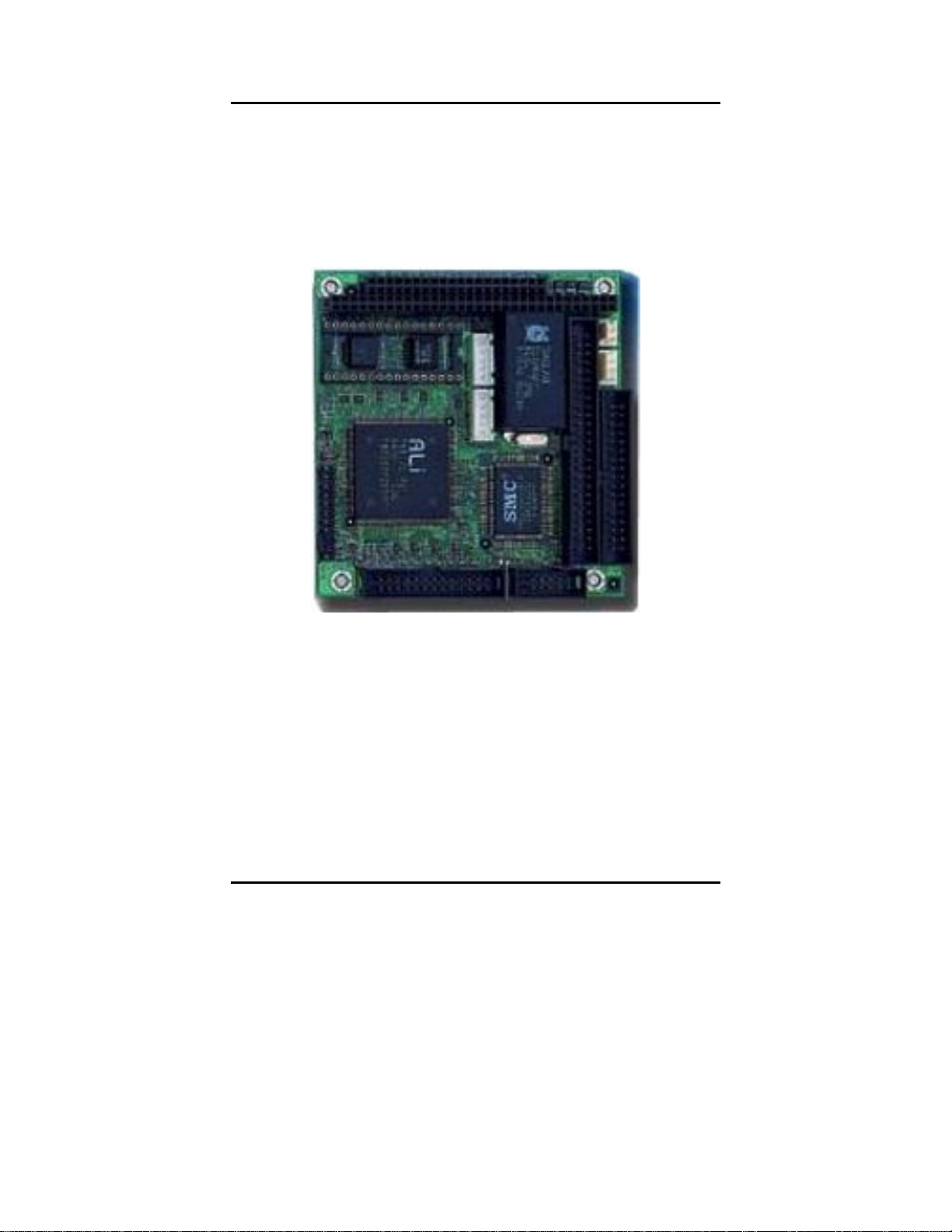

AX10402
PC/104 Embedded CPU Module
User’s Manual

ii
Disclaimers
!
" !
#
!! !
Copyright
2000 by AXIOM Technology Co., Ltd.
All rights reserved.
January 2000, Version A2
Printed in Taiwan

iii
ESD Precautions
Integrated circuits on computer boards are sensitive to static
electricity. To avoid damaging chips from electrostatic
discharge, observe the following precautions:
!Do not remove boards or integrated circuits from their anti-
static packaging until you are ready to install them.
!Before handling a board or integrated circuit, touch an
unpainted portion of the system unit chassis for a few
seconds. This helps to discharge any static electricity on
your body.
!Wear a wrist-grounding strap, available from most electronic
component stores, when handling boards and components.
Trademarks Acknowledgments
AXIOM is a trademark of AXIOM Technology Co., Ltd.
ALI is a registered trademark of Acer Laboratories, Inc.
Other brand names and trademarks are the properties and
registered brands of their respective owners.

iv
Unpacking
After unpacking the PC/104 module, check and see if the
following items are included and in good condition. If any of the
items is missing or damaged, notify your dealer immediately.
!AX10402 PC/104 Embedded
CPU module .......................................x 1
!HDD, COM port cables ........................x 1
!Printer extension cables with bracket.....x 1
!Floppy flat cable .................................x 1
!PS/2 mouse cable................................x 1
!Keyboard adapter................................x 1
!Screws (3mm) .....................................x 4
!Bronze stick (6mm) ..............................x 4
!User's Manual with Warranty Card ........x 1
Make sure that all of the items listed above are present.
What To Do If There Is A Problem
If there are damaged or missing parts, contact your supplier
and/or dealer immediately. Do not attempt to apply power to the
board if there is damage to any of its components.

Table of Contents v
T a b l e o f C o n t e n t s
Chapter 1
Chapter 1Chapter 1
Chapter 1 Introduction
IntroductionIntroduction
Introduction
1.1
1.11.1
1.1 General Description
General DescriptionGeneral Description
General Description...............................
..............................................................
............................... 1
11
1
1.2
1.21.2
1.2 Features
FeaturesFeatures
Features ................................
................................................................
................................................
................................
................ 2
22
2
1.3
1.31.3
1.3 Specifications
SpecificationsSpecifications
Specifications ................................
................................................................
........................................
................
........ 2
22
2
1.4
1.41.4
1.4 Board Dimensions
Board DimensionsBoard Dimensions
Board Dimensions ................................
................................................................
...................................
......
... 3
33
3
Chapter 2
Chapter 2Chapter 2
Chapter 2 Configuration
ConfigurationConfiguration
Configuration
2.1
2.12.1
2.1 Placement
PlacementPlacement
Placement ................................
................................................................
..............................................
............................
.............. 5
55
5
2.2
2.22.2
2.2 Inspection
InspectionInspection
Inspection ................................
................................................................
..............................................
............................
.............. 6
66
6
2.3
2.32.3
2.3 Jumpers
JumpersJumpers
Jumpers................................
................................................................
..................................................
....................................
.................. 7
77
7
2.3.1 DiskOnChipBIOS Expansion Address Select: JP1 ..............7
2.3.2 Clear CMOS Jumper: J1...............................................7
2.4
2.42.4
2.4 Connectors
ConnectorsConnectors
Connectors ................................
................................................................
............................................
........................
............ 8
88
8
Chapter 3
Chapter 3Chapter 3
Chapter 3 Hardware Description
Hardware DescriptionHardware Description
Hardware Description
3.1
3.13.1
3.1 Chipset
ChipsetChipset
Chipset................................
................................................................
.................................................
..................................
................. 13
1313
13
3.2
3.23.2
3.2 CPU
CPUCPU
CPU ................................
................................................................
......................................................
............................................
...................... 13
1313
13
3.3
3.33.3
3.3 CPU CLK
CPU CLKCPU CLK
CPU CLK ................................
................................................................
...............................................
..............................
............... 13
1313
13
3.4
3.43.4
3.4 BIOS
BIOSBIOS
BIOS ................................
................................................................
.....................................................
..........................................
..................... 13
1313
13
3.5
3.53.5
3.5 Timer
TimerTimer
Timer................................
................................................................
....................................................
........................................
.................... 13
1313
13
3.6
3.63.6
3.6 Memory Address Map
Memory Address MapMemory Address Map
Memory Address Map.............................
..........................................................
............................. 14
1414
14
3.7
3.73.7
3.7 I/O Port Address Map
I/O Port Address MapI/O Port Address Map
I/O Port Address Map............................
........................................................
............................ 14
1414
14
3.8
3.83.8
3.8 DMA Channels
DMA ChannelsDMA Channels
DMA Channels ................................
................................................................
......................................
............
...... 15
1515
15
3.9
3.93.9
3.9 Int
IntInt
Interrupt Controller
errupt Controllererrupt Controller
errupt Controller...........................
......................................................
........................... 16
1616
16
3.10
3.103.10
3.10 Parallel Port Interface
Parallel Port InterfaceParallel Port Interface
Parallel Port Interface.......................
..............................................
....................... 16
1616
16
3.11
3.113.11
3.11 Serial Port Interface
Serial Port InterfaceSerial Port Interface
Serial Port Interface...........................
......................................................
........................... 17
1717
17
3.12
3.123.12
3.12 Floppy Disk Controller
Floppy Disk ControllerFloppy Disk Controller
Floppy Disk Controller ........................
................................................
........................ 17
1717
17
3.13
3.133.13
3.13 IDE Controller
IDE ControllerIDE Controller
IDE Controller................................
................................................................
.....................................
..........
..... 17
1717
17
3.14
3.143.14
3.14 PS/2 Mouse
PS/2 MousePS/2 Mouse
PS/2 Mouse ................................
................................................................
...........................................
......................
........... 17
1717
17
3.15
3.153.15
3.15 DiskOnChip
DiskOnChipDiskOnChip
DiskOnChipTM
TMTM
TM Flash Disk
Flash DiskFlash Disk
Flash Disk .......................
..............................................
....................... 17
1717
17
3.16
3.163.16
3.16 Watchdog Function
Watchdog FunctionWatchdog Function
Watchdog Function...............................
..............................................................
............................... 18
1818
18
3.17
3.173.17
3.17 PC/104 Expansion Bus
PC/104 Expansion BusPC/104 Expansion Bus
PC/104 Expansion Bus ...........................
......................................................
........................... 18
1818
18

vi

AX10402 PC/104 CPU Module Users Manual
Introduction 1
C h a p t e r 1
Introduction
1.1 General Description
The AX10402 is a PC/104 plug-in CPU module using 80386SX
40-MHz. Its 6-layer printed circuit board combines features with
noise-tolerant and low power consumption. CMOS technology
applied on the board makes AX10402 withstand and adapt
harsh industrial environments very well.
Additional AX10402 onboard features include two RS-232 serial
ports, one bi-directional parallel port, keyboard connector, an
EIDE (AT bus) hard disk drive interface, a floppy disk drive
controller and a watchdog timer.

AX10402 PC/104 CPU Module Users Manual
Introduction
2
1.2 Features
"Fully PC/AT compatible 40MHz 80386SX CPU
"ALI M6117C single chip built-in 386SX CPU core
"Compact form factor meets the PC/104 standard
"Fully hardware and software compatibility with the
popular PC bus standard.
"AMI BIOS
"Onboard 2 RS-232 serial ports support FIFO mode
"Onboard 1 parallel port support SPP/ECP/EPP modes
"Build-in EIDE hard disk driver interface
"Build-in floppy disk controller
"DRAM expandable from 2MB to 4MB
"External K/B connector
"Supports PS/2 mouse
"16-level watchdog timer selected via CMOS setup
1.3 Specifications
"Dimensions (LxW): 3.74” (95mm) x 3.54” (90mm)
"Weight: 120g
"Operating Temperature: 0oC (32oF) to 60oC (140oF)
"Power Consumption: +5VDC @ 2A

AX10402 PC/104 CPU Module Users Manual
Introduction
3
1.4 Board Dimensions
0
5.08
6.35
26.67
85.09
90.17
0
8.89
82.55
0
5.08
10.16
90.81
95.89
B1
A1
C0
D0
31 X 2.54 = 78.74
B32
A32
C19
D19
19 X 2.54 = 48.26

AX10402 PC/104 CPU Module Users Manual
