Avision AV810C Manuel utilisateur

User’s Manual

For AV810C/AV815C/AV820C/AV880C

Document Imaging Scanner

Doc. No.250-0070-03 Rev. C

Avision Inc.

Trademarks

Microsoft is a U.S. registered trademark of Microsoft Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, PC, AT, XT are registered trademarks of International Business

Machines Corp.

Other brands and product names herein are trademarks or registered

trademarks of their respective holders.

transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by

anymeans, electronic, mechanical, magnetic, optical, chemical,

manual, or otherwise, without the prior written permission of Avision

Inc.

Material scanned by this product may be protected by governmental

laws and other regulations, such as copyright laws, the customer is

solely responsible for complying with all such laws and regulations.

iii

Warranty

The information contained in this document is subject to change

without notice.

Avision makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of fitness for a

particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

FCC Radio Frequency Interference

Statement

This equipment has been tested and found to comply with the limits

for a class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may

cause harmful interference to radio communication. However, there

is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and receiver.

− Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

− Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, (example - use

only shield interface cables when connecting to computer or

peripheral devices). Any changes or modifications not expressly

approved by the manufacture of this device could void the user's

authority to operate the equipment. This device complies with Part

15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible

Party: Avision Labs, Inc.

Telephone No.: +1 (510) 739-2369

Table of Contents

1. INTRODUCTION ................................................................... 1-1

2. SCANNER INSTALLATION................................................... 2-1

2.1 PRECAUTIONS ............................................................... 2-1

2.2 SCANNER UNPACKING.................................................. 2-1

2.3 ADF PAPER CHUTE INSTALLATION ............................. 2-5

2.4DOCUMENT LOADING..................................................... 2-7

2.5 CONNECTING THE CABLES .......................................... 2-9

2.6 INSTALLATION OF THE SCSI CARD.............................2-11

2.6.1 PC USERS.............................................................2-11

2.6.2 MAC USER............................................................2-12

3. SCANNER DRIVER INSTALLATION .................................... 3-1

3.1 MAC USERS.................................................................... 3-1

3.2 PC USERS....................................................................... 3-4

3.2.1 WINDOWS 3.1 OR WINDOWS 3.1X...................... 3-4

3.2.2 WINDOWS 95 OR WINDOWS NT4.0..................... 3-5

4. SCANNER OPERATION ....................................................... 4-1

4.1 IMAGE TYPE................................................................... 4-5

4.2 RESOLUTION CONTROL................................................ 4-7

4.3 IMAGE CONTROL ........................................................... 4-8

4.4 SCANNING .....................................................................4-13

5. CARE AND MAINTENANCE.................................................. 5-1

5.1 CLEANING THE ADF....................................................... 5-1

5.2 CLEANING THE GLASS.................................................. 5-3

5.3 REPLACING THE ADF DETACHABLE PAD MODULE.... 5-4

6. TROUBLESHOOTING........................................................... 6-1

6.1 FREQUENTLY ASKED QUESTIONS............................... 6-1

6.2 PAPERJAM IN THE ADF ................................................. 6-4

6.3 TECHNICAL SERVICE..................................................... 6-6

7. SPECIFICATIONS................................................................. 7-1

7.1 MODEL: DOCUMENT SCANNERS................................. 7-2

1-1

1. INTRODUCTION

Congratulations on your purchase of the Avision document scanner.

Avision is one of the leading company to make high quality document

scanner.

To ensure the optimum performance of the scanner, please take a

few minutes to read through this manual before you install and

operate the new scanner. The manual contains important

information on how to unpack, install, operate, and maintain the

scanner properly. Figure 2-1 in below shows how the scanner is

packed. Please check if all items are included.

1-2

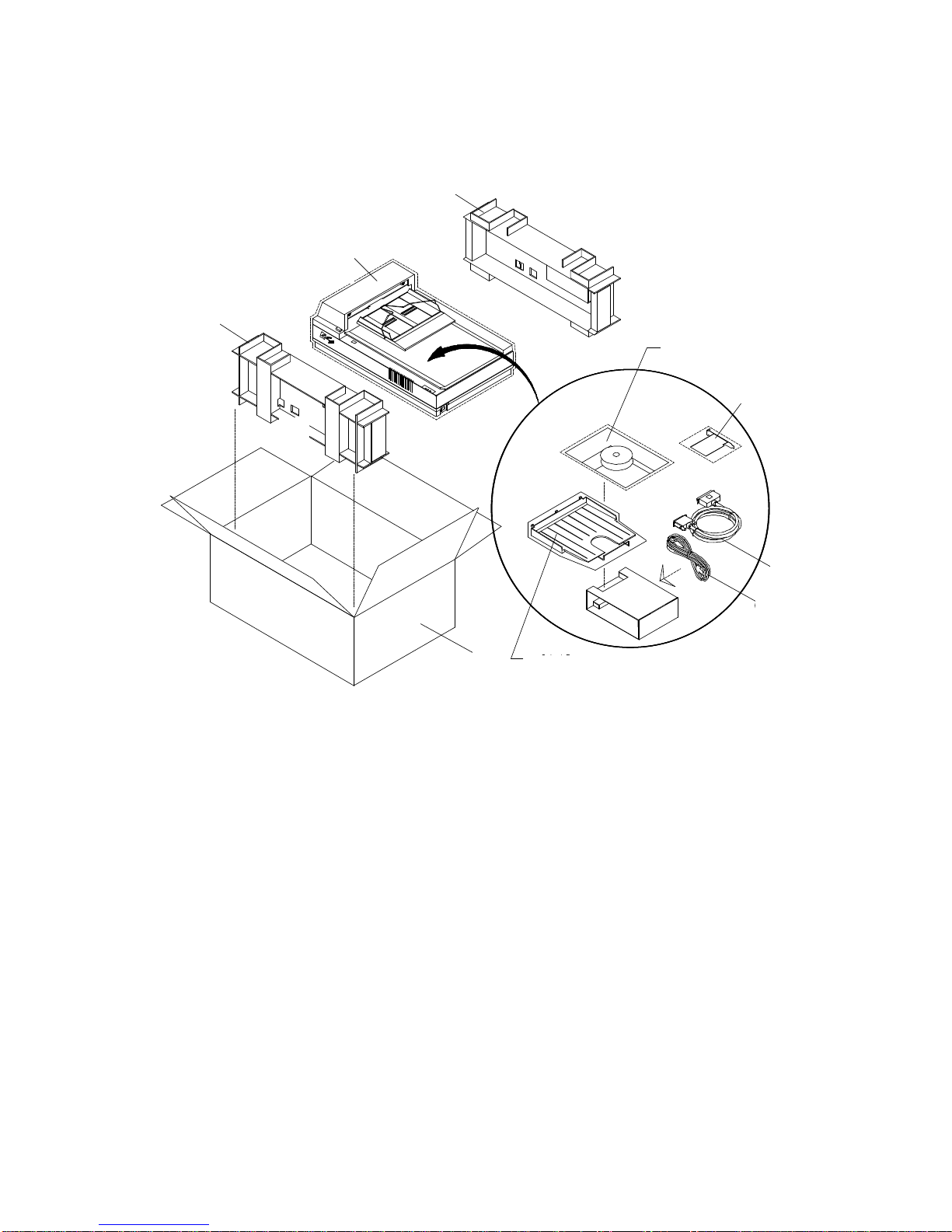

Figure 1-1 Scanner Packaging

1. Scanner main unit

2. Cushion

3. Users manual, Software CD

4. SCSI host adapter

5. SCSI cable

6. Power adapter

7. Output paper rack

8. Carton

2-1

2. SCANNER INSTALLATION

2.1 PRECAUTIONS

v Keep the scanner out of direct sunlight. Direct exposure to

the sun or excessive heat may cause damage to the unit.

v Do not install the scanner in a humid or dusty place.

v Be sure to use the proper AC power source.

v Place the scanner securely on an even, flat surface. Tilted or

uneven surfaces may cause mechanical or paper-feeding

problems.

v Keep the shipping box and the material in case you may need

to ship the scanner again.

2.2 SCANNER UNPACKING

Please unpack the scanner carefully. If any item is missing or

damaged, please contact your authorized Avision dealer

immediately.

Remove the shipping retainer:

1. Place the scanner on its side as shown to reveal the shipping

retainer as shown in Figure 2-1.

2. Unscrew the retainer screw.

3. Pull out the shipping retainer and put it in the “use position”(See

Figure 2-2) and secure it with the screw.

4. Lay down the scanner on the desk for normal operation.

2-2

Figure 2-1 Remove the shipping retainer.

Figure 2-2 Fasten the shipping retainer.

2-3

Refit the shipping retainer:

Whenever you need to transport the scanner, please follow the

instructions below:

1. Turn off the scanner.

2. Raise the document cover. You can see clearly the flatbed

glass as well as the reading engine.

3. Turn on the scanner. At this moment, the reading engine will

move a few inches forward and stay there for a few seconds.

Turn off the scanner during this pause.

4. Raise the scanner high enough to unscrew the shipping retainer

from the “use position” and fix it in the “shipping position.”

SCSI ID:

When you have several devices on a SCSI chain, you may need to

adjust the SCSI ID selector setting located on the back of the

scanner(See Figure 2-3). This setting assigns a specific "device ID"

to the scanner. If the ID number is duplicate with an existing SCSI

device, please select a new ID.

Note: The factory setting for the scanner is ID# 6. Usually, ID# 0 is

assigned to an internal hard disk drive, and ID# 7, to SCSI adapter or

host. ID# 8 and #9 are not in use actual.

Setting Terminator

The scanner is equipped with a built-in terminator switch on the rear

of the scanner. (See Figure 2-3) Turn the terminator switch on if

the scanner is to be connected to the computer as the only or the

last SCSI device. Turn the terminator switch off if the scanner is to

be located between the computer and other SCSI device.
