TrafficJet™ Front Panel functions

Instructional Bulletin : # 9.11

Revision : # 04

Last Updated : December 2019



Contents

1. Power Indicator

2. Head Height Indicator

3. Menu Button

4. Cancel / Pause Button

5. Arrow Buttons

6. Enter / Cut Sheet Button

7. Cleaning Mode Indicator

8. Error Indicator

9. Online Menu



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 1 of 13

reflectives.averydennison.com



1. Power Indicator

Button is Blue when the printer is ON and in Standby Mode. The button blinks when receiving data from

the RIP software.



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 2 of 13

reflectives.averydennison.com



2. Head Height Indicator



Important!

●Mid Position is the correct position for the TrafficJet when printing on Reflective Sheeting.

●Some older TrafficJet models might refuse to switch OFF if the head height is in Mid position.

Switching the orange lever to LOW position when turning OFF the printer fixes this issue.



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 3 of 13

reflectives.averydennison.com



Indicator Head Height Low Position



Indicator Head Height Mid Position (correct position for Reflective Sheeting)



Indicator Head Height High Position



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 4 of 13

reflectives.averydennison.com



3. Menu Button



Enter the Menu Panel Menu. See table on the next page for the 7 menu sections.



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 5 of 13

reflectives.averydennison.com

Menu 1:

Setup >

Setup Table is not part of this Instructional Bulletin

Menu 2:

Test Print >

Test 1:

Nozzle Check



Test 2:

Mode Print



Test 3:

Setup List



Test 4:

Palette (not for xx38)



Test 5:

Colour Verify

Menu 3:

Cleaning >

Time:

Short



Normal



Long



Little Charge



Initial Charge

Menu 4:

Menu Option >

1 [*] Hide / Show Menu Entries of the Setup List

Menu 5:

Version >

Ver. M / C : 3.02 / 1.20

Menu 6:

Sleep Mode >

Sleep Mode 1

Set Timer



Sleep Mode 2

Start

Menu 7:

Display >

Display 1:

Language



Display 2:

Temperature



Display 3:

Length

Menu 8:

Jobstatus >

Info about the last job



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 6 of 13

reflectives.averydennison.com

4. Cancel / Pause Button

Double function: Cancel or pause the current print job.



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 7 of 13

reflectives.averydennison.com

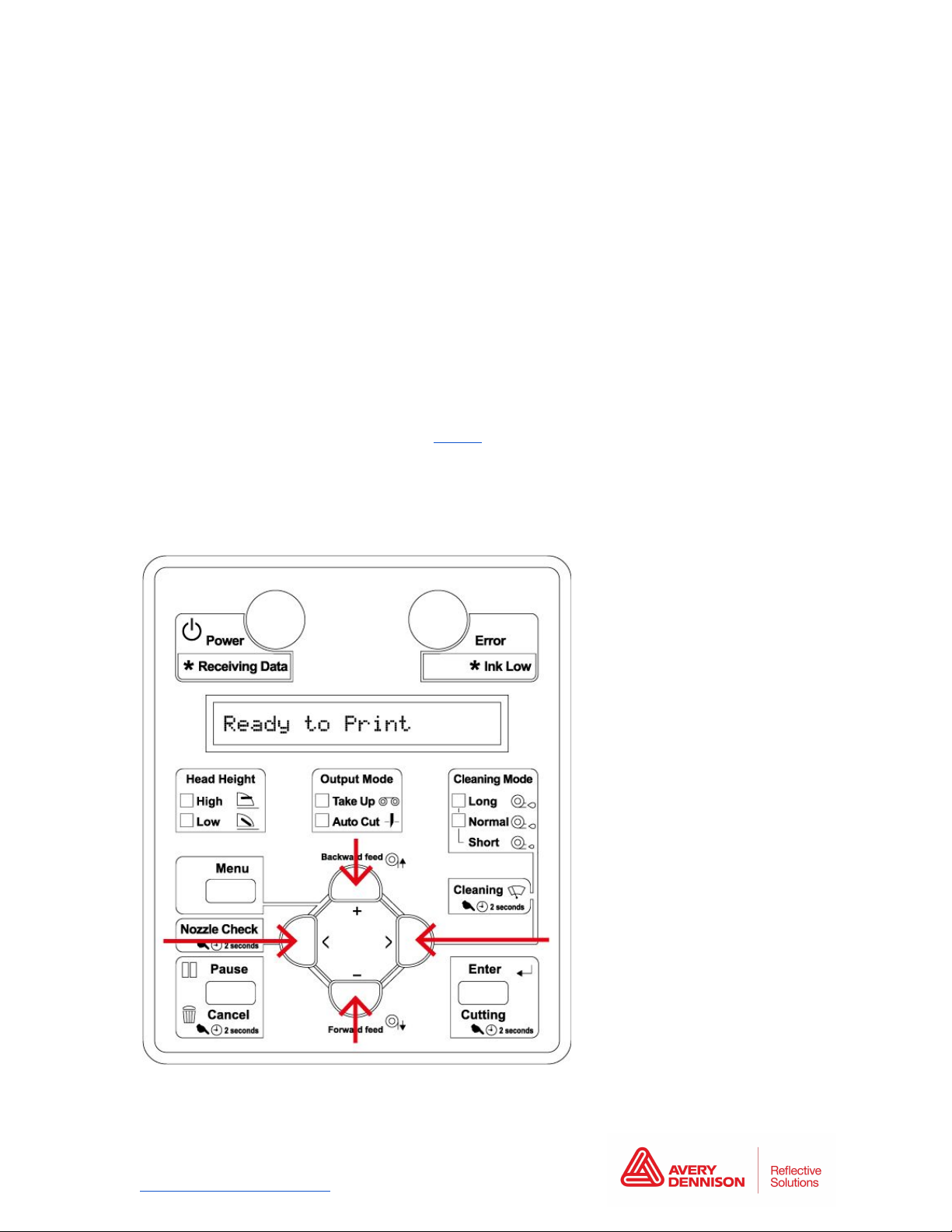

5. Arrow Buttons



Left Arrow Button

Double function. Either navigate through the menu or when printer is in Standby status, click and hold for 2

seconds to print a Nozzle Check.



Down Arrow Button

Feed sheeting forward.



Right Arrow Button

Triple function: Either navigate through the menu, click and hold for 2 seconds to perform a Manual

Cleaning Cycle (works also during actual printing), in Standby mode push short to change the Manual

Cleaning Cycle. For more information, visit our website and check Manual Cleaning Cycle IB# 9.9.



Up Arrow Button

Feed sheeting backward.



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 8 of 13

reflectives.averydennison.com

6. Enter / Cut Sheet Button

Triple function. Press to confirm option when navigating through the Menu, click to resume printing when

printer is in Pause Mode and click and hold for 2 seconds when printer is in Standby Mode to cut off

sheeting.



Important!

ONLY use the automatic cutter to cut T-1500D or Avery Dennison Graphics media. DO NOT use for any

other (Prismatic) Reflective sheeting series!



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 9 of 13

reflectives.averydennison.com



7. Cleaning Mode Indicator



Instructional Bulletin IB# 9.11

TrafficJet™ Front Panel functions

Page 10 of 13

reflectives.averydennison.com
