11/07 Rev. 4.03-01 USER MANUAL

AP3.4

Commissioning and Operation

Connecting the printer ................................... 2

Overview connectors ................................. 2

Connecting the printer ...............................3

Operator Controls ......................................... 4

Buttons ...................................................... 4

LED indicators ........................................... 5

Basic Operations ........................................... 6

Printing a Configuration Report ................. 6

Performing a Calibration ........................... 7

Performing a Factory Reset ...................... 8

Driver Installation ...........................................9

Selecting a driver .......................................9

Installing the Standard Driver ..................10

Installing the USB Driver ..........................10

Installing the label layout program ...............11

Xbar .........................................................11

NiceLabel .................................................11

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Connecting the printer

Overview connectors

[1] Printer connectors (rear side of the device).

yCentronics connector (parallel port) [1C]

For parallel port connection. Mostly it is connected to the printer port of a PC.

yRS232 connector (serial port) [1D]

For serial port connection. Mostly it is connected to the COM. port of a PC.

yUSB-Anschluss [1B]

yAC power socket [1E]

For AC power connection.

BCD

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Connecting the printer

1. Leave the power switch [1A] at the “O” Position.

2. Connect the power supply plug to the power jack [1E] and the other end of

the cord to your AC outlet [1F].

3. Connect the printer with any standard Centronics cable to the parallel port of

the host computer and to the Centronics connector [1C] of the printer.

¯Alternatively, you can connect the printer as follows:

– With a serial cable to the RS232C port of your computer.

– With a USB cable to the USB port of your computer.

WARNING!

Printer is driven by mains voltage! Touching of live parts can cause life-

threatening body currents and burns!

«Make sure, that the printer is switched off, before connecting the power ca-

ble.

«Onlyconnecttheprintertoapowersocketthatprovidesthecorrectvoltage,

which can be found on the rating plate.

«Only connect the printer to a grounded power socket fitted to authorized

standards.

«When laying the power supply cable, ensure that:

– no one can trip over it.

– no one can step on it.

– the power supply cable can be pulled out of the power outlet, if

necessary.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Operator Controls

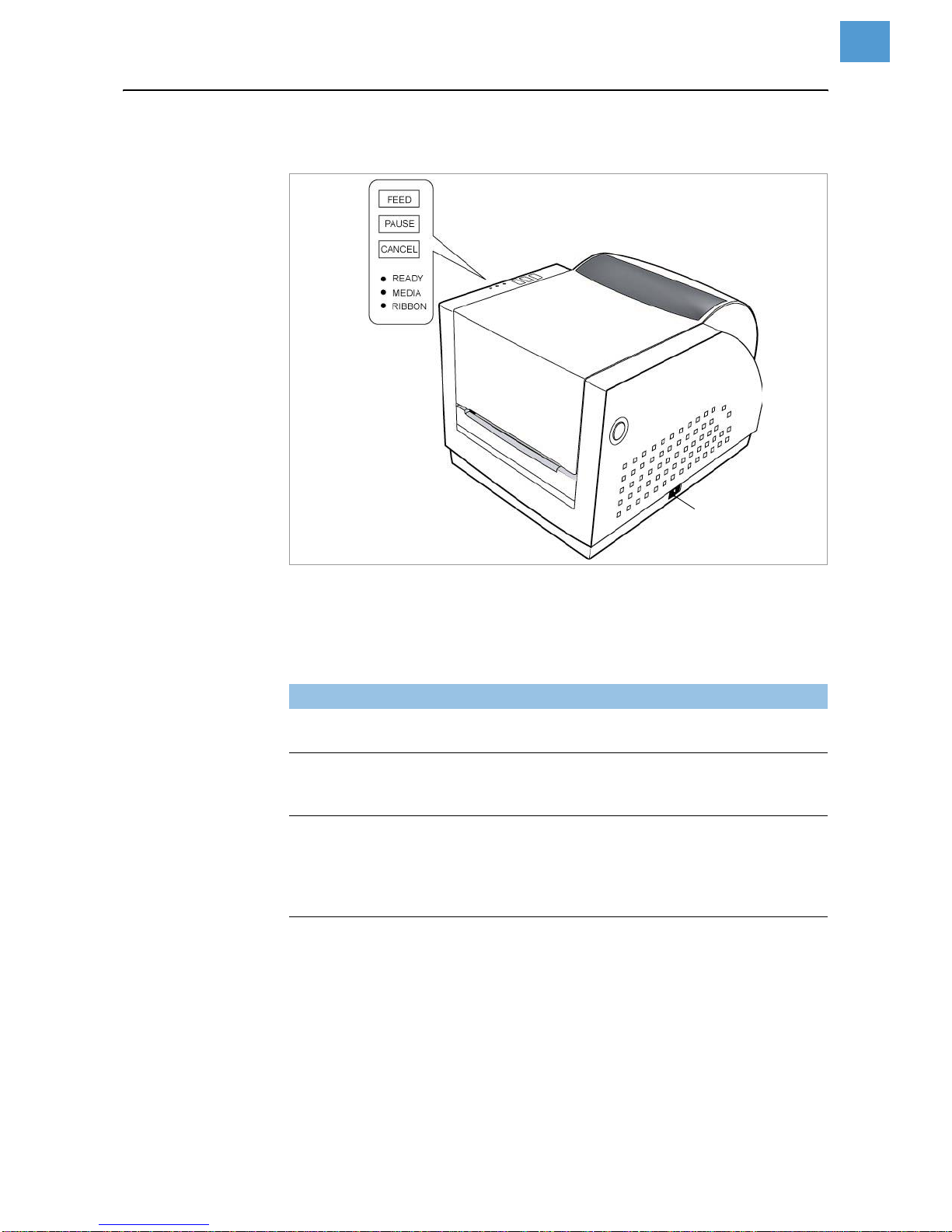

[2] Operator controls of the printer.

Buttons

There are three buttons [2], each having two basic functions.

yFEED Button

The FEED button forces the printer to feed one label when printer is idle (not

printing) or if in PAUSE state.

Holding down the FEED Button then turning on the power switch, the printer

will perform a self test and a configuration report will be printed.

BUTTON Pressed at normal status Pressed during power-on

FEED Feed a label. Perform a self test for configu-

ration report.

PAUSE Stop the printing process

Resume the printing job after

press it again.

Perform the media calibration.

CANCEL Interrupt and delete the prin-

ting job.

Force the printer to continue

working after an error had

been solved.

Reset the settings at

E2PROM.

[Tab. 1] Overview buttons.

Power switch

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

yPAUSE Button

The PAUSE Button stops and restarts the printing process in normal opera-

tion. If the PAUSE button is pressed while printing is in progress, the printing

stops once current label is completed. Press this button again to restart the

printing.

HoldingdownthePAUSEButtonthenturningonthepowerswitch,theprinter

will perform the media sensor calibration.

yCANCEL Button

The CANCEL Button interrupts and deletes the current printing job. If there is

an error indication occurs, pressing this button to cancel the error indication.

Holding down the CANCEL Button thenturning on the power switch , the prin-

ter will perform a system reset , all the parameters which are stored in

EEPROM will be rest to default value.

LED indicators

There are three LED indicators on the front panel, ”READY”, ”MEDIA” and

”RIBBON”. These indicators display the operation status of the printer.

LED Meaning

READY The READY indicator will remain lighted except if any of the fol-

lowing conditions prevail.

- Receiving data from host

- A fault condition

MEDIA The MEDIA indicator will remain on for the normal operation of

the printer.

- The printer is at PAUSE state

- Blinking – Media run out (READY will be also blinking)

RIBBON ON - under thermal transfer mode with ribbon installed.

OFF - under direct thermal mode. (No ribbon installed)

Set by Windows driver or command.

- Blinking - Ribbon run out (READY will be also blinking)

[Tab. 2] Overview LED indicators.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Basic Operations

Printing a Configuration Report

1. Turn off the printer. Press and hold the FEED button.

2. Turn on the power.

3. READY indicator blinks, release FEED button.

4. The printer will perform a self test and print out a configuration report [3].

5. READY indicator stops blinking and lights up.

6. The following information will be printed on this report.

¯After self test the printer will enter character dump mode. For normal opera-

tion press the CANCEL button to stop dump mode.

[3] Configuration report.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Some information in the configuration report are important, please check

them after the self test:

Performing a Calibration

After the media loaded, it is necessary to do the calibration for the label size

detection.

1. Press and hold the PAUSE button. Turn on the power.

2. MEDIA indicators will blink, at this point release Pause button.

The printer will feed the labels for 12 inches.

MEDIA indicators stop blinking and remain illuminated.

During the media calibration, 12 inches of media will be fed out. MEDIA indi-

cators will be blinking for few seconds during calibration is proceeding. Then

turn on printer again after thecalibration is completed. Without the proper ca-

libration, the gap detection will not stable especially for the small labels (less

than 2.0 inches in height).

After the calibration, all the related parameters will be stored in the EEPROM

which is located on Main board.

¯This procedure is very important and must always be carried out after instal-

lation and every time the media type is changed. Failureto do so will result in

the gap and label-empty detection being incorrect.

Item Meaning

Printer programming

language The printer programming language is listed on the

first line of the report . There are two different lan-

guages (PPLA and PPLB), Please check for cor-

rect version.

CHECKSUM The CHECKSUN of the FLASH ROM is listed on

the eighth line, It should be 0000.

Media height: The height of the media (label paper) is list on the

second line from the end. Please check this value

if the height of the media is less the 2 inches

(50mm). The listed value should be very close to

the height of the media plus the height of one gap,

otherwise the calibration of media sensor is requi-

red.

Label count and length This message shows the number of labels and

length has been printed since it was produced at

factory.

[Tab. 3] Items on the Configuration Report.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Performing a Factory Reset

If you would like to reset the printer to its factory defaults after certain com-

mands have been sent or settings changed:

1. Turn off the printer.

2. Turn on the power. Press and hold the CANCEL button.

3. Ribbon indicator blinks, release the button.

Ribbon indicator stops blinking and lights up.

The following parameters automatically reset.

– Label parameters

– Heat(Darkness)

– Speed

– Symbol set (language)

– Others for specific interpreter

¯All settings stored in non-volatile E2PROM cannot be destroyed even by

turning the printer off.

¯It is necessary to perform label sensitivity calibration after resetting.

¯The printed label count can not be reset.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Driver Installation

Selecting a driver

Two printer drivers are delivered with the printer, each in different versions

for the following operating systems:

yWindows 95

yWindows 98

yWindows 2000

yWindows NT 4.0

yWindows XP

The drivers are referred to in the following as „Standard Driver“ and „USB

Driver“.

USB Driver Install the USB Driver, if:

– The print jobs are supposed to be sent via USB interface.

– The AP3.4 is supposed to be operated with the optional keyboard,

independent of a host computer.

Standard Driver In all cases, which are not mentioned under „USB Driver“, it is recommended

to install the Standard Driver and the layout software „NiceLabel“.

yInstalling drivers: See the following paragraphs.

yInstalling label layout programs: see section Installing the label layout

program on page 11.

11/07 Rev. 4.03-01 USER MANUAL Commissioning and Operation

AP3.4

Installing the Standard Driver

Requires the Adobe Reader to be installed on the computer.

[4] CD „Printer Documentation“.

1. Insert the CD „Printer Documentation“ [4] (is delivered witih the printer).

The CD starts automatically.

The window „Printer Documentation“ opens.

2. Click „Printer drivers and label software“.

The selection window „NiceLabel SE CD“ opens.

3. Click „Installl“ and then „Printer Drivers“.

The installation wizard welcomes you.

4. Follow the instructions of the installation wizard.

5. If you are requested to select a printer type, note the following:

– Click „AP3.4 PPLA“ for an AP3.4 with Datamax interpreter.

– Click „AP3.4 PPLB“ for an AP3.4 with Eltron interpreter.

6. Further follow the instructions of the installation wizard.

The driver files are copied to the computer.

7. If you are back to the selection window „NiceLabel SE CD“, click „Back“ and

then „Exit“.

8. Close the Adobe Reader.

Installing the USB Driver

1. Insert the CD „Label Printing Software“ (is delivered with the printer).

2. At the computer, click Start > Settings > Printer and fax devices.

3. Click File > Add printer.

The installation wizard welcomes you.

4. Follow the instructions of the installation wizard.

5. If you are requested to select a printer type, click „Have disk“.

A file selection dialog opens.

6. Select on CD the file „\Utilities\AP34\WINDOWS Driver\ BS\oemprint.inf“,

where OS stands for the Operating system on your computer.

7. Further follow the instructions of the installation wizard.

Printer Documentation

64-xx / DPM / ALX 92x / TTX 67x / AP 7.t

TDI / Options

Link information to your product

Autres manuels pour AP3.4

Table des matières

Autres manuels Avery Dennison Étiqueteuse

Avery Dennison

Avery Dennison 221 RH Manuel utilisateur

Avery Dennison

Avery Dennison Label Printer Manuel utilisateur

Avery Dennison

Avery Dennison TTX 450 Guide de dépannage

Avery Dennison

Avery Dennison ALS 230 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 204 Manuel utilisateur

Avery Dennison

Avery Dennison PB-XL Manuel utilisateur

Avery Dennison

Avery Dennison 64 Series Manuel utilisateur

Avery Dennison

Avery Dennison S 105 Manuel utilisateur

Avery Dennison

Avery Dennison ALX 92x Manuel utilisateur

Avery Dennison

Avery Dennison ALS 204 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 421 Manuel utilisateur

Avery Dennison

Avery Dennison Pathfinder 6057 Mode d’emploi

Avery Dennison

Avery Dennison ALS 380 Manuel utilisateur

Avery Dennison

Avery Dennison Pathfinder 6057 Mode d’emploi

Avery Dennison

Avery Dennison AP4.4 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 330/430 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 430 Manuel utilisateur

Avery Dennison

Avery Dennison AP3.4 Guide de dépannage

Avery Dennison

Avery Dennison Monarch Freshmarx 9417+ Manuel de service

Avery Dennison

Avery Dennison Monarch 9844 Manuel de service

Avery Dennison

Avery Dennison AP7.t Manuel d'instructions

Avery Dennison

Avery Dennison ALX 92x Manuel utilisateur

Avery Dennison

Avery Dennison AP5.4 Manuel utilisateur

Avery Dennison

Avery Dennison Monarch Freshmarx 9417+ Manuel de service

Manuels Étiqueteuse populaires d'autres marques

Brother

Brother P-Touch 2420PC Manuel utilisateur

newell

newell Dymo LabelManager 210D Manuel utilisateur

Brother

Brother TD-4000 Manuel utilisateur

U-Line

U-Line BROTHER H-8754 Manuel utilisateur

Tharo Systems

Tharo Systems H-435+ Manuel utilisateur

Brother

Brother E300 Manuel utilisateur

Godex

Godex RT700 SERIES Manuel utilisateur

ID Technology

ID Technology 252 Manuel utilisateur

Labelmate

Labelmate MC-11 Manuel utilisateur

CAB

CAB XD4M/300 Manuel utilisateur

Brother

Brother P-touch PT-9700PC Manuel utilisateur

TSC

TSC PEX1000 Series Manuel utilisateur

Adkins

Adkins Label Master Manuel utilisateur

Epson

Epson LabelWorks LW-400 Manuel utilisateur

Primera

Primera 510212 Manuel utilisateur

Brady

Brady BradyPrinter S3100 Manuel utilisateur

DuraLabel

DuraLabel LabPRO Manuel utilisateur

Novexx Solutions

Novexx Solutions XLP 604 Manuel utilisateur
