Avaya IP Office SMDR Manuel d'installation et d'exploitation
IP Office SMDR
Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002)
Contents
IP Office SMDR Page 2
Installation & Reference Manual 40DHB0002USDT Issue 1 (09/04/2002)
Contents
IP Office SMDR ............................................................................................................................3
Introduction .....................................................................................................................................3
System Requirements.................................................................................................................3
Installation .......................................................................................................................................4
Launching IP Office SMDR........................................................................................................5
Settings Tab ...................................................................................................................................6
Comms ................................................................................................................. 6
Log to File............................................................................................................. 7
Licences ............................................................................................................... 7
Language ............................................................................................................. 8
CSV File Format............................................................................................................................8
IP Office SMDR Output Fields..................................................................................................9
Example Call Records...............................................................................................................10
IP Office SMDR Introduction
IP Office SMDR
Introduction
The IP Office Station Message Detail Recording (SMDR) application,
captures detailed information about incoming and outgoing voice and
data calls.The IP Office SMDR applications receives this data via the
LAN. The application creates a call log management file (SMDR.csv)
which can be processed by a 3rd party call system.
System Requirements
The IP Office SMDR application can be installed on a PC to process
data from to the IP Office. The following operating systems are
supported: Win 98 SE, Win 2000, Windows NT 4 and Windows XP.
It is recommended the IP Office SMDR and the Delta Server for CCC
or CBC are not installed in the same PC as this may potentially
cause database corruption.
Note: You cannot setup more than one IP Office SMDR
application to an IP Office system. For multi IP Office
configurations one IP Office SMDR application per IP Office
system will be required.
The IP Office SMDR application is for call reporting on the IP Office
system. The Delta Server application is an integral component of the
IP Office Call Centre products, CCC and CBC. These products allow
in depth reporting on Call Centre activity.
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 3
IP Office SMDR Installation
Installation
The PC hosting the IP Office SMDR should be connected to the IP
office via the Local Area Network.
To install the IP Office SMDR application please follow the steps
below:
To install:
1. Insert the IP Office Administration CD into the CD Drive. If the
CD auto-starts please press Cancel:
• Select My computer or select Windows Explorer
• Select the CD Drive the CD is in (usually D:)
• Right click on the CD Drive and select Browse
• Select & Enter the SMDR folder
• Double click on SETUP.exe.
• Click on the OK button to start the installation.
2. A screen will show letting you select the language that you want
to use for the installation. Select the required language and then
click on the OK button.
3. The InstallShield Wizard will start. At the Welcome screen click
on the Next button to continue with the installation.
4. At the completed installation screen click on the Finish button to
complete the installation.
The Application is now installed to the following path on the Start
Menu. Start/Programs/IP Office/IP Office SMDR
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 4
IP Office SMDR Launching IP Office SMDR
Launching IP Office SMDR
Ensure the IP Office SMDR has established connection with the
telephone system. Every time the Server PC is switched on, the IP
Office SMDR will automatically restart. However, you can start the
IP Office SMDR, by performing the following sequence:
− Click the Start button on the Windows Taskbar.
− Point to Programs
− Point to IP Office
− Click on IP Office SMDR. The following screen appears:
The information on the screen is:
Comms Status: This indicates the status of the link between the IP
Office SMDR, and the telephone system.
There are three statuses: Init Comms, Comms Restored, and
Comms Failure.
− Init Comms – Indicates IP Office SMDR is initialising and has
established communication with the telephone system (this
happens every time you start the IP Office SMDR).
− Comms Restored – Indicates the connection between the IP
Office SMDR and the telephone system is established.
− Comms Failure – Indicates communications link between the
IP Office SMDR and the telephone system has been
terminated.
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 5
IP Office SMDR Settings Tab
Settings Tab
The Settings tab enables you to configure the IP Office SMDR. The
options available are as follows:
Comms
This screen displays details of the telephone system to which the IP
Office SMDR is connected. The details are:
Server: The name of the IP Office control unit selected.
IP Address: The IP Address of the selected IP Office control unit.
If the Server and/or the name of the IP Address is changed, it is
essential to reconnect to that IP Office SMDR.
1. Click Find, from the Find Server screen, select the required IP
Office, then click Connect.
2. If the required IP Office is not listed, then click Advanced.
3. Select one of the options, then click Search.
4. From the available telephone systems, select the appropriate
one, and then click Connect.
5. Once the IP Office SMDR is connected to the telephone system,
click Save.
The IP Office SMDR can monitor any IP Office listed in the drop
down box which appears in the Find Server screen. However the IP
Office SMDR can only monitor one IP Office system.
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 6
IP Office SMDR Settings Tab

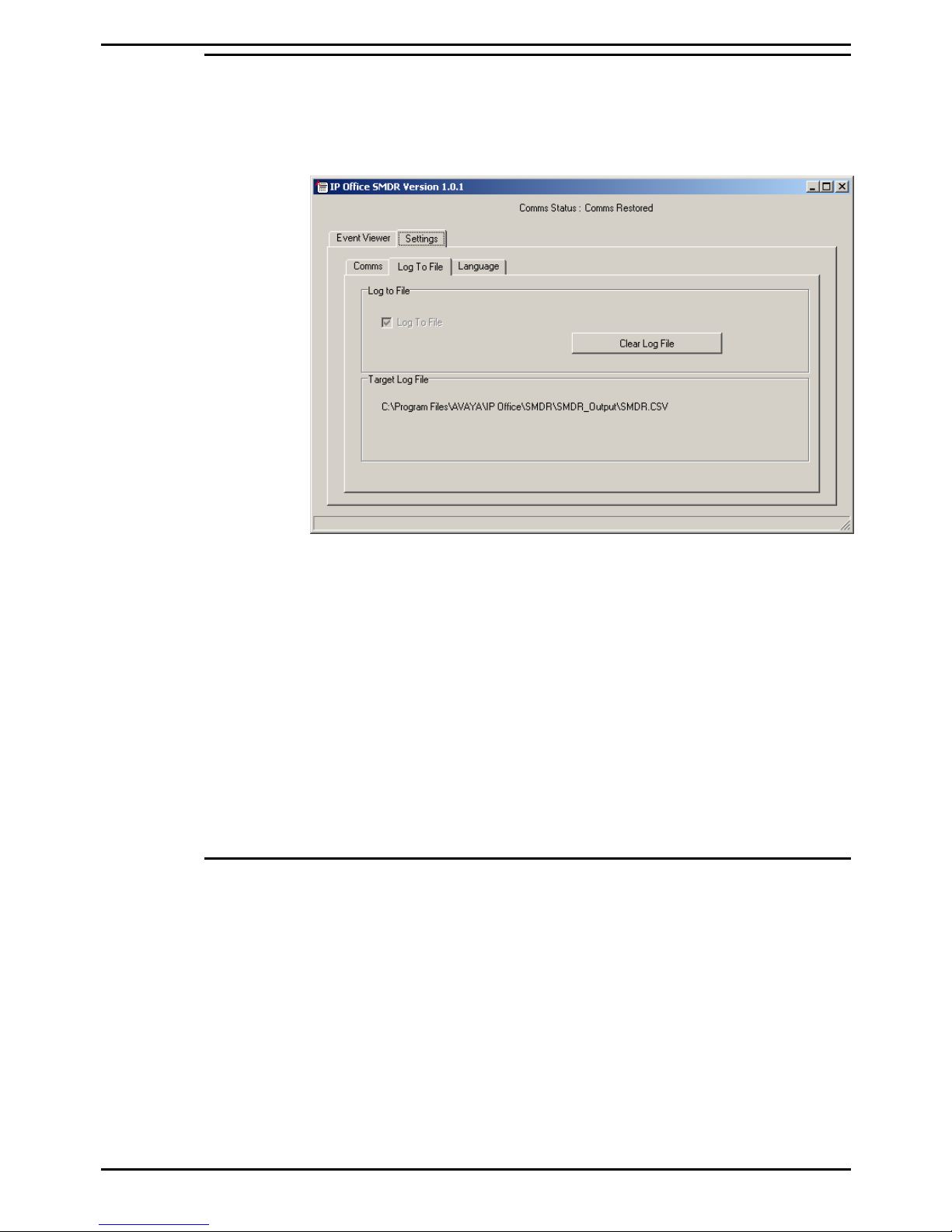

Log to File
The logging to file is automatically enforced and cannot be changed.
Messages received by the IP Office SMDR application are saved to a
file (SMDR.csv). The default path name is:
C:\Programs files\Avaya\IP Office\SMDR\SMDR_Output\SMDR.csv
The SMDR log file for the present day is named SMDR.csv. At
midnight the log file will automatically roll over. The name of the
previous log file will be changed to represent the date of the log.
Present Day SMDR.csv
Previous Day SMDR(backupYYYY-MM-DD).csv
The SMDR.csv file can be accessed by 3rd Party applications whilst
been used by the IP Office SMDR application. In order to do this the
3rd Party application must open the SMDR.csv file for read only, and
should process as many records as are found. The application may
either read the entire file periodically and determine what new
records have been output since last accessed, or may periodically
read from the current position until the end of the file.
Licences
No IP Office licences are required to use IP Office SMDR features.
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 7
IP Office SMDR CSV File Format
Language
You can change the language setting of the IP Office SMDR. The
default language is English UK. Click on the required language
button to change the language.
CSV File Format
The product provides call information in a comma-separated format
(CSV), into a file, with variable-width fields separated by commas.
The first line in the CSV file contains the field names represented.
Each record (ie. Line) in the file will represent a segment of the call.
Each call will be identified by a single call-id, therefore multiple
records can be output for each call.
The last record output for a single call will be marked as such, with
the continuation field set to zero. This indicates no further records
with that call-id will be output.
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 8
IP Office SMDR IP Office SMDR Output Fields
IP Office SMDR Output Fields
The IP Office SMDR outputs the following information to the CSV
files.
Field Description
Call start Date and time of the start of the call, format YYYY/MM/DD HH:MM:SS
Note: For all transferred call segment this is the time of the call was initiated, so
each segment of the call has the same call start time.
Call duration Duration of this part of the call, in HH:MM:SS format. A lost or failed call will have
a ring duration of 00:00:00.
Ring duration Duration in seconds of the ring part of this call part. Format is SSSS. This
represents the interval in seconds between the call arriving at the switch and it
being answered, and is not related to the time an individual extension was ringing
for. This number also contains any time the call was queuing.
For outbound calls, this indicates the interval between the call being initiated and
being answered at the remote end (where supported by the trunk type that the call
is going over). Please note that Analog trunks are unable to detect remote
answer, and therefore cannot provide a ring duration for outbound calls.
Caller The callers’ number. If the call was originated at an extension, this will be that
extension number. If the call originated externally, this will be the CLI of the caller,
if available (otherwise blank)
Direction Direction of the call – I for Inbound, O for outbound. Internal calls are represented
as O for outbound. A lost or failed call will have a call duration of 0.This field can
be used in conjunction with Is_Internal below to determine if the call is internal,
external outbound or external inbound.
Called_number This is the number called.
•
•
•
Internal calls - this will be the extension or group called.
Inbound calls - this will be the DDI dialled by the caller,
Outbound calls - this will contain the dialled digits.
This field can also contain ‘Voice Mail’ when an agent calls their own voicemail
box.
Note: For a call that is transferred this field shows the original called
number, not the number of the party who transferred the call.
Dialled_number For internal calls and outbound calls, this is identical to the called_number above.
For inbound calls, this is the DDI dialled by the caller.
Account The last account code attached to the call.
Note: IP Office account codes may contain alphanumeric characters.
Is_Internal 0 or 1, denoting whether both parties on the call are internal or external. Traffic
between IP Office systems and other switch’s (including other IP Office sites) are
represented as external calls.
Call ID The call id. This is a eight digit number This is generated by the IP Office SMDR
application upon termination of the call.
Continuation 1 if there is a further record for this call id, 0 otherwise
Party1Device The device number – E1234 for an extension, T1234 for a trunk or V1234 for a
voicemail channel for the first party on the call.
Note: If an extension is involved in the call it will have priority over a trunk,
therefore the Party 1 device is not always the call maker.
Party1Name The name of the device – for an extension or agent, this is the user name. For a
trunk, this is “ Line XX.XX”.
Party2Device The device number – E1234 for an extension, T1234 for a trunk or V1234 for a
voicemail channel for the first party on the call.
Party2Name The name of the device – for an extension or agent, this is the user name. For a
trunk, this is “ Line XX.XX”.
Hold_Time The amount of time in seconds the call has been held during this call segment
Park_Time
The amount of time in seconds the call has been parked during this call segment.
Note: The total duration of a segment is calculated : Call Duration + Ring
Duration + Hold Time + Park Time
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 9
IP Office SMDR Example Call Records
Example Call Records
The following are examples of call records made with IP Office
SMDR.
Please note that each record is output on a single line; these
examples are split to fit on the page.
Example 1 Lost incoming Call
2002/06/28 09:28:41,00:00:00,9,8004206,I,4324,4324,,0,
1000014155,0,E4324,Joe Bloggs,T9161,LINE 5.1,0,0
Example 2 Incoming transfer (To voice mail)
2002/06/28
09:30:57,00:00:13,7,01707392200,I,299999,299999,,0,
1000014160,1,E4750,John Smith,T9002,LINE 1.2,11,0
2002/06/28
09:30:57,00:00:21,0,01707392200,I,299999,299999,,0,
1000014160,0,V9502,VM Channel 2,T9002,LINE 1.2,0,0
Example 3 Outgoing call
2002/06/28 08:55:02,00:08:51,9,4797,O,
08000123456,08000 123456,,0,1000014129,0,E4797,
Joe Bloggs,T9001,LINE 1.1,0,0
Example 4 Voicemail call
2002/06/28 09:06:03,00:00:19,0,4966,O,VoiceMail,
VoiceMail,,1,1000014131,0,E4966,John Smith,V9501,
VM Channel 1,0,0
Example 5 Internal call
2002/06/26 10:27:44,00:00:44,4,4688,O,4207,4207,,1,
1000013898,0,E4688,Joe Bloggs,E4207,John Smith,0,0
Example 6 Park call
2002/06/26 11:33:06,00:02:11,10,8004200,I,4688,4688,,0,
1000013937,0,E4688,John Smith,T9162,LINE 5.2,0,94
Example 7 Outgoing call with hold
2002/06/26 12:47:22,00:10:36,4,4636,O,07989123456,
07989123456,,0,1000013978,0,E4636,Joe Bloggs,T9001,
LINE 1.1,7,0
Example 8 Incoming call with Account Code
2002/06/28 11:29:12,00:00:02,2,5002,I,1924,1924,
Support Call,0,1000014169,0,E1924,Extn1924,T9620,
LINE 8.20,0,0
IP Office SMDR Installation & Reference Manual
40DHB0002USDT Issue 1 (09/04/2002) Page 10
Table des matières
Autres manuels Avaya Logiciel
Avaya
Avaya IP Office CTI Link Manuel
Avaya
Avaya ExpertNet Lite Assessment Tool ELAT Manuel utilisateur
Avaya
Avaya IP Office Conferencing Center 3.0 Mode d’emploi
Avaya
Avaya P120 SMON Manuel utilisateur
Avaya
Avaya IP Office CTI Link Manuel utilisateur
Avaya
Avaya IP Office Phone Manager Manuel utilisateur
Avaya
Avaya IP Agent Manuel utilisateur
Avaya
Avaya CCM 3.1 Manuel utilisateur
Avaya
Avaya 16-300272 Manuel utilisateur
Avaya
Avaya 4600 Series Manuel de service
Avaya
Avaya IP Office Phone Manager Manuel utilisateur
Avaya
Avaya IP Office Phone Manager Manuel utilisateur
Avaya
Avaya Communication Manager Contact Center Manuel utilisateur
Avaya
Avaya PROGNOSIS IP s Supplément
Avaya
Avaya IP Office Phone Manager Supplément
Avaya
Avaya Integrated Management Manuel technique
Avaya
Avaya Cajun P550 Manager 5.1 Manuel utilisateur
Avaya
Avaya Call Management System Manuel utilisateur
Avaya
Avaya C360 Manager Manuel utilisateur
Avaya
Avaya Communication Manager Manuel de service
Manuels Logiciel populaires d'autres marques
Canon
Canon ZR950 Manuel utilisateur
Samsung
Samsung Auto Backup Manuel utilisateur
Polycom
Polycom Vortex EF2201 Instructions d'installation et d'utilisation
Brocade Communications Systems
Brocade Communications Systems Brocade 8/12c Manuel utilisateur
Novell
Novell SP2 - S Mode d’emploi
Lexmark
Lexmark Apps Manuel de service
