Avalue Technology LPC-1507 Manuel utilisateur

Part No. E2017L157A0R

LPC-1507

15" Fanless Multifunctional Touch Panel Computer

Quick Reference Guide

1st Ed –23 January 2013

LPC-1507

2 LPC-1507 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

LPC-1507 Quick Reference Guide

Contents

1. Getting Started ........................................................................................................4

1.1 Safety Precautions....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications...............................................................................................5

1.4 System Overview......................................................................................................7

1.4.1 Front View................................................................................................................................ 7

1.4.2 Rear View................................................................................................................................ 7

1.5 System Dimensions ..................................................................................................8

2. Hardware Configuration .........................................................................................9

2.1 Installing Hard Disk & Memory................................................................................10

LPC-1507

4 LPC-1507 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x LPC-1507 15" Fanless Multifunctional Touch Panel Computer

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

—Chipset drivers and utilities

1 x Power Adapter

Quick Reference Guide

LPC-1507 Quick Reference Guide

1.3 System Specifications

Panel

LCD size

15", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

300 cd/m²

Contrast ratio

700

Viewing angle

70(U), 70(D), 75(L), 75(R )

Response time

8 ms

Backlight

CCFL

Touch Type

5 Wires resistive

Touch Light

transmission

80%

Touch Interface

USB

System

Board

EBM-CDV

CPU

Onboard Intel® Cedarview D2550 CPU

System Chipset

Intel NM10 Express

I/O Chip

E/C IT8518E

System Memory

One SODIMM socket supports up to 4GB DDR3 800/1066 SDRAM

SSD

One CF socket by IDE secondary slave channel supports Type I / II Compact

Flash Card

Hard Driver Bay

One 2.5" SATA HDD

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status

Monitor

Monitoring system temperature, voltage, and cooling fan status. Auto

throttling control when CPU overheats

Expansion

1 x Mini PCIe slot, optional supports mSATA

Rear I/O

Serial Port

1 x RS-232/422/485

Ethernet

1 x RJ-45

HDMI

1 x HDMI

Audio port

1x Line-out

USB

2 x USB 2.0

Mouse & K/B

1 x PS/2 KB & MS

Display

Chipset

Intel Cedarview integrated graphics

LPC-1507

6 LPC-1507 Quick Reference Guide

Display Memory

CRT mode: 1920 x 1200 @ 60Hz

Resolution

LCD/Simultaneous mode :1400 x 900 @ 60 Hz (CDV-D)

Dual Display

HDMI + LVDS

Audio

AC97 Codec

Realtek ALC892 supports 5.1-CH Audio

Audio Interface

Speaker out, Line-out

Ethernet

LAN Chip

Intel® 82574L Gigabit LAN, Optional Dual LAN

Ethernet Interface

10/100/1000 Base-Tx Fast Ethernet compatible

Mechanical &

Environmental

System Fan

Fanless

Color

Front Silver & Rear panel Black

Mounting

Wall/Stand/VESA 75 mm x 75 mm

Power Input

100~250 Vdc/ 47~63 Hz

Power Output

+12 Vdc / 5 A (60W)

ACPI

n/a

Power Type

AT/ATX

Operating Temp.

0 to 40°C

Storage Temp.

-10 to 60°C

Operating

Humidity

5%~90% relative humidity, non-condensing

Dimensions

351.5 x 272 x 52 mm

Weight

4.2 Kgs

Quick Reference Guide

LPC-1507 Quick Reference Guide

1.4 System Overview

1.4.1 Front View

1.4.2 Rear View

Connectors

Label

Function

Note

POWER

Power on button

CF Type I/II Socket with Ejector

Optional for 2nd COM port

COM1

Serial port

DB-9 male connector

LINE OUT

Line-out audio jack

USB

2 x USB 2.0 connector

Dock USB

LAN1

RJ-45 Ethernet connector 1

LAN2

(KB/MS)

PS/2 connector

Optional 2nd LAN

HDD

HDD indicator

PWR

System power indicator

HDMI

HDMI connector

RESET

Reset button

DC-IN

DC Power-in connector

POWER

LPC-1507

8 LPC-1507 Quick Reference Guide

1.5 System Dimensions

Quick Reference Guide

LPC-1507 Quick Reference Guide

2.Hardware

Configuration

Please refer to EBM-CDV Quick Installation Guide or User’s Manual for

advanced information.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

LPC-1507

10 LPC-1507 Quick Reference Guide

2.1 Installing Hard Disk & Memory

Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis.

Step 2. Insert the SODIMM into the memory socket.

Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off.

Table des matières

Autres manuels Avalue Technology Écran tactile

Avalue Technology

Avalue Technology ARC-1033 Manuel utilisateur

Avalue Technology

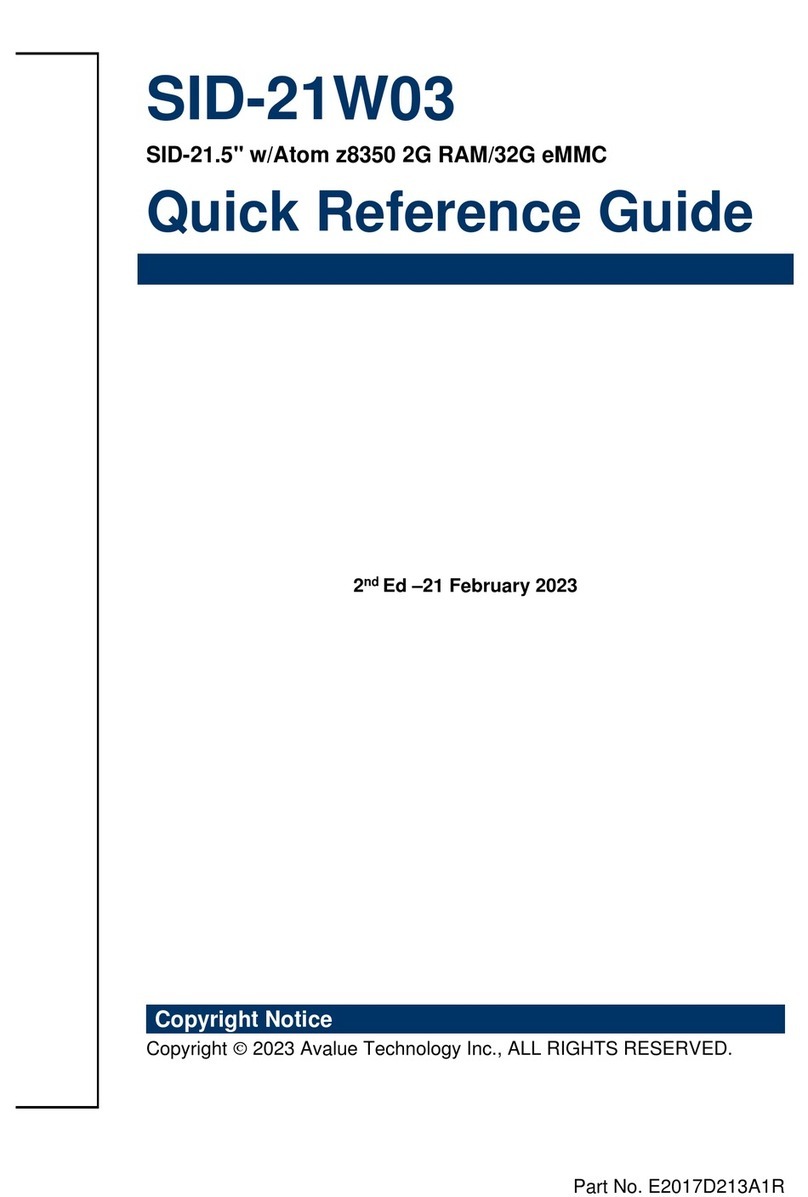

Avalue Technology SID-21W03 Manuel utilisateur
