Avalue Technology FPC-10W07 Manuel utilisateur

Part No. E2017F107A0R

FPC-10W07

10”Widescreen Multi-functional Touch Panel PC

Quick Reference Guide

1st Ed –09 October, 2013

FPC-10W07

2 FPC-10W07 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

Quick Reference Guide

FPC-10W07 Quick Reference Guide

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

FPC-10W07

4 FPC-10W07 Quick Reference Guide

Contents

1. Getting Started............................................................................................................5

1.1 Safety Precautions ................................................................................................5

1.2 Packing List...........................................................................................................5

1.3 System Specifications ...........................................................................................6

1.4 System Overview...................................................................................................8

1.4.1 Rear View..................................................................................................................................... 8

1.5 System Dimensions...............................................................................................9

1.5.1 FPC-10W07 ................................................................................................................................. 9

2. Hardware Configuration...........................................................................................10

2.1 Jumper and Connector Setting, Driver and BIOS Installing.................................10

2.2 Installing Hard Disk & Memory ............................................................................11

2.2.1 External Serial Port 1 connector (COM1) .................................................................................. 11

2.2.2 External Serial Port 2 connector (COM2) .................................................................................. 12

2.3 Installing Hard Disk & Memory ............................................................................13

2.3.1 Install 2.5” HDD.......................................................................................................................... 13

2.4 Installing System Memory ...................................................................................15

2.5 Installing CF Card................................................................................................16

Quick Reference Guide

FPC-10W07 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x FPC-10W07 Panel PC

1 x Quick Reference Guide

1 x CD/DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

1 x Power Adapter

4 screws for HDD (for barebone)

FPC-10W07

6 FPC-10W07 Quick Reference Guide

1.3 System Specifications

Panel

Model

FPC-10W07

LCD size

10" Wide

Display type

WSVGA TFT

Resolution

1024x600

Color

256K

Pixel pitch

0.21525mm(W) x 0.21525mm(H)

Luminance

250 cd/m²

Contrast ratio

500

Viewing angle

50(U), 60(D), 70(L), 70(R)

Response time

25 ms

Backlight

LED

Touch Type

5-wire resistive

Touch Light Transmission

80%

Touch Interface

USB

System

Board

ECM-CDV

CPU

Onboard Intel® Atom™ D2550 1.86GHz CPU

Cooling Method

Passive CPU heatsink

System Chipset

Intel® NM10 Chipset

I/O Chip

Nuvoton W83627DHG-P

Memory

One SODIMM Supports Up to 4GB DDR3 1066MHz SDRAM

One CompactFlash Type I/II socket (internal)

HDD/SSD Drive Bay

1 x 2.5" SATA HDD or optional 44-pin IDE HDD

WiFi

Optional USB WIFI 802.11 b/g (occupy one USB port)

Rear Panel I/O

Serial Port

1 x RS-232, 1 x RS-232 or optional RS-422/485

Ethernet

2 x RJ-45（Dual Intel® 82574L Gigabit Ethernet）

HDMI

1 x HDMI

Audio port

1 x Line out, 1 x Mic in

USB

5 x USB 2.0

Mouse & KB

1 x PS/2 keyboard & mouse connector (Optional)

VGA

1 x DB15

Quick Reference Guide

FPC-10W07 Quick Reference Guide

Mechanical & Evironmental

Color

Black

Power Input

100~250 Vdc/ 47~63 Hz

Power Output

+12~+26V DC Power input

Operating Temperature

0°C to 40°C.

Storage Temperature

-10°C to 50°C.

Relative Humidity

10% to 95% @ 40℃, non-condensing

Mounting

Wall/Stand/VESA 75 mm X 75 mm

Dimensions

300mm X 195 mm X 56 mm

Weight

2.95 Kgs

FPC-10W07

8 FPC-10W07 Quick Reference Guide

1.4 System Overview

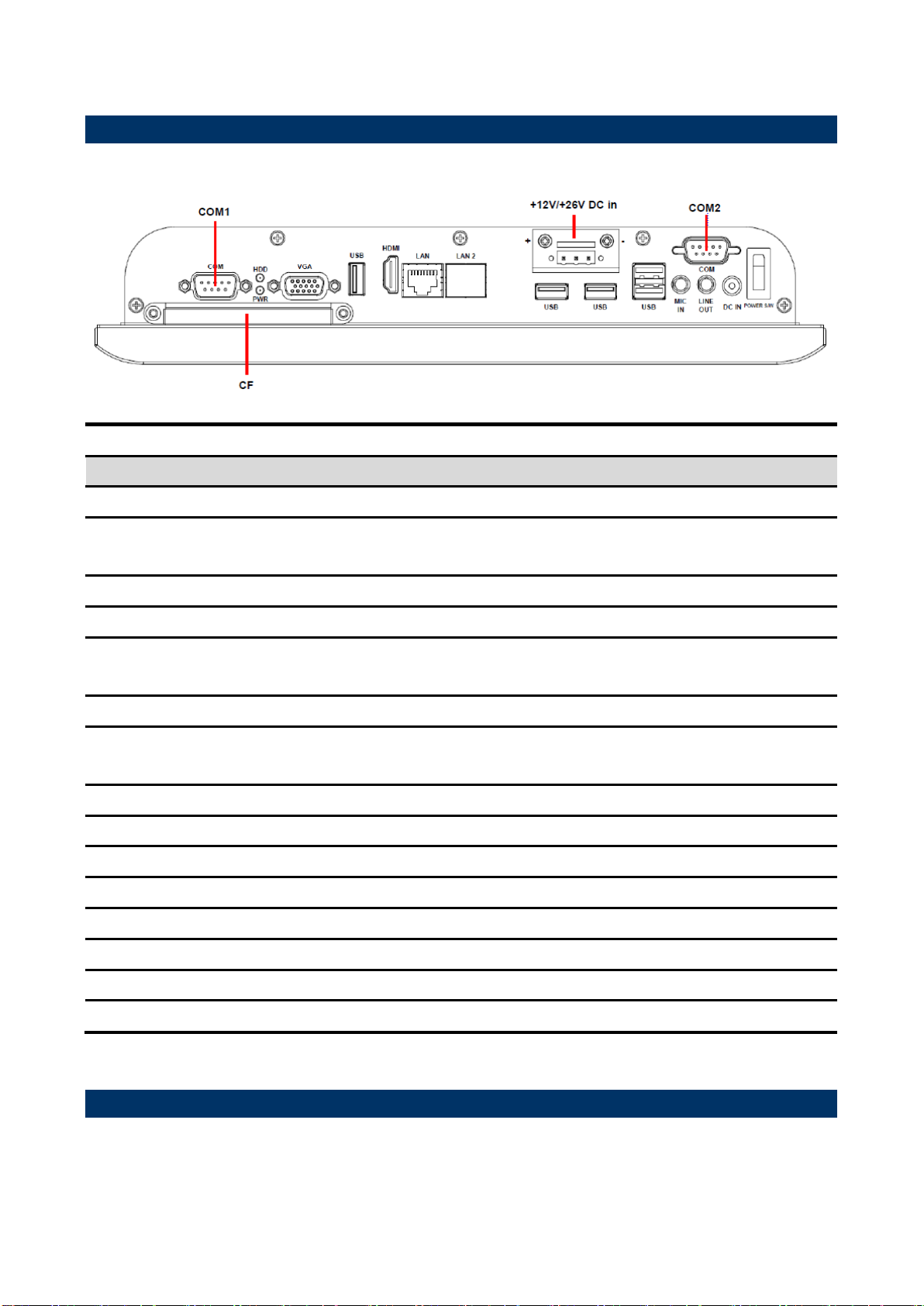

1.4.1 Rear View

Connectors

Label

Function

Note

CompactFlash Type I/II socket with cover

COM1/2

Serial port 1 & 2

(Optional RS-422/485 for COM2)

DB-9 male connector

DC in

+12V ~ +26V DC-in power connector

HDD

HDD LED

KB/MS

PS/2 keyboard & mouse connector

(Optional)

LAN1

Ethernet connector

RJ-45

LAN2

Ethernet connector

(Optional KB/MS for LAN2)

RJ-45

LINE OUT

Line-out audio jack

Mic In

Mic-in audio jack

Power S/W

Power switch

PWR

Power LED

USB

5 x USB 2.0 connector

HDMI

HDMI connector

VGA

VGA connector

26V DC in

+12V/+26V DC in connector (Optional)

Quick Reference Guide

FPC-10W07 Quick Reference Guide

1.5 System Dimensions

1.5.1 FPC-10W07

(Unit: mm)

FPC-10W07

10 FPC-10W07 Quick Reference Guide

2.Hardware

Configuration

2.1 Jumper and Connector Setting, Driver and BIOS

Installing

Please refer to ECM-CDV Quick Installation Guide or User’s Manual for

further information.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

Table des matières

Autres manuels Avalue Technology Écran tactile

Avalue Technology

Avalue Technology SID-10WR1 Manuel utilisateur

Avalue Technology

Avalue Technology BFC-1508 Manuel utilisateur

Avalue Technology

Avalue Technology ARC-1709 Manuel utilisateur

Avalue Technology

Avalue Technology LPC-1009 Series Manuel utilisateur

Avalue Technology

Avalue Technology AID-173S Manuel utilisateur

Avalue Technology

Avalue Technology OFP-15W38 Manuel utilisateur

Avalue Technology

Avalue Technology ARC-1232 Manuel utilisateur

Avalue Technology

Avalue Technology OFP-21W33 Manuel utilisateur

Avalue Technology

Avalue Technology RIVAR-1502 Manuel utilisateur

Avalue Technology

Avalue Technology MPC-21W7 Manuel utilisateur

Avalue Technology

Avalue Technology ECM-BDWH Manuel utilisateur

Avalue Technology

Avalue Technology ARC-15W32 Manuel utilisateur

Avalue Technology

Avalue Technology SID-21WR1 Manuel utilisateur

Avalue Technology

Avalue Technology ARC-1538-B Manuel utilisateur

Avalue Technology

Avalue Technology PPC-1529 Manuel utilisateur

Avalue Technology

Avalue Technology SID-21V-Z37-A1R Manuel utilisateur

Avalue Technology

Avalue Technology PPC-2127 Manuel utilisateur

Avalue Technology

Avalue Technology LPC-1507 Manuel utilisateur

Avalue Technology

Avalue Technology OFP-21W38 Manuel utilisateur

Avalue Technology

Avalue Technology MPC-21W3 Manuel utilisateur

Avalue Technology

Avalue Technology APC-2132 Manuel utilisateur

Avalue Technology

Avalue Technology FPC-10W09 Manuel utilisateur

Avalue Technology

Avalue Technology SPC-1507 Manuel utilisateur

Avalue Technology

Avalue Technology APC-18W9 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
