Avalue Technology MX965GME Manuel utilisateur

Avalue Technology Inc.

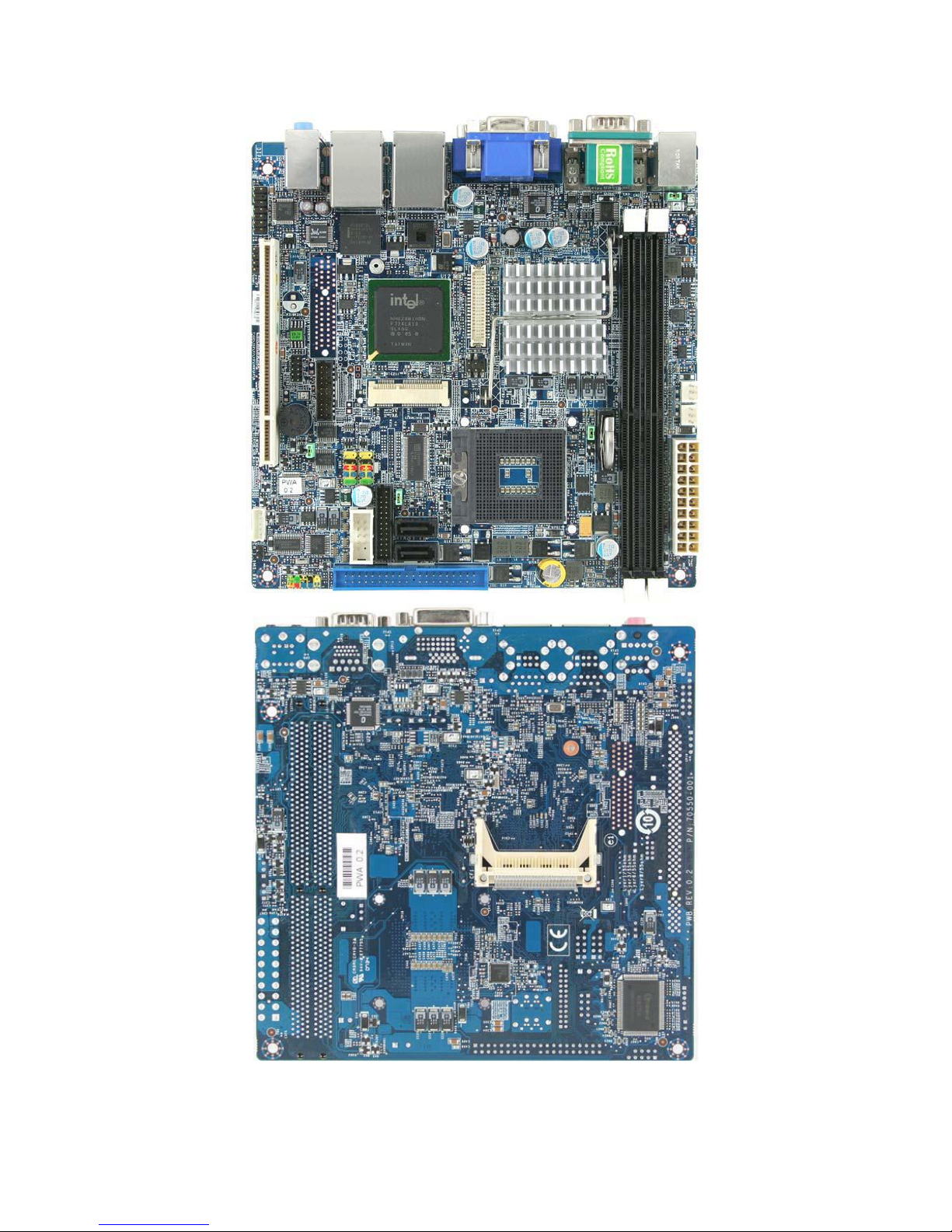

MX965GME

Intel Core 2 Duo Mini-ITX Mainboard

Users Manual

1st Edition –8 November 2007

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO

CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE

LIMITS FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC

RULES THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION

AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any

form or by any means, electronic or mechanical, for any purpose, without the prior

written permission of the original manufacture

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

Owners

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any

product, including circuits and/or software described or contained in this manual in order

to improve design and/or performance. Avalue Technology assumes no responsibility or

liability for the use of the described product(s), conveys no license or title under any

patent, copyright, or masks work rights to these products, and makes no

representations or warranties that these products are free from patent, copyright, or

mask work right infringement, unless otherwise specified. Applications that are

described in this manual are for illustration purposes only. Avalue Technology Inc.

makes no representation or warranty that such application will be suitable for the

specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS

IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN

APPROVAL OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life support

device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the

factory floor, you can be assured that your product will provide the reliability and ease of

operation for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services.

To ensure you get the full benefit of our services, please follow the instructions below

carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you

can easily find answers in your product documentation. These answers are normally a

lot more detailed than the ones we can give over the phone. So please consult the

user’s manual first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to

your problem, and with the product close at hand, call your dealer. Our dealers are well

trained and ready to give you the support you need to get the most from your Avalue’s

products. In fact, most problems reported are minor and are able to be easily solved

over the phone. In addition, free technical support is available from Avalue’s engineers

every business day. We are always ready to give advice on application requirements or

specific information on the installation and operation of any of our products. Please do

not hesitate to call or email us.

Headquarters

Avalue Technology Inc.

7F, 228, Lian-cheng Road,

Chung Ho City, Taipei,

Taiwan

Tel : +886-2-8226-2345

Fax : +886-2-8226-2777

http://www.avalue.com.tw

E-mail: [email protected]

US Branch Office

Avalue Technology Inc.

Suite 210, 200 Tornillo Way,

Tinton Falls, NJ 07712

USA

Tel: +1-732-578-0200

Fax: +1-732-578-0250

http://www.avalue.com.tw

E-mail: [email protected]

Europe Branch Office

Avalue Europe A/S

Nordre Strandvej 13,

3480 Fredensborg,

Denmark

Tel : +45-7025-0310

Fax : +45-4975-5026

http://www.avalue.com.tw

E-mail: [email protected]

China Branch Office

Avalue Technology Shanghai Inc.

Room 909, 9F, Section B, No.900,

Yisan Road, Caohejing Hi-tech Park,

Shanghai 200233, China

Tel : +86-21-5423-4170

Fax : +86-21-5423-4171

http://www.avalue.com.tw

E-mail: [email protected]

Product Warranty

Avalue warrants to you, the original purchaser, that each of its products will be free from

defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Avalue, or which have been subject

to misuse, abuse, accident or improper installation. Avalue assumes no liability under

the terms of this warranty as a consequence of such events. Because of Avalue’s high

quality control standards and rigorous testing, most of our customers never need to use

our repair service. If any of Avalue’s products is defective, it will be repaired or replaced

at no charge during the warranty period. For out-of-warranty repairs, you will be billed

according to the cost of replacement materials, service time, and freight. Please consult

your dealer for more details. If you think you have a defective product, follow these

steps:

1. Collect all the information about the problem encountered. (For example, CPU type

and speed, Avalue’s products model name, hardware & BIOS revision number, other

hardware and software used, etc.) Note anything abnormal and list any on-screen

messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and

any helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material

authorization) number from your dealer. This allows us to process your good return

more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement Order

Card and a photocopy proof of purchase date (such as your sales receipt) in a

shippable container. A product returned without proof of the purchase date is not eligible

for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to

your dealer.

Table of Contents

FCC Statement

Disclaimer

Life Support

Technical Support

Product Warranty

Chapter 1: Product Overview

Specifications

Layout

Chapter 2: Hardware Setup

Component Location

CPU

Memory

Power Supply

Back Panel

Connectors

Jumpers

Expansion

Chapter 3: BIOS Setup

Entering Setup

Advanced

Boot

Security

Chipset

Exit

Chapter 1

Getting Started

Thank you for choosing the MX965GME Mini ITX mainboard from Avalue.

Based on the innovative Intel® GME965 & ICH8M controllers for optimal

system efficiency, the MX965GME accommodates the latest Intel® Core 2

Duo/Celeron® M 5XX series processors in Socket P and supports two

240-pin 533/667MHz DDRII DIMM to provide the maximum of 4GB

memory capacity. In the entry-level and mid-range market segment, the

MX965GME can provide a high-performance solution for today’s front-end

and general purpose workstation, as well as in the future.

Mainboard Specifications

Processor

- Intel Core 2 Duo/Celeron M 5xx CPU in Socket P

- Supports 3-pin CPU fan pin-header with Fan Speed Control

- Supports Intel Dual Core Technology to 533/800MHz and up

Supported FSB

- 533/800MHz

Chipset

- North Bridge: Intel GM965/GME965 chipset

- South Bridge: Intel ICH8M chipset

Memory

- DDR2 533/667 SDRAM (4GB Max)

- 2 DDR2 DIMM slots (240pin / 1.8V)

LAN

- Supports 2 Gb Ethernet by Intel 82573L & 82566DC

Audio

- HDA Codec by Realtek ALC888 7.1 channel

- Compliant with Azalia 1.0 specs

- 6 watt amplifier

IDE

- 1 IDE port by ICH8M

- Supports Ultra DMA 66/100 mode

- Supports PIO, Bus Master operation mode

SATA

- SATA II ports by ICH8M

- Supports two SATA II devices

- Supports storage and data transfers at up to 300MB/s

Connectors

Back Panel

- 1 HDMI connector

- 2 RJ-45 LAN jacks and 4 USB 2.0 ports

- 1 D-Sub VGA and 1 DVI connector

- 1 serial port

- 1 PS2 keyboard/mouse port

- 3 audio jacks

Connectors (Cont.)

Onboard Connectors

- 2 USB 2.0 connectors (4 ports)

- 1 parallel port connector

- 1 applifer connector (4-pin)

- 1 LVDS connector

- 1 TV-out connector

- 1 digital I/O connector (16GPIO)

- 1 serial port connector

- 1 front panel connector

Expansion

- 1 PCI Express x4 slot (optional)

- 1 Mini PCI-E slot

- 1 PCI 32-bit/33MHz slot

- 1 CF socket

Form Factor

- Mini ITX: 170mm x 170mm

Mounting

- 4 mounting holes

Environment

Storage Temperature

- Temperature: -20O C ~ 80O C

- Humidity: 0% RH ~ 95% RH

Operation Temperature

- Temperature: 0O C ~ 55O C

- Humidity: 0% RH ~ 85% RH

Table des matières

Autres manuels Avalue Technology Carte mère

Avalue Technology

Avalue Technology EMX-C246DP Manuel utilisateur

Avalue Technology

Avalue Technology EPX-APLP Manuel utilisateur

Avalue Technology

Avalue Technology EMX-H310C Manuel utilisateur

Avalue Technology

Avalue Technology EPX-EHLP Manuel utilisateur

Avalue Technology

Avalue Technology EMX-PNV Manuel utilisateur

Avalue Technology

Avalue Technology EMX-C246P-B1 Manuel utilisateur

Avalue Technology

Avalue Technology ENX-LX800 Manuel utilisateur

Avalue Technology

Avalue Technology REV-Q703 Manuel utilisateur

Avalue Technology

Avalue Technology ERX-H61 Manuel utilisateur

Avalue Technology

Avalue Technology EPI-QM87 Manuel utilisateur

Avalue Technology

Avalue Technology EAX-C236P Manuel utilisateur

Avalue Technology

Avalue Technology SEMX-H81 Manuel utilisateur

Avalue Technology

Avalue Technology BBM-BSW A2 Manuel utilisateur

Avalue Technology

Avalue Technology EAX-H81P Manuel utilisateur

Avalue Technology

Avalue Technology EMX-TGLP Manuel utilisateur

Avalue Technology

Avalue Technology ACP-PNVDV-A1-ATXR Manuel utilisateur

Avalue Technology

Avalue Technology ERX-Q77 Manuel utilisateur

Avalue Technology

Avalue Technology ECM-APL2-B1 Manuel utilisateur

Avalue Technology

Avalue Technology EMX-SKLUP Manuel utilisateur

Avalue Technology

Avalue Technology EMX-H61B series Manuel utilisateur

Avalue Technology

Avalue Technology AMD Geode E2047551001R Manuel utilisateur

Avalue Technology

Avalue Technology EEV-EX14A1.1 Manuel utilisateur

Avalue Technology

Avalue Technology ENX-PNV Manuel utilisateur

Avalue Technology

Avalue Technology ERX-G41 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
