Avalue Technology EMX-780E Manuel utilisateur

EMX-780E

AMD Athlon/ Athlon X2/ Quad-Core™ AMD Phenom™ Mini

ITX Motherboard with AMD RS780E + SB710 Chipset

Quick Installation Guide

1st Ed – 7 July 2010

EMX-780E Quick Installation Guide

2 EMX-780E Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Quick Installation Guide

EMX-780E Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

z1 x EMX-780E Mini ITX Main Board

z2 x SATA Cable kit

z1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—LAN drivers and utilities

—Audio drivers and utilities

EMX-780E Quick Installation Guide

4 EMX-780E Quick Installation Guide

2. Hardware

Configuration

Quick Installation Guide

EMX-780E Quick Installation Guide

2.1 Product Overview

EMX-780E Quick Installation Guide

6 EMX-780E Quick Installation Guide

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label Function Note

CN5 CF mode select 3 x 2 header, pitch 2.0mm

CN6 LVDS power select 3 x 2 header, pitch 2.0mm

COM1SEL1 Serial port 1 pin-9 signal select 3 x 2 header, pitch 2.0mm

COM2SEL1 Serial port 1 pin-10 signal select 3 x 2 header, pitch 2.0mm

COMP1SEL2 Serial port 3 pin-9 signal select 3 x 2 header, pitch 2.0mm

COMP9SEL2 Serial port 4 pin-9 signal select 3 x 2 header, pitch 2.0mm

JP305 Case Open 4 x 1 header, pitch 2.54mm

RTC1 Clear password & COMS select 3 x 2 header, pitch 2.0mm

Quick Installation Guide

EMX-780E Quick Installation Guide

Connectors

Label Function Note

ATXPWR ATX power supply connector 10 x 2 header, pitch 2.54mm

AUDIO1 Audio connector

CN1 VGA and serial port 1 connecter

CN3 SMB CLK & SMB DATA connector 3 x 1 wafer, pitch 1.54mm

COM2 Serial port 2 connector 5 x 2 header, pitch 2.0mm

COM3 Serial port 3 connector 5 x 2 header, pitch 2.0mm

COM4 Serial port 4 connector 5 x 2 header, pitch 2.0mm

CPU_FAN CPU fan connector 3 x 1 wafer, pitch 254mm

F_PANEL System panel connector 5 x 2 header, pitch 2.54mm

HD1 Audio header connector 5 x 2 header, pitch 2.54mm

J68 PS/S keyboard & mouse connector

JAMP1 Amplifier connector 4 x 1 header, pitch 2.54mm

JDIO General purpose I/O connector 5 x 2 header, pitch 2.0mm

LVDS1 LVDS connector Hirose DF13-40DP-1.25V

LAN_USB1 Rear USB connector 0 & 1

LAN_USB2 Rear USB connector 2 & 3

MINI_PCIE1 PCI express mini card

P3 VRM power supply connector Wafer box 4p, pitch 4.2mm

SATA1 Serial ATA connector 1

SATA2 Serial ATA connector 2

SODIMM_A1 200-pin DDR2 SODIMM socket

SODIMM_B1 200-pin DDR2 SODIMM socket

SPDIF_OUT1 SPDIF out connector 4 x 1 header, pitch 2.54mm

SPI_JP1 SPI BIOS ROM connector 4 x 2 header, pitch 2.54mm

SYS_FAN System fan connector 3 x 1 wafer, pitch 254mm

USB45 USB connector 4 & 5 5 x 2 header, pitch 2.0mm

USB67 USB connector 6 & 7 5 x 2 header, pitch 2.0mm

EMX-780E Quick Installation Guide

8 EMX-780E Quick Installation Guide

2.3 Setting Jumpers & Connectors

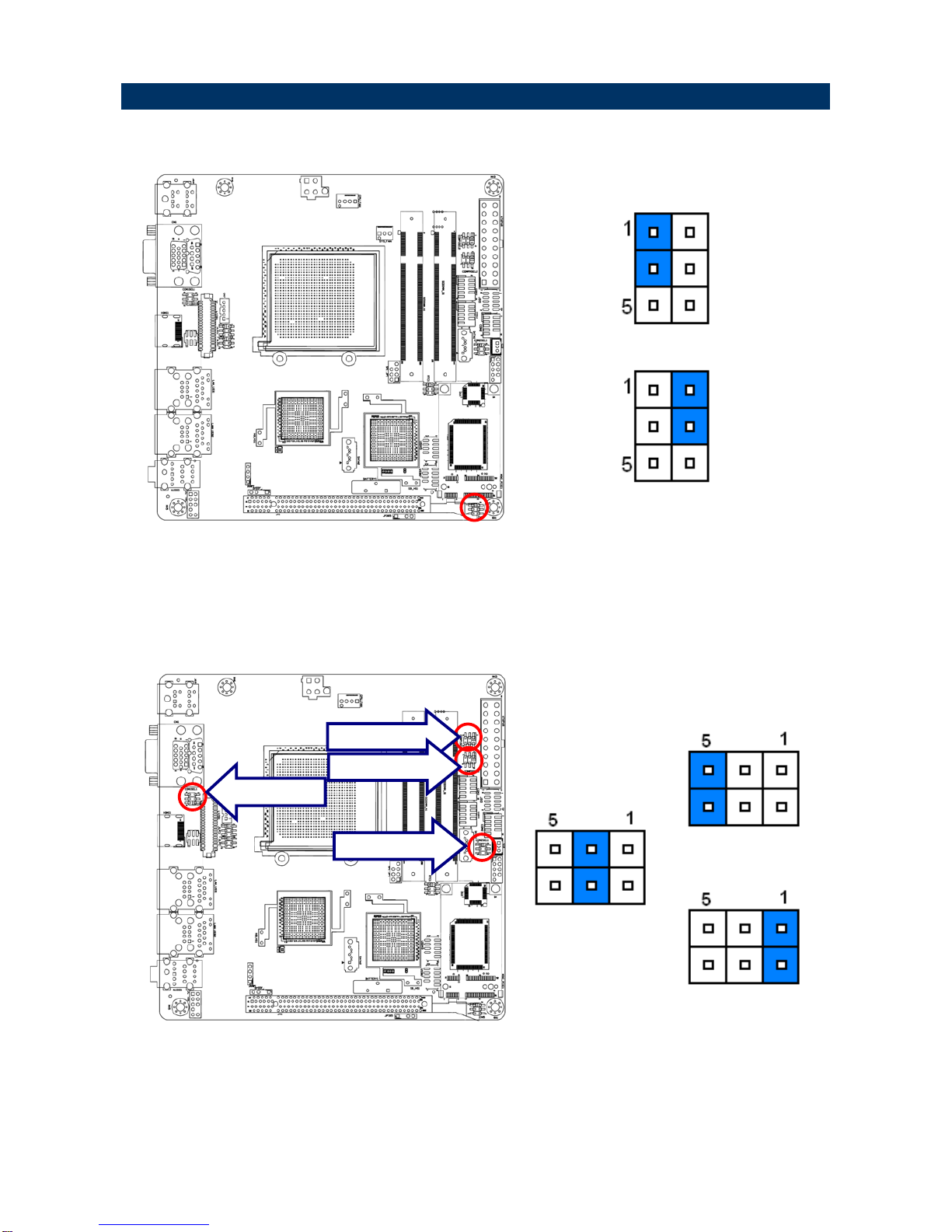

2.3.1 CF mode select (CN5)

*Default

Low: Master*

Hi: Slave

2.3.2 Serial port 1/ 2/ 3/ 4 pin-9 signal select

(COM1SEL1/ COM2SEL1/ COMP1SEL2/ COMP9SEL2)

*Default

Ring*

+5V

+12V+

COM1SEL1

COMP1SEL2

COMP9SEL2

COM2SEL1

Quick Installation Guide

EMX-780E Quick Installation Guide

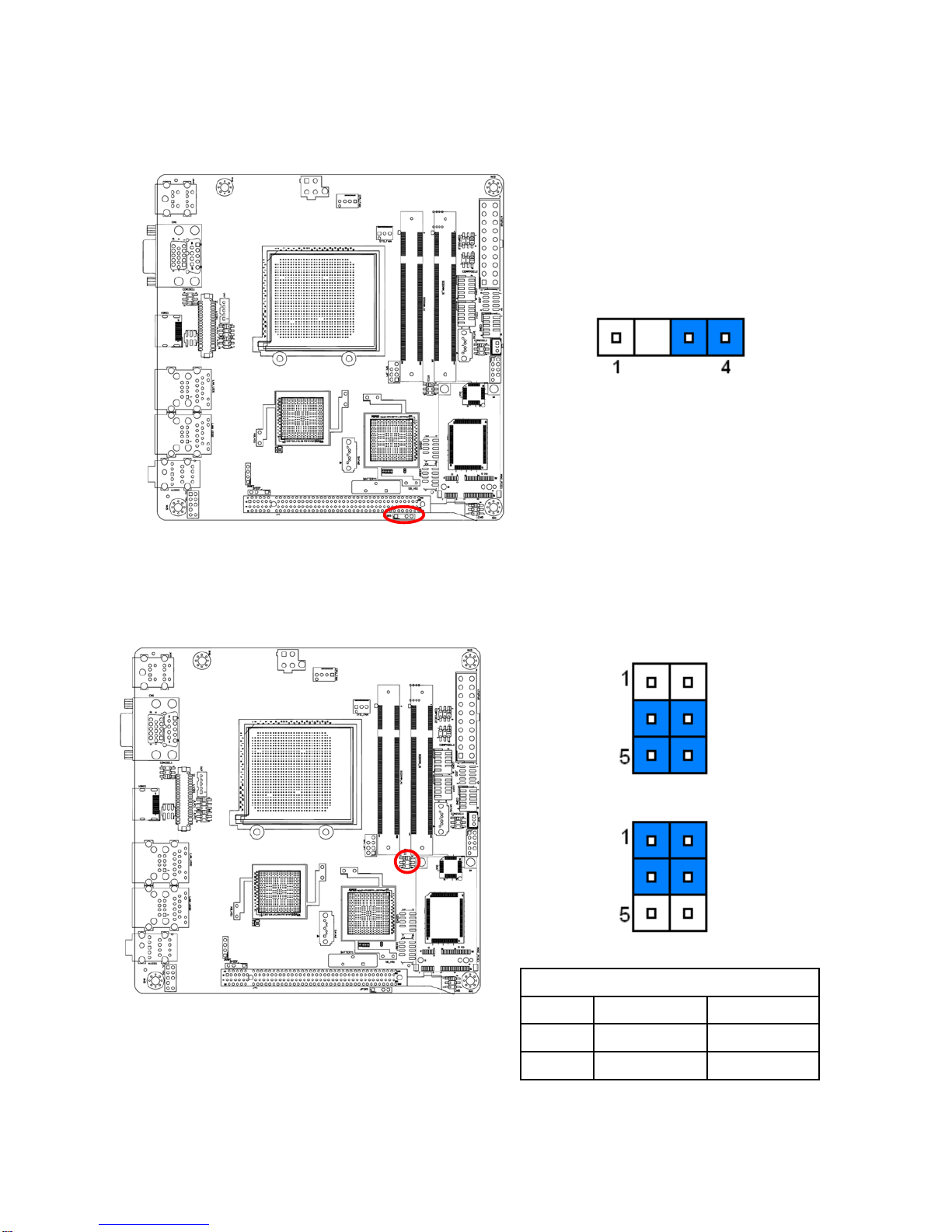

2.3.3 Case open (JP305)

*Default

Open*

2.3.4 Clear password & CMOS select (RTC1)

*Default

Password & CMOS*

Clear

Clear password & CMOS

Clear PW Clear CMOS

Default 3-5 4-6

Clear 1-3 2-4

EMX-780E Quick Installation Guide

10 EMX-780E Quick Installation Guide

2.3.5 LVDS power select (CN6)

*Default

+5V*

+3.3V

+12V
