Avalue Technology ECM-QM57 Manuel utilisateur

Part No. E2017391000R

ECM-QM57

Intel® Core™i7/i5/Celeron 3.5” Micro Module with Intel®

QM57 Chipset

Quick Installation Guide

1st Ed –30 August 2010

ECM-QM57 Quick Installation Guide

2 ECM-QM57 Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

ECM-QM57 Quick Installation Guide

ECM-QM57 Quick Installation Guide 3

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan

Tel: +886-2-8226-2345 Fax: +886-2-8226-2777

Information: sales@avalue.com.tw Service: service@avalue.com.tw

Avalue USA

Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: sales@avalue-usa.com

Service: support@avalue-usa.com

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: sales.e[email protected].tw

Service: service.europ[email protected].tw

BCM Advanced Research

Avalue China

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.chi[email protected].cn

Service: service@avalue.com.tw

ECM-QM57 Quick Installation Guide

4 ECM-QM57 Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

1 x 3.5” ECM-QM57 Micro Module

1 x Quick Installation Guide for ECM-QM57

1 x AUX-032 daughter board

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

1 x Cable set contains the followings:

—1 x Audio cable (12pin, 2.0mm pitch)

—1 x USB cable (10P/2.54mm-10P/2.0mm)

—1 x Serial ATA cable (7-pin, standard)

—1 x Serial ATA cable (15-pin, 2P/2.0mm)

ECM-QM57 Quick Installation Guide

ECM-QM57 Quick Installation Guide 5

2. Hardware

Configuration

ECM-QM57 Quick Installation Guide

6 ECM-QM57 Quick Installation Guide

2.1 Product Overview

ECM-QM57 Quick Installation Guide

ECM-QM57 Quick Installation Guide 7

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label

Function

Note

JBAT1

Clear CMOS

3 x 1 header, pitch 2.54 mm

JRI1

Serial port 1 pin 9 signal select

3 x 2 header, pitch 2.0 mm

PWR_MSEL1

Input power select

2 x 1 header, pitch 2.54 mm

ECM-QM57 Quick Installation Guide

8 ECM-QM57 Quick Installation Guide

Connectors

Label

Function

Note

BBAT1

Battery connector

2 x 1 wafer, pitch 1.25 mm

BLED1

CFAST LED connector 1

2 x 1 header, pitch 2.0 mm

BLED2

CFAST LED connector 2

2 x 1 header, pitch 2.0 mm

COM1

Serial port 1 connector

D-sub 9-pin, male

CPU_FAN1

CPU fan connector

3 x 1 wafer, pitch 2.54 mm

FPC_PCIE1

PCIE slot

HDMI1

HDMI connector

J422/485

Serial port 1 in RS-422/485 mode

3 x 2 header, pitch 2.0 mm

JAUDIO1

Audio connector

7 x 2 header, pitch 2.0 mm

JBKL1

+12V power connector

2 x 1 wafer, pitch 2.0 mm

JBKL2

LCD inverter connector

5 x 1 wafer, pitch 2.0 mm

JBKL3

LED backlight adjustment connector 1

2 x 1 header, pitch 2.0 mm

JBKL4

LED backlight adjustment connector 2

2 x 1 header, pitch 2.0 mm

JCOM2

Serial port 2 connector

5 x 2 header, pitch 2.0 mm

JDIO1

General purpose I/O connector

10 x 2 header, pitch 2.0 mm

JFP1

Miscellaneous setting connector

5 x 2 header, pitch 2.0 mm

JLPC1

Low pin count interface

7 x 2 header, pitch 2.0 mm

JLVDS1

LVDS connector

JSPI1

SPI connector

4 x 2 header, pitch 2.0 mm

JUSB45

USB connector 8 & 9

5 x 2 header, pitch 2.0 mm

JUSB67

USB connector 10 & 11

5 x 2 header, pitch 2.0 mm

JVR1

LCD backlight brightness adjustment

3 x 1 header, pitch 2.54 mm

LAN1/ LAN2

RJ-45 Ethernet connector

LED2

LED connector

PWR_SB1

5VSB connector in ATX

3 x 1 wafer, pitch 2.54 mm

PWRCON1

Power connector

2 x 2 wafer, pitch 4.2 mm

SATA_PWR1

SATA power connector

2 x 1 wafer, pitch 2.0 mm

SATA_PWR2

SATA power connector

2 x 1 wafer, pitch 2.0 mm

SATA1

Serial ATA connector 1

SATA2

Serial ATA connector 2

SYS_FAN1

System fan connector

3 x 1 wafer, pitch 2.54 mm

USB1

USB connector 2

VGA1

VGA connector

D-sub 15-pin, female

ECM-QM57 Quick Installation Guide

ECM-QM57 Quick Installation Guide 9

2.3 Setting Jumpers & Connectors

2.3.1 Clear CMOS (JBAT1)

* Default

Protect*

Clear CMOS

2.3.2 Serial port 1 pin 9 signal select (JRI1)

* Default

Ring*

+5V

+12V

ECM-QM57 Quick Installation Guide

10 ECM-QM57 Quick Installation Guide

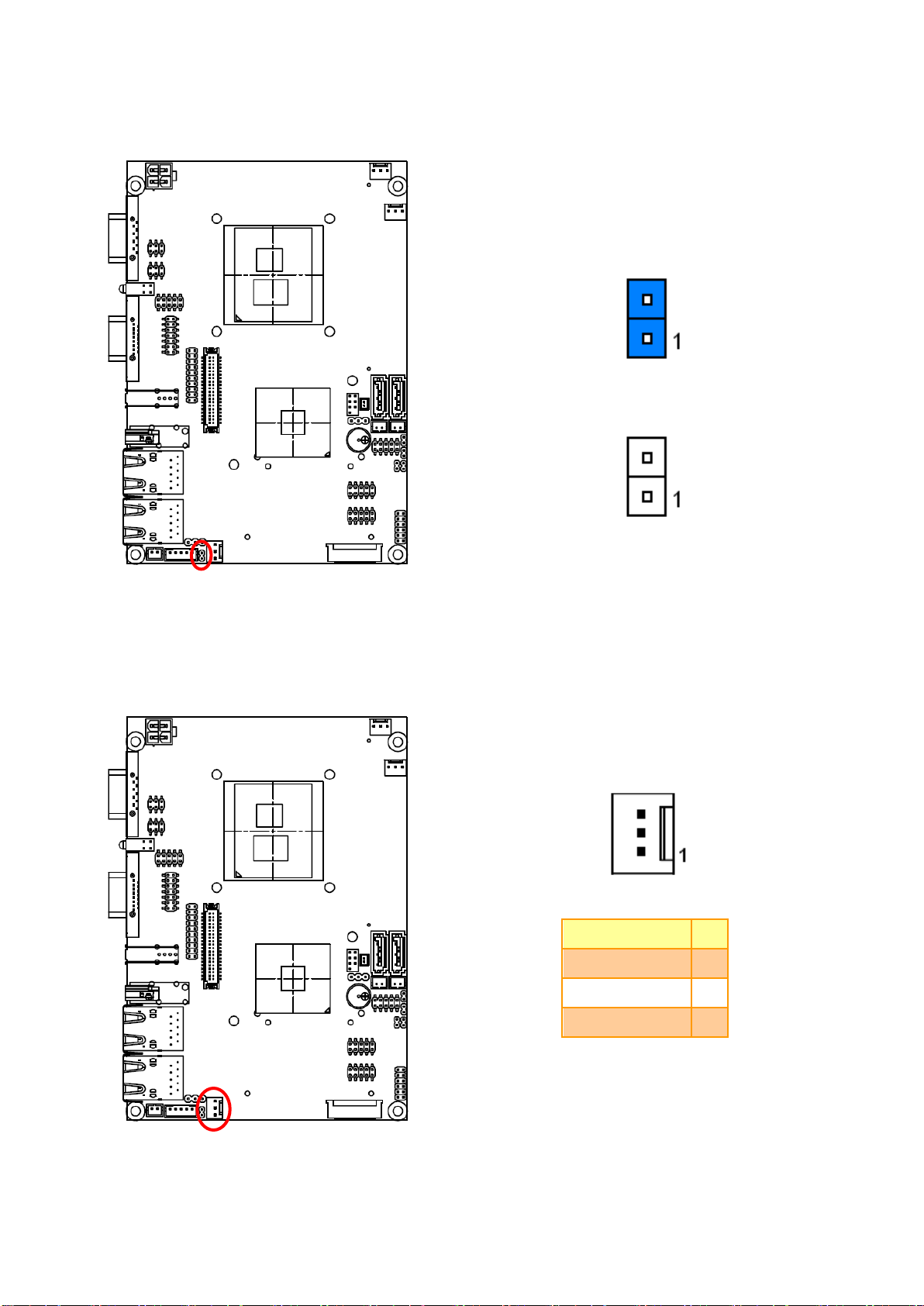

2.3.3 AT/ ATX Input power select (PWR_MSEL1)

* Default

AT*

ATX

2.3.4 5VSB connector in ATX (PWR_SB)

Signal

ATX5VSB

GND

PSON

Table des matières

Autres manuels Avalue Technology Carte mère

Avalue Technology

Avalue Technology EBM-LX800 Manuel utilisateur

Avalue Technology

Avalue Technology ERX-W480P Manuel utilisateur

Avalue Technology

Avalue Technology EMX-C246DP Manuel utilisateur

Avalue Technology

Avalue Technology EMX-B75 Manuel utilisateur

Avalue Technology

Avalue Technology EAX-Q35 Manuel utilisateur

Avalue Technology

Avalue Technology REV-SA01 Manuel utilisateur

Avalue Technology

Avalue Technology EMX-APLP-34 Manuel utilisateur

Avalue Technology

Avalue Technology EMX-H61 Manuel utilisateur

Avalue Technology

Avalue Technology EAX-H81P Manuel utilisateur

Avalue Technology

Avalue Technology EMX-SKLGP Manuel utilisateur

Avalue Technology

Avalue Technology HPM-SRSUA Manuel utilisateur

Avalue Technology

Avalue Technology EPX-APLP Manuel utilisateur

Avalue Technology

Avalue Technology ERX-H110KP Manuel utilisateur

Avalue Technology

Avalue Technology ECM-KBLU Manuel utilisateur

Avalue Technology

Avalue Technology EMX-QM77 Manuel utilisateur

Avalue Technology

Avalue Technology ECM-APL2-B1 Manuel utilisateur

Avalue Technology

Avalue Technology EBM-SKLU Manuel utilisateur

Avalue Technology

Avalue Technology EMX-H110DC Manuel utilisateur

Avalue Technology

Avalue Technology EAX-Q170P Manuel utilisateur

Avalue Technology

Avalue Technology EBM-SKLU-B1 Manuel utilisateur

Avalue Technology

Avalue Technology EMX-CDV Manuel utilisateur

Avalue Technology

Avalue Technology EPI-QM87R Manuel utilisateur

Avalue Technology

Avalue Technology BC680R Manuel utilisateur

Avalue Technology

Avalue Technology EMX-BYT2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
