Avalue Technology E640 Manuel utilisateur

Part No. E2017EPCQA0R

EPC-QB

Fanless Intel® Atom™ E640 Tiny Box PC

with Intel® Platform Controller Hub EG20T Chipset

Quick Reference Guide

1st Ed –4 June 2012

EPC-QB

2 EPC-QB Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

EPC-QB Quick Reference Guide

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch

Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei,

Taiwan

Tel:+886-2-8226-2345

Fax: +886-2-8226-2777

Information:sales@avalue.com.tw

Service: service@avalue.com.tw

Avalue Technology Inc.

9 Timber Lane, Marlboro, NJ 07746-1443

Tel: (732) 414-6500

Fax: (732) 414-6501

Information: sales@avalue-usa.com

Service: support@avalue-usa.com

BCM Advanced Research

Avalue Europe

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: sales.e[email protected]

Service: service.[email protected]

Avalue China

Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.chi[email protected]

Service: service@avalue.com.tw

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,

Taito-Ku, Tokyo 110-0016 Japan

Tel: +81-3-5807-2321

Fax: +81-3-5807-2322

Information: sales.japa[email protected]

Service: service@avalue.com.tw

EPC-QB

4 EPC-QB Quick Reference Guide

Content

1. Getting Started............................................................................................................5

1.1 Safety Precautions ................................................................................................5

1.2 Packing List...........................................................................................................5

1.3 System Specifications ...........................................................................................6

1.4 System Overview...................................................................................................8

1.4.1 Front View.................................................................................................................................... 8

1.4.2 Rear View..................................................................................................................................... 9

1.5 System Dimensions.............................................................................................10

1.5.1 Top /Front& Side view................................................................................................................ 10

1.5.2 Bottom view................................................................................................................................ 10

2. Hardware Configuration...........................................................................................11

2.1 EPC-QB connector list.........................................................................................12

2.2 EPC-QB connector mapping ...............................................................................13

2.2.1 Serial port 1 connector (COM1)................................................................................................. 13

2.2.2 Serial port 2 connector (COM2)................................................................................................. 13

2.2.3 Serial port 5 in RS-485 mode/ Serial port 4 in RS-422 mode /.................................................. 14

2.2.4 General purpose I/O connector (GPIO 8 IN/8 OUT).................................................................. 14

2.3 Installing Hard Disk & Memory ............................................................................15

Quick Reference Guide

EPC-QB Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

1 x EPC-QB Fanless Intel® Atom™ E640 Tiny Box PC with Intel® Platform

Controller Hub EG20T Chipset

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

Other major components include the followings:

—1 x Screw kit for 2.5” HDD/SSD and Aluminum stand fixing

—1 x AC to DC Adapter

—1 x Power cord

—1 x Aluminum stand

EPC-QB

6 EPC-QB Quick Reference Guide

1.3 System Specifications

System

Board

ECM-QB

CPU

Onboard Intel® Atom™ E640 1.00GHz CPU

BIOS

AMI 16Mbit Flash BIOS

System Chipset

Intel® Platform Controller Hub EG20T Chipset

I/O Chip

Nuvoton W83627DHG-P

System Memory

Onboard DDR2 1GB Memory

SSD

1 x CompactFlash Type I/II Socket, 1 x MicroSD

Hard Disk

1 x 2.5” SATA HDD/ SSD

Watchdog Timer

Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring System Temperature, Voltage with

Auto Throttling Control

Expansion Interface

1 x Mini PCIe Card

External I/O

COM Port

2 x RS-232

Multi-Funnction Port

1 x RS-422, 1 x RS-485, 1 x CAN Bus

LAN Port

2 x RJ-45

Antenna

2 Knockouts for Antenna Mounting (Options to Add WiFi & 3G)

VGA

1 x VGA

GPIO

8-bit GPI and 8-bit GPO

Audio Port

Line-out

USB Port

3 x USB 2.0

Expansions

1 Mini-PCIe Socket

Display

Chipset

Intel® Tunnel Creek Integrated

Resolution

CRT Mode: 1280 x 1024 @ 85Hz

Audio

Audio Chipset

Realtek ALC892 Supports 5.1-CH Audio

Audio Interface

High Definition Audio

Environment & Mechanical

Power Requirement

+12Vdc (Lockable DC Plug)

ACPI

Single Power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant

Power Type

AT/ ATX

Operating Temperature

-10 ~ 60°C (14 ~ 140°F)

Storage Temperature

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity

0% ~ 90% Relative Humidity, Non-condensing

Quick Reference Guide

EPC-QB Quick Reference Guide

Vibration Protection

With CF/ SSD: 1.5Grms, IEC 60068-2-64, Random,

5 ~ 500Hz, 30min/axis

Shock Protection

With CF/ SSD: 10G, IEC 60068-2-27, Half Sine,11ms

Dimension (W x D x H)

7” x 5.6” x 2.0” (178mm x 142mm x 50mm)

Weight

2.7lbs (1.2Kgs)

Mounting

VESA Compliance

EPC-QB

8 EPC-QB Quick Reference Guide

1.4 System Overview

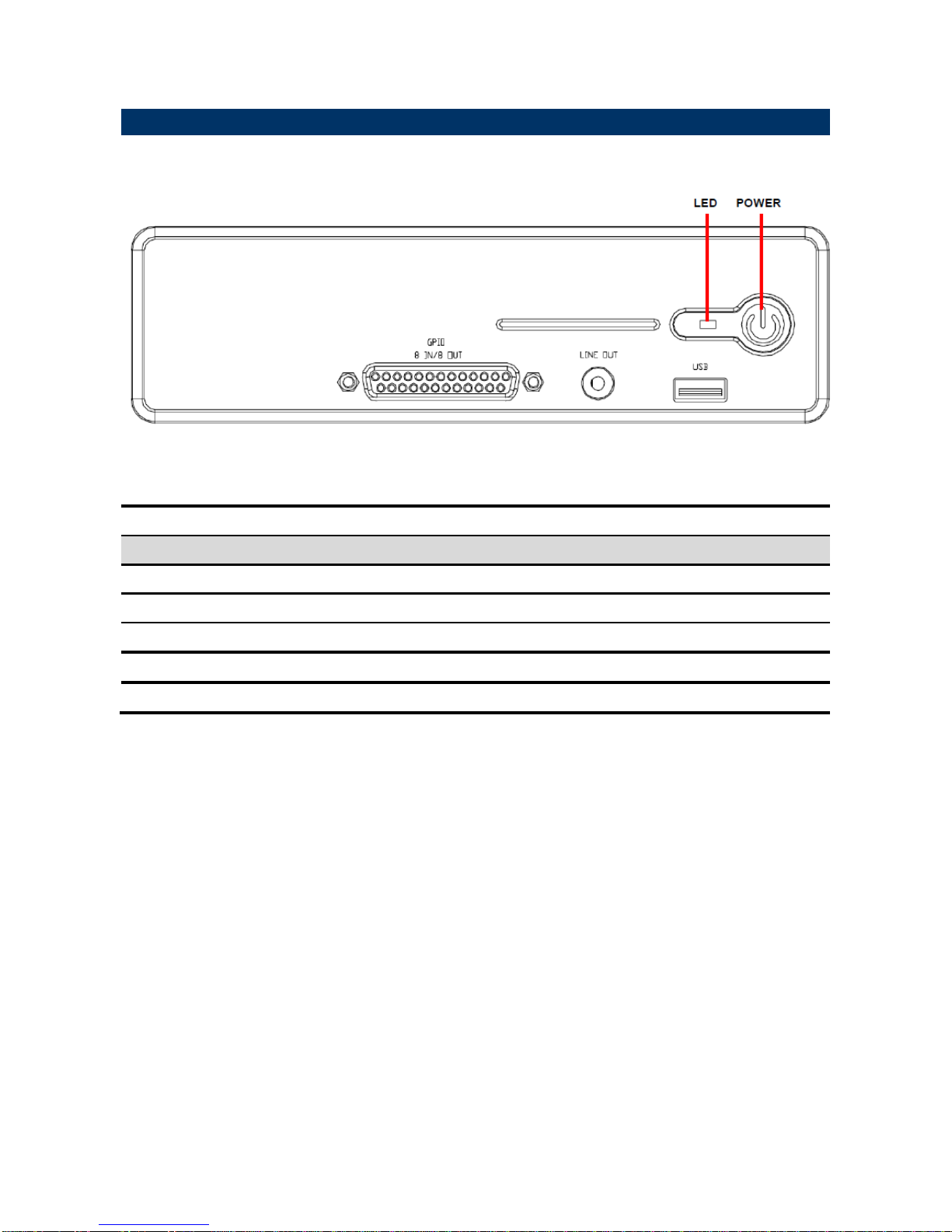

1.4.1 Front View

Connectors

Label

Function

Note

POWER

Power on button

LED

System power indicator

USB

USB 2.0 connector

LINE OUT

Line-out audio jack

GPIO 8 IN/8 OUT

General purpose I/O connector

Quick Reference Guide

EPC-QB Quick Reference Guide

1.4.2 Rear View

Connectors

Label

Function

Note

COM1

Serial port 1 connector

DB-9 male connector

COM2

Serial port 2 connector

DB-9 male connector

HDD

HDD indicator

Compact Flash

CF card connector

POWER 12V DC

POWER connector

LAN1&2

2 x 10/100Base-Tx Ethernet connector

RJ-45

RS-422/485/CAN

Serial port 5 in RS-485 mode/ Serial port

4 in RS-422 mode / CAN connector

PWR

System power indicator

RESET

Reset button

USB

USB 2.0 connector

VGA

CRT connector

DB-15 female connector

EPC-QB

10 EPC-QB Quick Reference Guide

1.5 System Dimensions

1.5.1 Top /Front& Side view

1.5.2 Bottom view

(Unit: mm)

Table des matières

Autres manuels Avalue Technology Ordinateur de bureau

Avalue Technology

Avalue Technology BMX-T521-BYT Manuel utilisateur

Avalue Technology

Avalue Technology LPC-1207 Manuel utilisateur

Avalue Technology

Avalue Technology EMS-SKLU Series Manuel utilisateur

Avalue Technology

Avalue Technology SOPM-QM87 Manuel utilisateur

Avalue Technology

Avalue Technology HPS-621U4A Manuel utilisateur

Avalue Technology

Avalue Technology OPC-15W6 Manuel utilisateur

Avalue Technology

Avalue Technology SID-21W9 Manuel utilisateur

Avalue Technology

Avalue Technology EMS-TGL Series Manuel utilisateur

Avalue Technology

Avalue Technology FPC-05R1 Manuel utilisateur

Avalue Technology

Avalue Technology EPC-CDV Manuel utilisateur

Avalue Technology

Avalue Technology HPS-246U4A Manuel utilisateur

Avalue Technology

Avalue Technology EPC-WHL Manuel utilisateur

Avalue Technology

Avalue Technology ERS-A50M Manuel utilisateur

Avalue Technology

Avalue Technology HPS-621UTA Manuel utilisateur

Avalue Technology

Avalue Technology EES-CDV Manuel utilisateur

Avalue Technology

Avalue Technology EPC-TGU Manuel utilisateur

Avalue Technology

Avalue Technology UB-A200 Manuel utilisateur

Avalue Technology

Avalue Technology EMS-BYTC2 Manuel utilisateur

Avalue Technology

Avalue Technology EPC-CDV Manuel utilisateur

Avalue Technology

Avalue Technology ERS-CDVE Manuel utilisateur

Avalue Technology

Avalue Technology LPC-1009 Series Manuel utilisateur

Avalue Technology

Avalue Technology FPC-08WA1 Manuel utilisateur

Avalue Technology

Avalue Technology BMX-T521-BSW Manuel utilisateur

Avalue Technology

Avalue Technology EPC-BYT Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
