Audix M70-W Manuel utilisateur

PROFESSIONAL MICROPHONES

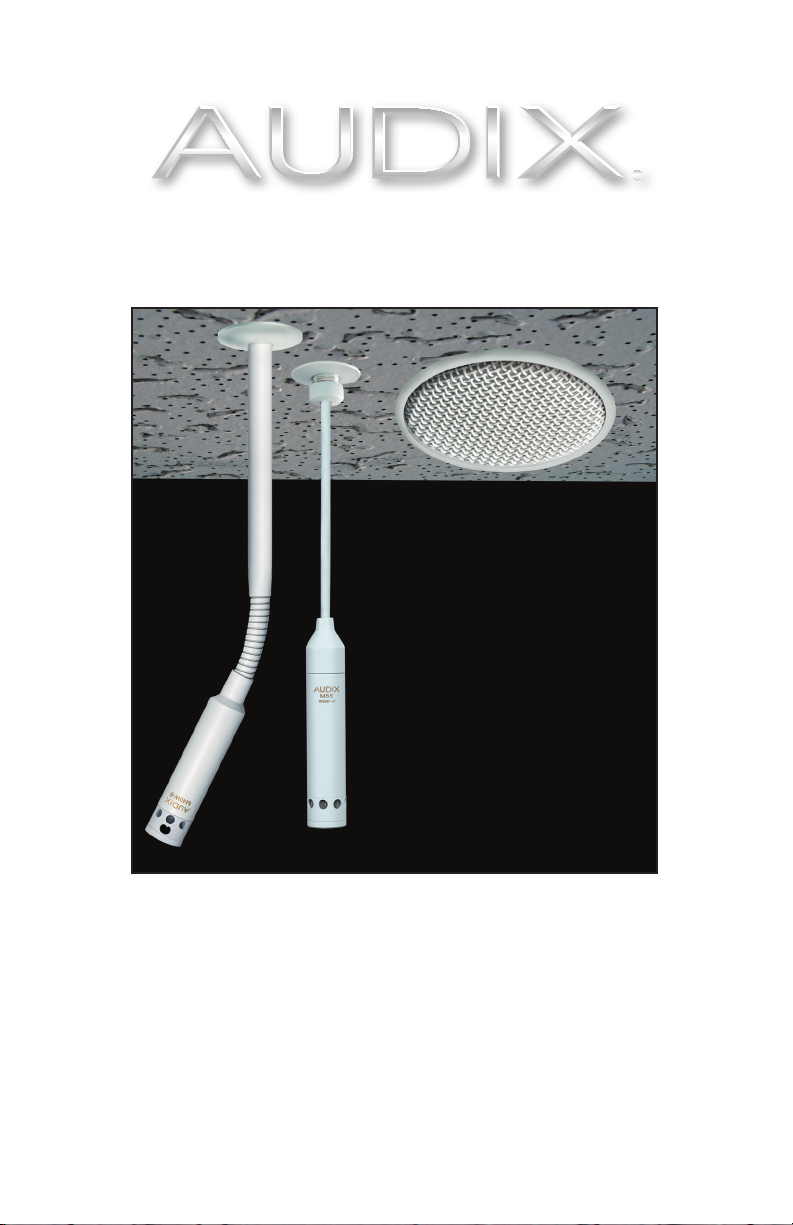

AUDIX M70

INSTALLATION GUIDE

Thank you for choosing Audix! Our products are designed to provide you with many

years of reliable service. Please read this manual before using the system

for optimal installation and operation.

M70 EXPLODED VIEW:

M70 JUNCTION BOX ASSEMBLY

M70 WITH

THREADED POST

AND KNURLED NUT

• REMOVE M70 MIC FROM JBM70

• REMOVE FOAM FOR EASY ACCESS TO JMB70 BOX

• DRILL 2 INCH HOLE IN THE CEILING TILE

• PLACE JBM70 BOX OVER THE CEILING TILE 2 INCH HOLE

• INSERT M70 THROUGH HOLE “A” AND ROTATE TO HOLE “B”

• SECURELY TIGHTEN THE KNURLED BRASS FASTENERS

• INSERT FOAM BACK INTO JBM70

• INSERT PLENUM WIRE (BELDEN 9451P OR 82761 OR EQUIVALENT THROUGH STRAIN RELIEF. (SEE #2)

• TERMINATE TO PHOENIX CONNECTOR. (SEE #3)

• INSTALL TO M70 MATING CONNECTOR (SEE #4)

• TIGHTEN STRAIN RELIEF AND CLOSE LID OF JMB70 BOX (SEE #5)

• ADJUST MIC POSITION (SEE #6)

SLIDE THE THREADED POSTS INTO

HOLE “A”. TWIST CLOCKWISE TO HOLE

“B” AND TIGHTEN THE KNURLED NUTS

SECURELY.

MALE &

FEMALE

PHOENIX

CONNECTORS

JBM70 PLENUM

RATED BOX

BRASS

STRAIN

RELIEF FOR

OUTER CABLE

BOTTOM VIEW OF

JUNCTION BOX

CEILING TILE

WITH2″HOLE

MOUNTING AND WIRING INSTRUCTIONS

FOR M70

To adjust microphone,

unscrew the grill assembly.

Wiring:

1 = Ground

2 = Blue (+)

3 = Yellow (-)

Open back lid of junction box.

Separate the supplied phoenix

connector (male/female).

Connect Phoenix terminals.

Insert plenum cable through

strain relief nut, then connect to

the Phoenix terminal.

Recommended cable:

Belden 9451P - .124" O.D. or

Belden 82761 - .116" O.D.

Tighten down the strain relief

nut to hold wire rmly in place

and close junction box lid.

For further information contact Audix at 503.682.6933

www.audixusa.com

2121

SEISMIC RESTRAINT INSTRUCTIONS

CABLE EXPLODED VIEW:

CABLE

BEAM, EYEBOLT

OR WALL

CABLE STAY

BARREL

CABLE STAY

BARREL

PUSH PIN IN

TO RELEASE

CABLE RELEASE

PLENUM RATED BOX

PLENUM RATED

CABLE

Wrap the cable around a beam, eyebolt or hanger. Next,

slip the cable through the top of cable stay barrel pulling

excess cable until taut.

To release cable, depress the cable release pin on top, to

release the loop, or on bottom, to extend cable length.

g g

g g g

g g

LITJBM70 8/13
