Audiovox GMRS-7000 Manuel utilisateur

General Mobile Radio Service (GMRS)General Mobile Radio Service (GMRS)

General Mobile Radio Service (GMRS)

ModelModel

Model

GMRS-7000GMRS-7000

GMRS-7000

Released: 3-28-02.

OwnerOwner

Owner’s Man’s Man

’s Man’s Man

’s Manualual

ualual

ual

Customer Service

1-800-290-6650

CTC

RANGE

OUT OF

A

EMG

ONLY USE THE AUDIOVOX-APPROVED RECHARGER WHEN RE-

CHARGING THE NICKEL METAL HYDRIDE (NiMH) BATTERY PACK.

USE ONLY THE AUDIOVOX RECHARGEABLE BATTERY PACK AP-

PROVEDFORTHISUNIT.DO NOT USE THE AUDIOVOX CHARGER WITH

OTHERBRANDSOF BATTERIES.

AVOID PLACING THE GMRS-7000 RADIO TRANSCEIVER FOR PRO-

LONGED PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERA-

TURES BELOW-4° F (-20° C) OR ABOVE 140 ° F (60° C).

KEEPTHE ANTENNA AT 1 INCH(2.5 cm) AWAY FROM YOUR HEADAND

BODY. DO NOT USE YOUR GMRS-7000 RADIO TRANSCEIVER WITH A

DAMAGED ANTENNA.PLACE THE RUBBER COVER ON JACKS WHEN

NOT IN USE.

GMRSLICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC

GMRSLICENSE. ANINDIVIDUAL18 YEARS OF AGE OR OLDER,WHOIS

NOTA REPRESENTATAIVEOFA FOREIGN GOVERNMENT, IS ELIGIBLE

TOAPPLYFORAGMRSSYSTEMLICENSE. YOUWILLNEEDTWOFORMS

FROM THE FCC; FCC FORM 159 AND FCC FORM 605 MAIN FORM AND

SCHEDULE F. YOU CAN FIND THE FORMS ONLINE AT: HTTP://

WWW.FCC.GOV/FORMPAGE.HTML,ORCALL1-800-418-3676.

CAUTION

POWER SETTING (Refer to Page 12.)

Your GMRS-7000 can operate at two power levels: High (2W) and Low

(0.5W). You will find that for the majority of your needs, the low-power

setting will provide adequate communications and there should seldom

be any need to use high power, except in situations where you need

absolute maximum range. Using low power will greatly extend battery

life. We suggest you experiment with switching between low and high

power. However, we do recommend that you

not change

this setting

unless it proves to be necessary in your particular situation.

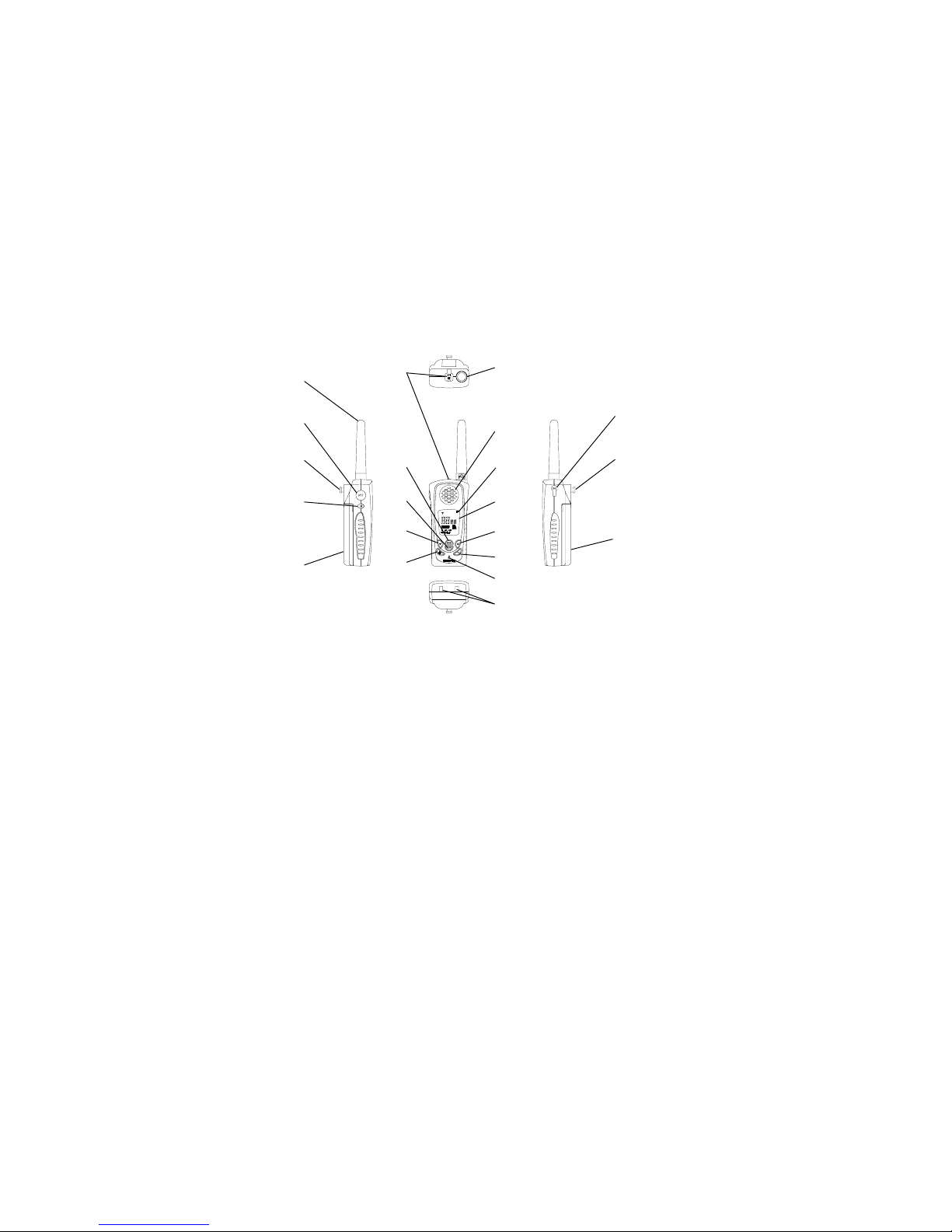

1. Battery Pack

2. Monitor(M)/BacklightButton

3. CarryClipStud

4. Push-To-Talk(PTT)Button

5. Antenna

6. ExternalSpeaker(SPK)/Micro-

phone(MIC)Jack

7. Built-inSpeaker

8. LiquidCrystal Display (LCD)

9. Built-inMicrophone

10. UpChannel/Volume Button

11. DownChannel/VolumeButton

Model GMRS-7000 (FCC License Required)

12. MODEButton

13. SCAN/Lock Button

14. Emergency(EMG)Call

Button

15. PowerOn/OffControl

16. CombinationTransmit Indi-

cator(Red)/Receive and

Monitor Indicator(Green)

17. BatteryPackChargingJack

(CHG)

18. BatteryPack Charging Con-

tacts

(REF)

15 14

CTC

RANGE

OUTOF

A

EMG

REF

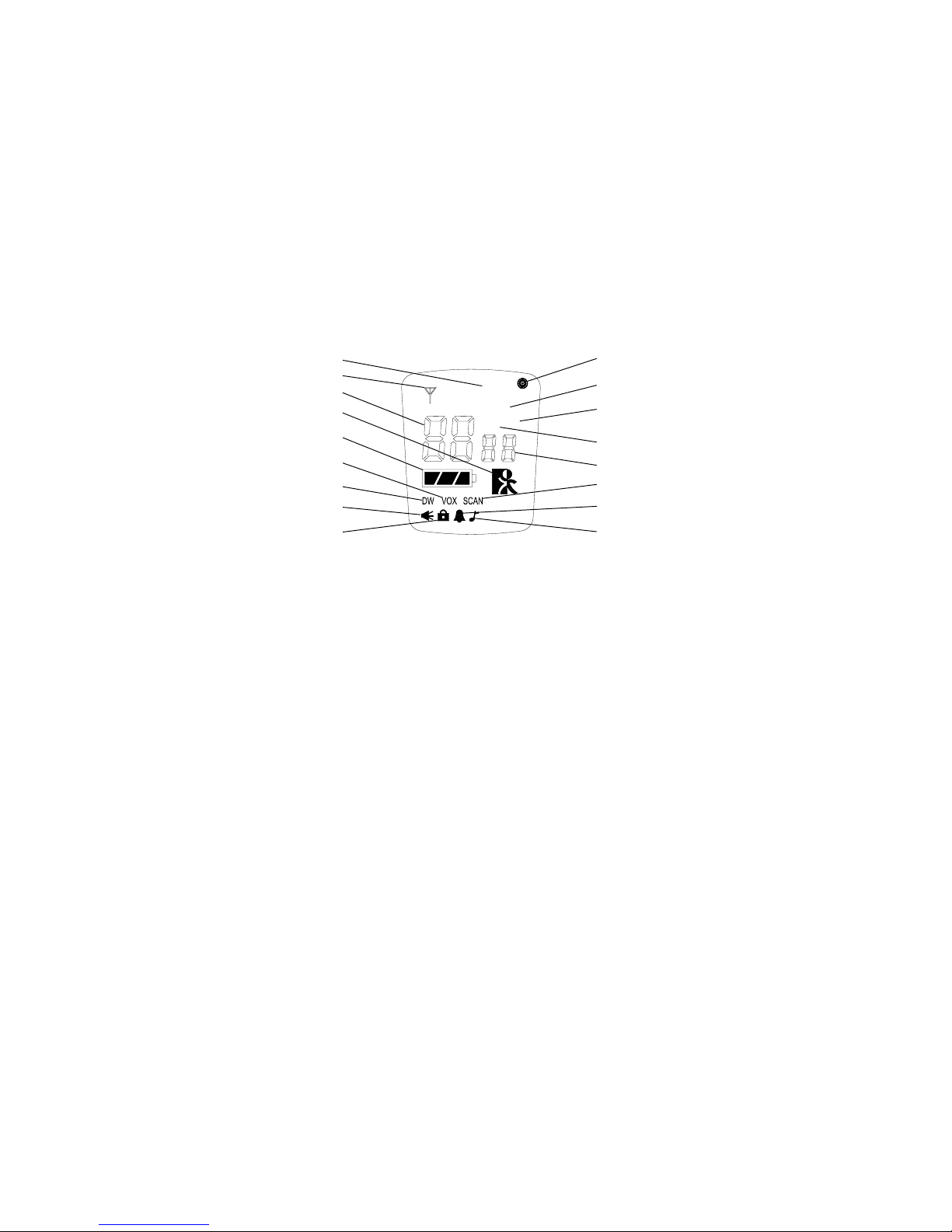

Model GMRS-7000 DISPLAY

1.Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down and MODE.

2.Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

3.Dual Watch Mode Indicator: Indicator appears when dual watch

modeis active.

4.Voice Activated Transmission (VOX) Indicator: This function allows

hands free conversation. The indicator appears when the VOX mode

is activated.

5.Battery Level Indicator: Icon indicates the battery charge level.

6.Out of Range Indicator: Icon will be on steady when received signal

strength is normal; icon flashes when signal strength becomes weak

and intermittant.

7.Large Segment Display: Indicates the channel number in use.

8.Signal Strength Indicator: Icon appears when a signal is being

received. The icon consists of five bars to indicate the received signal

level.

9.Emergency Indicator: EMG Icon appears when the EMG button is

pressed. (The frequency is NOT monitored by authorities).

EMG

CTC

OUT OF

RANGE

LOHI

A

10.Weather Mode Indicator: Icon will be on steady when in the weather

band mode. The icon will blink when in the GMRS mode with the alert

active.

11.HI/LO Indictors: Appropriate icon appears when the transmit power is

set to desired output power.

12.Caller Identification (ID) Indicator: This indication appears when

you select a caller identification code (between 1 and 10). ID selection

operates in conjunction with the small segment display, and can also

be used to identify a calling party in the monitor mode.

13.Coded Tone Controlled Squelch System (CTC) Indicator: Indicator

appears when the CTCSS tone function is active.

14.Small Segment Display: Displays the CTCSS tone option in the

channel from (00-38).

15.Scan Indicator: This function allows the user to scan a channel and/

or a tone code every .5 second to search for a valid signal.

16.Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

17.RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

Powering the transceiver:

Your GMRS-7000 radio transceiver operates on an NiMH rechargeable

battery pack. Only Audiovox-approved rechargeable batteries can be

recharged in the radio transceiver using the charging Adapter supplied

with the unit. This will ensure optimum performance for the

GMRS-7000. Use of the Audiovox Adapter with other brands of batteries is

not recommended.

Batteries

The GMRS-7000 is powered by:

Audiovox Rechargeable NiMH Battery Pack - (Rechargeable

NiMH battery pack and Charging Adapter included). Use only

the Audiovox-approved rechargeable battery pack and charger

when charging the battery pack internal to the unit.

2. While holding

retaining clip up,

grasp battery

pack tabs with

other hand and lift

battery pack up

and off unit.

3. Insert bottom of

battery pack into

bottom of

compartment; then

press top into place

until retaining clip

clicks into locked

position. Replace

carry clip onto

mounting stud.

1. Using thumb,

press up on

battery retaining

clip to release

top of battery

pack.

NOTE: To extend battery life, avoid overcharging the battery pack.

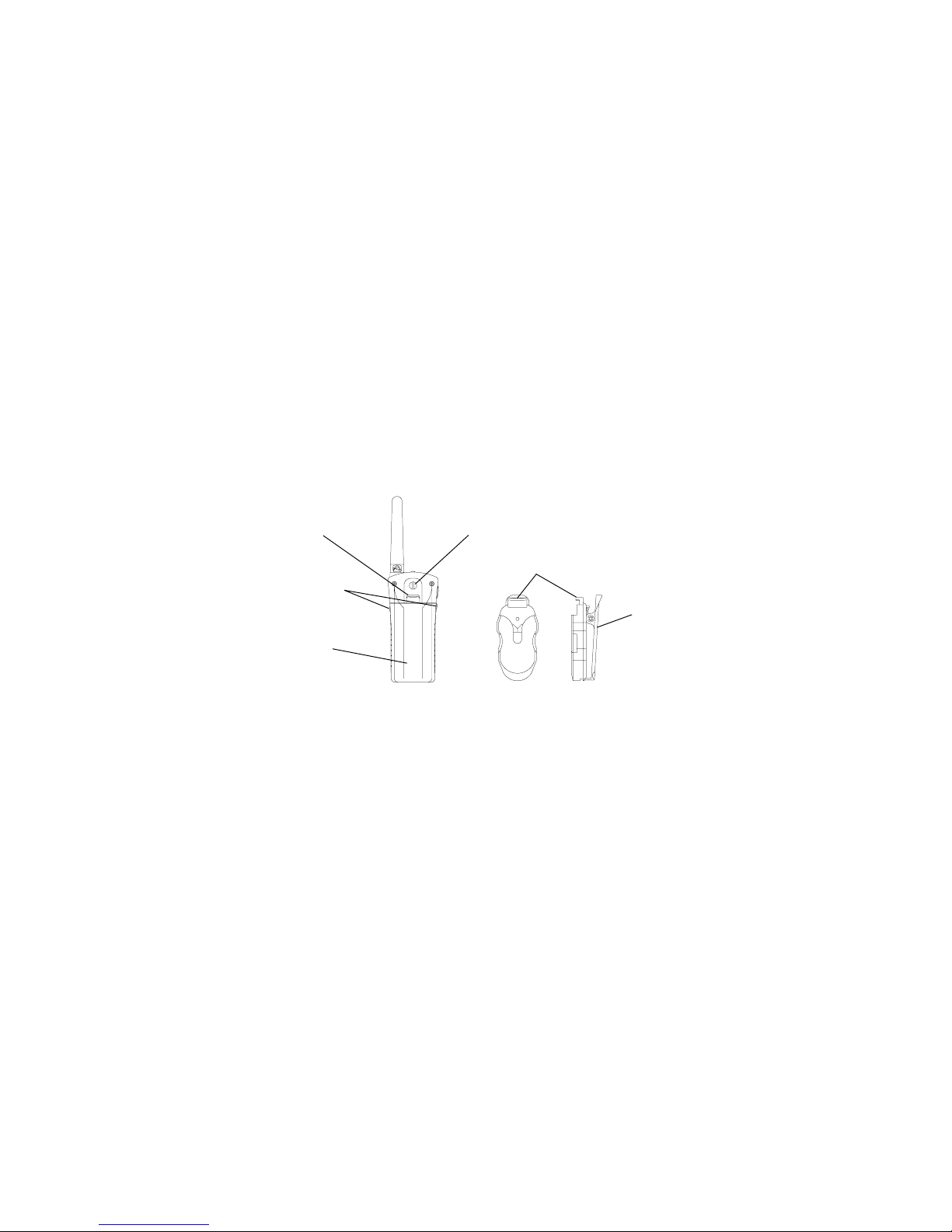

Installing the battery pack:

Battery pack installation is made more convenient when the carry clip is

removed. To do this, press down on the spring latch securing the clip to

radio and slide the clip downward and away from the mounting stud. Next,

at the battery pack retaining clip, press up with the thumb to release the top

of the battery pack and lift off the entire pack assembly.

SPRING

LATCH

BATTERY

PACK

CARRY

CLIP

CARRYCLIP

MOUNTINGSTUD

BATTERYPACK

RETAININGCLIP

BATTERY

PACKTABS

To improve performance and provide longer operating times for the

GMRS-7000:

If the unit is not to be used for an extended period of time, remove

the battery pack. An old or leaking battery pack can cause damage to

the unit and will void the warranty.

C US

L

U

LISTED

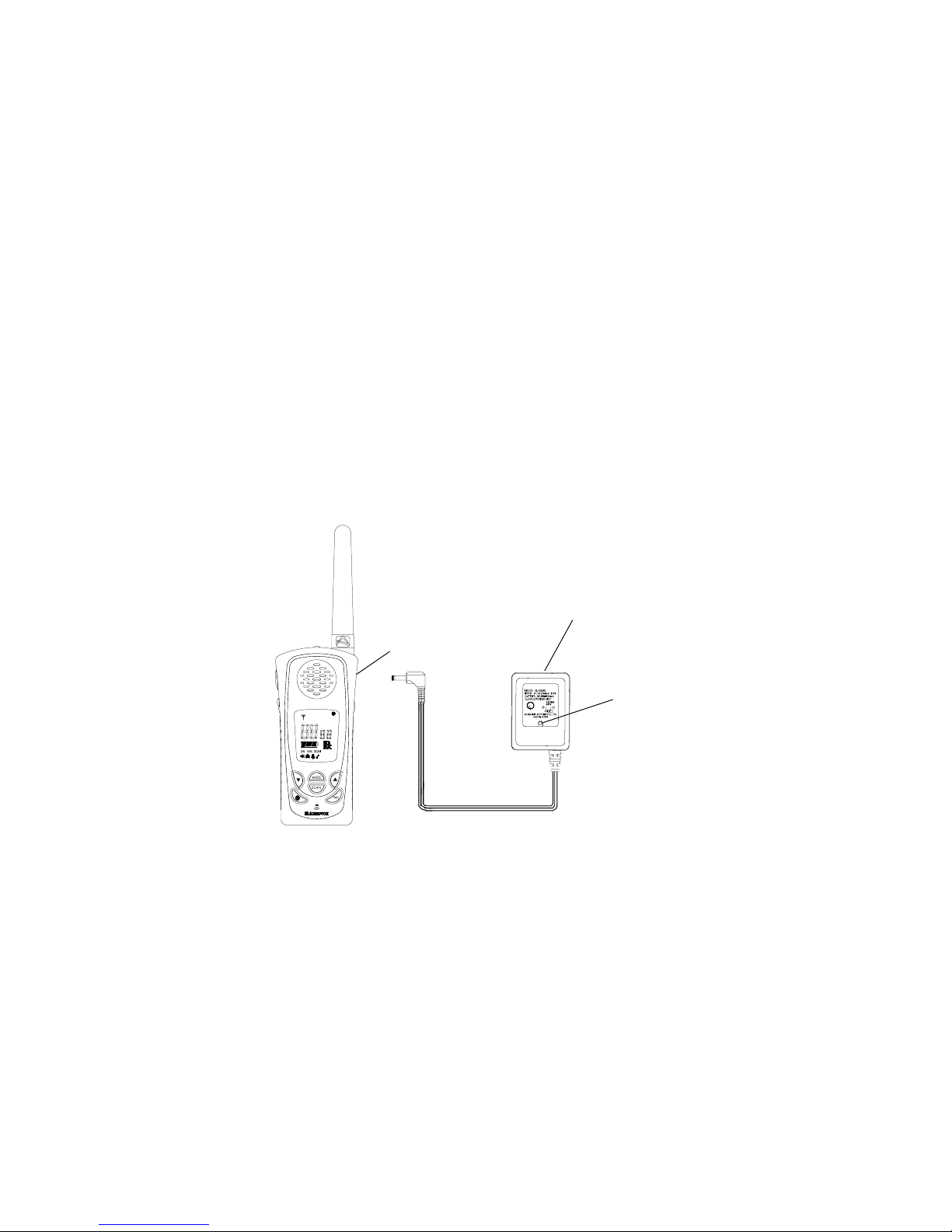

AC/DC ADAPTER

BATTERY

CHARGING

(CHG)JACK

AC/DCADAPTER,

MODELSJ-08350

INPUT:120 VAC

OUTPUT:8VDC

CTC

RANGE

OUT OF

A

EMG

CHARGING

LED(RED)

GMRS-7000 OPERATIONAL MODES

Controls:

Power On/Off (15) Button

Press and hold the power on/off button ( ) for at least 2 seconds. You

will hear a confirming melody to indicate the unit is on. To turn the unit

off, press and hold the button for at least 2 seconds.

Monitor/Display Backlight Button (2)

This button is used to check activity on the current frequency before

transmitting. Check activity by pressing the Monitor (M) Button longer

than 2 seconds; the icon will apppear on the display and you will

hearstatic if frequency isclear.

Do not transmit if you hear conversation.

CHANNEL

SELECT

WEATHER

BANDALERT

CALL

SELECT

GMRSBAND

WEATHER BAND

BUTTON

BEEP

ROGER

BEEP

DUAL

WATCH

VOX

SELECT

POWER

SELECT

CTCSS

SELECT

CHANNEL

SELECT

I D CODE

SELECT

Hold down the Monitor Button again longer than 2 seconds and the

icon will disapppear from the display.

The monitor function will temporarily bypass the squelch setting and play

all signals on a given channel. This feature is useful when communicating

with other parties at extreme range.

By pressing the monitor button momentarily, the LCD backlight is turned

onaccompanied by a beeptone; theLCD backlight will turnoff automatically

in about 5 seconds, or when the monitor button is pressed momentarily

once again.

Push To Talk (PTT) Button (4)

Pressing and holding this button will allow you to speak to any transceiver

that is set to the same channel and privacy code setting as yours. Hold the

transceiver approximately 1 to 2 inches from your face as you speak into

the built in microphone (9). After you have finished speaking, release the

PTT Button to allow reception of incoming signals. It is not possible to

transmit and receive at the same time. The Transmit/Monitor LED (16) on

the right side of the LCD Panel (8) will light

red

while the PTT Button is

pressed.

Releasing the button allows the unit to revert to standby mode. When

receiving an incoming signal, the Transmit/Monitor LED indicator will light

green

and the received signal strength indicator ( ) will display

the relative strength of the signal.

The PTT Button can also be used as a two-way call ringer. Pressing the

buttontwicequicklywillcallanotherpartyon the same channel. The Transmit

LED will light

red

for approximately 3 seconds and then go out.

Up Channel/Volume Button (10)

In the standby mode, pressing this button will increment the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings. The display will indicate the current volume level between 1

and 7 by the small number in the icon ( U 05 ).

Down Channel/Volume Button (11)

In the standby mode, pressing this button will decrement the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings. The display will indicate the current volume level between 1

and 7 by the small number in the icon ( U 05 ).

Mode Button (12)

This button is used to select the various GMRS and weather band feature

settings such as channel/CTCSS code selection, VOX mode, etc.

Emergency (EMG) Call Button Button (14)

This radio has a quick access button (EMG) to the Emergency and

Assistance Channel. This channel is NOT monitored by local authorities.

When using this channel,

EMG

appears on the display. Pressing this

button will set the transceiver to channel 10, operating on 462.6750 MHz.

External Speaker (SPK)/Microphone (MIC) Jack (6)

This jack accepts an optional Audiovox headset/microphone connector.

For additional optional equipment and accessories for the GMRS-7000

visit the Audiovox web site at www.audiovox.com.

Scan/Lock Button (13)

Press this Button momentarily to enable or disable the scan mode. Press

and hold Button for more than 1 second to lock or unlock the key pad,

except Power, PTT, Monitor (M), EMG, and Volume Up/Down. When the

keypad is locked, the ( ) icon will display in the bottom left corner.

Operating Modes and Features

GRMS Operation:

- From GMRS standby mode, press and hold the ( ) button for 2

seconds to turn on power.

- Press the MODE button so the Channel number flashes.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Radio

Audiovox

Audiovox GMRS7001-2 - 7 Mile GMRS Radio Manuel utilisateur

Audiovox

Audiovox GMRS6000-2PK Manuel utilisateur

Audiovox

Audiovox GMRS602CH Manuel utilisateur

Audiovox

Audiovox Satellite Radio Receiver Manuel utilisateur

Audiovox

Audiovox GMRS-1545 Manuel utilisateur

Audiovox

Audiovox XpressR XMCK-20KC Manuel utilisateur

Audiovox

Audiovox XT·250 XTRA series Manuel utilisateur

Audiovox

Audiovox XAPH1 Manuel utilisateur

Audiovox

Audiovox XMCK20P - XPRESSR XM Radio Tuner Manuel utilisateur

Audiovox

Audiovox GMRS120 Manuel utilisateur

Audiovox

Audiovox CommanderMT 128-7902A Manuel utilisateur

Audiovox

Audiovox GMRS-1200CH Manuel utilisateur

Audiovox

Audiovox VR202 Manuel utilisateur

Audiovox

Audiovox GMRS1202CH Manuel utilisateur

Audiovox

Audiovox GMRS672 Manuel utilisateur

Audiovox

Audiovox XMRVRFM002 - Commander MT XM Radio Tuner Manuel utilisateur

Audiovox

Audiovox GMRS600SCH Manuel utilisateur

Audiovox

Audiovox GMRS1100-2CH Manuel utilisateur

Audiovox

Audiovox TTR1 Manuel utilisateur

Audiovox

Audiovox GMRS2572CH Manuel utilisateur

Audiovox

Audiovox GMRS1882CH Manuel utilisateur

Audiovox

Audiovox SIRIUS SRSIR-001 Manuel utilisateur

Audiovox

Audiovox GMRS121-2 Manuel utilisateur

Audiovox

Audiovox SIR-CK3 Manuel utilisateur

Manuels Radio populaires d'autres marques

EisSound

EisSound KBSound iSelect Manuel utilisateur

Midland

Midland 1001LWX Manuel utilisateur

Konig

Konig HAV-SR41 Manuel utilisateur

Roberts

Roberts exprssion Manuel utilisateur

VDigi

VDigi DD3.0 Manuel utilisateur

Radio Shack

Radio Shack 21-1863 Manuel utilisateur

Roberts

Roberts Stream 207 Manuel utilisateur

Sony

Sony Walkman SRF-M97 Manuel utilisateur

Stanley

Stanley FatMax FMC770 Manuel utilisateur

auna

auna DAB-Radio 10026947 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER UR190 Manuel utilisateur

HYT

HYT TC-320 Manuel utilisateur

auna multimedia

auna multimedia Yellowstone 10026851 Manuel utilisateur

B-Tech

B-Tech GMRS-V2 Manuel utilisateur

Weierwei

Weierwei VEV-V8 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER DAB750 Manuel utilisateur

Telefunken

Telefunken TF-1505 Manuel utilisateur

Makita

Makita LXRM03 Manuel utilisateur
