Audiovox CTV-5040 Manuel utilisateur

4”/6” TFT- LCD

COLOR TV

CTV-5040 / 60

INSTRUCTION MANUAL 91-S2-1005

RECOMMENDED GUIDELINES FOR THE USE OF

A VIDEO MONITOR/TV IN A MOTOR VEHICLE

•A VIDEO MONITOR/TV is designed for rear passenger viewing

only. This product may only be installed in the rear seat

compartment of the vehicle, out of the driver’s view.

•Installation in any other area of the vehicle, including anywhere

within the driver’s view, is illegal in most states, provinces and

countries and may lead to driver distraction resulting in an

accident, injury and/or death. If you are unsure of regulations

regarding this, please consult your local laws to determine how

this applies to you.

•Users should be aware of possible noise distraction caused by the

use of the product and should carefully monitor the volume so as

not to interfere with the driver’s attention to surrounding traffic

conditions.

FUNCTION--------------------------------------------------------

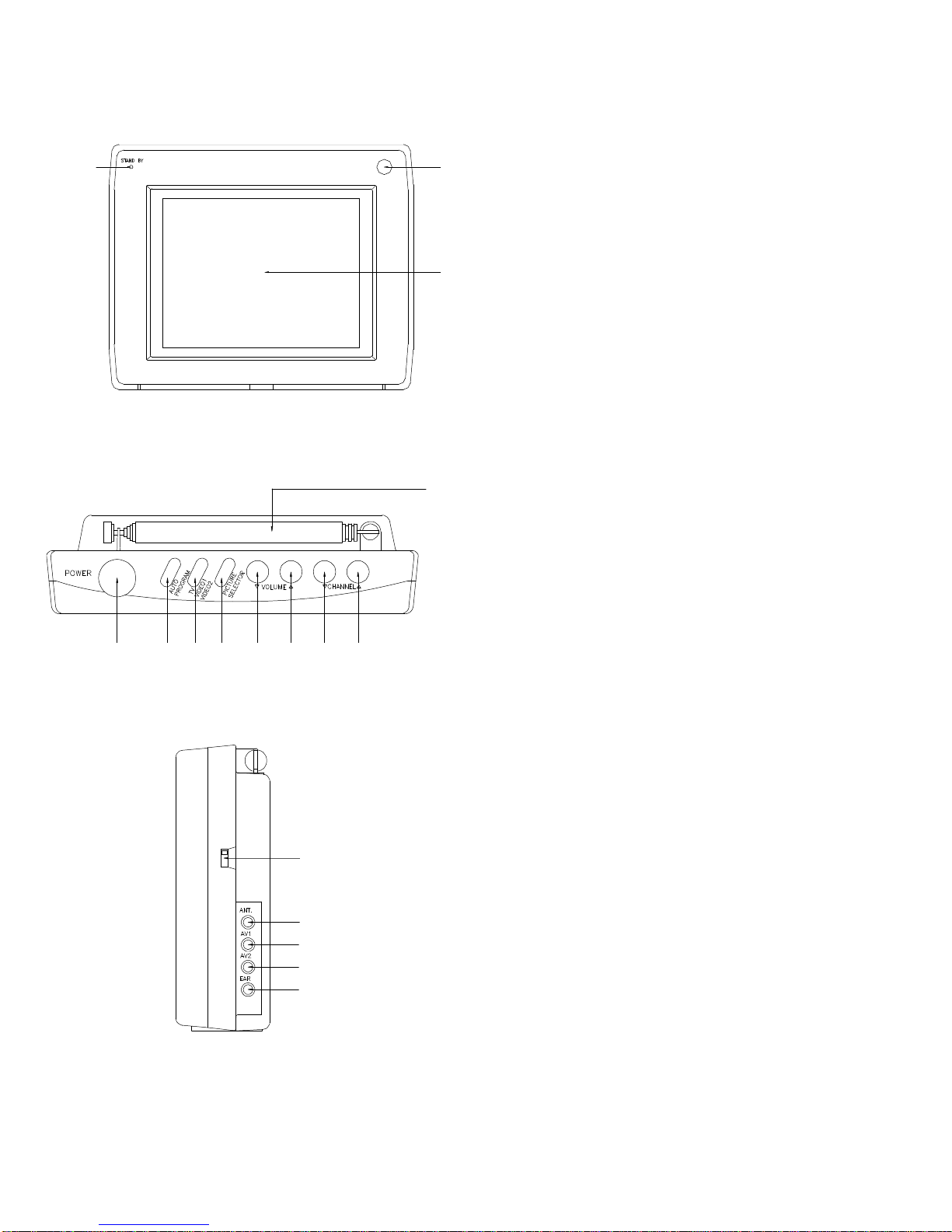

FIG. 1 FRONT

1. POWER INDICATOR

1. REMOTE CONTROL SENSOR

1. SCREEN

FIG. 2 TOP

1. POWER ON / STAND BY key

1. AUTO PROGRAM key

1. TV / AV1 / AV2 key

1. PICTURE SELECT key

1. VOLUME DOWN key

(PICTURE SELECT DOWN)

1. VOLUME UP key

(PICTURE SELECT UP)

1. CHANNEL DOWN key

1. CHANNEL UP key

1. ROD ANTENNA

FIG. 3 RIGHT

14. ANTENNA jack

15. AV1 INPUT jack

15. AV2 INPUT jack

15. EARPHONE jack

1 2

45 6 7 8 9 10 11

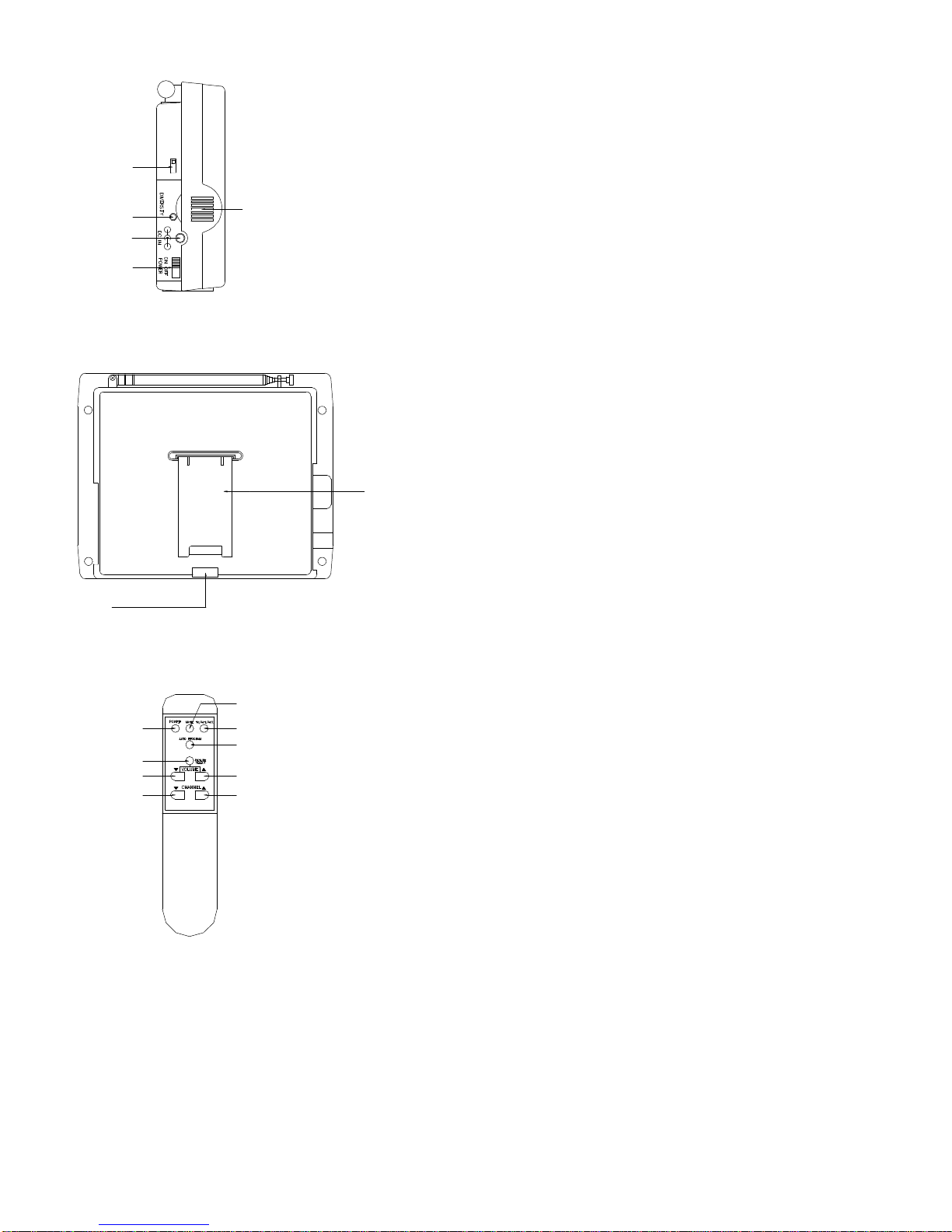

FIG. 4 LEFT

18. SPEAKER

19. BACKLIGHT HIGH/LOW switch

(Model 5040 only)

20. DIVERSITY OUTPUT jack

21. DC INPUT jack

22. POWER ON / OFF switch

FIG. 5 BACK

23. STAND

24. FIXING NUT

FIG.6 REMOTE CONTROL UNIT

31. POWER ON / STAND BY key

32. AUDIO MUTE key

33. TV / AV1 / AV2 key

34. AUTO PROGRAM key

35. PICTURE SELECT key

37. VOLUME DOWN key

(PICTURE SELECT DOWN)

38. VOLUME UP key

(PICTURE SELECT UP)

39. CHANNEL DOWN key

40. CHANNEL UP key

LIFT

4039

35 34

31 32

INSTALLATION--------------------------------------------------

POWER

1. One of the following power sources can be used.

1) AC power adapter.

2) Car battery (with car cord connected).

3) 8 x UM-3 batteries (optional battery box used). For

longer operation time, the alkaline batteries are

recommended and move the BACKLIGHT HIGH / LOW

switch (19) to “LO” for power saving. (Model 5040 only)

2. Move the POWER ON / OFF switch (22) to “ON” to make the

TV unit at stand-by status. At this time the POWER

INDICATOR (1) lights up. Then the remote control unit can

work.

3. Press the POWER ON / STAND BY key (4,31) to turn on the

TV unit and lighten the screen. The POWER INDICATOR

(1) is brighter. Pressing the key (4,31) again will recover the

TV unit to stand by.

BACK LIGHT SWITCH (MODEL 5040 ONLY)

1. Move the BACKLIGHT HIGH / LOW switch (19) to “HI” for

normal use.

2. For battery power saving, move the switch (19) to “LO”. The

luminance of the screen will lower down.

FM TRANSMITTER (for Japan only)

1. Move the TRANSMITTER OFF / FM1 / FM2 switch (13) to

“FM1” (or “FM2”).

2. Turn on the FM radio and set the same channel frequency to

receive FM1 (or FM2) signal. The efficiency distance is

about 5m.

3. When the function is unused, move the switch (13) to “OFF”.

TV OPERATION-------------------------------------------------

1. Pull out the ROD ANT (2) or connect an external antenna to ANT

jack (14) for better reception.

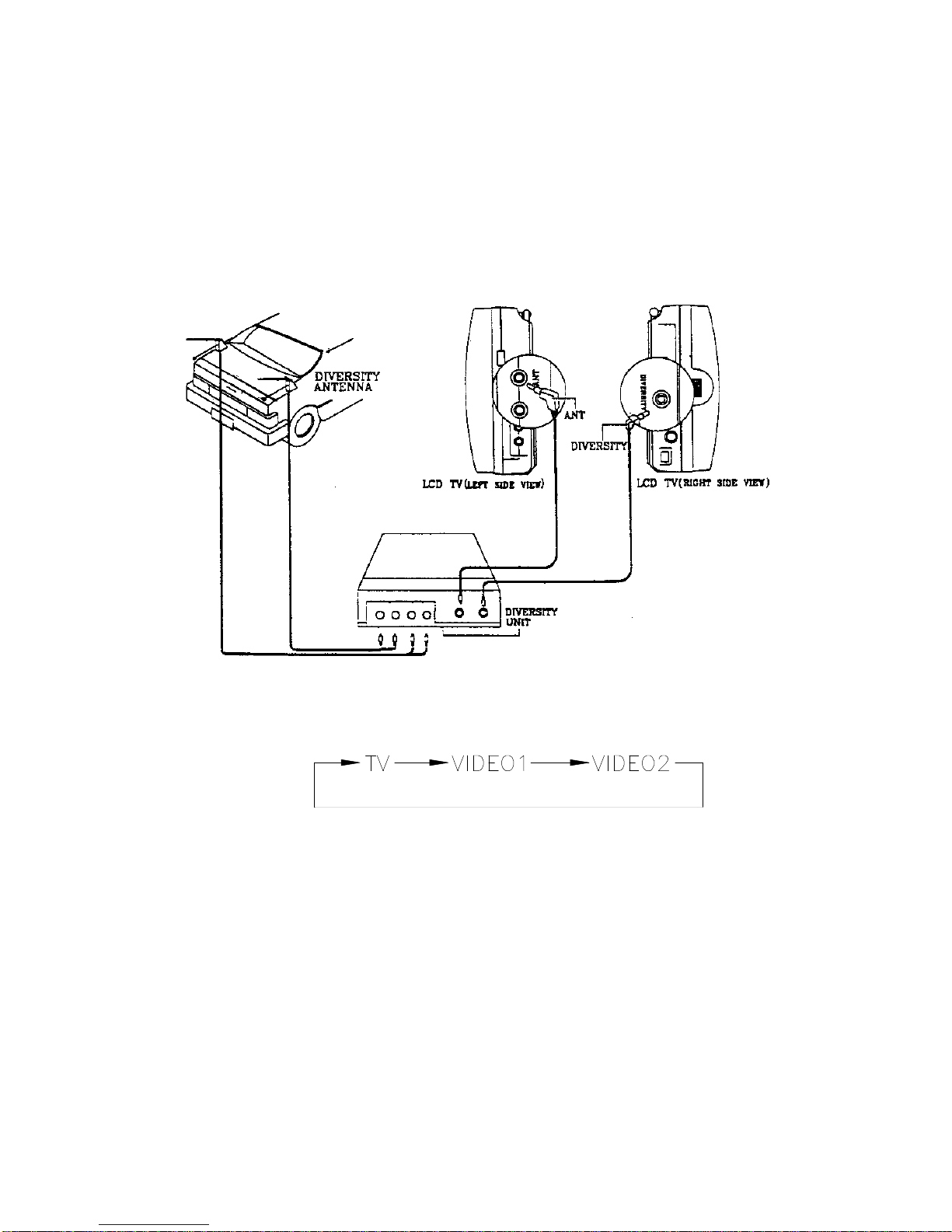

2. Used in the vehicle, the diversity unit (with boost function) is

recommended to use to improve the reception performance.

3. Press the TV / AV1 / AV2 key (6,33) to the TV mode.

4. Press the AUTO PROGRAM key (5,34) to scan the whole

channels and memorize them.

5. Press the CHANNEL UP (11,40) or DOWN (10,39) key to select

the desired TV station. If the channel number displayed on the

screen has not been memorized. Repeat step 1 to 5 until the

number turns green.

6. If the ROD ANT (12) is used, adjust the antenna direction to get

the best quality of reception.

7. Adjust the viewing angle. The recommended viewing angle of the

TV unit is +30°~ -10°vertical and +45°~ -45°horizontal.

8. Picture Adjustment

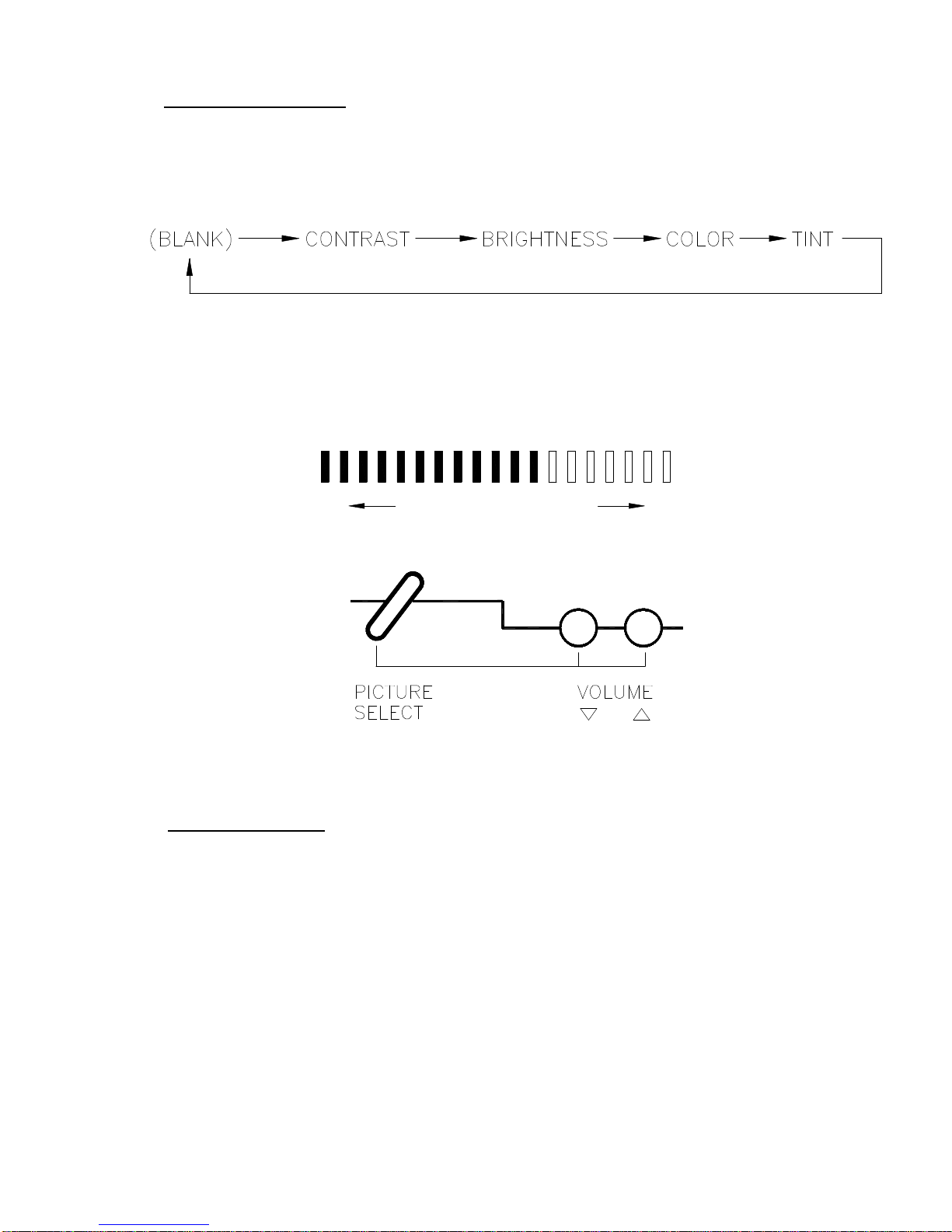

1) Press the PICTURE SELECT key (35) several times, the

screen will appear the picture control bar in the following

order sequentially.

2) Before the disappearance of the PICTURE SELECT UP

(VOLUME UP) (9,38) or DOWN (VOLUME DOWN) key

(8,37), to adjust the picture quality. For example,

3) Press the PICTURE RESET key (36) on the remote control

unit to recover the original picture setting.

9. Audio Operation

1) Press the VOLUME UP (9,38) or DOWN (8,37) key to adjust

the volume output level. If the channel number displayed on

the screen is red (it means the channel has not been

memorized), the volume control is in vain.

2) For earphone use, insert the earphone plug into the EAR

jack (17).

3) No volume output when the MUTE key (32) on the remote

control unit is pressed. Press again to recover.

COLOR

DOWN

MONITOR OPERATION---------------------------------------

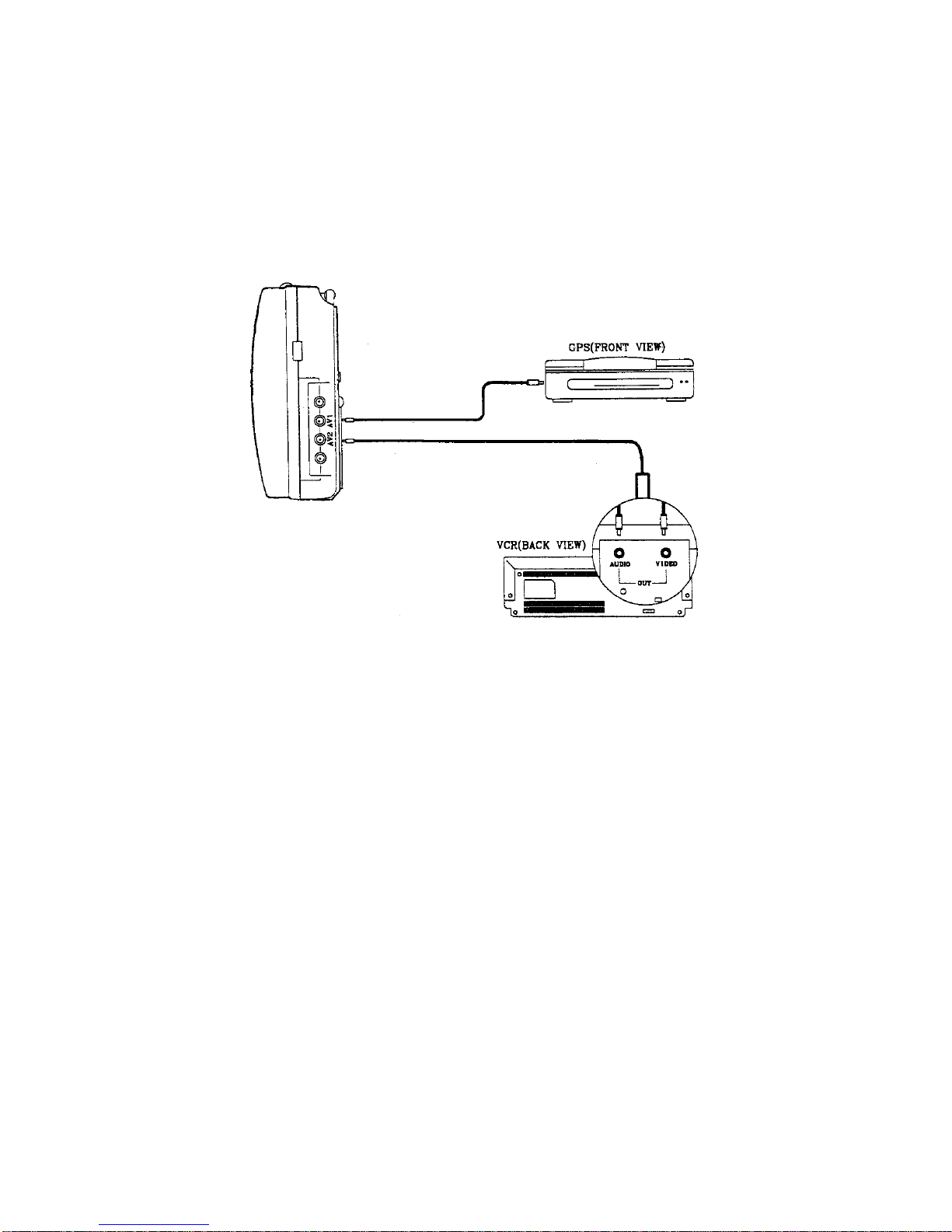

1. Input the AV signal from the sources (VCR, Video camera, GPS,

etc.) to the AV1 (15) and /or AV2 (16) jacks. The yellow terminal

of the AV cord connects with the video signal; the white terminal

with audio.

2. Press the TV / AV1 / AV2 key (6,33) to select the desired AV

source. The screen is dark with no video inputs.

3. Picture adjustment: as the TV operation described above.

4. Audio operation: as the TV operation described above.

IMPORTANT NOTES-------------------------------------------

1. Do not expose to temperature extremes or direct sunlight. (See

specifications)

2. Avoid dust and wet.

3. Avoid dropping and strong impact.

4. Turn power off and unplug the adapter when not in use or

thundering.

5. Never watch while driving a vehicle.

6. Never attempt your own maintenance.

TROUBLESHOOTING-----------------------------------------

Before assuming malfunction of TV, check as follows:

SYMPTOMS POSSIBLE CAUSES WHAT TO DO

No power •AC adapter or car cord not

properly connected

•Fuse of car cord blown

•Dead batteries

•Incorrect polarity of

batteries (battery box

used)

•Connect correctly

•Replace fuse

•Replace batteries

•Make sure the battery

poles are properly

aligned.

Remote control

unit cannot work •Batteries unloaded, dead

or incorrect polarity

•Remote control distance

too far.

•Direction of remote control

improper

•replace batteries

•Distance must be less

than 2M.

•Point the remote control

unit to the sensor directly

No picture and

sound •TV/AV1/AV2 selected

incorrectly

•Incorrectly connected AV

sources and the TV

•Press the TV/AV1/Av2

key to correct mode

•Check the connection

and correct it

Blurry picture

and noise •External antenna not

connected properly or rod

antenna folded

•Not properly tuned.

•Interference from

automobiles, electric

appliances, etc.

•Reception bad due to

weak signals, buildings,

mountains, etc.

•Check the connection.

Extend rod antenna.

•Press auto program key

again.

•Move further away from

appliances causing

interference. Change

antenna position.

•In locations with poor

reception, it may not be

possible to get a clear

picture or any picture at

all.

Sound heard but

picture all white

or dark

•Brightness control not set

correctly •Adjust brightness

Sound heard but

color light •Color control not set

correctly. •Adjust color.

Picture visible

but no sound •Mute function working.

•Volume control turned too

low

•Earphone inserted

•Mute off.

•Turn volume up.

•Disconnect earphone.
