Audiovox CTV-5040 Manuel utilisateur

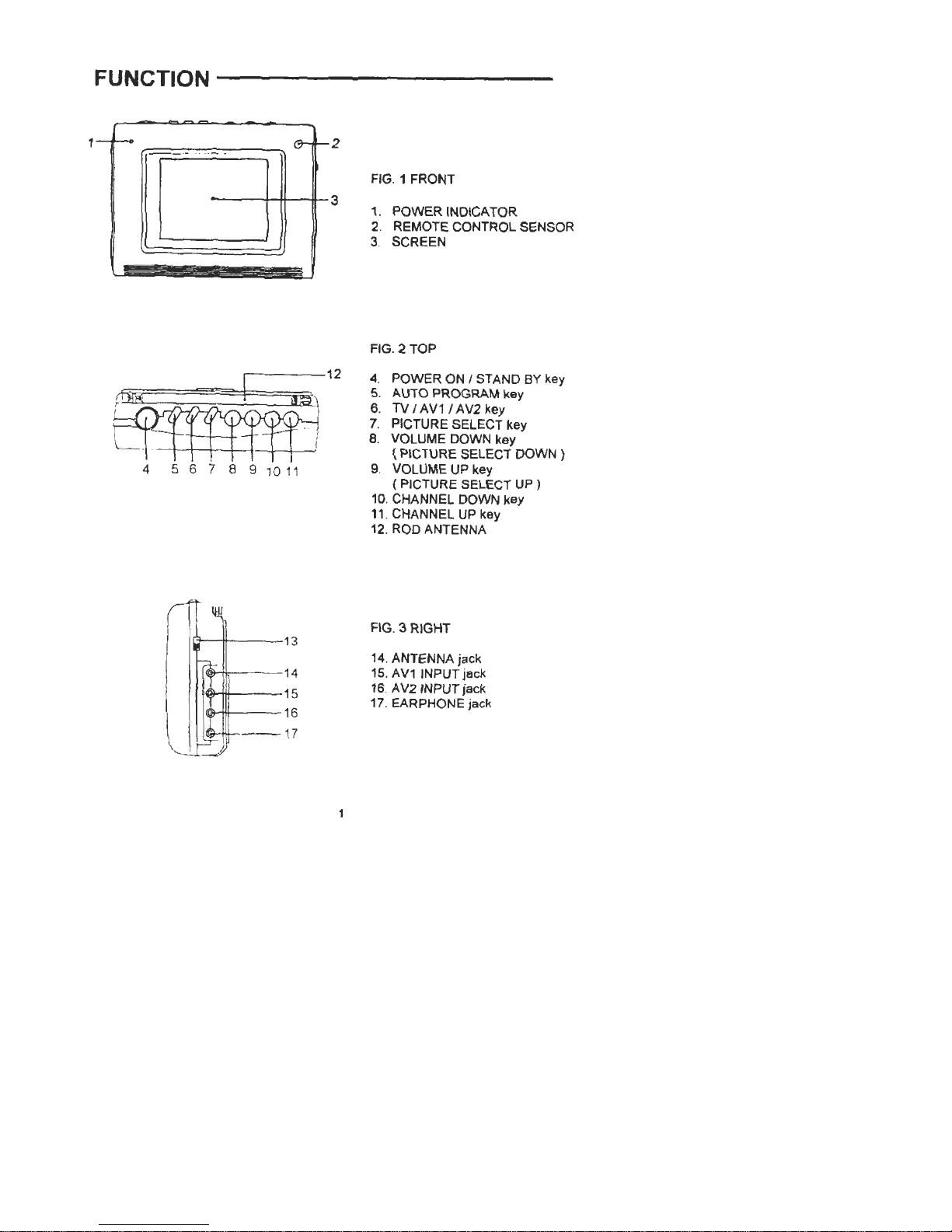

FUNCTION

FIG. 1 FRONT

31. POWER INDICA TOR

2 REMOTECONTROLSENSOR

3. SCREEN

FIG. 2 TOP

12 4. POWER ON I STAND BY key

5. AUTO PROGRAM key

6. TV I AV11 AV2 key

7. PICTURE SELECT key

8. VOLUME DOWN key

( PICTURE SELECT DOWN )

9 VOLUME UP key

( PICTURE SELECT UP )

10. CHANNEL DOWN key

11. CHANNEL UP key

12. ROD ANTENNA

FIG. 3 RIGHT

14. ANTENNA jack

15. AV1 INPUT jack

16 AV21NPUT jack

17. EARPHONE jack

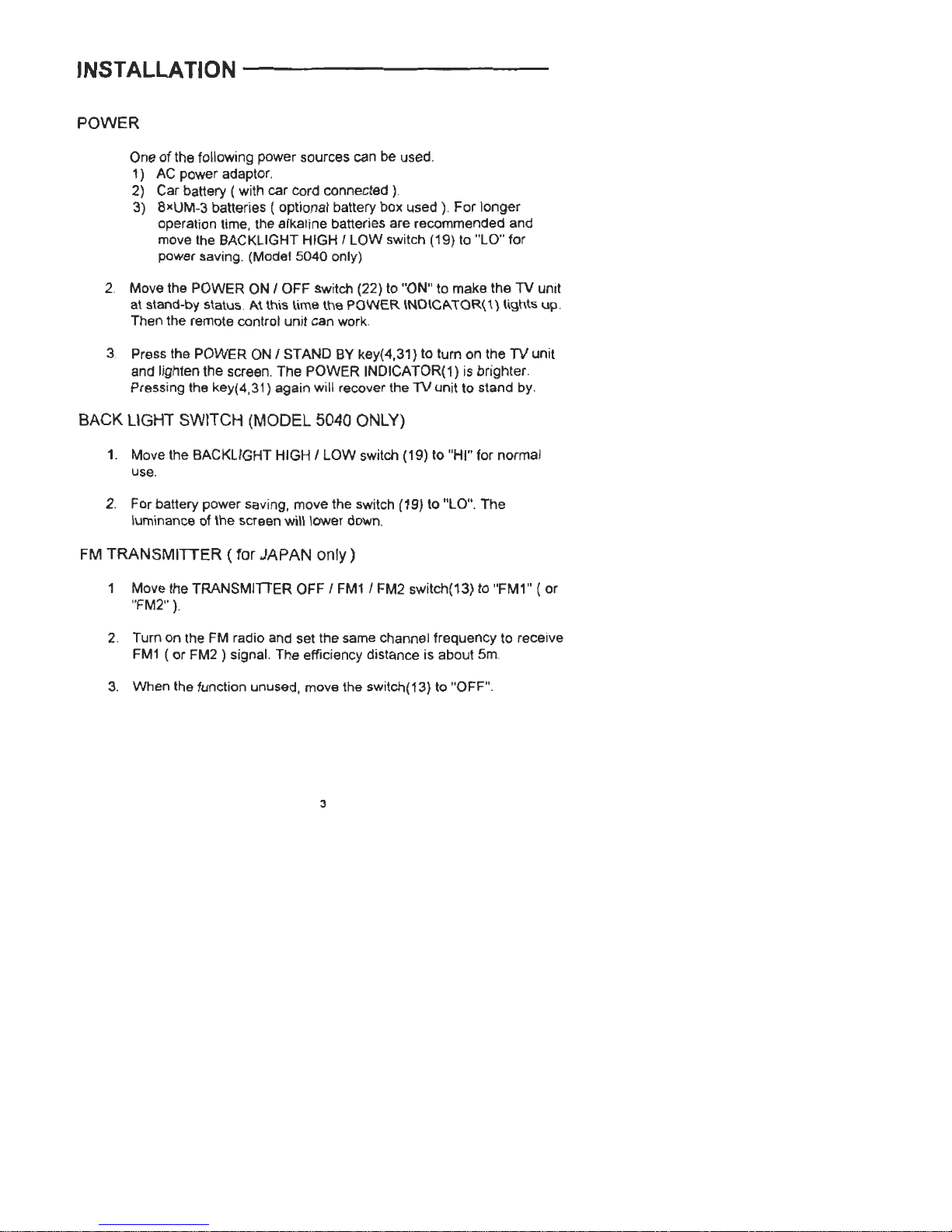

INSTALLATION

POWER

One of the following power sources can be used.

1) AC power adaptor.

2) Car battery ( with car cord connected ).

3) 8xUM-3 batteries ( optional battery box used ). For longer

operation time. the alkaline batteries are recommended and

move the BACKLIGHT HIGH I LOW switch (19) to "LO'. for

power saving. (Model 5040 only)

2 Move the POWER ON I OFF switch (22) to "ON" to make the TV unit

at stand-by status. At this time the POWER \NOIC~ \OR( '\) lights up

Then the remote control unit can work

3 Press the POWER ON I STAND BY key(4,31 } to turn on the TV unit

and lighten the screen. The POWER INDICATOR(1) is brighter.

Pressing the key(4,31 ) again will recover the TV unit to stand by.

BACK LIGHT SWITCH (MODEL 5040 ONL Y)

Move the BACKLIGHT HIGH I LOW switch (19) to "HI" for normal

use.

2. For battery power saving, move the switch (19) to "LO". The

luminance of the screen will lower down.

FM TRANSMITTER ( for JAPAN only

Move the TRANSMITTER OFF I FM11 FM2 switch(13) to "FM1" ( or

"FM2" ).

Turn on the FM radio and set the same channel frequency to receive

FM1 ( or FM2 ) signal. The efficiency distance is about 5m

When the function unused, move the switch(13) to "OFF".

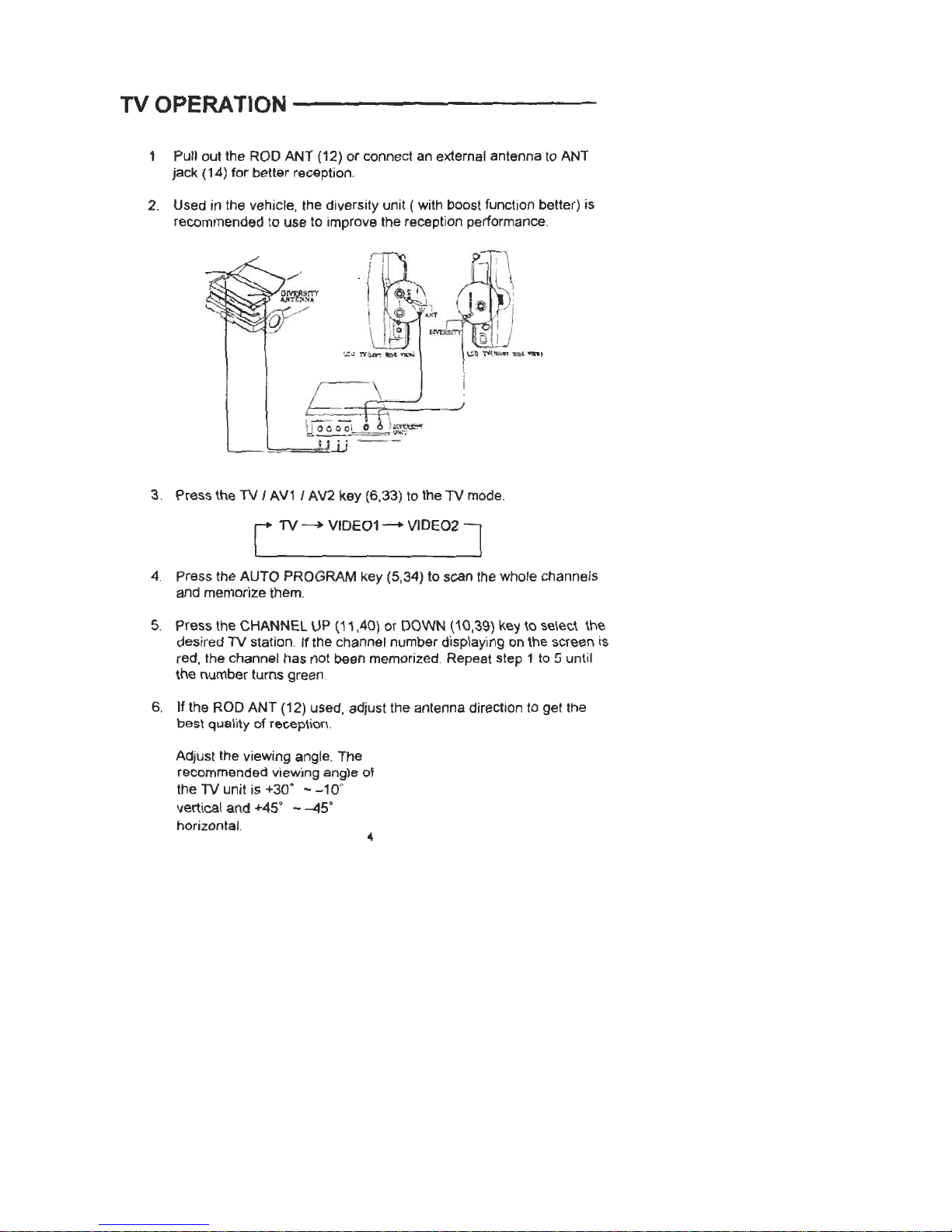

TV OPERA TION

1Pullout the ROD ANT (12) or connect an external antenna to ANT

jack (14) for better reception.

2. Used in the vehicle, the diversity unit ( with boost function better) is

recommended to use to improve the reception performance.

3 Press the 1V I AV1 I AV2 key (6,33) to the 1V mode.

C VIDEO1- VID:J

4 Press the AUTO PROGRAM key (5,34} to scan the whole channels

and memorize them.

5. Press the CHANNEL UP (11,40) or DOWN (10,39) key \0 se\ec.\ \he

desired 1V station. If the channel number displaying on the screen is

red, the channel has not been memorized Repeat step 1 to 5 until

the number turns green

6. If the ROD ANT {12) used, adjust the antenna direction to get the

best quality of reception

Adjust the viewing angle. The

recommended viewing angle of

the 1V unit is +30° --10"'

vertical and +45° --45°

horizontal 4

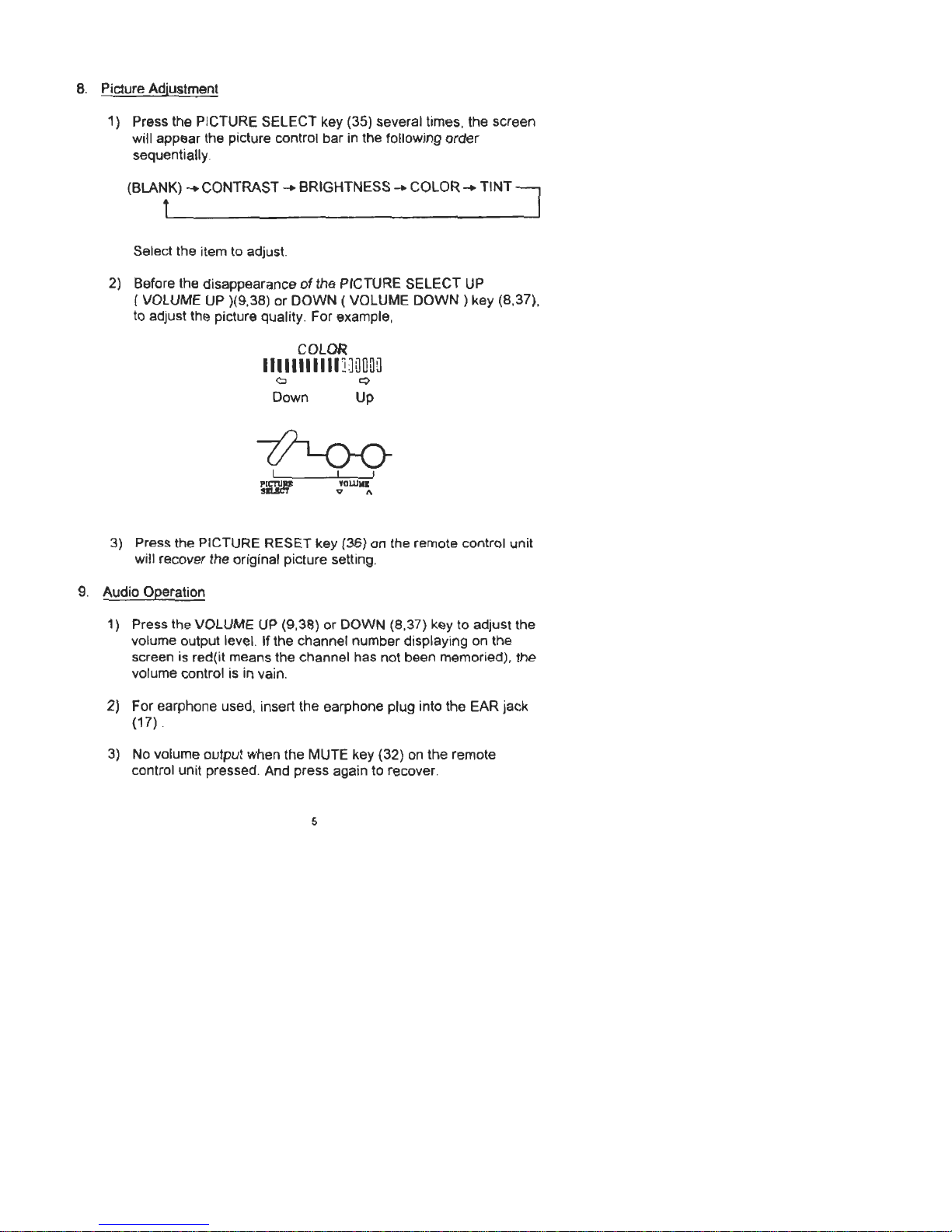

8. Picture Adjustment

1) Press the PICTURE SELECT key (35) several times, the screen

will appear the picture control bar in the following order

sequentially

Select the item to adjust.

2) Before the disappearance of the PICTURE SELECT UP

( VOLUME UP )(9,38) or DOWN ( VOLUME DOWN) key (8,37),

to adjust the picture quality. For example,

COLOR

IIIIIIIIIIIJ:JOOnO

<::0 Q

Down Up

3) Press the PICTURE RESET key (36) on the remote control unit

will recover the original picture setting.

9Audio Operation

1) Press the VOLUME UP (9,38) or DOWN (8,37) key to adjust the

volume output level. If the channel number displaying on the

screen is red(it means the channel has not been memoried), the

volume control is in vain.

2) For earphone used, inser1 the earphone plug into the EAR jack

(17) .

3) No volume output when the MUTE key (32) on the remote

control unit pressed. And press again to recover

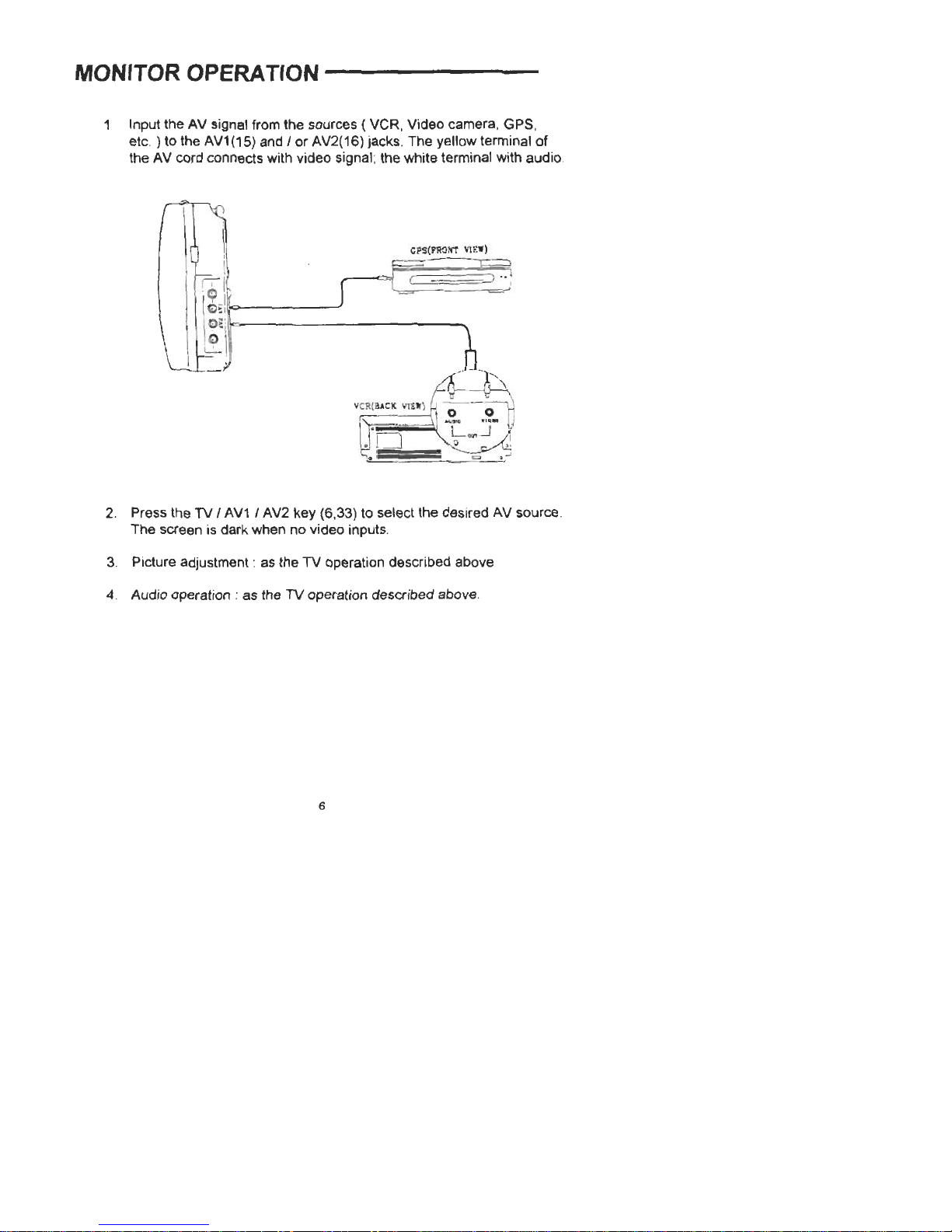

MONrTOR OPERA TrON

Input the AV signal from the sources ( VCR, Video camera, GPS,

etc. ) to the AV1(15) and lor AV2(16) jacks. The yellow terminal of

the AV cord connects with video signal; the white terminal with audio

2. Press the TV I AV1 I AV2 key (6,33) to select the desired AV source

The screen is dark when no video inputs.

3. Picture adjustment. as the TV operation described above

Audio operation. as the TV operation described above.

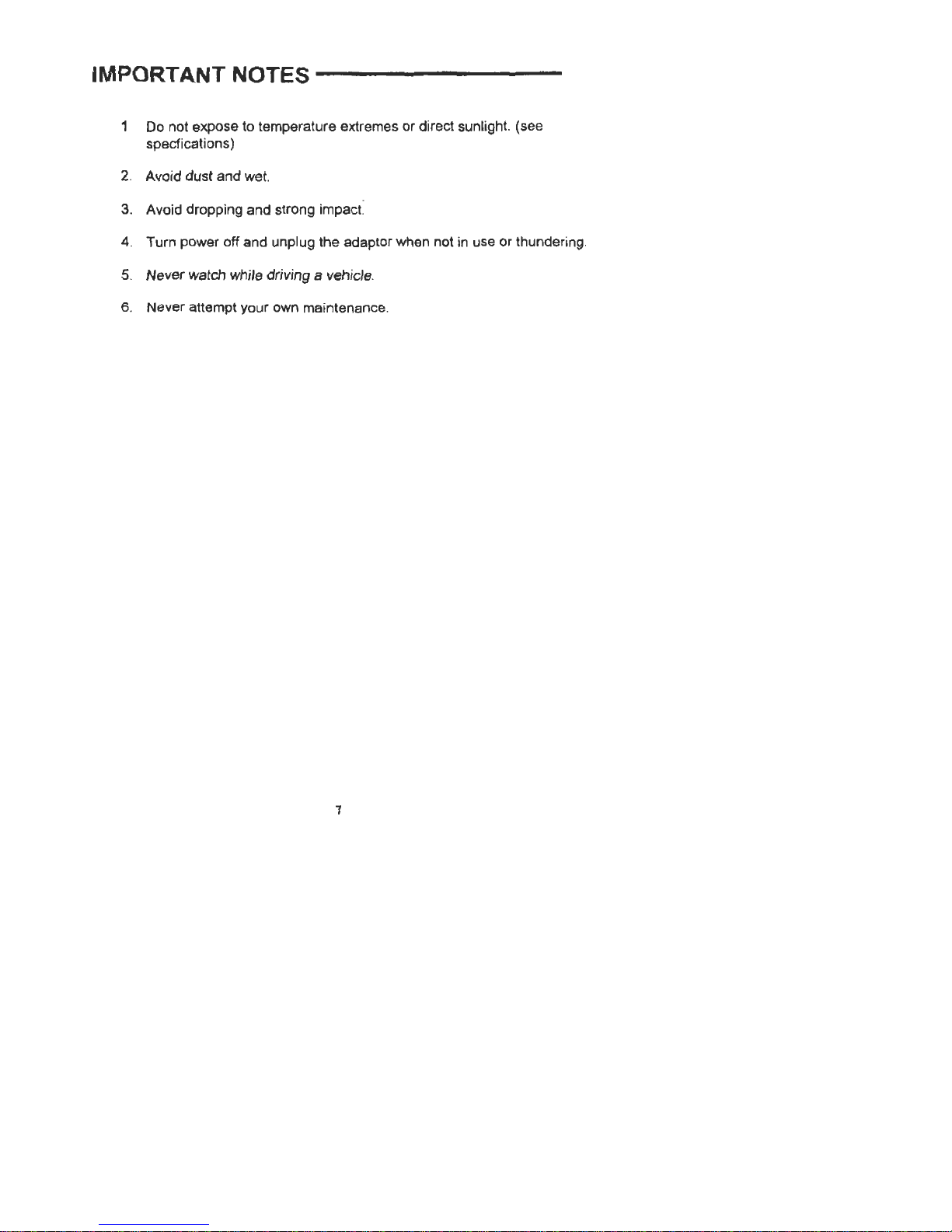

IMPORTANT NOTES

1Do not expose to temperature extremes or direct sunlight. (see

specfications)

2. Avoid dust and wet.

3. Avoid dropping and strong impact.

4Turn power off and unplug the adaptor when not in use or thundering

5. Never watch while driving a vehicle.

6. Never attempt your own maintenance.

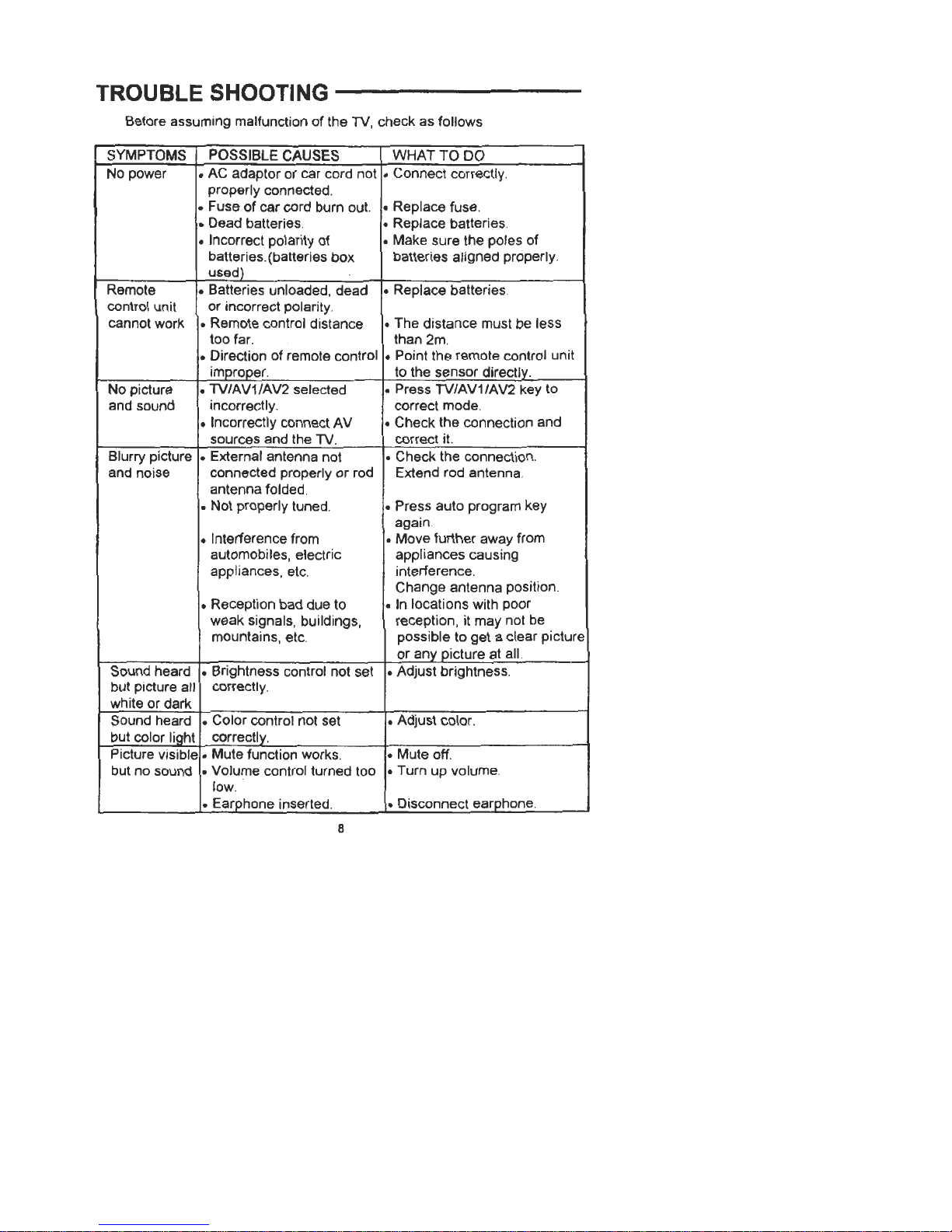

TROUBLE SHOOTING

Before assuming malfunction of the TV, check as follows

I SYMPTOMS I POSSIBLE CAUSeS WHAT TO DO

No power .Connect correctly

.AC adaptor or car cord noli

properly connected.

.Fuse of car cord burn out.

.Dead batteries

.Incorrect polarity of

batteries.(batteries box

used)

.Replace fuse.

.Replace batteries

.Make sure the poles of

batteries aligned properly

Remote

control unit

cannot work

.Replace batteries

.Batteries unloaded. dead

or incorrect polarity

Remote control distance

too far

Direction of remote control

improper.

.The distance must be less

than 2m

.Point the remote control unit

to the sensor djrectly,

No picture

and sound .TV/AV1/AV2 selected

incorrectly.

.Incorrectly connect AV

sources and the TV .

.Press TV/AV1/AV2 key to

correct mode

.Check the connection and

correct it.

Blurry picture

and noise .Check the connection.

Extend rod antenna.

.External antenna not

connected properly or rod

antenna folded

.Not properly tuned

Interference from

automobiles, electric

appliances, etc.

.Press auto program key

again

.Move funher away from

appliances causing

interference.

Change antenna position

.In locations with poor

reception, it may not be

possible to get a clear picture

or any picture at el!; -

.Adjust brightness

Reception bad due to

weak signals, buildings,

mountains, etc

Sound heard Ibut picture all

white or dark

.Brightness control nOTset

correctly

Sound heard

but colorjiQht .Color control not set

correctly. .Adjust color

Picture visible

but no sound .Mute off.

.Turn up volume

.Mute function works

.Volume control turned too

low.

.Earphp!)e inserted Disc~~ect earphon~

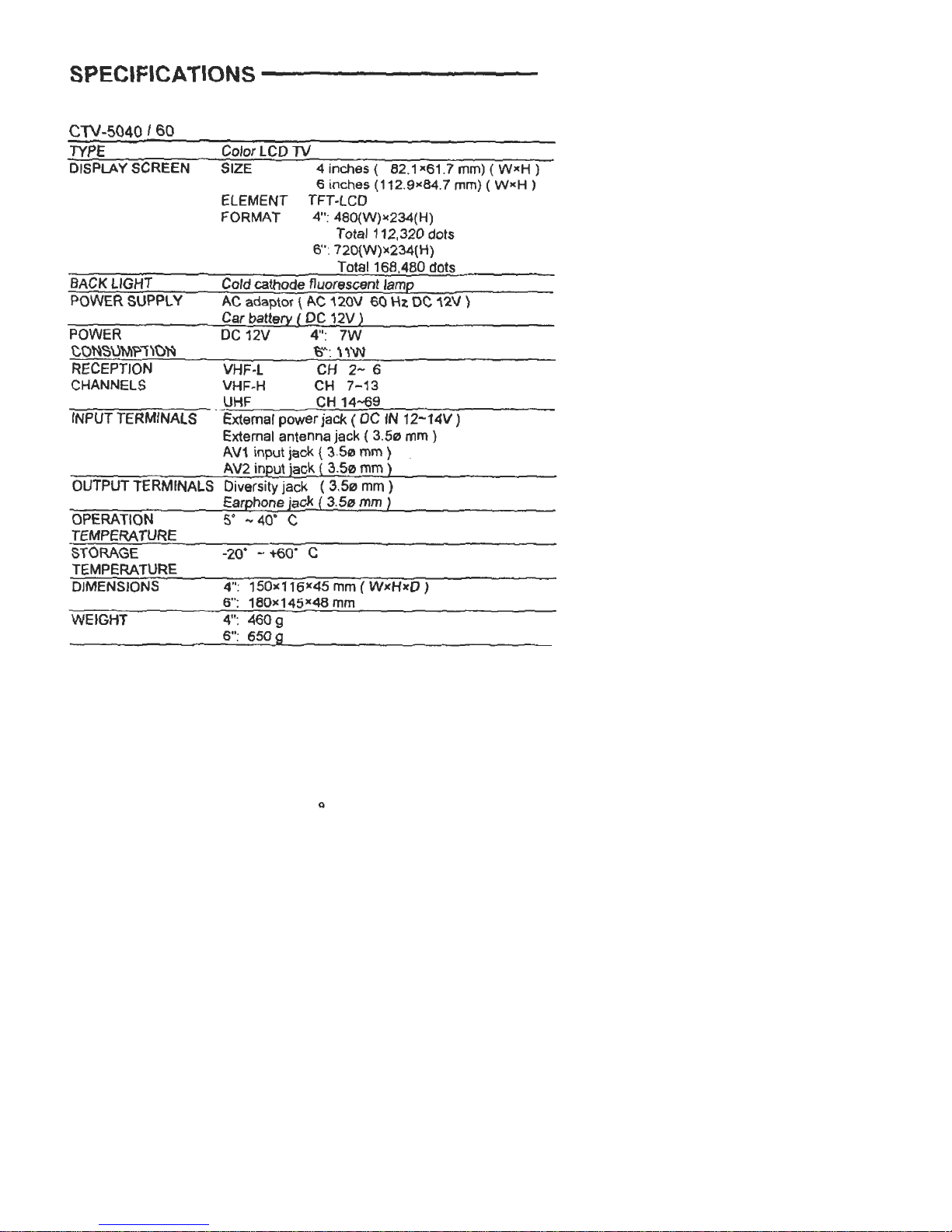

SPECIFICA TIONS

C1V-5()40 I 60

TYPE Color lCD TV

DISPLAY SCREEN SIZE 4 inches ( 82.1 x61.7 mm) ( WxH )

6 inches (112.9"84.7 mm) ( WxH )

ElEMENT TFT -lCD

FORMAT 4...480(W)"234(H)

Tota1112,320 dots

0'.: 720{W»)(234{H)

Tota116B.480 dots

---

!iA~K LIGHT Cold catho~e fluorescent lamp

POWER SUPPL y AC adaptof ( AC 120V 61j Hz D~ '\2V )

Car battery( 12C 12V )

POWER DC 12V 4": 7W

~0~~\jM?1'C~ t)"': , ,w

RECEPTION VHF.l CH 2- 6

CHANNELS VHF~H CH 7-13

UHF CH 14-69

INPUT TERMINAlS Extemar power jack ( DC fN 12-14V )

External antenna jack ( 3.50 mm )

AV1 input jack { 3.50 mm )

-f'.V2}np~t i~c~ ( 3.50 mm )-

OUTPUT TERMINALS Diversity jack ( 3,50 mm )

---Earph°!:!~ j~~( 3,50 mm )-

OPERATION 5. .,.40° C

TEMPERAruRE ~.

STORAGE -20. -+60. c

TEMPERATURE

DIMENsiONS -4":150)(116;-45 mm(WxH~D )

~ ~- 6": 180)(145)(48 ~

WEIGHT 4": 460 9

6": 650 Q- -
