Owner’s Manual

Revision C

3/2001

Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a

television viewer or screen that is located in the motor vehicle at any point forward of the back of the

driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. In the

interest of safety, the LCM0681TV should never be installed where it will be visible, directly or indirectly,

by the operator of the motor vehicle.

Please note that the state of Rhode Island forbids the installation of such a device in a motor vehicle.

Television Reception

This entertainment system is designed primarily for viewing pre-recorded movies or playing video

games. Television reception in a moving vehicle will be limited and in some areas will not be possible

due to weak and variable signal strength. Television viewing in a stationary vehicle will result in an

improvement, but may still be marginal due to strength. The quality of the picture will not be consistent

with home TV reception. Reception may be affected by the weather and distance from the TV station. A

weak signal may cause the picture to roll, be snowy, or cause some color loss.

Congratulations on your purchase of the Flexvision LCM0681TV drop down TV/Video monitor. The

LCM0681TV has been designed to give you and your family many years of video entertainment in the

mobile environment. Please read the directions that follow to familiarize yourself with the product and to

ensure that you obtain the best results from your equipment. Please note: Installation options vary, see

the individual owner’s manuals for each component in your system to obtain a full understanding of

each component’s operation.

Safety Precaution

For safety reasons, when changing video tapes it is recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat belts to change tapes or make adjustments to the system.

System adjustments can be accomplished using the remote control unit, while seat belts remain

fastened. Enjoy your Flexvision entertainment system but remember- safety of all passengers remains

the number one priority.

Revision C

3/2001

FEATURES

•6.8” TFT (Thin Film Transfer) Active Matrix LCD (Liquid Crystal Display) Monitor

•OSD (On Screen Display) for control of Picture Quality and Functions

•Full Function Remote Control

•Television Tuner

•Plug in RF Transmitter for wireless RF Headphones

•Remote Sensor eye

•Four Audio / Video Sources

•Headphone / Speaker Amplifier

•Two Headphone Jacks for Wired Headphones

•Built-In Dome lights

•Back-lit Controls for Low Light Operation

Revision C

3/2001

FRONT PANEL FEATURE

Figure 1

Revision C

3/2001

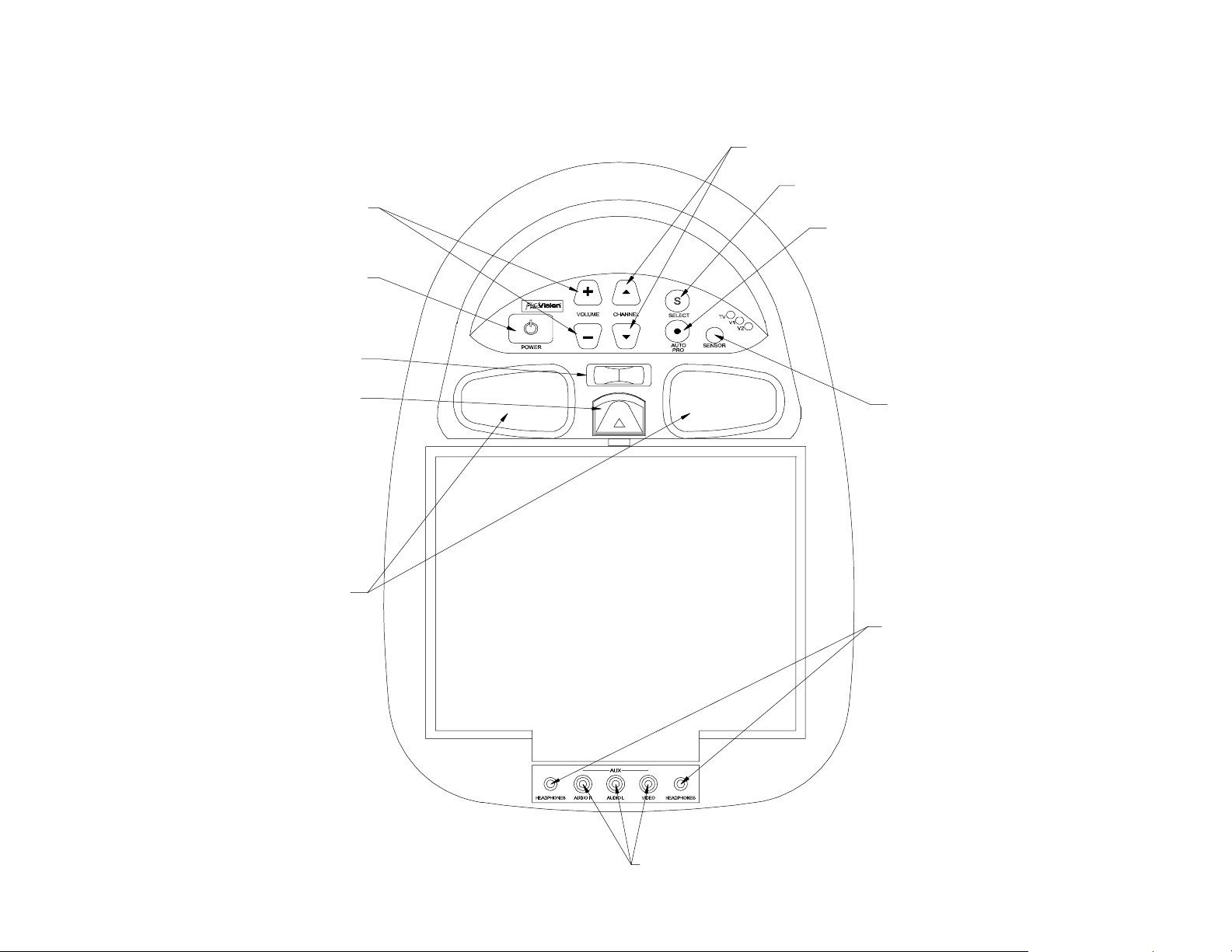

FRONT PANEL FEATURES – See Figure 1

1. Power Button- (Bright red when system is ON, dim when system is OFF)

2. Channel Up/Down- Changes the TV channel

3. Volume Up/Down- Controls volume to headphone jacks and external speakers if connected.

4. Auto Pro Switch- Auto Program used to program local channels into TV memory. Press when

vehicle is in a new location.

5. Source Select- Used to select one of the three A/V sources. The fourth source is plugged into the

RCA jacks on the rear of the unit. V2 must be selected once something is plugged into the external

jacks it over rides the previous source on V2.

6. Sensor Eye- Allows the remote control to operate the LCM0681TV’s OSD system (On Screen

Display), volume to wired headphone jacks (and optional external speakers), and for control of Video

Cassette Player and other accessories.

7. Three Position Dome Light-

•Auto- Will automatically switch on the dome lights in conjunction with the vehicle’s interior

illumination. For the automatic position, shift the switch to the right.

•OFF- The dome lights will be off in the middle position.

•ON- The switch must be in the left position for the dome lights to turn on.

Revision C

3/2001

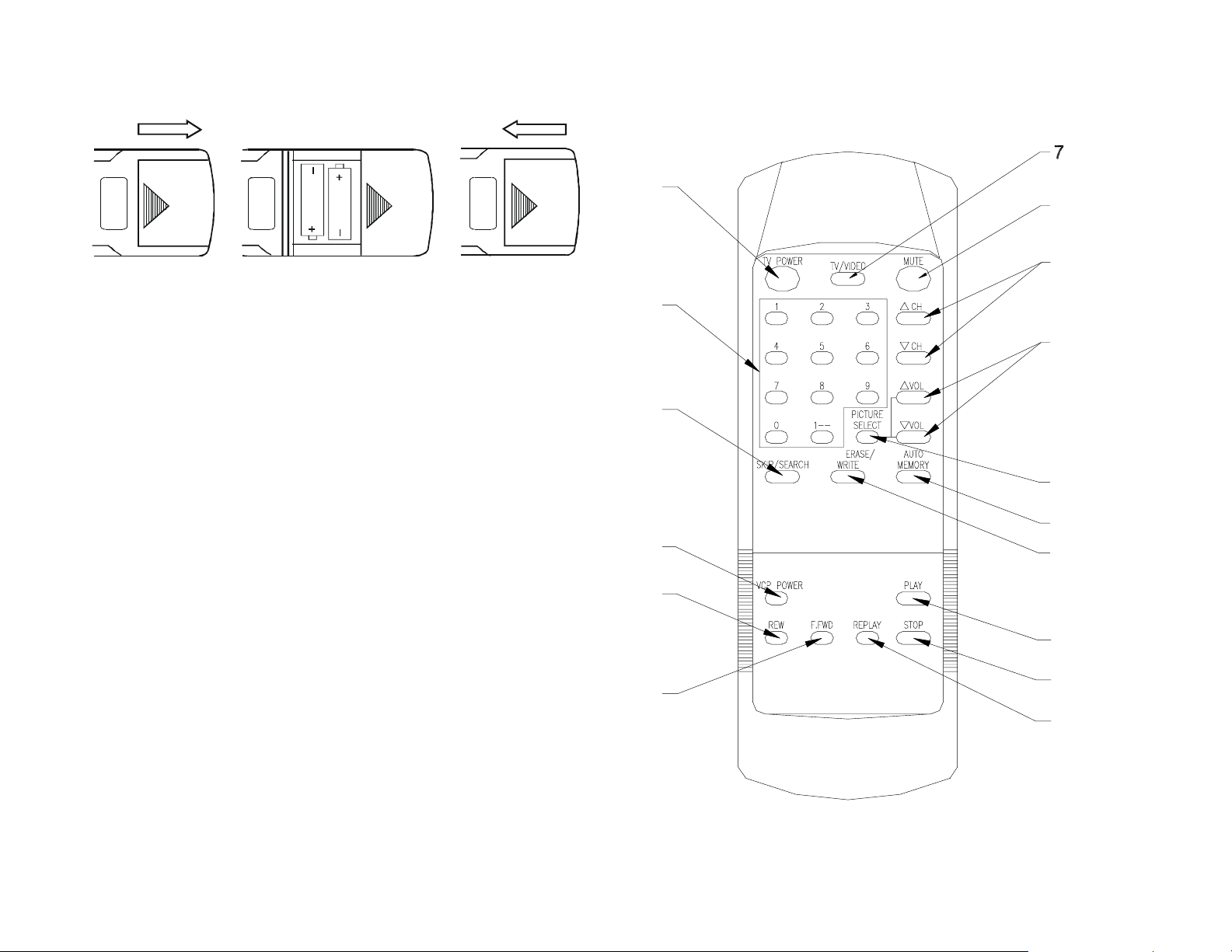

REMOTE CONTROL OPERATION

BATTERY INSTALLATION

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the remote control face down. Press down

on the ridged area of the battery cover, and slide

it off.

2) Install two “AAA” batteries as shown. Make sure

that proper polarity (+ or -) is observed.

3) Slide the cover back until it clicks into position.

The remote control will operate the LCM0681TV,

Flexvision Televisions and Video Cassette Players.

It is not a universal remote control and will not

control equipment from other manufacturers.

If a universal remote control is used with the

LCM0681TV, choose the remote control encoding

scheme for Action Televisions when programming

the remote.

Revision C

3/2001

Remote Controlled TV Functions

1. POWER ON/OFF

Press this button to turn the LCM0681TV on. The channel number or current video source will be

displayed on screen, and the picture will appear in a few seconds. Press the button again to turn the

LCM0681TV off.

2. DIRECT ACCESS (0-9) BUTTONS

Use these buttons to make a direct channel selection. The channel number chosen will be displayed

on the screen for about 4 seconds. The direct access is carried out with 0-9 keys (0-99CH). The

“1__” key will not function as it is only used for cable channels above 99.

3. CHANNEL UP/DOWN BUTTONS

Use these buttons to advance to the next higher or lower channel. See also: SKIP/SEARCH

BUTTON.

4. VOLUME UP/DOWN BUTTONS

Use these buttons to raise or lower the volume level of the headphone jacks or external speaker if

installed. They are also used to make adjustments

In picture select mode.

Note: These buttons will not affect the volume of wireless headphones or a wired RF modulator.

When using these devices the volume must be adjusted with the headphone volume control or with

your radio’s volume control. (See page 11,

Headphones, or page 12, Wired FM Modulator).

5. PICTURE SELECT BUTTON

Each time this button is pressed, the screen picture adjustment display cycles through “adjustment

bars” for CONTRAST, BRIGHTNESS, COLOR, and TINT. Once the desired adjustment bar is

displayed, use the VOLUME UP/DOWN buttons to adjust the setting. The display will automatically

turn off if no adjustments are made within 6seconds, or if any other button is depressed.

Revision C

3/2001

6. MUTE BUTTON

Press this button to shut off the sound at the headphone stations. The screen will display the

volume adjustment bar for 6 seconds, indicating that the sound has been turned off. Pressing the

button again restores sound to the previously set level. The mute feature may also be released by

pressing the VOLUME UP/DOWN buttons.

7. TV / VIDEO BUTTON

Any video equipment connected to the AUDIO/VIDEO inputs can be used with the TV by

pressing this button. Each time the button is pressed, the Audio/Video source will change in the

following sequence VIDEO1, VIDEO2, and TV.

8. AUTO MEMORY BUTTON

When the AUTO MEMORY BUTTON is depressed, all channels in TV mode are searched and

tuned; all channels with video signals detected are automatically stored. Please refer to page 2 for

more information on TV reception.

9. SKIP/SEARCH BUTTON

This button selects between SKIP and SEARCH mode. In “SKIP mode” the TV only stops on

channels that are programmed into memory when the CHANNEL UP/DOWN buttons are used.

When the SKIP is turned off, the TV will only stop on all active channels.

10. ERASE/WRITE BUTTON

When tuned to a channel press this button to store or erase the channel from memory. The stored

channel numbers are displayed in “GREEN” on the screen, and the non-stored channels are in

“RED”. When skip mode is on, the LCM0681TV will tune to only the stored channels when using the

CHANNEL UP/DOWN buttons.

REMOTE CONTROLLED VCP FUNCTIONS

These features can only be used with an Audiovox Video Cassette Player, if this option was installed

with your video package.

Revision C

3/2001

11. POWER BUTTON

This button is used to turn the VCP on and off.

12. “REW” REWIND BUTTON

If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while

the tape is playing, the VCP will go into rewind search mode. For more information consult the

Audiovox VCP owner’s manual.

13. PLAY BUTTON

Press this button to activate play mode while a tape is loaded into the VCP. This button may also be

used to disengage search and pause modes. For more information, consult the VCP owner’s manual.

14. “FFWD” FAST FORWARD BUTTON

If this button is pushed while the tape is stopped, tape will fast forward. If this button is pressed

while the tape is playing, the VCP will go into fast forward search mode. For more information on the

search feature of the VCP, consult the VCP owner’s manual.

15. REPLAY BUTTON

Pressing this button will rewind the tape and immediately begin playback when the tape is fully

rewound.

16. STOP BUTTON

Press this button to stop the tape.

CHANNEL TUNING SETUP

In order to easily access all available channels, it may be necessary to perform channel auto-

programming whenever the vehicle’s geographic location has changed, i.e. city to city, weak signal area.

1. Press the AUTO MEMORY button on the remote control unit or the AUTO PROGRAM button on the

flip down video unit. You will see the TV cycle through all it’s channels. The built-in microprocessor

will automatically note each channel that is actively broadcasting in your area.

2. (A) To tune only strong clear channels with the CHANNEL UP/DOWN buttons, press the

SKIP/SEARCH button on the Remote Control Unit until “SKIP MODE ON” is displayed on the bottom

of the screen. The TV will now tune only to strong active channels when the UP or DOWN buttons

are used on the monitor or the remote control.

Revision C

3/2001

(B) To tune to weak or marginal channels with the CHANNEL UP/DOWN buttons, press the

SKIP/SEARCH button on the Remote Control Unit until “SKIP MODE OFF” is displayed on the

bottom of the screen. Tune to the desired channel using the CHANNEL UP/DOWN buttons or go

directly to the channel by using the 0-9 buttons on the Remote Control.

3. To ERASE a channel, press the ERASE/WRITE button on the Remote Control Unit until “MANUAL

MEMORY XX ERASE” is displayed on screen. To STORE a channel, press the button until the

MANUAL MEMORY XX ADD is displayed on screen.

Note: Please refer to page 2 for more information on TV reception.

TURNING THE LCM0681TV ON OR OFF

1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly.

(Pivot the screen downward until a comfortable viewing angle is reached). After the unit has been

turned on and displaying a picture, adjustment to the viewing angle can be made by pivoting the

screen to optimize the picture quality. The internal friction detent will hold the screen in position while

the system is in use.

2. Pressing the power button on the pod or remote will alternately turn the system on or off. When in

use the internal back lighting will illuminate the controls.

3. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
