Audiovox Mobile Video HR7010PKG Manuel utilisateur
OPERATION
MANUAL
128-8770
HR7010PKG
Two Custom Vehicle Headrests
with 7” LCD Monitors Touch Screen Control
and Built-in
DVD Player for Rear Entertainment
AUX AUX
IMPORTANT
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is
in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to be operator of the
motor vehicle.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to be operator of the
motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274 , 6,899,365 and 6,678,892
I
1
HR7010PKG
The HR7010PKG contains two vehicle specific head-rests. Each has a 7” Monitor with touch screen control and built-in DVD Player. This
system allows the users to either watch individual DVD’s or watch the same DVD on both monitors. Both users can also share each others
program. The full function remote control can operate either unit by selecting M1 or M2 on the remote. This system is also FLO Ready and
can be enhanced with the addition of a FLO TV kit (AUDIOVOX model AVXFRK1 / ADVENT model ADVFRK1.)
Quick Start Guide
1. Turn on the M1 monitor, to gain access to the DVD slot push at the top center of the screen frame, the screen will tilt forward.
2. Insert a DVD, CD or MP3 disc into the slot, disc label toward driver. Push down gently on the disc until the player pulls the disc in.
3. Use the touch screen to access the DVD mode.
4. Tilt the monitor to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing
position).
5. Each wireless headphone has a CH A/CH B switch. Turn the volume down to its lowest setting before putting them on your head.
When sitting in front of the M1 screen, use the CH A switch setting. When sitting in front of the M2 screen, use the CH B switch setting.
Set the headphone to the proper channel and press the Power On/Off switch. The power indicator will light up red.
6. When the DVD menu appears, select the menu item using the cursor keys and touch the OK or play button.
7. If audio playback through the vehicle radio is preferred, use the FM transmitter On/Off button on the remote control. Set the vehicle
radio to the channel selected on the M1 monitor. If interference with a local radio station occurs, set the FM modulator to one of the
other 15 radio frequencies using the CHANNEL SELECT button on the remote control.
8. Turn on the M2 Monitor using the power button on the front of the screen or remote control.
9. Tilt the screen to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing
position).
10. Touch the screen and touch on M1 or use remote control to press SOURCE button to view program from M1 or select from the other
available sources DVD, MEMORY CARD, USB, FLO TV, AUX and MEDIA for M2 Monitor.
NOTE: To operate the M1 screen, press M1 on the remote control.
To operate the M2 screen, press M2 on the remote control.
2
HR7010PKG SYSTEM OVERVIEW
1) The HR7010PKG SYSTEM is a versatile headrest system. The headrests are referred to as M1 and M2 in this manual.
2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD player that allows the user to select from several sources (DVD,
SD, USB, M2, *FLO TV (AV), AUX, MEDIA and GAME Source). The M1 monitor has a built-in infrared audio transmitter channel (CH A) for use with the
two-channel wireless headphones (CH A)
NOTE: When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for operation.
3) The M2 monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD player that allows the user to select from several sources (DVD,
SD, USB, M1, *FLO TV (AV), AUX and MEDIA Source). The M2 monitor has a built-in infrared audio transmitter channel (CH B) for use with the two-
channel wireless headphones (CH B).
NOTE: When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 4 operation.
4) The monitors will display all of the functions with the comprehensive Graphical User Interface (GUI) and can be accessed using the touch screen.
5) The two-channel wireless headphone sets have an A-B switch that allow the users to select the audio from either the M1 (CH A) or the
M2 (CH B).
6) When using the IR remote control, the M1 Monitor will only respond to the remote control unit when the Monitor Select (M1) button on remote control is
pressed. The M2 Monitor only respond to the Remote Control unit when the Monitor Select (M2) button on remote control is pressed.
7) Optional wired headphones allow the user to listen to audio from the system.
8) The M1 and M2 Monitor will accept an audio / video input through the 1/8” jack located on the front of the unit. The audio / video device could be a video
game system, video camera or other input device.
4
AUX
WIRED HEADPHONE
USB
AUX

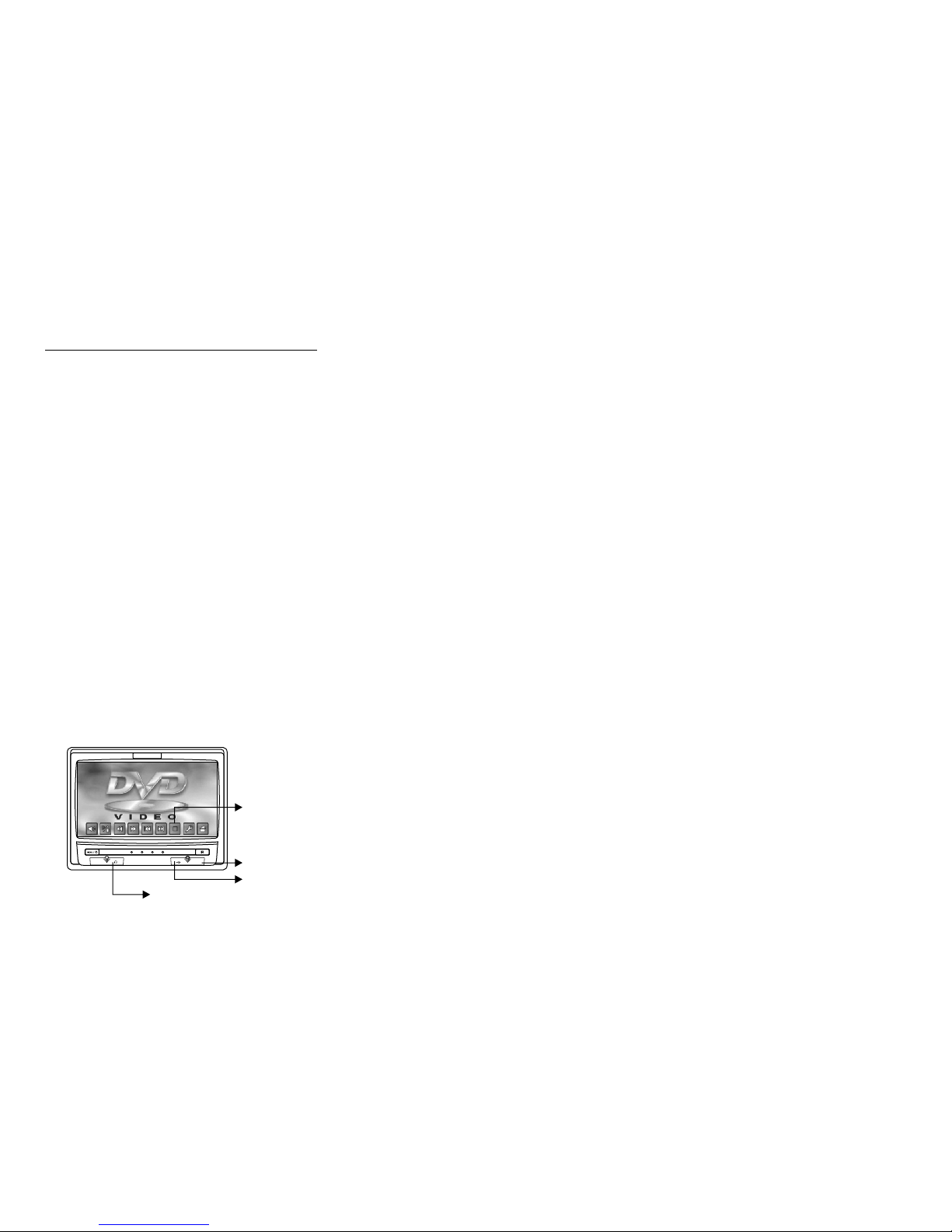

TOUCH SCREEN GRAPHICAL USER INTERFACE (GUI)
NOTE: FLO TV is an option that can be added to your HR7010PKG
system. If FLO TV is installed the Touch Screen will display
the FLO TV icon. If FLO TV is not installed, there is an optional
AV Input available and the Touch Screen will display an AV icon.
3

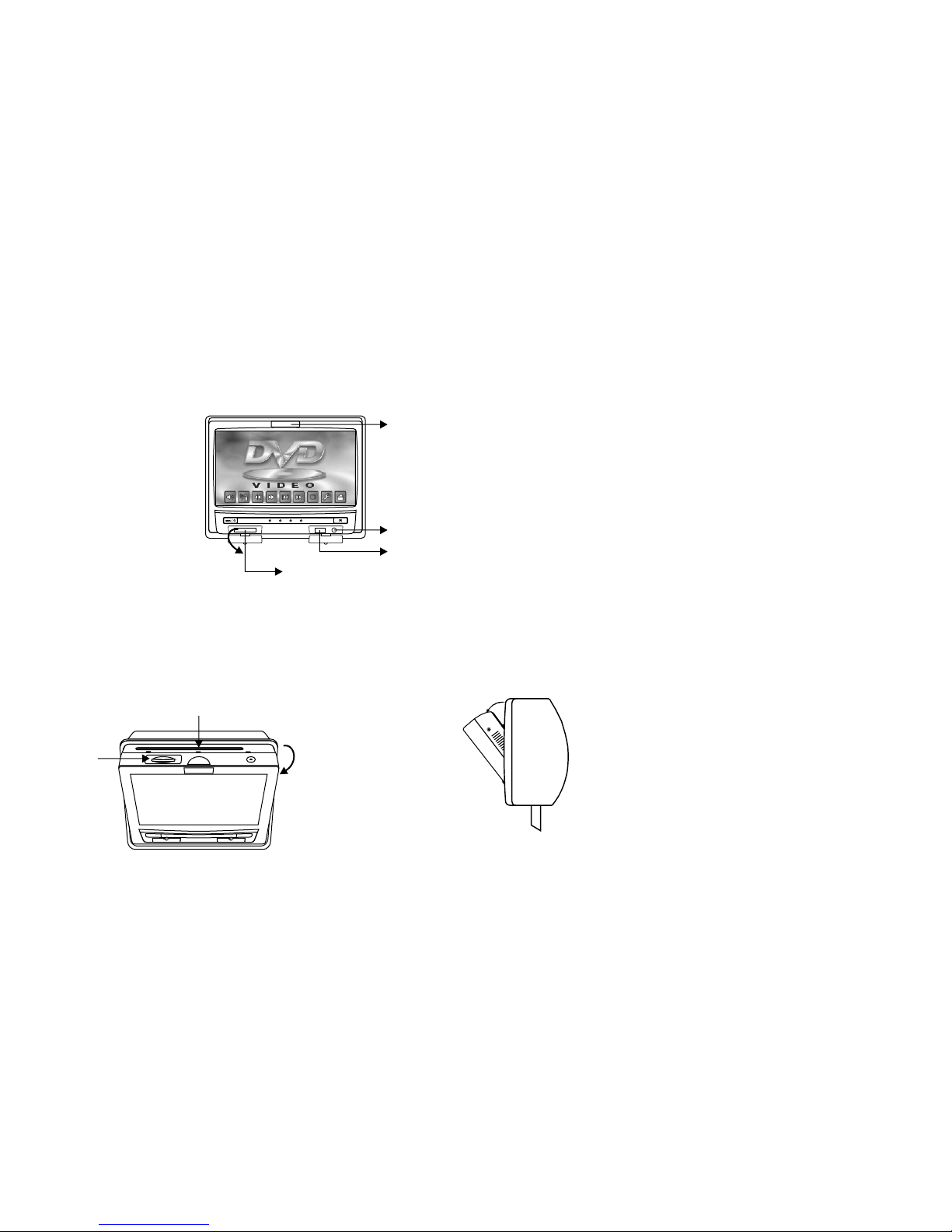

9) Press and release the screen at the top of the screen to release the screen for disc insertion. Pressing it again will lock the screen back in the closed
position. The headrest itself can be tilted forward to help achieve a comfortable viewing position.
PULL UP
AUX
USB JACK
WIRED HEADPHONE
PUSH IN
10) Insert/Eject disc and SD Card
Insert/Eject Disc
Insert/Eject
SD Card 19 Degrees
19 degrees
4
HR7010PKG Touch Screen
The touch screen of the unit allows the user to start DVD play by touching PLAY MOVIE or any of the DVD menu features on the LCD screen.
Some DVD’s will not allow this function. One method is to use the remote control instead of the touch screen. The other method is to touch any of
four corners of the screen to pop up the DVD menu navigation screen (below)
Use the up/down/left/right icons to select an item from the DVD menu. Use the Enter / to start DVD play.
1
32
AUX
4
5678

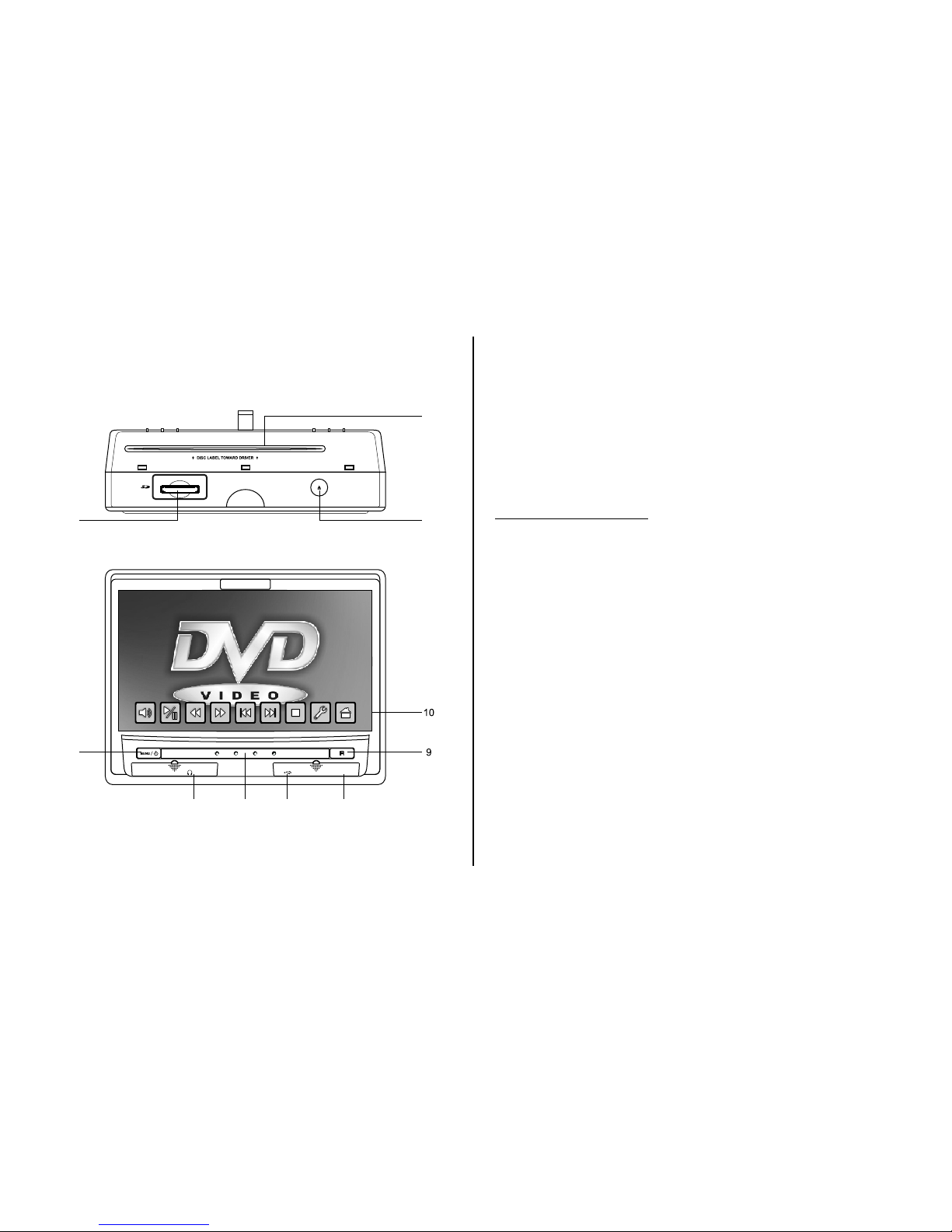

M1/M2 Panel Control
1. DVD disc insertion slot.
2. EJECT Button -Press this button to eject the disc.
3. SD Card Reader
4. MENU/POWER Button with Power Indicator LED.
5. Wired Headphone Jack
6. IR Transmitter LEDS.
7. USB Port
8. AUX Jack
9. IR Sensor
10. Graphical User Interface (GUI) Touch Screen
CONTROLS AND INDICATORS DIAGRAM
Control Function Description for M1 and M2 Monitor
5
6

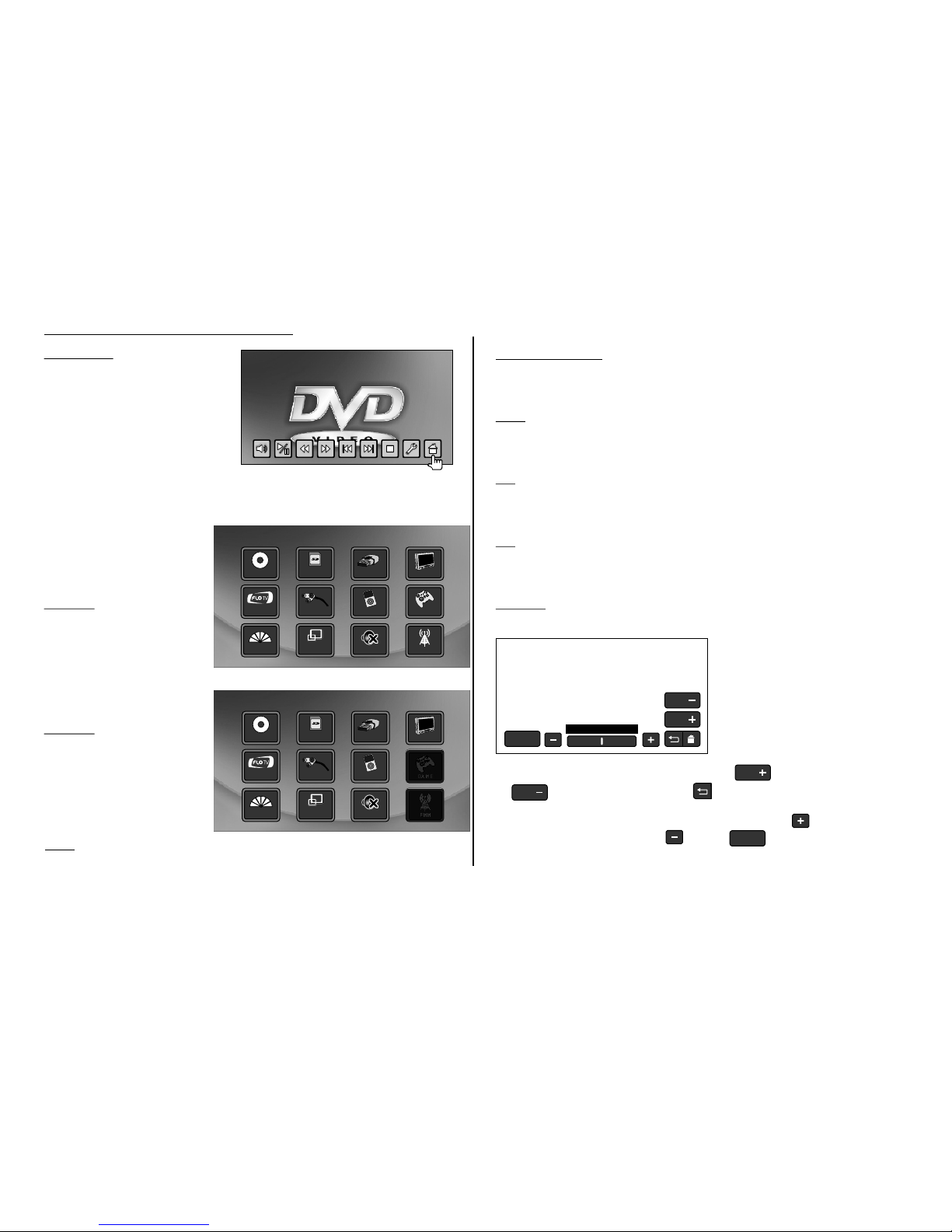

Touch Screen For HR7010PKG
Main Page
Turn on the unit by
pressing the Menu / Power
button located on the lower
left of the unit.
I) Touch the panel then
touch the Home icon to
display the Main Menu. The
Main Menu can also be
accessed by pressing the
Menu / Power button on the
unit’s front panel.
ii) The Main Menu screens
for M1 and M2 contains
the following icons:
M1 Unit
DVD, MEMORY CARD,
USB, M2, FLO TV, AUX,
MEDIA, GAME, PIX,
SCREEN OFF, MUTE,
FMM.
M2 Unit
DVD, MEMORY CARD,
USB, M2, FLO TV, AUX,
MEDIA, PIX,
SCREEN OFF, MUTE
Main Menu
M1
MEMORY CARD
Insert Memory Card / SD Card into SD CARD slot. Touch the Main
Menu MEMORY CARD icon to set unit’s source to SD.
USB
Insert the USB to the USB Slot. Touch the Main Menu USB icon to
set the unit’s source to USB.
M2
Touch the Main Menu M2 icon on the M1 unit to link the M1 unit to
the M2 unit. The M1 unit will now receive its AV from M2.
M1
Touch the Main Menu M1 icon on the M2 unit to link the M2 unit to
the M1 unit. The M2 unit will now receive its AV from M1.
FLO TV
Touch the Main Menu FLO TV icon to access the FLO TV mode.
Select a FLO TV channel by touching (increase)
or (decrease), then touch (enter) to exit.
To increase the wired headphone volume press and to
decrease the volume press . Press turn off the audio
output.
DVD
Touch the Main Menu DVD icon to set the source to DVD. Then
insert the DVD into slot with label face toward driver. Gently push
down on the disc and the disc will load automatically.
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
MEMORY
CARD USB M1
DVD
Main Menu
PIX
FLO TV
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
MEMORY
CARD USB M2
DVD
Main Menu
PIX
FLO TV
M2
VOLUME 16
CH
CH
MUTE
CH
CH
MUTE
AUX
Touch the Main Menu AUX icon to route external audio and video
supplied to the unit via the cable adapter.
MEDIA
Touch the Main Menu MEDIA icon to select the MEDIA display.
GAME
Touch the Main Menu GAME icon on (for M1 only). The GAME
selection is controlled by wireless game controller.
PIX
Touch the Main Menu PIX icon to gain access to the display’s
picture controls. The controls available are BRIGHTNESS,
CONTRAST, COLOR, TINT and RESET.
Adjustment of each control is made by touching (increase) or
(decrease), then touch (enter) to exit.
The game source can only be selected from the M1 monitor.
When playing two-player games, select the GAME source on the
M1 monitor and select the M1 source on the M2 monitor.
7

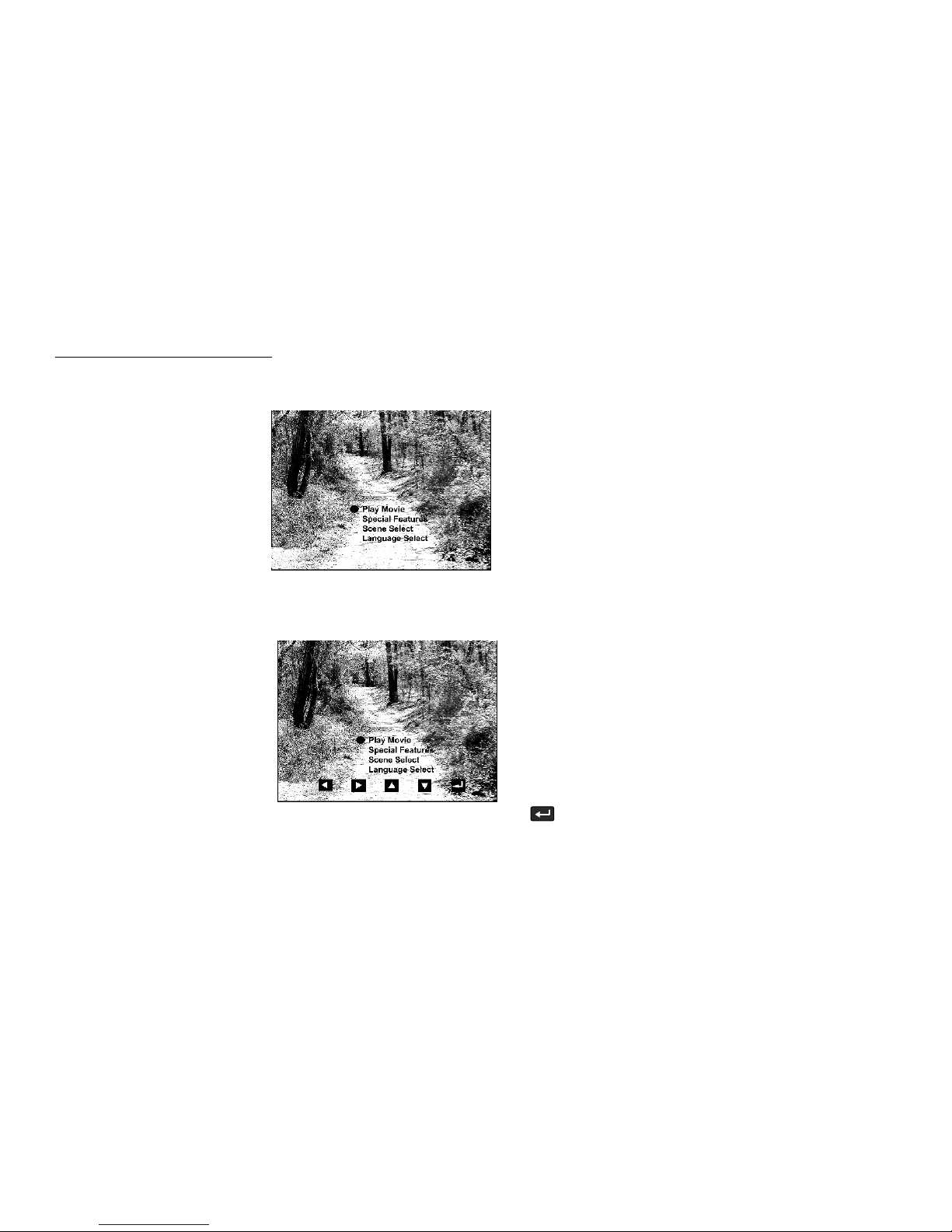

The on screen DVD menu of most DVD’s can be used to select a
DVD menu feature such as “Play Movie”, “Scene Select”, etc. by
touching the menu item on the touch screen. For example,
touching “Play Movie” in the below screen will start movie play.
NOTE: A small number of DVD discs will not function like this. In
that event use the remote control to start the movie or select the
different DVD options.
SCREEN OFF
Touch the Main Menu SCREEN OFF icon and the screen will
shut off. Touch the screen again to turn it back on. The screen
will turn back on after cycling power.
MUTE
Touch the Main Menu MUTE icon to toggle the unit’s audio
between on and off.
PIX
COLOR 16
COLOR 16
Scene Select
•
Extras
•
ETC
•
Audio
•
Play Movie
•
