Audiovox VM9223 Manuel utilisateur

VM9223 Quick

Reference Guide

VM9223 Multimedia Receiver

A / V

Input

SRC VOL - VOL + MUTE PIC

DVD, CD, MP3, WMA, USB and

SD Playback

Touch Screen Interface

RCA and Front Panel A/V Input

USB Connector

Composite Video Out

Remote Control

Navigation Ready (NAV102 Only)

Bluetooth Ready (Requires

BTM10)

Featuring:

Navigation operation requires NAV102

installation

Bluetooth operation requires BTM10

installation

Rear Camera operation requires rear camera

installation

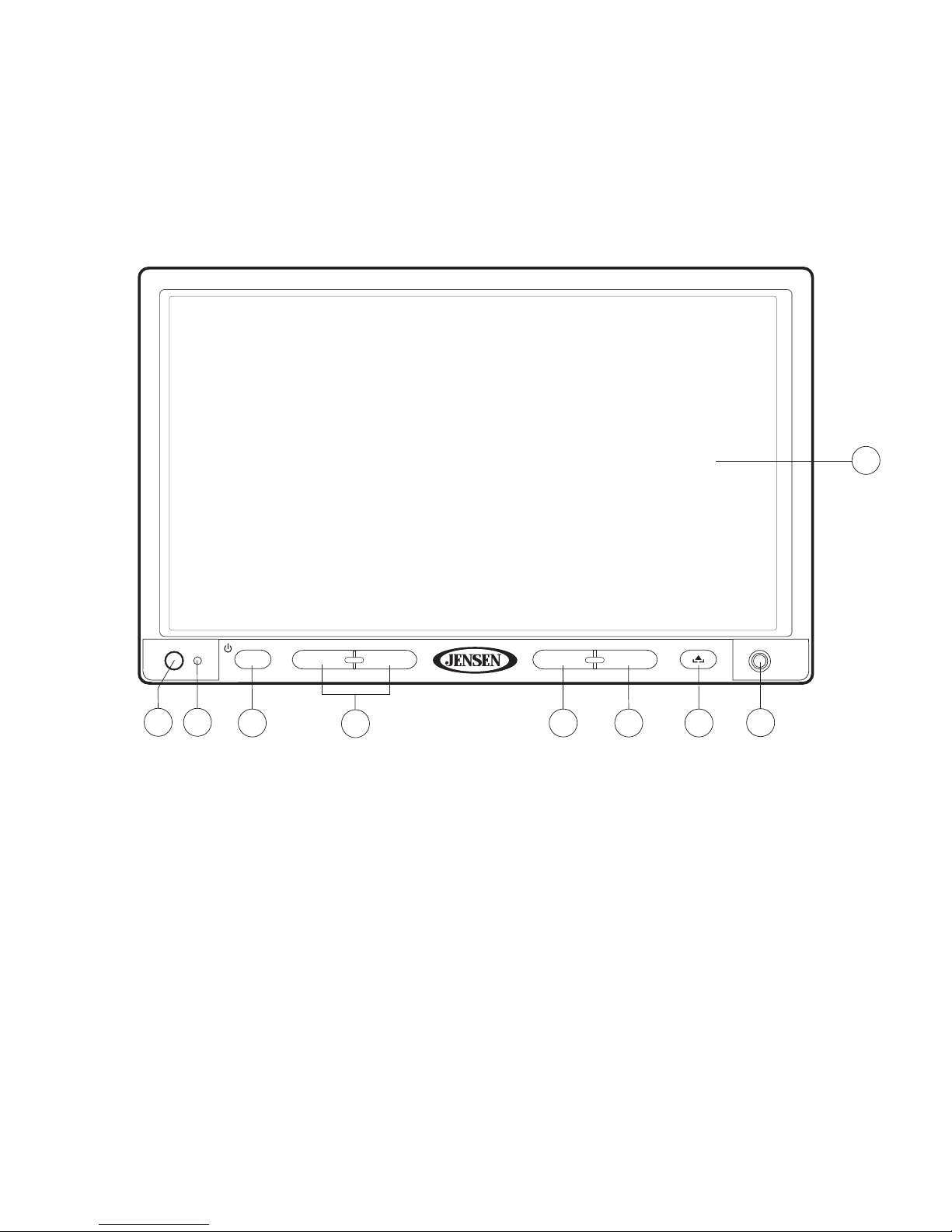

VM9223 Multimedia Receiver

A / V

Input

SRC VOL - VOL + MUTE PIC

316 54 10

128

Controls and Indicators

1. Press to silence the audio. Press again to resume the previous volume level. In

radio mode, press and hold to set the LOC/DX function. In all other modes, press

and hold while the volume icon is showing to set the turn-on volume.

2. Insert SD card for playback of compatible multimedia files.

3. Press to adjust the Brightness and Contrast. Press the PIC button again to move

between Brightness and Contrast. Press the VOL-/VOL+ buttons to adjust the

setting for the selected option.

When the NAV102 is connected, press and hold to display the navigation user

interface.

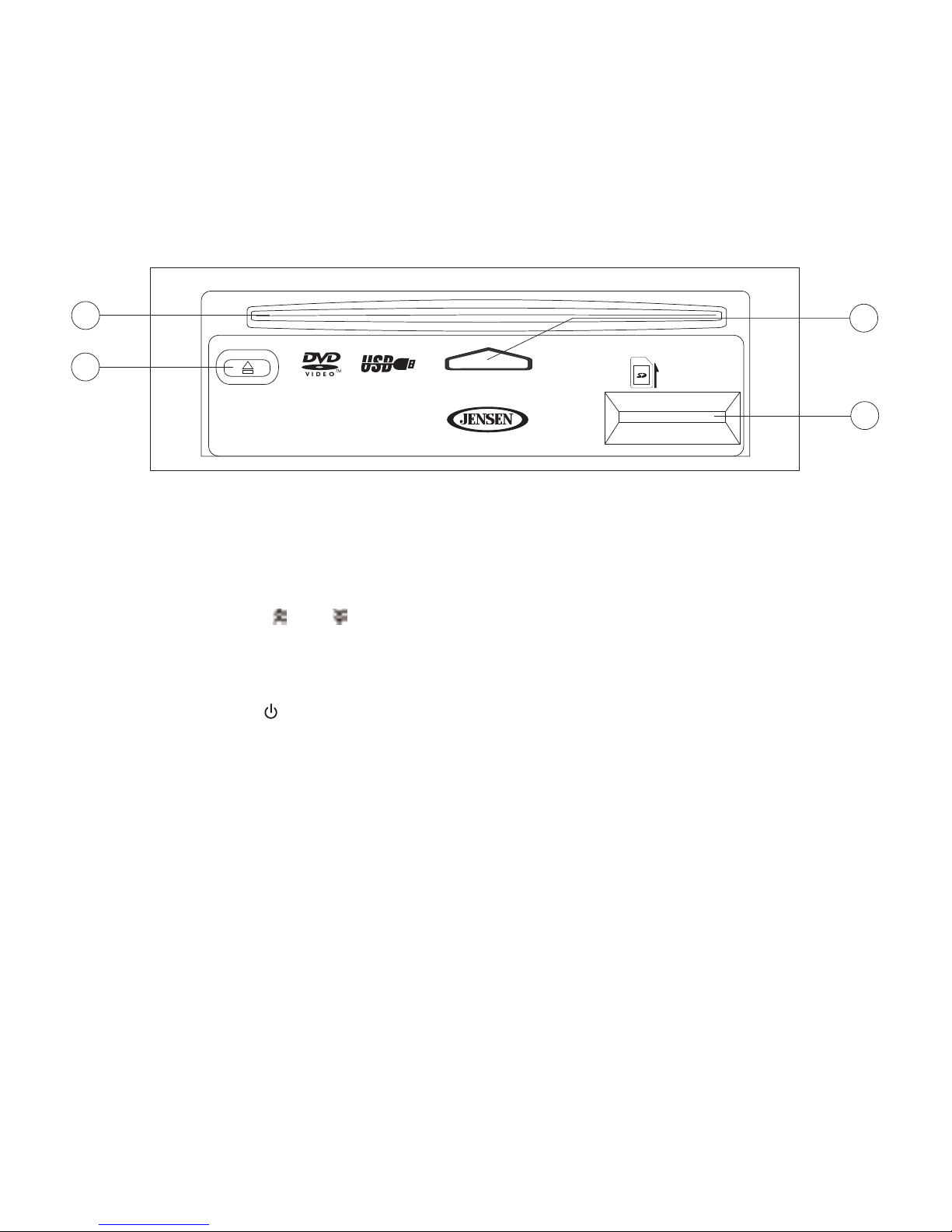

LABEL SIDE UP

DISC IN

EJECT

4. Press to activate the automatic mechanical system and slide the TFT monitor

down to reveal the disc and SD slots. Press again to close the TFT.

Press and hold to activate the tilt function. Use the VOL -/VOL+ buttons to adjust

the angle of the screen while the yellow tilt icon is flashing. You can also adjust

the tilt using the and buttons on the remote control. Press once to adjust the

downward tilt angle of the screen one step at a time or press and hold to adjust

the angle in a continuous motion.

5. Press VOL - to decrease the volume. Press VOL+ to increase the volume.

6. Press the SRC/ button to turn the unit on. Press and hold to turn the unit off.

Press to access the SOURCE MENU.

7. TFT Monitor

8. IR Remote Control Receiver

9. Disc Indicator Light

10. Audio/Video Input

11. Press to eject disc. Press and hold to reset core mechanism position.

12. Press to reset system settings to factory default (except the password and

parental lock setting).

13. Disc Slot

Common User Settings

Audio Control Menu

Touch the EQ button on the left side of the screen to access the Audio Control Menu,

shown below.

1. Use the touchscreen, or press the (>>|)/(|<<) buttons on the remote control to

highlight the audio feature to be adjusted.

2. Touch the screen to select the highlighted option.

3. Touch the +/– buttons on the screen or press the |<<, >>|, >>, or << buttons on

the remote control to adjust the selected feature to the desired setting.

+14 — 0 —

0 — —

–14 — –14 —

EQ User FAD BAL

BASS MID TREB SUB

User

The "FAD-BAL"

portion of the

screen uses a

grid control.

Touch inside the

box to move the

cursor and

adjust the Fader

and Balance

level from Front

to Rear and Left

to Right.

NOTE

The EQ mode will automatically change to “USER” when individual

audio functions are adjusted.

Set Clock

The clock appears in the top right corner of the screen and on the LCD screen during

certain operations.

To set the clock, you must first press the button on the screen to access the SETUP

menu.

1. Use the touch screen or directional buttons on the remote control to select the

Clock option.

2. Use the touch screen or press the >/|| button on the remote control to enter the

adjustment field.

3. Select a new value using the touch screen or >> and << buttons on the remote

control. The AM/PM indication will change as you continue to adjust the hour past

12.

4. Use the touch screen or press >/|| to confirm and exit the SETUP menu.

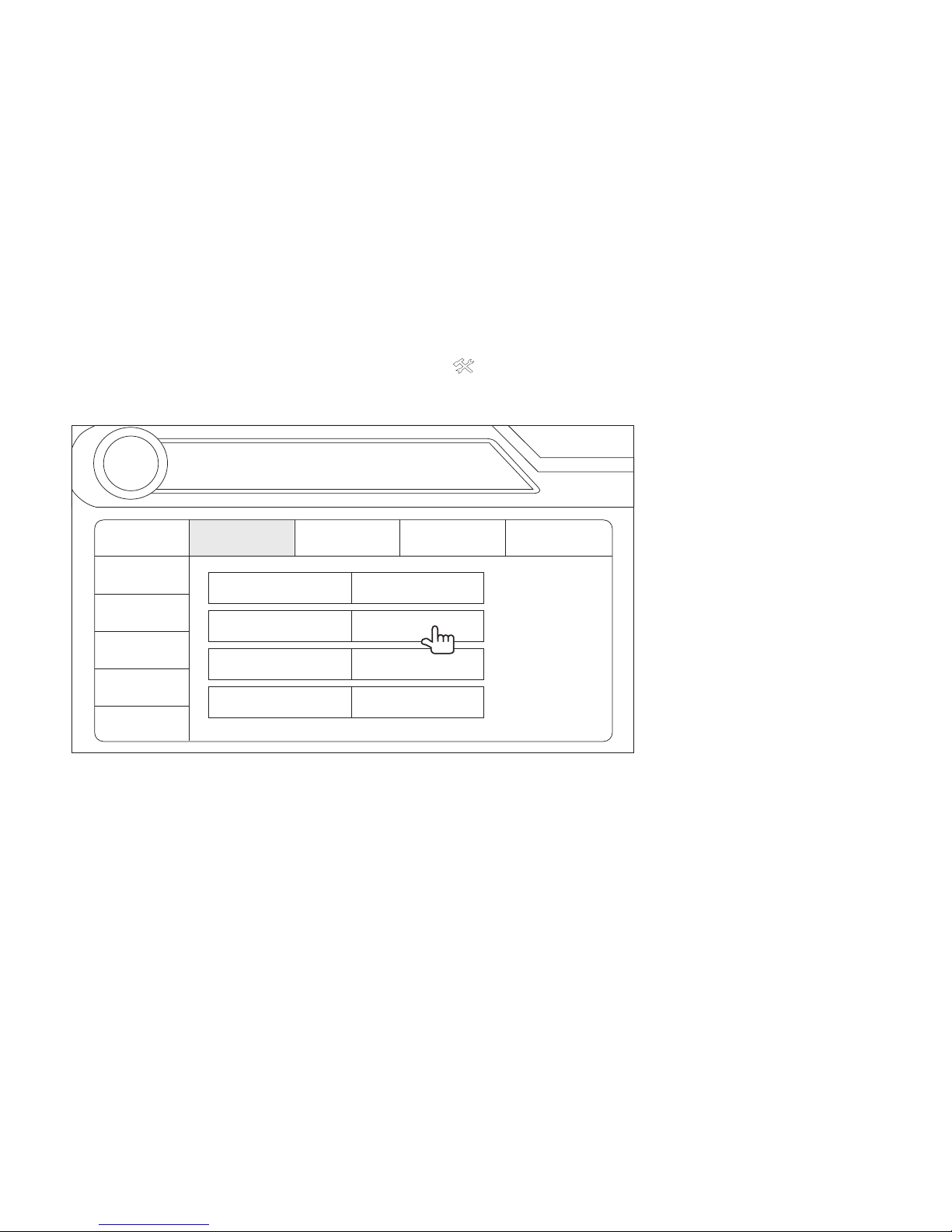

RADIO

SETUP

Rating

Bluetooth

Hardware

DEMO

P.VOL

TS Cal

General Language Audio Back

Clock Mode 12Hr

Clock 04 : 31 AM

Tuner Region USA

Beep On

Touch the menu titles

across the left and

top of the menu to

see highlighted sub-

menu options in the

center of the screen.

Touch the menu

option you want to

adjust and use the

touch screen to

adjust the setting.

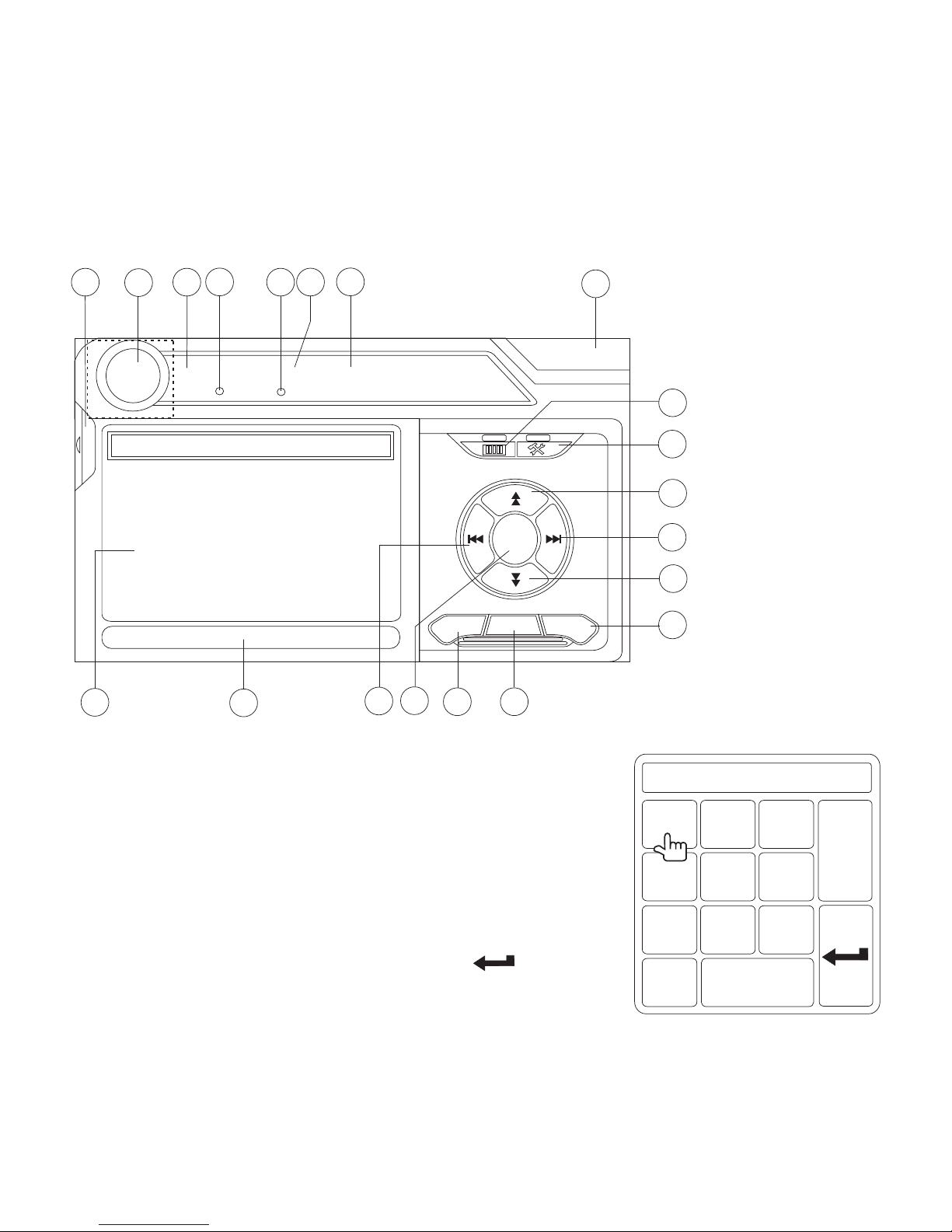

1. Current radio band indicator

2. Radio frequency indicator

3. Clock display

4. Stereo reception indicator

5. Tuning mode indicator (local/distant)

6. Touch to recall preset stations.

7. No function in tuner mode.

8. Touch for quick access to Equalizer level settings.

9. Touch to access the Direct Entry Screen. Enter the

desired frequency and then touch the button.

You can also press GOTO on the remote control to

access the Direct Entry Screen.

Tuner User Interface

110 2

RADIO

FM-1 P1 87.5 MHz

01:02 PM

BAND AS MEM

P1 87.5 MHz

P2 90.1 MHz

P3 98.1 MHz

P4 106.1 MHz

P5 107.9 MHz

P6 102.9 MHz

ST LOC 9

FM: _ _ _ . _ MHz

123

456

789

0Clear

Exit

Direct Entry Screen

10. Preset station indicator

11. |<<: Touch to seek backward.

12. >>|: Touch to seek forward.

13. <<: Touch to tune backward one step.

14. >>: Touch to tune forward one step.

15. BAND: Touch to change bands (FM1, FM2, FM3, AM1,

and AM2).

16. AS: Touch to automatically store stations for the current

band.

17. Touch to view the SOURCE MENU and select a new

playback source. You can also change the source by

pressing the SRC button on the control panel or remote

control.

18. MEM: View screen used to enter current channel into

preset memory. Touch P1 - P6 to store or Exit to leave

the screen.

19. PS (Preview Scan): Touch to scan all stations available,

stopping for 5 seconds at each and continuing until a station is selected.

20. View SETUP menu.

Preset: _

E x i t

P1 P2 P3

P4 P5 P6

CD/DVD Audio Operation

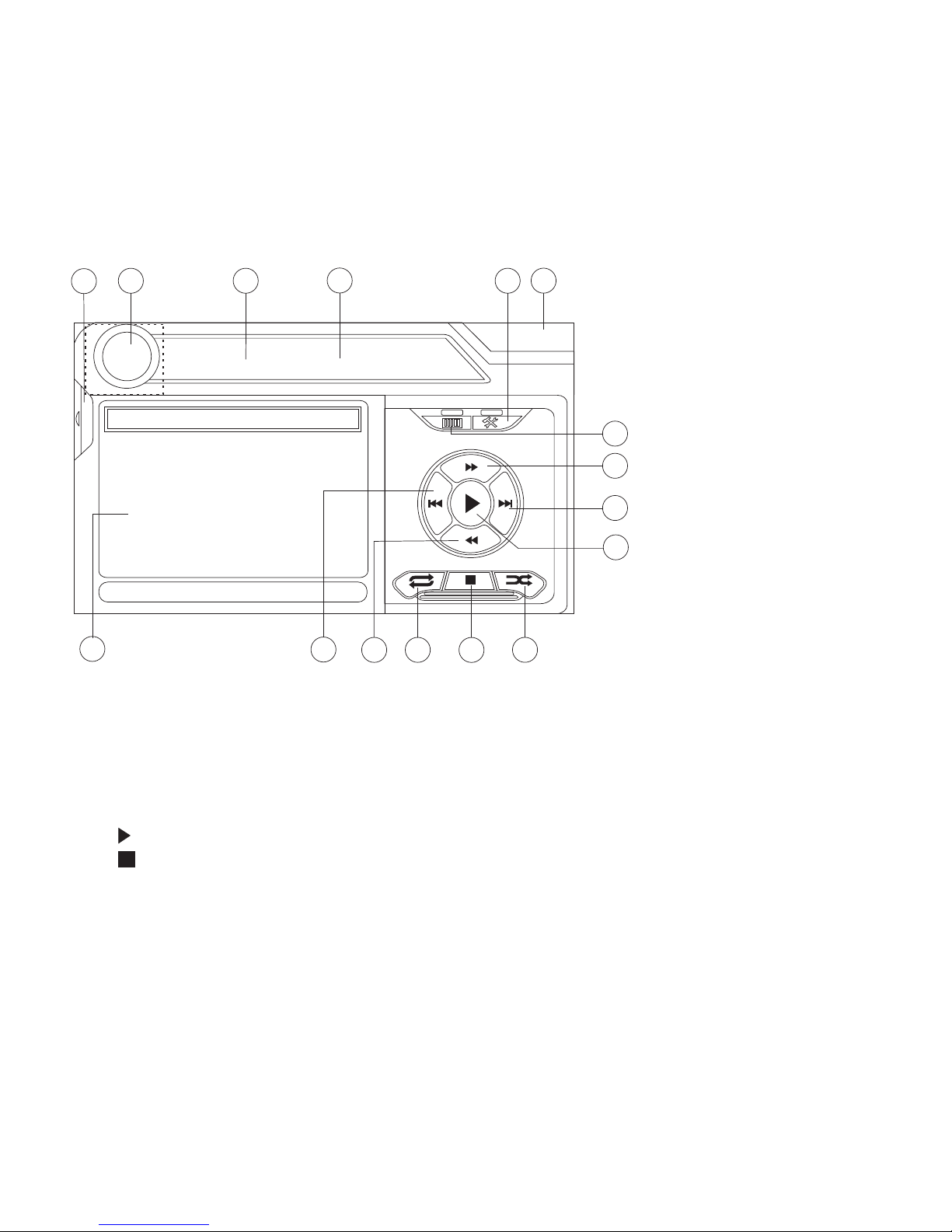

1. Current track and total number of tracks on disc

2. Elapsed playing time

3. Current time

4. Track titles (if available on disc)

5. Touch to view the SOURCE MENU and select a new playback source

6. /||: Touch to play/pause disc playback

7. : Touch to stop disc playback

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. >>: Touch to fast forward current track

11. <<: Touch to rewind current track

12. Touch to activate/deactivate Repeat play mode

DISC

CDDA 1/10 00:00:23

01:02

Track 1

Track 2

Track 3

Track 4

Track 5

Track 6

4911

The VM9223 will play

music or other audio

files from the following

disc media:

CD-DA

CD-R/RW

DVD

DVD+R/RW

DVD-R/RW

CD-R and CD-RW will

not play unless the

recording session is

finalized.
