Audiovox IM-100 Manuel utilisateur

5. Pre-wire radio. Slide radio into din sleeve until it

locks into place. Note: Use either rear bushing

or perforated strap to secure rear of radio.

RADIO REMOVAL (IF NECESSARY)

1. Unsnap trimring on face of radio.

2. Insert removal tool in slotted holes on sides of

radio until bottomed. Spread tools outward slightly

and pull radio toward you. Remove tools and

slide radio fully out.

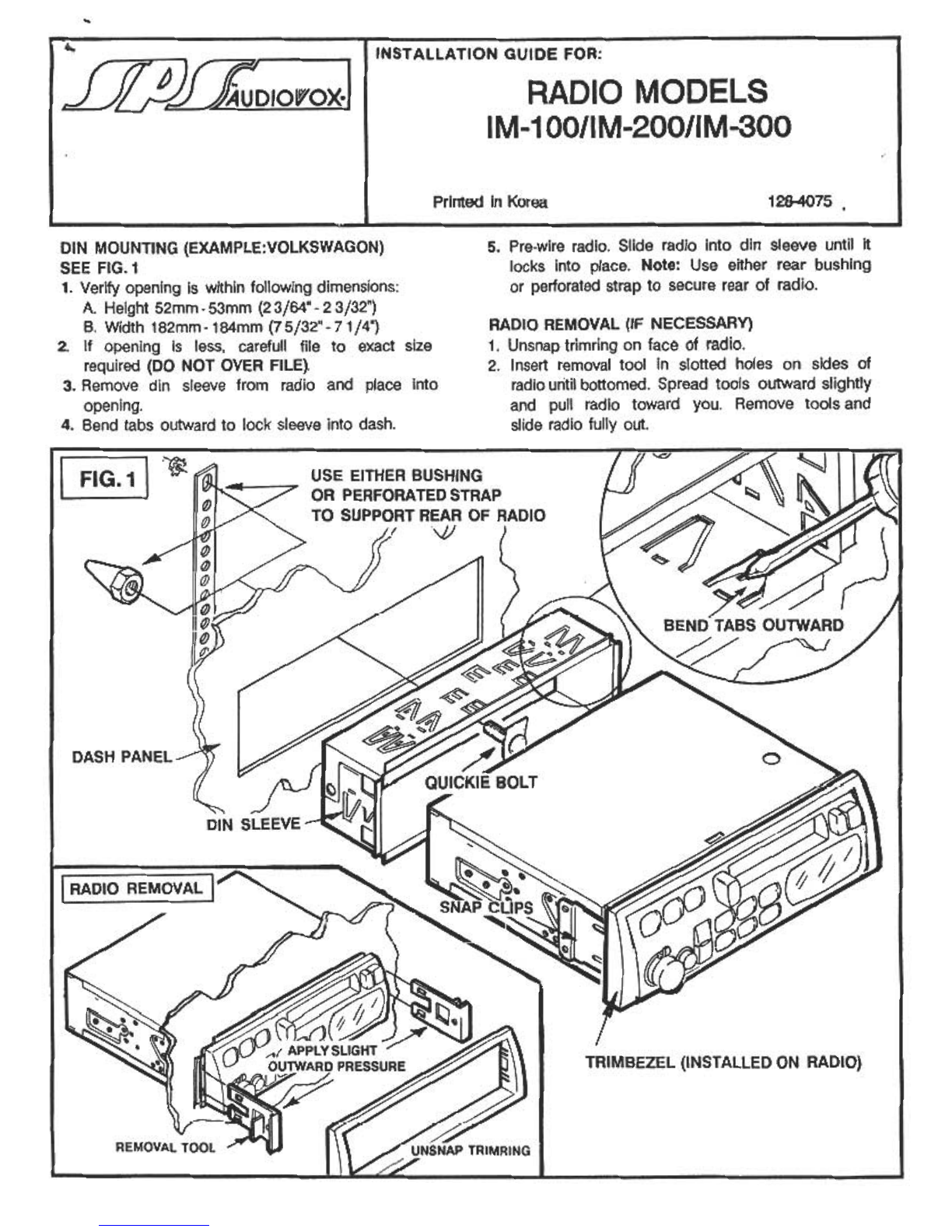

DIN MOUNTING (EXAMPLE:VOLKSWAGON)

SEE FIG. 1

1. Verify opening is within following dimensions:

A. Height 52mm- 53mm (23/64" -23/32")

B. Width 182mm -184mm (75/32" -71/4")

2. If opening is less, carefull file to exact size

required (DO NOT OVER FILE).

3. Remove din sleeve from radio and place into

opening.

4. Bend tabs outward to lock sleeve into dash.

rFjG:1l .~ ~ --USE EITHER BUSHING

I rlu. I I 11;r'.../ OR PERFORATED STRAP

@ TO SUPPORT REAR OF RADIO

.1 \LJ

) ~

BEND TABS

~@~ I;/

~ ~' (J(~

~~ ~II ~lY A (;AO7

OUTWARD

..".J

DASH PANEL .;J-

DIN SLEEVE .~

-~~ l ~~

~~ ~

~ADIO REMOV~ """' ~

/ ~( ~

,f '"""

:.,.( APPLY SLIGHT TRIMBEZEL (INSTALLED ON RADIO)

1...,j ~

REMOVAL TOOL TRIMRING

QUICKIE BOL T

screws included with radio (see fig. 2)

CAUTION: Do not use longer screws or

damage to Internal parts of radio may occur

5. Re-Install radio / bracket assembly after wiring

radio.

6. Replace dash panel.

RADIO REMOVAL (IF NECESSARY)

1. Reverse installation procedure.

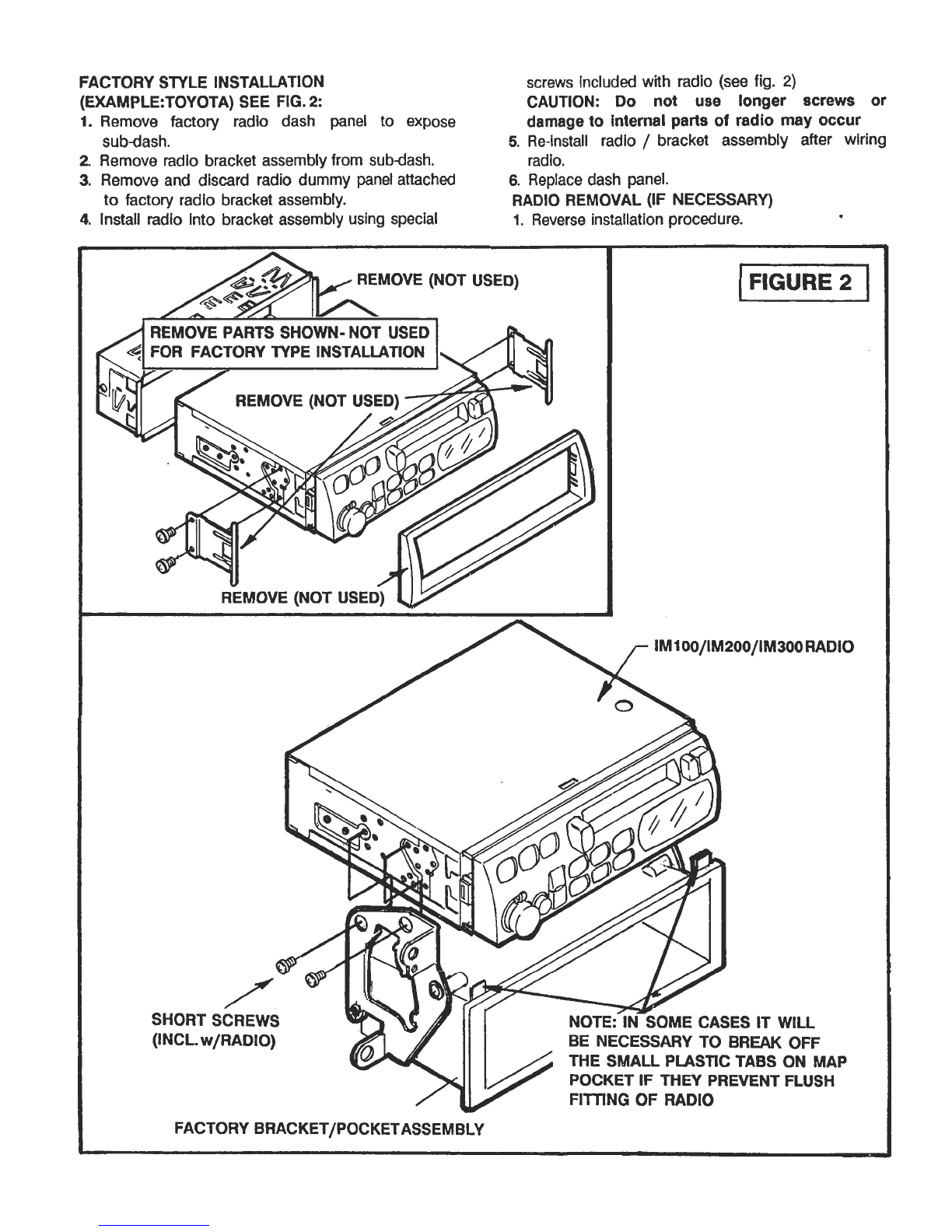

FACTORY STYLE INSTALLATION

(EXAMPLE:TOYOTA) SEE FIG.2:

1. Remove factory radio dash panel to expose

sub-dash.

2. Remove radio bracket assembly from sub-dash.

3. Remove and discard radio dummy panel attached

to factory radio bracket assembly.

4. Install radio Into bracket assembly using special

IM100/IM200/IM300RADIO

./'t.

"""' ~I;

...

..".,..

SHORT SCREWS

{INCL. w/RADIO)

~~ NOTE: IN SOME CASES IT WILL

BE NECESSARY TO BREAK OFF

"" " THE SMALL PLASTIC TABS ON MAP

~ POCKET IF THEY PREVENT FLUSH

FITTING OF RADIO

-- ,.

:--

tJ/

FACTORYBRACKET/POCKETASSEMBLY

..-/ )1
