Your Alarm and or Remote Start unit has a configurable receiver that
allows the transmitter to be programmed to operate the Lock Unlock
functions with one transmitter button or with two transmitter buttons
(separate Lock/Unlock). In addition, the receiver also allows driver priority
function. This driver priority function takes place when ever a particular
transmitter is used to unlock the vehicle regardless of the selection of one
button or two button operation.
The following indicates the receiver programmable slots.
1 Lock/Unlock or Lock
2 Unlock if Programmed
3 Trunk Release & or Remote Start (Optional on some models)
4 Auxiliary Output
5 Auxiliary Output
6 Driver 1Priority or Sperate Output
7 Driver 2 Priority or Separate Output
Receiver channels 6 or 7 will accept the programming of transmitter
channel 1 if used as the Lock/Unlock button, or Channel 2 when separate
Lock Unlock buttons are programmed. In this way, whenever the transmit-
ter is used to unlock the vehicle, channel 6 or 7, when programmed, will
provide a pulsed ground output. This output can be connecter to the driver
priority function of the vehicle to reset preset user features. Please consult
with your installation centers technician to see if this feature is available in
your vehicle.
NOTE: A total of 4 transmitters may be programmed into any receiver
channel.
Force programming a transmitter, removing a transmitter, or reprioritizing a
transmitter is covered later in this manual.
Also, if you do not program a transmitter button into channel 2 which is the
separate unlock/disarm channel, then whatever button is programmed into
channel 1 will serve as both lock/arm & unlock/disarm.
Note: The RED Button serves as a function button in combination with other
buttons explained in your owners manual. This button may not be used to
operate a receiver channel.
NOTE: The Option Button is predetermined and programmed for access to
Time Start, and Temperture Start & Check so it cannot be used for multiple
button operation of any other feature. It will however operate for any single
button programming.
TOENTERTHEPROGRAMMODE:
1. Turn the ignition switch to the “ON” position.
2. Within 10 seconds, Press and release the valet/program switch three
times.
Model 5BCR&5BCR03
ProgrammingGuide
128-6799
2 of 8
2
THISPAGE LEFT BLANKINTENTIONALLY
128-6799
3 of 8
(Siren emits 1 short chirp indicating channel 1 has been entered)
3. Within 10 Seconds, Press and hold the button of the first transmitter you
wish to control the Lock&Arm feature of your security system until a long
chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Lock/Arm
feature).
4. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 2 short chirps indicating channel 2 has been entered)
5. Within 10 Seconds, Press and hold any unused button(s) of the first
transmitter you wish to control the Unlock/Disarm feature of your security
system until a long chirp is heard from the siren.
NOTE: This channel is used only if you desire separate control of the
Lock/Unlock feature. If you wish to operate the Lock/Unlock features from
a single button, move onto step 6 as whatever button is programmed into
channel 1 will control both Lock & Arm/Unlock & Disarm.
(Repeat this for each transmitter you wish to operate the Unlock/Disarm
feature).
6. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 3 short chirps indicating channel 3 has been entered)
7. Within 10 Seconds, Press and hold any unused button(s) of the first
transmitter you wish to control Channel 3 output, (Trunk Release) until a
long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 3 output
(Trunk Release)
8. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 4 short chirps indicating channel 4 has been entered)
9. Within 10 Seconds, Press and hold any unused button(s) of the first
transmitter you wish to control Channel 4 output, (Auxiliary Output 1) until
a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 4
output)
10. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 5 short chirps indicating channel 5 has been entered)
11. Within 10 Seconds, Press and hold any unused button(s) of the first
transmitter you wish to control Channel 5 output, (Auxiliary Output 2) until
a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 5
output)
12. Within 10 seconds, press and release the valet program switch one
time. 3
128-6799
4 of 8
(Siren emits 6 short chirps indicating channel 6 has been entered)
13. Within 10 Seconds, Press and hold the unlock button, (or any unused
button(s)), of the first transmitter you wish to control Channel 6 output,
(Driver Priority 1) until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 6
output, Driver Priority 1)
14. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 7 short chirps indicating channel 7 has been entered)
15 .Within 10 Seconds, Press and hold the unlock button (or any unused
button(s)) of the first transmitter you wish to control Channel 7 output,
(Driver Priority 2) until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 7
output, Driver Priority 2)
NOTE: Channels 6 and 7 can be used as a separate output to control a
function other than driver priority. Simply programming any unused
transmitter button other than the unlock button will allow complete
independent control of these outputs.
ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:
NOTE: Before you begin to erase the lost or stolen transmitter(s), have all
transmitters available that you wish to remain programmed. These will be
used during the program process to identify transmitters that will continue
to be used.
Enter the transmitter program mode:
1. Turn the ignition switch to the “ON” position.
2. Within 10 seconds, press and release the valet/program switch three
times. (Siren emits 1 short chirp indicating channel 1 has been entered)
3 .Within 10 Seconds, Press and hold the ARM or ARM/DISARM button of
the first transmitter you wish to remain stored into the control unit until a
single chirp is heard from the siren.
(Repeat this for each transmitter you wish to remain stored in the control
unit).
The receiver stores up to four transmitters. To be certain all transmitter
slots in the receiver are occupied with transmitters you wish to continue
to use, and all others are erased, you will have to fill all four receiver slots.
If in step 3 you identified one transmitter, you will have to fill the additional
3 slots. If in step 3 you identified two transmitters, you will have to fill the
additional two slots, etc...
4. Press and hold any unused button or combination of buttons until a long
chirp is heard from the siren. Release and press the button or button
combination again and again until all remaining slots are full.
Repeat this procedure with the appropriate transmitter buttons for all other
receiver channels.
4
128-6799
5 of 8
REPRIORITIZING A TRANSMITTER’S PROGRAMMING:
To reprogram a receiver channel with a different transmitter button once a
code has been stored, there will be two options:
1. Enter the transmitter program mode of the receiver channel to be
reprogrammed. Using any unused button or combination of buttons, push
out the stored code by pressing the unused button until a long chirp is
heard, then repeat 3 additional times. After this, you can add any desired
unused transmitter button. This action erases only that particular receiver
channel, all other codes will remain stored.
2. Enter the transmitter program mode. Using any transmitter button press
and hold until a long chirp is heard. If a single chirp or multiple chirps, (up
to 7 chirps), are heard, the unit is indicating that the transmitter has
already been programmed elsewhere in the receiver. Release the
transmitter button and within 5 seconds press and hold until a long chirp is
heard. This action forces the unit to erase all stored codes of that
transmitter.
The unit then exits the program mode the siren emits the program mode
exit chirp pattern. All transmitter buttons for that transmitter must now be
reprogrammed. Any other transmitter stored in the unit’s memory still
remain operational. If the button is released and not pressed again within
the 5 second period, no change in programming has been made to the
receiver channel. The programmer can move onto a different channel or
erase the transmitter codes as described in 1 above.
REPLACING THE BATTERY:
You will notice a decrease in transmitter range as the battery
conditiondeteriorates.Thereis alsoa lowbattery indicatorthat indicateno bars
in the LCD panel, as shown below, when the battery begins to fail. Transmitter
battery replacement is recommended at least every 6 to 8 months, depending
upon how frequently the transmitter is used.
5
128-6799
6 of 8

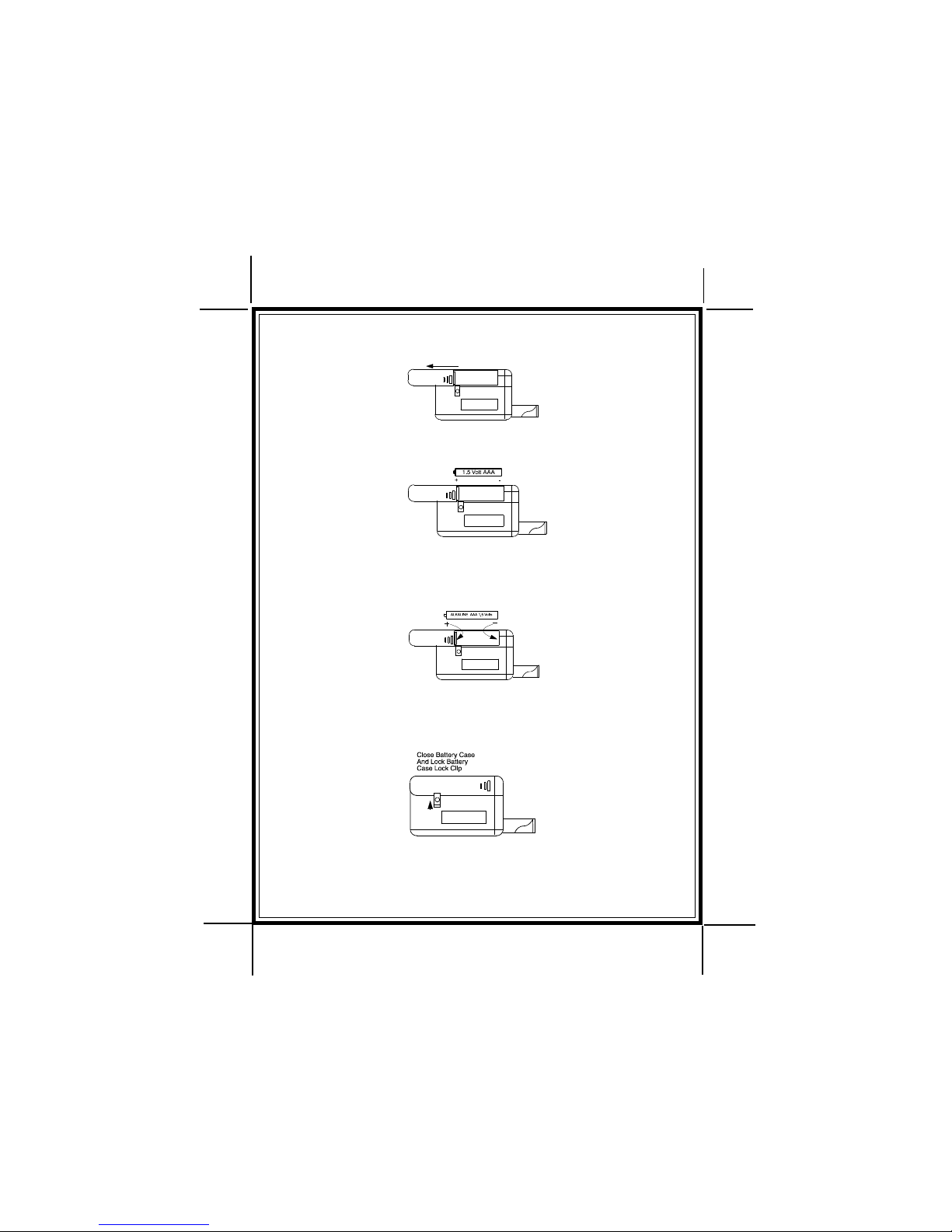

To replace the transmitter battery:
1.Slidebackthelocktabonthebacksideofthe transmittercaseinthedirection
shown.
2. Slide back the battery case cover in the direction shown.
3. Remove the discharged battery, making note of the location of the + and -
contacts shown, and replace with a new type akaline 1.5 volt AAA Battery.
4. Making note of the location of the (+) and (-) contacts, insert a new AAA
battery alkaline 1.5 volt.
5. Replace battery cover being certain to close the battery case lock clip to
prevent accidential opening.
6
128-6799
7 of 8
Attention: Transmitter Ordering Department
Important: To help us expedite your order, please print all of the information
legibly and mail this form and your payment according to the instructions
below.
Be certain to specify MODEL NUMBER of your transceiver___________
1) Name:___________________________________________
2) Address:_________________________________________
3) City:________________State:________Zip Code:__________
4 Telephone Number:( )_____________________
5) Total Number Of Transmitters Required:_______
Cost Per Transmitter is: $85.00
Multiply By Number Of Transmitters X
6) Enter Total Amount Enclosed _______
(New York State Residents must include the appropriate sales tax)
7) Method of Payment:
Mastercard Visa Check or Money Order (do not send cash)
Make Checks Payable To Audiovox Corporation
Credit Card Number:___________________________________
Credit Card Expiration Date: ____/___/____
8) Mail this form along with your payment to:
Transmitter Ordering Department
Audiovox Corporation 150 Marcus Blvd., Hauppauge N.Y. 11788
Credit card purchasers can order additional or replacement
transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and follow
the instructions from the operator interface
7
ORDER FORM FOR TRANSCEIVERS 5BCR & 5BCR03
*
128-6799
8 of 8
8128-6799
© 2003 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, NY 11788
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Audiovox Alarme de voiture
Audiovox
Audiovox Pursuit PRO-9276 Manuel utilisateur
Audiovox
Audiovox Professional PS-330i Manuel utilisateur
Audiovox
Audiovox Pursuit Series Manuel utilisateur
Audiovox
Audiovox PRO-9344FT Pursuit Series Manuel utilisateur
Audiovox
Audiovox APS-95BT2 Mode d'emploi
Audiovox
Audiovox AA-9124 Manuel utilisateur
Audiovox
Audiovox Pursuit PRO-9800 Manuel utilisateur
Audiovox
Audiovox UltraGuard PRO 9549UG Manuel utilisateur
Audiovox
Audiovox Pursuit Pro 9544FT3 Manuel utilisateur
Audiovox
Audiovox 128-7404A Manuel utilisateur
Audiovox
Audiovox Prestige Platinum 128-8549 Manuel utilisateur
Audiovox
Audiovox Prestige APS-15R Manuel utilisateur
Audiovox
Audiovox Auto Security AS-9950 Manuel utilisateur
Audiovox
Audiovox APS 750a Manuel utilisateur
Audiovox
Audiovox ca 6552 Manuel utilisateur
Audiovox
Audiovox Prestige AS-9256 Manuel utilisateur
Audiovox
Audiovox Pursuit PRO 9845B Manuel utilisateur
Audiovox
Audiovox Prestige Platinum APS-998 Manuel utilisateur
Audiovox
Audiovox Prestige 128-8615 Manuel utilisateur
Audiovox
Audiovox Prestige Platinum APS-255 Manuel utilisateur
Manuels Alarme de voiture populaires d'autres marques
Clifford
Clifford 3606X Manuel utilisateur
Ultra Start
Ultra Start 2500M SERIES Manuel utilisateur
Ultra Start
Ultra Start 650 Series Manuel utilisateur
Sparkrite
Sparkrite SRA8 Manuel utilisateur
Viper
Viper 4708V Manuel utilisateur
Federal Signal Corporation
Federal Signal Corporation Pathfinder Siren Series Manuel
Falcon
Falcon Predator XL3 Guide de l'utilisateur
Clifford
Clifford Sabre II Manuel utilisateur
CrimeStopper
CrimeStopper CS-8717 Guide de démarrage rapide
Ultra Start
Ultra Start 450 SERIES Manuel utilisateur
Scytek electronic
Scytek electronic Vectra X3 Manuel utilisateur
Excalibur
Excalibur AL-1860-EDPB Manuel utilisateur
