Model AMP-604

240Watt 4-Channel

Power Amplifier

INDEX

Specifications...........................................................1

Precautions..............................................................2

InstallationInstructions.............................................3

Wiring Instructions ............................................4 - 5

Input Wiring Diagram ............................................6

Output Wiring Diagram .........................................7

Operation................................................................8

Warranty.................................................................9

*Due to continuing improvement, Audiovox reserves the right to change features and design without notice.

HIGH PERFORMANCE STEREO AMPLIFIER

This power amplifier has been designed to provide high quality performance with

aminimumof maintenance. However,it'sperformance willonlybe asgoodas the

careand quality of components with which itis installed. We therefore advise that

youreadtheseinstructionsverycarefullytofamiliarizeyourselfwiththeproductand

it's features.

Shouldyou requireassistance withthe installation or wiring of this unit, please call

our toll-free "HELP" line at 1-800-645-4994 during the days/hours shown.

Monday - Friday

Saturday

8:30am - 7:00pm Eastern

9:00am - 5:00pm Eastern

1-800-645-4994

HELP!

SPECIFICATIONS

Maximum Output Power:

Output Impedance:

FrequencyResponse:

ChannelSeparation:

Signal / Noise Ratio:

Input Impedance:

60 watts x 4 @ 4 ohms

4 - 8 ohms

20 - 25,000 Hz. ± 1 dB

50 dB

80 dB (A-Weighted)

low-level 10K ohms

high-level 100 ohms

InputSensitivity:

SupplyVoltage:

Fuse Rating:

Dimensions (W x H x D):

low-level 200 mv. - 2 v.

high-level 2 - 10 v.

12 volts, negative ground

10 amps.

6-3/8" x 2-1/8" x 9-1/10"

162 mm x 54 mm x 231 mm

-1-

PRECAUTIONS

1. Althoughthisunitisdesignedwithbuilt-inself-protectioncircuits,theremaybeapossibilityofdamageifitisnotwired

correctly. Please follow the wiring instructions carefully for the type of system being used.

2. Thelastleadtobeconnectedisthewiretothepositive(+)terminal of the battery. Connect this wire only after having

completed and checked all other connections to the amplifier.

3. By nature of its design, a power amplifier generates heat and requires good air circulation around it to dissipate that

heat. Do not install the amplifier in an enclosed area which does not permit adequate air circulation. Should the

temperature of the unit rise too high, the internal thermal sensors will shut off operation until it has cooled down

sufficiently.

4. If fuse replacement is necessary, use only fuses of the same ampere rating as originally supplied with the unit. The

use of fuses with incorrect ratings may cause serious damage to the amplifier. If fuses blow consistently, carefully

check all electrical connections to the unit.

5. Supply of adequate battery voltage is critical to the proper operation of the power amplifier. The leads to the battery

and chassis ground must be of a thick enough gauge to provide this voltage to the amplifier. We recommend

#18 gauge wire or thicker (smaller gauge #) for the battery and ground leads.

6. Make certain that the speakers to be used with this amplifier are capable of handling the output power (wattage)

of the unit. Use of speakers not rated for the output of this amplifier may cause damage to or failure of the

speakers for which Audiovox will not be liable.

-2-

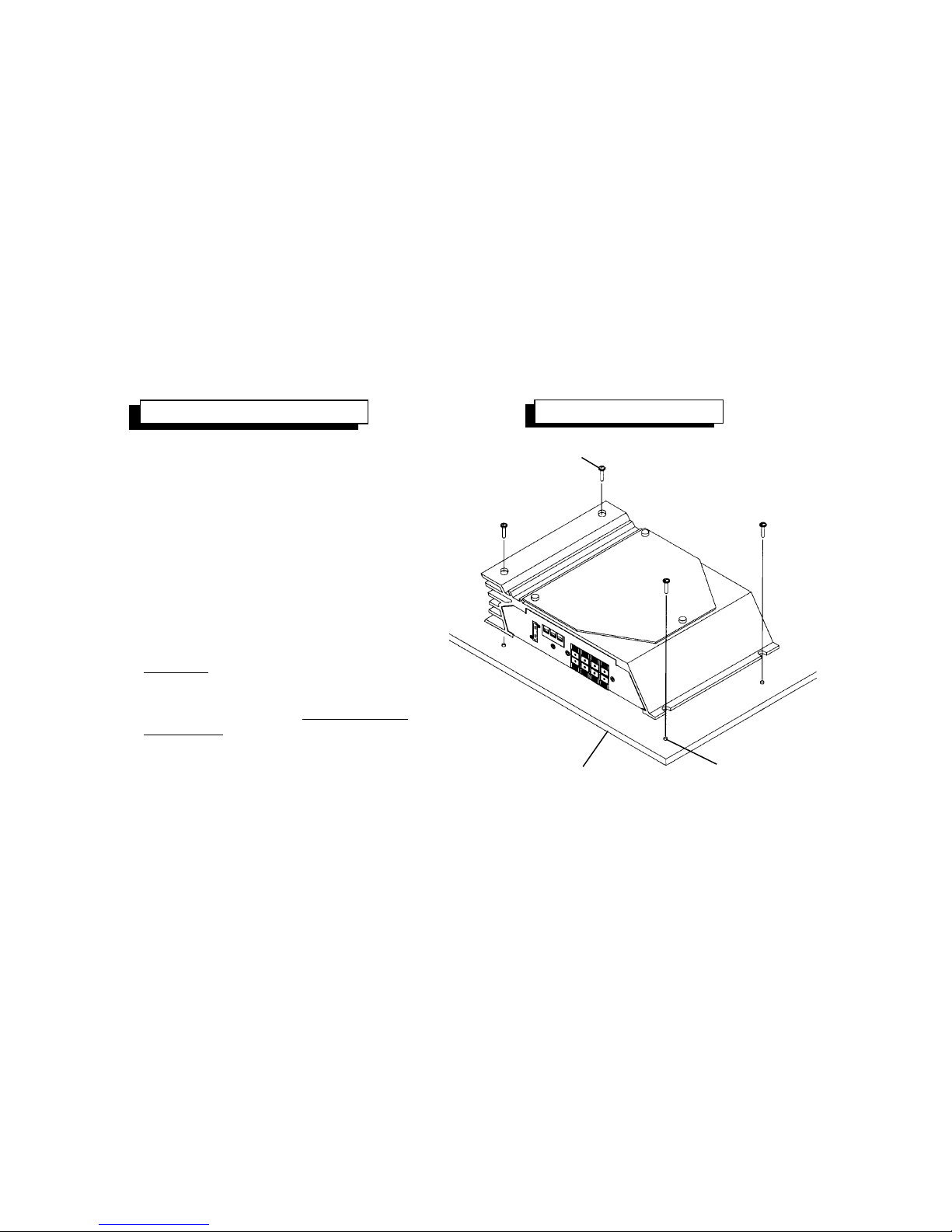

INSTALLATION INSTRUCTIONS INSTALLATIONDIAGRAM

1. Select a mounting area where the amplifier will

havesufficientaircirculationfor proper cooling.

Inadequateaircirculationwillcausethetemperature

of the amplifier to rise and will trigger the

thermal protection mode.

2. Place the amplifier on the mounting surface

and mark the locations of the four mounting

holes as shown in the illustration.

3. Remove the amplifier and drill a 1/8" hole at

each of the four locations.

CAUTION: Before drilling the holes, look at the

underside of the mounting surface. Always

check carefully to avoid drilling into wiring,

braces, fuel or brake lines. CHECK BEFORE

YOU DRILL !

4. Secure the amplifier to the mounting surface

using the self-tapping screws provided.

MOUNTING SURFACE 1/8" DIA. HOLE

SELF-TAPPING SCREW

-3-

WIRING INSTRUCTIONS

The power connections for this amplifier are made via screw tightened terminal blocks. Loosen the screw for the

connectionto be made and fullyinsert the wire (strip1/2" of insulation fromthe end) into therespective screw onthe side

panel (crimp-on "U" terminals are provided to simplify wiring and we recommend their use.) Tighten the screw down to

secure the wire.

1. Power Connection

The battery terminal (BATT) must be connected directly to the positive terminal of the vehicle battery to provide an

adequatevoltagesourceandminimizenoise. Connectingthebatteryterminalleadtoanyotherpoint(suchasthefuseblock)

will reduce the power output and may cause noise and distortion. Use only #18 gauge or thicker (smaller gauge #) wire

for this lead and connect it to the terminal of the battery after all other wiring is completed.

2. Ground Connection

The ground terminal (GND) connection is also critical to the correct operation of the amplifier. Use a wire of the same

gaugeasthepowerconnection(#18 orthicker)andconnectitbetween the ground terminal (GND) of the amplifier and

a metal part of the vehicle close to the mounting location. This wire should be as short as possible and any paint or

rust at the grounding point should be scraped away to provide a clean metal surface to which the end of the ground

wire can be screwed or bolted.

3. Remote Turn-On Connection

The amplifier is turned on by applying +12 volts to the remote turn-on terminal (REM). The wire lead to this terminal

should be connected to the "Auto-Antenna" lead from the car stereo which will provide the +12 volts only when the car

stereo is turned on. If the car stereo does not provide an Auto-Antenna lead, the remote turn-on lead may be wired

toan"Accessory" or "Radio" terminalin the car's fuseblock. This will turn theamplifier on and offwith the ignition key,

regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents, so #20 gauge

wire may be used for this application.

-4-

4. Speaker Connections

Wire the speakers to the "Speaker Output" terminals as per the Output Wiring Diagram (remove 1/4" of insulation

from the end of each wire, depress the spring tab on the connector, insert the wire and release the spring tab). For

mostapplications, #18 gaugewireshouldbeused for thespeakerleadsbutin no casethinnerthan#20 gauge. When

wiring the speakers, pay careful attention to the polarity of the terminals on the speakers and make certain they

correspond to the polarity of the corresponding terminals on the amplifier. DO NOT ground any speaker leads to the

chassis of the vehicle.

5. Input Connections

This amplifier features both high and low-level input capability. Use either the low-level or high-level inputs, not both.

If low-level outputs are provided from the car stereo, it is recommended that the low-level inputs be used for lowest

distortion and best performance. Use good quality shielded audio cables with RCA plugs at both ends to connect the

stereo to the amplifier and keep the cable lengths to a minimum to avoid noise.

Ifthecarstereodoesnotprovidelow-leveloutputs,theamplifiermaybeconnectedviathespeaker(high-level)outputs

from the stereo. Wire the positive (+) speaker leads from the car stereo to the 5-pin adaptor harness as shown in the

diagram (shielded cable is not required for this application) and plug the connector into the mating High-Level Input

socket on the amplifier. Carefully splice and insulate all wire connections.

CAUTION: Use either the low-level or the high-level inputs on the amplifier.

DO NOT use both input levels at the same time.

WIRING INSTRUCTIONS

-5-

PWR

LOW INPUT

HIGH LEVEL

GAIN

MIN MAX MIN MAX

GAIN

INPUT WIRING DIAGRAM

-6-

5-PIN

CONNECTOR

IMPORTANT

USE EITHER HIGH-LEVEL OR

LOW-LEVEL INPUTS, NOT BOTH.

HIGH-LEVEL

(SPEAKER) OUTPUTS

CAR STEREO

RCA TYPE

SHIELDED CABLES

(NOT INCLUDED)

RIGHT REAR +

LEFT REAR +

RIGHT FRONT +

LEFT FRONT +

LOW-LEVEL RCA OUTPUTS

GREEN

WHITE

GRAY

BROWN

LEFT FRONT

RIGHT FRONT

BLACK

CHASSIS GROUND ON RADIO

LEFT REAR

RIGHT REAR

TO CH1

TO CH3

TO CH2

TO CH4

NOTE: WhenusingHigh-Level(Speaker)Outputs

of car stero, connect only the Positive (+)

wires to the amplifier. Do not use Negative (–)

Outputwires (insulateendswithtapeand

leavedisconnected).

OUTPUT WIRING DIAGRAM

-7-

AUTO-ANTENNA LEAD

CAR STEREO

WARNING!

lTHIS AMPLIFIER IS DESIGNED FOR USE WITH 4 SPEAKERS

NEVER

COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.

NEVER

GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.

lFAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE AMPLIFIER.

USE #18 GAUGE

WIRE (SEE TEXT)

CONNECT THIS

WIRE LAST

EXISTINGSCREWORBOLT

CLEAN PAINT, RUST, DIRT

OR GREASE FROM AREA

FOR GOOD CONNECTION

GROUNDED METAL

SECTION OF VEHICLE

12 VOLT VEHICLE

BATTERY

LEFT FRONT

SPEAKER

4 - 8 OHMS

LEFT REAR

SPEAKER

4 - 8 OHMS

CHASSIS

GROUND

RIGHT FRONT

SPEAKER

4 - 8 OHMS

RIGHT REAR

SPEAKER

4 - 8 OHMS

POWER

BATT GND

REM

FUSE SPEAKER OUTPUT

increase the output from the system. If, however, there

is still output from the amplifier when the car stereo

volume control is at its minimum setting, or the output

levelincreasestoofastwithasmallrotationofthevolume

control, adjust the Level control to decrease the output

fromthesystem. Oncethecorrectsettingisfound,these

controls should not require any further adjustment.

3Fuse

Thecircuitryoftheamplifierisprotectedfromdamageby

an automotive-type fast-blow fuse. If fuse replacement is

necessary, use only fuses of the same ampere rating as

originally supplied with the unit. The use of fuses with

incorrect ratings may cause serious damage to the

amplifier. If fuses blow consistently, carefully check all

electrical connections to the unit.

PWR

LOW INPUT

HIGH LEVEL

GAIN

MIN MAX MIN MAX

GAIN

-8-

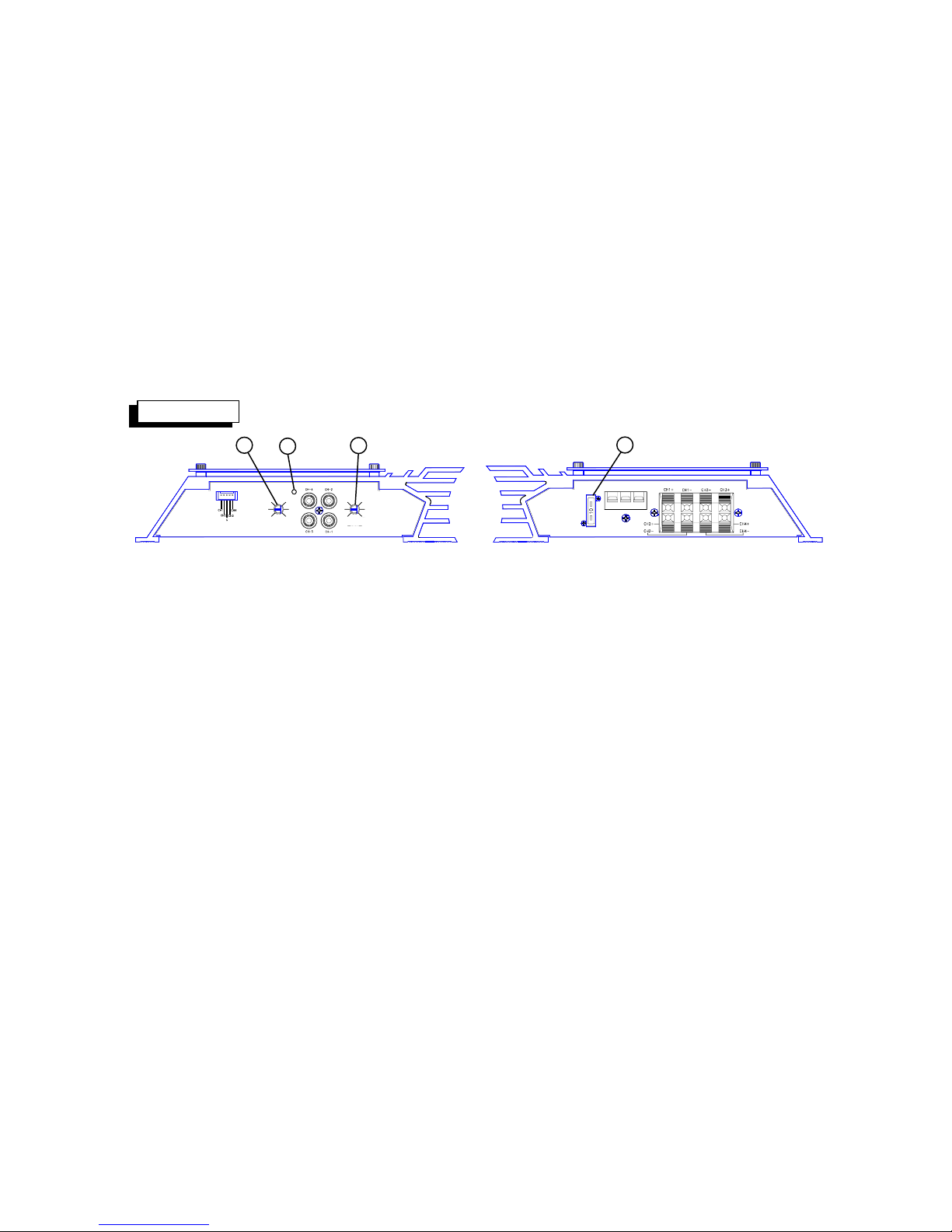

OPERATION

After initial set-up, the amplifier should not require any

further adjustment unless there is a change in the car

stereo or speaker system with which it is used.

1Power Indicator LED

The Power Indicator LED will light to indicate that the

unit is connected to the battery and that the Remote

Turn-On terminal is receiving +12 volts, thus turning

on the amplifier.

2Level (Gain) Controls

The amplifier is capable of operating from sources

supplying a wide range of input levels. The Level

control should initially be set to the mid-rotation position.

Ifitisfoundthatthereisnotenoughoutputevenwhenthe

volumecontrolonthecarstereoisatitsmaximumsetting,

adjust the Level control of the respective channels to

123

BATT GND

REM

FUSE SPEAKER OUTPUT

POWER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Amplificateur

Audiovox

Audiovox Menace PA-S2100 Manuel utilisateur

Audiovox

Audiovox Jensen PS1220M Manuel utilisateur

Audiovox

Audiovox Menace PAS2150 Manuel utilisateur

Audiovox

Audiovox Jensen PS475 Manuel utilisateur

Audiovox

Audiovox Jensen Power JPA260 Manuel utilisateur

Audiovox

Audiovox AMP-590A Manuel utilisateur

Audiovox

Audiovox Menace PA-S450 Manuel utilisateur

Audiovox

Audiovox Phase Linear UPA224 Manuel utilisateur

Audiovox

Audiovox Jensen PS2130 Manuel utilisateur

Audiovox

Audiovox Prestige PAB-2100R Manuel utilisateur

Audiovox

Audiovox XTM-600 Manuel utilisateur

Audiovox

Audiovox Prestige PAB-250R Manuel utilisateur

Audiovox

Audiovox Rampage AMP-602 Manuel utilisateur

Audiovox

Audiovox Menace PA-S250 Manuel utilisateur

Audiovox

Audiovox Rampage AXT-1200 Manuel utilisateur

Audiovox

Audiovox Prestige PAB-2150R Manuel utilisateur

Audiovox

Audiovox AMP-594 Manuel utilisateur

Audiovox

Audiovox BTR120 Manuel utilisateur

Audiovox

Audiovox AMP-595C Manuel utilisateur

Audiovox

Audiovox AXT-550 - Rampage Amplifier Manuel utilisateur

Audiovox

Audiovox Jensen A34XP Manuel utilisateur

Audiovox

Audiovox Rampage AMP-610 Manuel utilisateur

Audiovox

Audiovox AMP-596C Manuel utilisateur

Audiovox

Audiovox Prestige PAB-1500D Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
