Audiovox AMP-594 Manuel utilisateur

Owner'sOwner's

Owner's

ManualManual

Manual

ModelAMP-594

150WattStereoAmplifier

INDEX

Specifications ...........................................................1

Precautions ..............................................................2

Installation Instructions .............................................3

Wiring Instructions ............................................4 - 5

Input Wiring Diagram ............................................6

Output Wiring Diagram .........................................7

Operation ..........................................................8 - 9

Warranty ................................................Back Cover

*Due to continuing improvement, Audiovox reserves the right to change features and design without notice.

HIGH PERFORMANCE STEREO AMPLIFIER

This power amplifier has been designed to provide high quality performance with

a minimum of maintenance. However, it's performance will only be as good as the

care and quality of components with which it is installed. We therefore advise that

you read these instructions very carefully to familiarize yourself with the product

and it's features.

Should you require assistance with the installation or wiring of this unit, please call

our toll-free "HELP" line at 1-800-645-4994 during the days/hours shown.

Monday-Friday

Saturday

8:30am-7:00pm Eastern

9:00am-5:00pmEastern

1-800-645-4994

HELP!

SPECIFICATIONS

Maximum Output Power:

Output Power @ 0.1% T.H.D.:

Output Impedance:

Frequency Response:

Channel Separation:

Signal / Noise Ratio:

Input Impedance:

75 wattsx2@4ohms

60 watts RMS x 2

2 - 8 ohms

10 - 50,000 Hz.±1dB

50 dB

90 dB (A-Weighted)

low-level 10K ohms

high-level 100 ohms

Input Sensitivity:

Filter Type:

Filter Slope:

Filter Crossover:

Supply Voltage:

Fuse Rating:

Dimensions (W x H x D):

low-level 200 mv. - 2 v.

high-level 2 - 10 v.

low-pass

12 dB/octave

50 - 250 Hz. (selectable)

12 volts, negative ground

10 amps.

12-1/4" x 2" x 6-1/8"

311 mm x 50 mm x 155 mm

-1-

PRECAUTIONS

1. Although this unit is designed with built-in self-protection circuits, there may be a possibility of damage if it is not wired

correctly. Please follow the wiring instructions carefully for the type of system being used.

2. The last lead to be connected is the wire to the positive (+) terminal of the battery. Connect this wire only after having

completed and checked all other connections to the amplifier.

3. By nature of its design, a power amplifier generates heat and requires good air circulation around it to dissipate that

heat. Do not install the amplifier in an enclosed area which does not permit adequate air circulation. Should the

temperature of the unit rise too high, the internal thermal sensors will shut off operation until it has cooled down

sufficiently.

4. If fuse replacement is necessary, use only fuses of the same ampere rating as originally supplied with the unit. The

use of fuses with incorrect ratings may cause serious damage to the amplifier. If fuses blow consistently, carefully

check all electrical connections to the unit.

5. Supply of adequate battery voltage is critical to the proper operation of the power amplifier. The leads to the battery

and chassis ground must be of a thick enough gauge to provide this voltage to the amplifier. We recommend

#14 gauge wire or thicker (smaller gauge #) for the battery and ground leads.

6. Make certain that the speakers to be used with this amplifier are capable of handling the output power (wattage)

of the unit. Use of speakers not rated for the output of this amplifier may cause damage to or failure of the

speakers for which Audiovox will not be liable.

-2-

INSTALLATION INSTRUCTIONS INSTALLATION DIAGRAM

1. Select a mounting area where the amplifier will

have sufficient air circulation for proper cooling.

Inadequate air circulation will cause the temperature

of the amplifier to rise and will trigger the

thermal protection mode.

2. Place the amplifier on the mounting surface

and mark the locations of the four mounting

holes as shown in the illustration.

3. Remove the amplifier and drill a 1/8" hole at

each of the four locations.

CAUTION: Before drilling the holes, look at the

underside of the mounting surface. Always

check carefully to avoid drilling into wiring,

braces, fuel or brake lines. CHECK BEFORE

YOU DRILL !

4. Secure the amplifier to the mounting surface

using the self-tapping screws provided.

MOUNTINGSURFACE

1/8"DIA.HOLE

SELF-TAPPINGSCREW

SPLITWASHER

FLATWASHER

-3-

WIRING INSTRUCTIONS

The power and speaker wire connections for this amplifier are made via screw tightened terminal blocks. Loosen the

screw for the connection to be made and fully insert the wire (strip 1/2" of insulation from the end) into the respective

screw on the side panel (crimp-on "U" terminals are provided to simplify wiring and we recommend their use.) Tighten

the screw down to secure the wire.

1. Power Connection

The battery terminal (BATT) must be connected directly to the positive terminal of the vehicle battery to provide an

adequate voltage source and minimize noise. Connecting the battery terminal lead to any other point (such as the

fuse block) will reduce the power output and may cause noise and distortion. Use only #14 gauge or thicker (smaller

gauge #) wire for this lead and connect it to the terminal of the battery after all other wiring is completed.

2. Ground Connection

The ground terminal (GND) connection is also critical to the correct operation of the amplifier. Use a wire of the same

gauge as the power connection (#14 or thicker) and connect it between the ground terminal (GND) of the amplifier

and a metal part of the vehicle close to the mounting location. This wire should be as short as possible and any paint

or rust at the grounding point should be scraped away to provide a clean metal surface to which the end of the ground

wire can be screwed or bolted.

3. Remote Turn-On Connection

The amplifier is turned on by applying +12 volts to the remote turn-on terminal (REM). The wire lead to this terminal

should be connected to the "Auto-Antenna" lead from the car stereo which will provide the +12 volts only when the

car stereo is turned on. If the car stereo does not provide an Auto-Antenna lead, the remote turn-on lead may be wired

to an "Accessory" or "Radio" terminal in the car's fuse block. This will turn the amplifier on and off with the ignition

key, regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents,

so #20 gauge wire may be used for this application.

-4-

4. Speaker Connections

Depending on the type and number of speakers used with the amplifier, wire them to the speaker terminals as per

the appropriate wiring diagram. For most applications, #18 gauge wire should be used for the speaker leads but in

no case thinner than #20 gauge. For leads in excess of 10 feet, #16 gauge is recommended. When wiring the

speakers, pay careful attention to the polarity of the terminals on the speakers and make certain they correspond

to the polarity of the corresponding terminals on the amplifier. DO NOT ground any speaker leads to the chassis of

the vehicle.

5. Input Connections

This amplifier features both high and low-level input capability. Use either the low-level or high-level inputs, not both.

If low-level outputs are provided from the car stereo, it is recommended that the low-level inputs be used for lowest

distortion and best performance. Use good quality shielded audio cables with RCA plugs at both ends to connect

the stereo to the amplifier and keep the cable lengths to a minimum to avoid noise.

If the car stereo does not provide low-level outputs, the amplifier may be connected via the speaker (high-level)

outputs from the stereo. Wire the speaker leads from the car stereo to the 5-pin adaptor harness as shown in the

diagram (shielded cable is not required for this application) and plug the connector into the mating High-Level Input

socket on the amplifier. Carefully splice and insulate all wire connections.

CAUTION: Use either the low-level or the high-level inputs on the amplifier.

DO NOT use both input levels at the same time.

WIRING INSTRUCTIONS

-5-

INPUT WIRING DIAGRAM

-6-

5-PIN

CONNECTOR

IMPORTANT

USE EITHER HIGH-LEVEL OR

LOW-LEVEL INPUTS, NOT BOTH.

HIGH-LEVEL

(SPEAKER) OUTPUTS

CAR STEREO

USE THIS INPUT WIRING WITH

OUTPUT WIRING ON PAGE 7

RCA TYPE

SHIELDED CABLE

(NOT INCLUDED)

RIGHT+

RIGHT-

LEFT-

LEFT+

LOW-LEVEL

RCA OUTPUTS

GREEN

WHITE

GRAY

BROWN

LEFT

RIGHT

BLACK

CHASSISGROUNDONRADIO

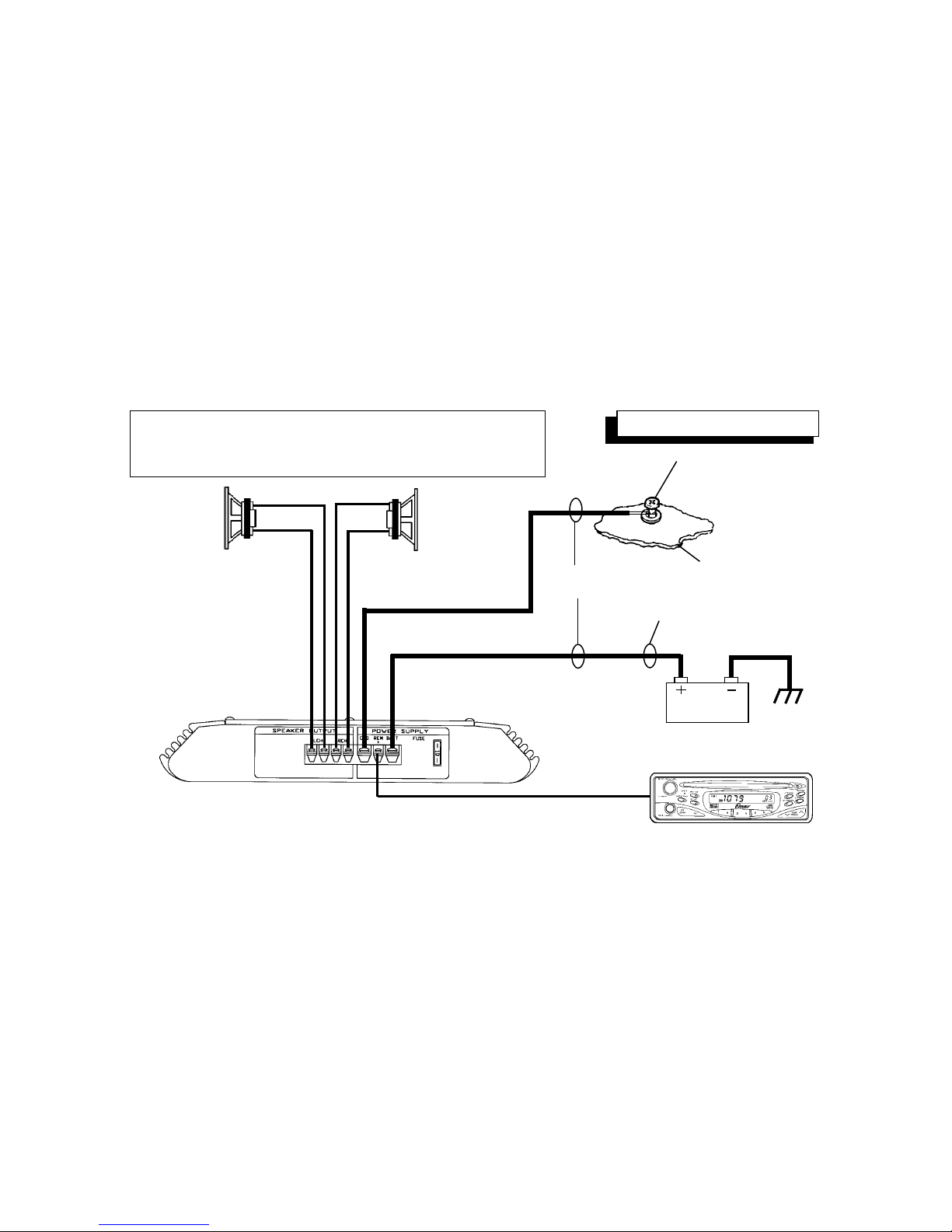

OUTPUT WIRING DIAGRAM

-7-

AUTO-ANTENNA LEAD

LEFT

SPEAKER

2 - 8 OHMS

CAR STEREO

RIGHT

SPEAKER

2 - 8 OHMS



WARNING!

THIS AMPLIFIER IS DESIGNED FOR USE WITH 2 SPEAKERS

NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 1 SPEAKER.

NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.

FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE AMPLIFIER.

-

+

USE #14 GAUGE

WIRE (SEE TEXT)

CONNECT THIS

WIRE LAST

EXISTING SCREW OR BOLT

CLEAN PAINT, RUST, DIRT

OR GREASE FROM AREA

FOR GOOD CONNECTION

GROUNDED METAL

SECTION OF VEHICLE

12 VOLT VEHICLE

BATTERY CHASSIS

GROUND

-8-

OPERATION

After initial set-up, the amplifier should not require any

further adjustment unless there is a change in the car

stereo or speaker system with which it is used.

1Power Indicator Lamps

The Power Indicator Lamps will light to indicate that

the unit is connected to the battery and that the Remote

Turn-On terminal is receiving +12 volts, thus turning

on the amplifier.

2Level (Gain) Control

The amplifier is capable of operating from sources

supplying a wide range of input levels. The Level control

should initially be set to the mid-rotation position. If it is

found that there is not enough output even when the

volume control on the car stereo is at its maximum

setting, adjust the Level control to increase the output

from the system. If, however, there is still output from the

amplifier when the car stereo volume control is at its

2341

6 5
