MUSIC MASTER 1 AND MUSIC MASTER 2
Individual Music Control
The MUSIC MASTER 1(tm) and MUSIC MASTER 2(trm) permit local control of
volume ,as well as selection of program material from up to six sources.
The MUSIC MASTER1(tm) and MUSIC MASTER 2(tm) include one 6 position
switch which allows selection of six stereo inputs, and one 12 position switch which
controls volume. The MUSIC MASTER 1 includes a 1/4" phone jack, and the MUSIC
MASTER 2(tm) includes a 1/8" phone jack. See back of this page for wiring diagram.
INSTALLATION
SPECIFICATIONS
NOTE: The MUSIC MASTER(tm) should only be used with receivers that have common
grounds.
Mount the unit in a convenient location, where the user will have easy access to the
control knobs. Connect the wires according to the wiring diagram on the reverse side of
this sheet.
AUDIOPLEX TECHNOLOGY
404 GWH P.O. Box 440
MELVIN VILLAGE, N.H. 03850
1-800-257-2077 in NH: 1-603-544-8601
Fax: 1-603-544-8901
E-MAIL: s[email protected]
Switches: One six position rotary source
selector.
One twelve position rotary volume
control.
Jack: 1/4" phone jack on MM1
1/8" phone jack on MM 2
Size: 5"W x 2"H x 3"D
TECHNOLOGY
CAUTION!.....In some cases, switching sources may cause the amplifier protection circuitry
to turn off the amplifiers, depending on the brand of amplifiers used. If this occurs, you need
to insert an 8 Ohm-20 Watt power resistor on each amplifier's left and right output. If these
resistors are not available in your area, they can be ordered directly from us.
INSTALLATION MANUAL
1999 - 4/29/99
WARRANTY
Your AUDIOPLEX TECHNOLOGY MUSIC MASTER(tm) is covered by a Lifetime warranty against
any defects in workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or accident is not considered to be a defect, and not covered by this warranty.
AUDIOPLEX TECHNOLOGY is not responsible for defective operation caused by abuse or by modification
or service by an unauthorized person or agency.
The unit must be properly installed and operated according to instructions for the warranty to apply.
Any necessary servicing must be done by AUDIOPLEX TECHNOLOGY. The products must be returned
expenses prepaid, with written authorization from the company. The unit must be shipped with proof of
purchase and in original carton and packing material to avoid damage.
This warranty gives you specific legal rights. You may have other rights which vary from state to
state.

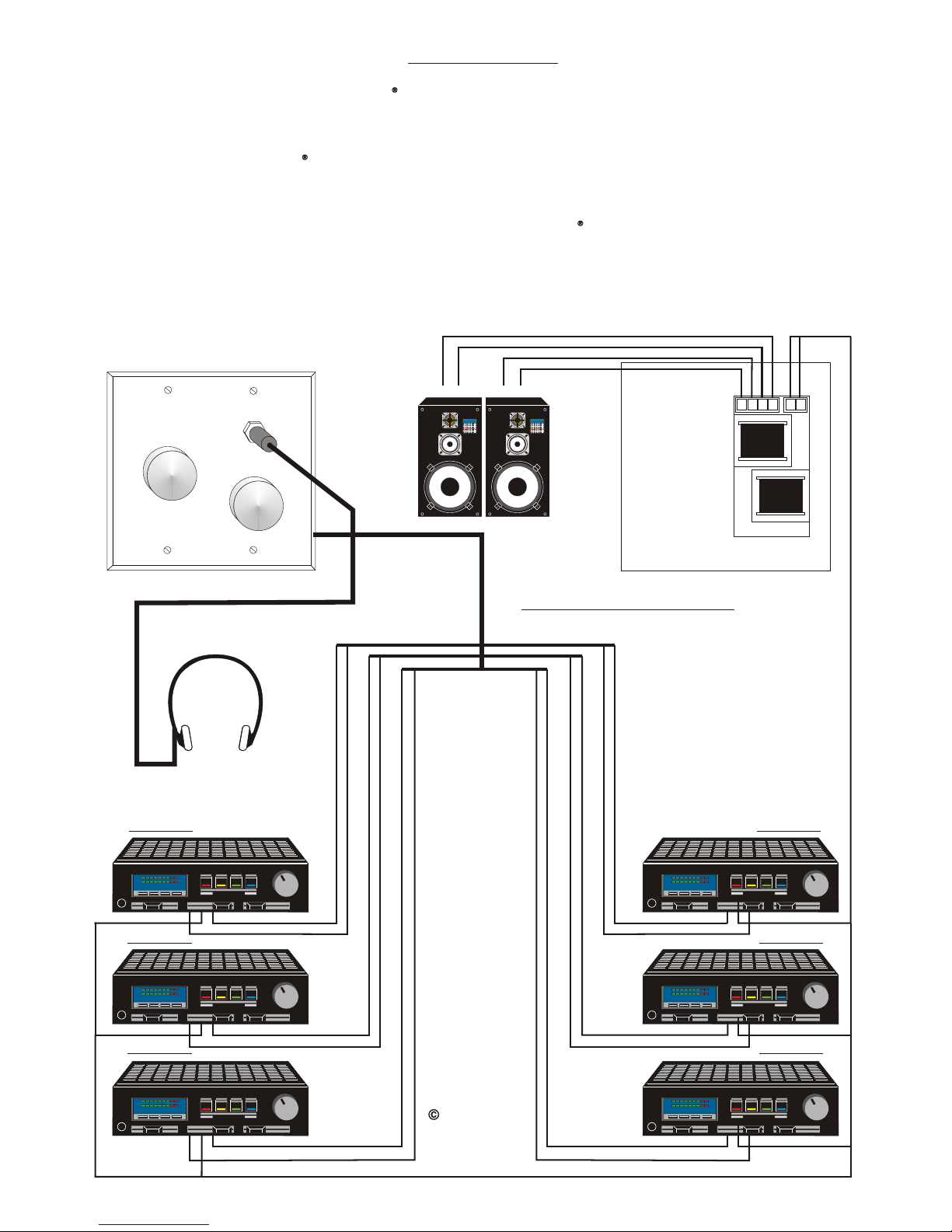

SOURCE 1
SOURCE 2
SOURCE 3 SOURCE 4
SOURCE 5
SOURCE 6
RIGHT-BLUE
LEFT-BLUE/WHITE
RIGHT-GREEN
LEFT-GREEN/WHITE
RIGHT-ORANGE
LEFT-ORANGE/WHITE
RIGHT-WHITE
LEFT-WHITE/BLACK
RIGHT-RED
LEFT-RED\WHITE
RIGHT-BLUE/BLACK
LEFT-BLACK/WHITE
GROUND-BLACK
L G R L G R
L G R
L G RL G R
L G R
WIRING DIAGRAM
1999 - 4/29/99
INW-MM-1 & INW-MM-2
Individual Music Control
The INW-MM-1 and INW-MM-2 permit local control of volume, as well as selection
of program material from up to six sources.
The INW-MM-1 and INW-MM-2 include one 6 position switch which allows
selection of six stereo inputs, and one 12 position switch which controls volume. The
INW-MM-1 includes a 1/4" phone jack, and the INW-MM-2 includes a 1/8" phone jack. See
back of this page for wiring diagram.
INSTALLATION
SPECIFICATIONS
NOTE: The INW-MM-1 & INW-MM-2 should only be used with receivers that have
common grounds.
Mount the unit in a convenient location, where the user will have easy access to the
control knobs. Connect the wires according to the wiring diagram on the reverse side of
this sheet.
AUDIOPLEX TECHNOLOGY
404 GWH P.O. Box 440
MELVIN VILLAGE, N.H. 03850
1-800-257-2077 in NH: 1-603-544-8601
Fax: 1-603-544-8901
E-MAIL: s[email protected]
Switches: One six position rotary source
selector.
One twelve position rotary volume
control.
Jack: 1/4" phone jack on INW-MM-1
1/8" phone jack on INW-MM-2
Size: 5"W x 2"H x 3"D
CAUTION!........In some cases, switching sources may cause the amplifier protection circuitry to turn off
the amplifiers, depending on the brand of amplifiers used. If this occurs, you need to insert an 8 Ohm-
20 Watt power resistor on each amplifier's left and right output. If these resistors are not available in your
area, they can be ordered directly from us.
TECHNOLOGY
INSTALLATION MANUAL
1999 - 4/29/99
WARRANTY
Your AUDIOPLEX TECHNOLOGY INW-MM-1 & INW-MM-2 is covered by a Lifetime warranty against
any defects in workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or accident is not considered to be a defect, and not covered by this warranty.
AUDIOPLEX TECHNOLOGY is not responsible for defective operation caused by abuse or by modification
or service by an unauthorized person or agency.
The unit must be properly installed and operated according to instructions for the warranty to apply.
Any necessary servicing must be done by AUDIOPLEX TECHNOLOGY. The products must be returned
expenses prepaid, with written authorization from the company. The unit must be shipped with proof of
purchase and in original carton and packing material to avoid damage.
This warranty gives you specific legal rights. You may have other rights which vary from state to
state.
SOURCE 1
SOURCE 2
SOURCE 3 SOURCE 4
SOURCE 5
SOURCE 6
RIGHT-BLUE
LEFT-BLUE/WHITE
RIGHT-GREEN
LEFT-GREEN/WHITE
RIGHT-ORANGE
LEFT-ORANGE/WHITE
RIGHT-WHITE
LEFT-WHITE/BLACK
RIGHT-RED
LEFT-RED\WHITE
RIGHT-BLUE/BLACK
LEFT-BLACK/WHITE
GROUND-BLACK
L G R L G R
L G R
L G RL G R
L G R
WIRING DIAGRAM
VOLUME
SOURCE
1
2
56
34
1999 - 4/29/99
L+ R- R-L- L-R+
R+ R- L- L+
