Audio Technica ATW-1811 Instruction manuelle

wireless

1800 Series

Camera-mount UHF Wireless

Microphone Systems (single-channel)

ATW-

1811

UniPak™Body-pack Transmitter System

ATW-

1812

Plug-on Transmitter System

ATW-

1813

Plug-on and Body-pack Transmitter System

Set-up and Operation

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210.

Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference

received, including interference which may cause undesired operation. Changes or modifications not expressly approved by Audio-Technica could

void your authority to operate this equipment.

Notice to individuals with implanted cardiac pacemakers or AICD devices:

Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have

low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away.

However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket

where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting

source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the

use of this or any other RF equipment.

CAUTION! The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal

regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation.

Warning: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

Attention: Pour prévenir feu ou choc électrique, ne pas exposé l'appareil à la pluie ou à l'humidité.

About RF Interference

Please note that wireless frequencies are shared with other radio services. According to Federal Communications Commission regulations,

“Wireless microphone operations are unprotected from interference from other licensed operations in the band. If any interference is received

by any Government or non-Government operation, the wireless microphone must cease operation...”

If you need help with operation or frequency selection, please contact your local dealer or Audio-Technica. Extensive wireless information

also is available at www.audio-technica.com.

Contents

Components and System Configurations 3

System Features 4

Quick Overview of System Operation 5

Receiver Controls 6

Operating the Receiver 9

Transmitter Controls 10

Operating the Transmitter 11

Tips for Best Results 13

Available Accessories 14

Specifications 15

Warranty 16

1800 Series Components (single-channel)

Receiver and Included Components/Accessories

AT W -1813

Camera-mount UHF Wireless

Microphone System (single-channel)

with Body-pack and Plug-on Transmitters

ATW-R1810

Single-channel receiver

Two detachable

antennas

18" output cable,

TA3F to XLRM

Pouch with belt clip

(holds receiver)

Transmitters

ATW-T1801

UniPak™ transmitter with included omnidirectional lavalier microphone

ATW-T1802

Plug-on transmitter

AT W -1811

Camera-mount UHF Wireless

Microphone System (single-channel)

with Body-pack Transmitter

AT W -1812

Camera-mount UHF Wireless

Microphone System (single-channel)

with Plug-on Transmitter

System Configurations

Note: All model numbers have an additional letter at the end to indicate frequency band.

System Features (single-channel)

• True Diversity operation for resistance to multi-path interference and dropouts

• UHF reception with 996 frequencies selectable in 25 kHz steps

• Automatic frequency scanning for easy selection of open channels

• Tone Lock™squelch system eliminates interference when transmitter is off

• Balanced output on receiver allows connection to a balanced microphone-level

input on camera, mixer or amplifier

• Headphone monitor output with independent level control

• Battery fuel-level indicators on transmitters and receiver

• Soft-touch controls for easy frequency selection

• LCD frequency and battery status display with backlight on receiver and

transmitters

• Antenna and AF Peak LED indicators

• Compact receiver ideal for on-camera use

• Transmitters operate in low or high transmission modes to conserve battery

life/maximize power

• Easy, user-friendly operation

• Clear, natural sound quality

• Powered by AA batteries or external 12V DC power (not included)

• System components of the 1800 Series and 3000 Series UHF Wireless Systems

can be used interchangeably*

* NOTE: The 1800 Series offers operating frequencies in 25 kHz steps, while the 3000 Series

offers operating frequencies in 125 kHz steps. This means that not every frequency

selectable on the 1800 Series components will be selectable on the 3000 Series components.

Set each transmitter-receiver pair to identical frequencies.

Quick Overview of System Operation

Thank you for purchasing this Audio-Technica 1800 Series Single-channel Camera-mount

UHF Wireless Microphone System. All 1800 Series Single-channel systems are designed

primarily to be used with video cameras, with the ATW-R1810 Receiver mounted on a camera

and connected to the camera's audio input; they may also be used with other components

equipped with microphone-level input.

First, insert batteries. (See Receiver Battery Installation, page 8.) Note: The ATW-R1810

Single-channel Receiver also functions without batteries if connected to an external

power supply (12V DC source, 500 mA nominal current, not included).

Next, attach the antennas to the antenna input jacks, and mount the ATW-R1810 Receiver to

your camera (mounting hardware not included); or use the included pouch with belt clip to

attach the ATW-R1810 to your belt. Connect the output cable to the ATW-R1810 and your video

camera (or audio mixer). (See Output callout, page 7).

Turn the ATW-R1810 on: Press and hold the Power/Set button until the Power LED lights red.

Select an operating frequency. (See Selecting Frequencies on your Receiver, page 9.)

NOTE: Transmitter-Receiver pairs must be set to identical frequencies.

IF your system is equipped with a UniPak™Body-pack Transmitter and lavalier microphone:

Plug the included lavalier microphone into the UniPak™body-pack transmitter and position

microphone on your subject about six inches below the chin. Anticipate movements that may

cause the microphone to rub against or be covered by clothing, and position the microphone to

avoid it. Turn the power on (See Operating the Transmitter, page 11). Select a frequency and

choose other settings. (See Operating the Transmitter and How to Set Frequencies on your

Transmitter, page 11.)

IF your system is equipped with a Plug-on Transmitter: Attach a microphone (dynamic or

condenser) to the Plug-on Transmitter's input connector (See Microphone Input, page, 10 ).

Turn the power on (See Operating the Transmitter, page 11 ). Select a frequency and choose

other settings. (See Operating the Transmitter and How to Set Frequencies on your Transmitter,

page 11.)

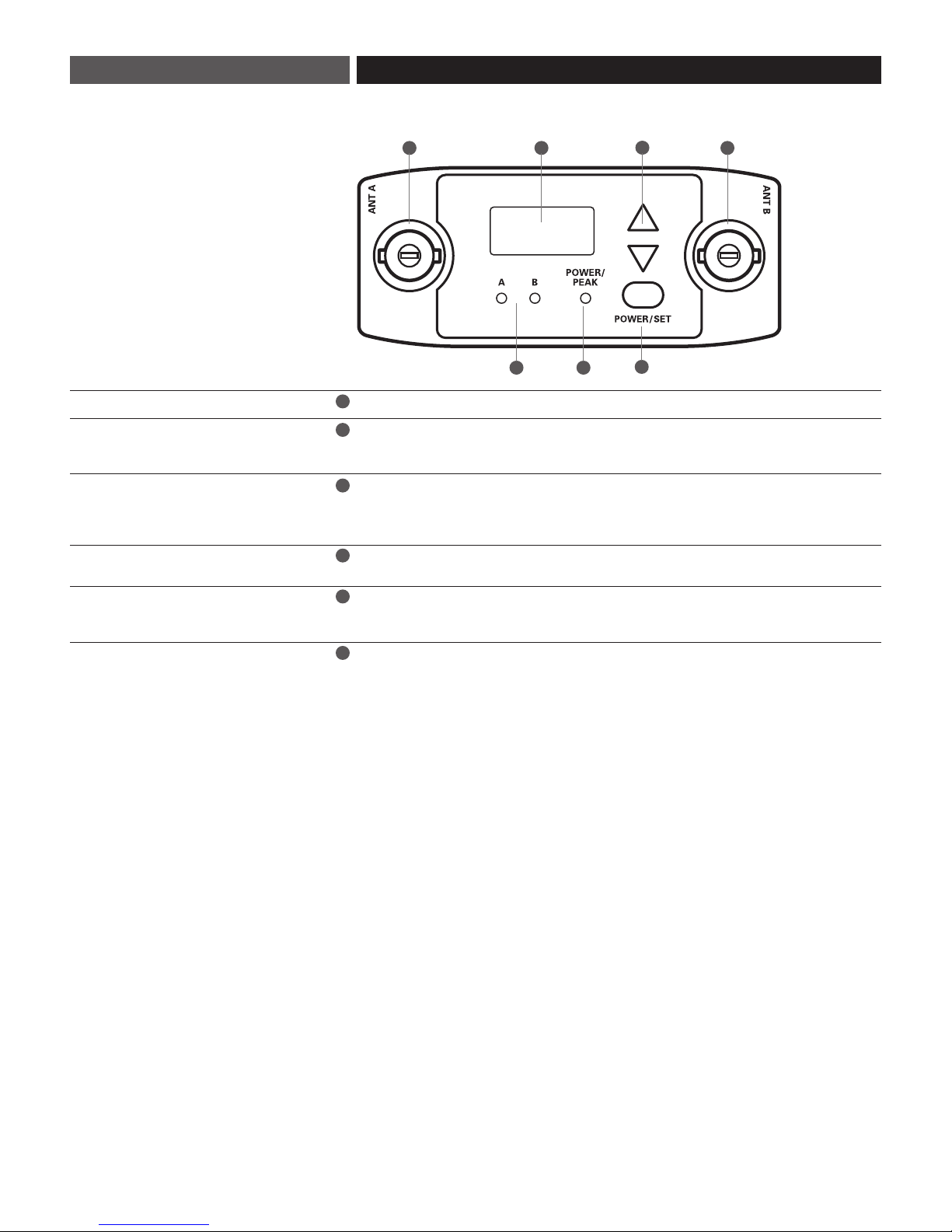

ATW-R1810 Single-channel Receiver Controls (front panel)

Liquid Crystal Display shows battery status and frequency settings.

BNC-type antenna connectors. Attach the antennas to the antenna input jacks. Make certain

that during operation there is a clear open-air path between the receiver antennas and the

transmitters.

True Diversity operation: two antennas feed two completely independent RF sections on the

same frequency; automatic logic circuitry selects the superior signal.

Diversity Indicators A and B show which tuner has the better reception and is in operation.

Turns the unit on and off. Use with the Up/Down arrows to choose operating frequencies

manually or automatically (using your choice of three automatic scan groups).

Indicates when the unit is on. Also indicates receiver overload by turning off; too much signal

will cause blinking LED (off during peaks). To correct overload, adjust audio gain on transmitter.

(See Audio Input Level (Gain) Adjustments on your transmitter, page 12.)

Press Up or Down arrows, in conjunction with the Power/Set button, to choose operating

frequencies manually or automatically (using your choice of three automatic scan groups).

LCD

Antenna Input Jacks

Diversity Indicators

Power / Set Button

Power/Peak LED

Up/Down Arrows

Output

Receiver Level Control

Monitor Level Control

DC Input

Monitor Output

(rear panel)

Balanced Audio Output Jack: TA3M-type connector. Pin 1: ground (shield); Pin 2: “audio +”;

Pin 3: “audio –”. A standard 2-conductor shielded cable can be used to connect the receiver

output to a balanced microphone-level input on a camera, mixer or integrated amplifier.

Controls the output level of the receiver. Turn clockwise to increase output level.

The level control (volume control) for headphones is independent of other level controls. Turn to

the right to increase output (turn up the volume).

You may connect the unit to an external power supply (12V DC source, 500 mA nominal

current, not included.)

3.5 mm TRS headphone jack.

1110 8

PIN 1 PIN 3

PIN 2

ATW-R1810 Single-channel Receiver Batteries

Each ATW-R1810 Single-channel Receiver uses four 1.5V AA batteries, not included. Alkaline

type is recommended. Always replace all batteries. Make certain the receiver power is Off

before replacing batteries. Note: The ATW-R1810 receiver also functions without batteries

if connected to an external power supply (12V DC source, 500 mA nominal current,

not included).

1. Open the battery compartment door by pushing the catch back.

2. Observe correct polarity as marked and carefully insert four fresh 1.5V AA alkaline batteries

(see above).

3. Replace the door, making certain the latch clicks securely in place.

After the batteries are installed, turn the power on. The small red power-on LED (see a at left)

should light and the LCD window should come on. If this does not happen, the batteries are

installed incorrectly or they are dead.

The receiver's “fuel gauge” battery indicator (see b at left) displays a maximum of four bar

segments. When LCD flashes LOW.BAT, the batteries should be replaced immediately to

ensure continued operation.

Battery Selection

Battery Installation

Battery Condition Indicator

Operating the Receiver

NOTE: Transmitter-Receiver pairs must be set to identical frequencies.

Overview…

1. To turn the receiver on, press and hold the Power/Set button until the Power LED lights, and

the LCD window comes on (about 2-3 seconds). The operating frequency will show in the

window after the power-up sequence.

2. Press the Power/Set button to enter the Frequency Selection Menu mode; the word

“MENU” will appear in the upper left corner of the LCD window.

3. Use the Up/Down arrows to cycle through functions:

– first arrow up is Automatic Scan Group 1;

– second arrow up is Automatic Scan Group 2;

– third arrow up is Automatic Scan Group 3;

– fourth arrow up is Quit, allowing exit from Menu mode.

1. Press Power/Set button to enter Menu mode. The word “MENU” will appear in the upper

left corner of the LCD window. The current frequency will be displayed in the LCD window.

Press Power/Set button and frequency will begin to flash and the word “EDIT” will appear

above the frequency display; use up and down arrows to adjust the frequency. Frequency

changes in 25k steps. To increase scroll speed, hold the up or down arrow for more than

4 seconds.

2. When you arrive at desired frequency, press and hold the Power/Set button until the word

“STORED” appears. Frequency (which appears on the screen) is now set.

3. To “back out” of the Manual Frequency Set mode without making a frequency choice,

simply press the Power/Set button once to exit the menu. The word “ESCAPE” will appear

in the window, and no changes in frequency setting will be made; the receiver's audio

output will again be enabled.

1. Press the Power/Set button to enter the Frequency Selection Menu mode; the word

“Menu” will appear in the upper left corner of the LCD window.

2. Use the Up or Down arrow to reach Scan 1, Scan 2, or Scan 3. Press the Power/Set button

once to select one of these three Scan groups. The word “SCAN1”, “SCAN2” or “SCAN3”

will flash in the LCD window.

3. Press the Up or Down arrow to begin the scan. Press the Up arrow to scan up from the

lowest frequency in the group; press the Down arrow to scan down from the highest

frequency in the group

4. The first available frequency will flash in the LCD window. To activate this frequency

selection, press and hold the Power/Set button until the word “STORED” appears in the LCD

window.

5. If you do not wish to use the frequency found, you may press the Up or Down arrow. The Up

arrow with scan upwards, the Down arrow will scan downwards, from the frequency you are on.

6. To “back out” without making a frequency choice, simply press the Power/Set button once

to exit the menu. The word “ESCAPE” will appear in the window, and no changes in frequency

setting will be made; the receiver's audio output will again be enabled.

Selecting Frequencies

on your Receiver

Setting Receiver Frequency Manually

Using the Automatic Scan Function

to Set Receiver Frequency

Antenna

Power-on LED

LCD

Audio Input Jack

Microphone Input

Power/Mute Button

Up/Down Arrows

Set Button

Sliding Control Cover

(3-position)

Sliding Control Cover

Battery Door

Mounting Clip

AT W -T1801 UniPak™Body-pack &

AT W -T1802 Plug-on Transmitter Controls

The ATW-T1801 UniPak™body-pack transmitter includes a field-replaceable flexible antenna. For

best results, allow the antenna to hang freely and full length from the bottom of the transmitter.

If the received signal is marginal, experiment with different transmitter positions or try reposi-

tioning the receiver. Since the transmitter antenna simply screws in, check to make certain it is

snugly attached (finger-tight). Do not change the length of the transmitting antenna.

Green light indicates power is on and un-muted; red light indicates that audio is muted.

The light will blink when the batteries are low.

Liquid Crystal Display presents setup and operating information. The LCD in the transmitters is

designed for greatest contrast and best viewing with the window rotated somewhat away from

the viewer (about 30 degrees), not straight-on, for a more convenient holding/viewing

position. The display is illuminated with a backlight when you press Set to access transmitter

functions. The backlight will automatically turn off within a set period of time.

Connect an audio input device (microphone or guitar cable) to the audio input jack on the bottom

of the ATW-T1801 UniPak™Body-pack Transmitter. A number of Audio -Technica professional

microphones and cables are available separately, pre-terminated with a compatible input

connector (see page 14 ). The cable connector latches automatically when inserted into the

transmitter jack. To unlatch and remove the connector, pull up on the connector’s knurled

metal collar.

The ATW-T1802 plug-on transmitter has a 3-pin XLRF-type input connector with a locking collar.

Use either a dynamic or a condenser microphone. The transmitter provides power to condenser

microphones rated to operate on 12V phantom power or less. To attach the microphone, rotate

the threaded locking collar fully clockwise (“down”) until it reaches the transmitter housing (see

aat right). Press the microphone and transmitter together (see bat right ). Rotate the thread-

ed collar “up” until it is firmly against the end of the mic (see cat right). Make certain the mic

is securely attached before use. To detach the microphone, reverse the steps above. Always

loosen the threaded collar fully before attempting to disconnect the mic.

For on/off and mute functions.

Press Up or Down arrows, in conjunction with the Set button, to choose operating frequencies

and access transmitter functions.

Use in conjunction with the Up/Down arrows, to choose operating frequencies and access

transmitter functions.

This 3-position sliding cover on the body-pack transmitter’s control panel prevents accidental

shut-off or channel-switching.

This sliding cover on the plug-on transmitter’s control panel helps to prevent accidental shut-off

or channel-switching.

Open by sliding the catch down (on body-pack) or pushing in direction of arrow (on plug-on transmitter).

The ATW-T1801 UniPak™transmitter’s mounting clip may be installed with the case positioned

either “up” or “down,” depending upon which is preferred for the application. To turn the clip

around, spring the ends of the clip out of the two holes on the sides of the transmitter case and

reinstall it facing in the opposite direction.

POWER/MUTE

SET

POWER

MUTE

SET

ATW-T1801 UHF TRANSMITTER

abc

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audio Technica Système de microphone

Audio Technica

Audio Technica 1800 Series Instruction manuelle

Audio Technica

Audio Technica 700 Series Mode d'emploi

Audio Technica

Audio Technica 6000 Series Manuel utilisateur

Audio Technica

Audio Technica ATW-1701 Manuel

Audio Technica

Audio Technica ATW-1951 Manuel du propriétaire

Audio Technica

Audio Technica ATW-701/G Instructions d'utilisation et d'installation

Audio Technica

Audio Technica ATW-R3210N Manuel utilisateur

Audio Technica

Audio Technica ATW-601 Manuel du propriétaire

Audio Technica

Audio Technica ATW-1101 Manuel du propriétaire

Audio Technica

Audio Technica ATW-0951 Manuel du propriétaire

Audio Technica

Audio Technica ATW-U101 Manuel du propriétaire

Audio Technica

Audio Technica ATW-BH1 Manuel du propriétaire

Audio Technica

Audio Technica ATW-A20 Manuel du propriétaire

Audio Technica

Audio Technica ATW-702 Manuel du propriétaire

Audio Technica

Audio Technica ATW-49CB Manuel du propriétaire

Audio Technica

Audio Technica JFZT5000D Manuel utilisateur

Audio Technica

Audio Technica ATW-600 Manuel d'utilisation

Audio Technica

Audio Technica 1800 Series Instruction manuelle

Audio Technica

Audio Technica GENUINE AT8688 Manuel utilisateur

Audio Technica

Audio Technica 200 Series Manuel du propriétaire

Audio Technica

Audio Technica ATW-3110A Manuel du propriétaire

Audio Technica

Audio Technica Pro Series 5 Manuel du propriétaire

Audio Technica

Audio Technica UniPak ATW-1661 Manuel du propriétaire

Audio Technica

Audio Technica ATW-1235 Manuel du propriétaire

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
