AT-LP3XBT
Automatic Wireless Turntable
User Manual
English
4
Notes on use
Turntable body
Do not set and use the product in locations that are considerably hot or humid, dirty, or subject to extreme vibrations.
The product should be positioned on a flat, level surface.
When closing the dust cover, close it completely.
When using this product with a Bluetooth device connected to it, be sure to also read the user manual for the
Bluetooth device.
Cartridge
Attach the provided protector to the cartridge when the product is not in use.
Do not touch the stylus of the cartridge with your finger.
Do not allow the stylus to bump against the platter, felt mat, or edge of the record.
5
Package contents
Make sure that you have all the included items before using this product.
If some items are missing or damaged, contact your local Audio-Technica dealer.
After purchase, we suggest that you save all packaging materials for possible future storage, moving, or shipping.
1
89 10
7
6
3
4 5
2
11
12 13
1
Turntable body
2
Platter
3
Drive belt
4
Dust cover
5
Felt mat
6
Dust cover hinges
Package contents
6
7
Headshell (AT-HS3 BK) with VM stereo cartridge (AT-VM95C)
8
Counterweight
9
45 RPM adapter
10
AC Adapter
11
RCA audio cable (Approx. 1.0 m (3.3'))
12
Quick Start Guide
13
Caution Guide
7
Part names and functions
Top view
1
5
7
2
4
10
9
3
6
8
1
45 RPM adapter (shown in receptacle)
Select the platter speed (33-1/3 or 45 RPM).
2
Felt mat
3
Spindle
4
Drive belt
5
Motor pulley (brass-colored)
6
Bluetooth indicator LED
Indicates the Bluetooth connection status with solidly lit or flashing light.
7
Wireless function button
Use to connect this product to a Bluetooth device.
8
Platter
9
Tonearm
10
Size selector
Switch between 12" and 7", according to the size of the record.
Part names and functions
8
Front view
1 2 3
1
Platter speed button
Selects the platter speed (33-1/3 or 45 RPM).
2
START button
Spins the platter and moves the tonearm.
3
STOP button
Returns the tonearm to its original position and stops the platter.
Rear view
1 12 23 4 5 6
1
Dust cover hinge holders
Attachment points for dust cover hinges.
2
Feet
Adjust the level of the product.
3
Pre-amplifier selector switch
If connecting to an amplifier’s PHONO input jack, set this switch to the PHONO position. If connecting to the AUX
jack of an amplifier, set this switch to the LINE position.
4
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier’s PHONO input jack or its line input jack. The red
terminal is the right channel and the white terminal is the left channel.
Part names and functions
9
5
Ground (earth) terminal
Connect the amplifier’s ground (earth) terminal to this terminal using the RCA audio cable’s ground line.
6
Power input jack
Connect the AC adapter.
Tonearm
1
5
7
2
4
3
6
8
9
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting
the same values for anti-skate and the tracking force.
4
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
Part names and functions
10
5
Tonearm lift control lever
Operates the tonearm lift.
6
Tonearm rest
7
Tonearm
8
Locking ring
Rotate the ring to the left (counterclockwise) to secure the headshell. To remove the headshell, rotate the ring to the
right.
9
Headshell and cartridge
The cartridge is attached to the headshell.
11
Preparation for use

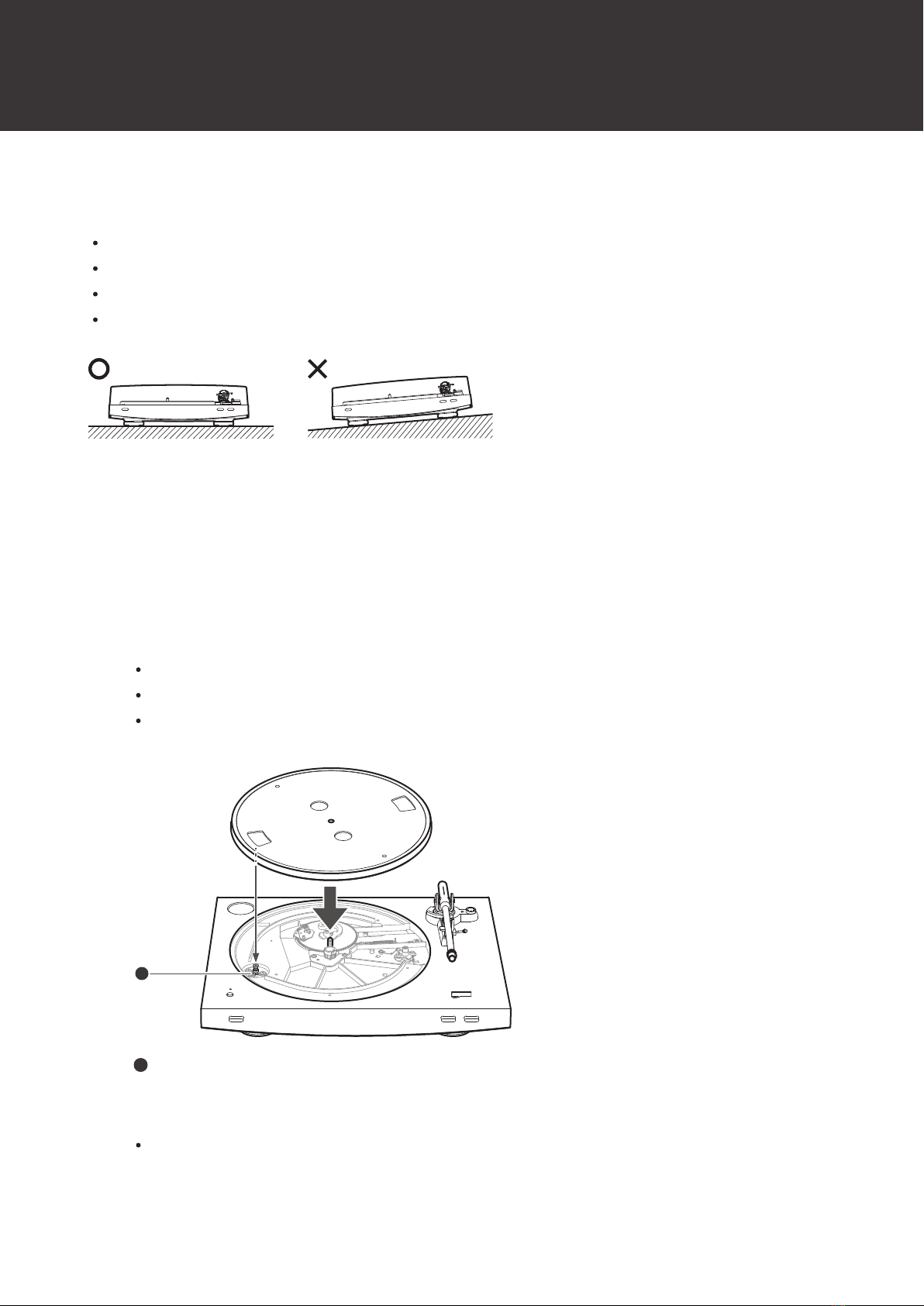

Setting up the turntable
Position the product on a level surface.
To avoid the effects of vibrations and acoustic pressure, do not mount the product next to such items as speakers.
The product may pick up radio static if placed next to a radio. Therefore, try to keep the product away from radios.
If the product is near equipment (cell phone, etc.) that emits strong radio waves, noise may occur.
Placing the platter and the felt mat
This product requires some assembly before using it for the first time. Do not connect the AC adapter until assembly is
complete.
1Set the platter on the spindle.
Make certain that the platter is fully seated on the spindle.
Align one of the openings with the position of the motor pulley (brass-colored) (See the diagram below).
To avoid damaging the spindle when seating the platter, align the positions of the spindle and the platter’s
hole, and then slowly seat the platter.
1
1
Motor pulley (brass-colored)

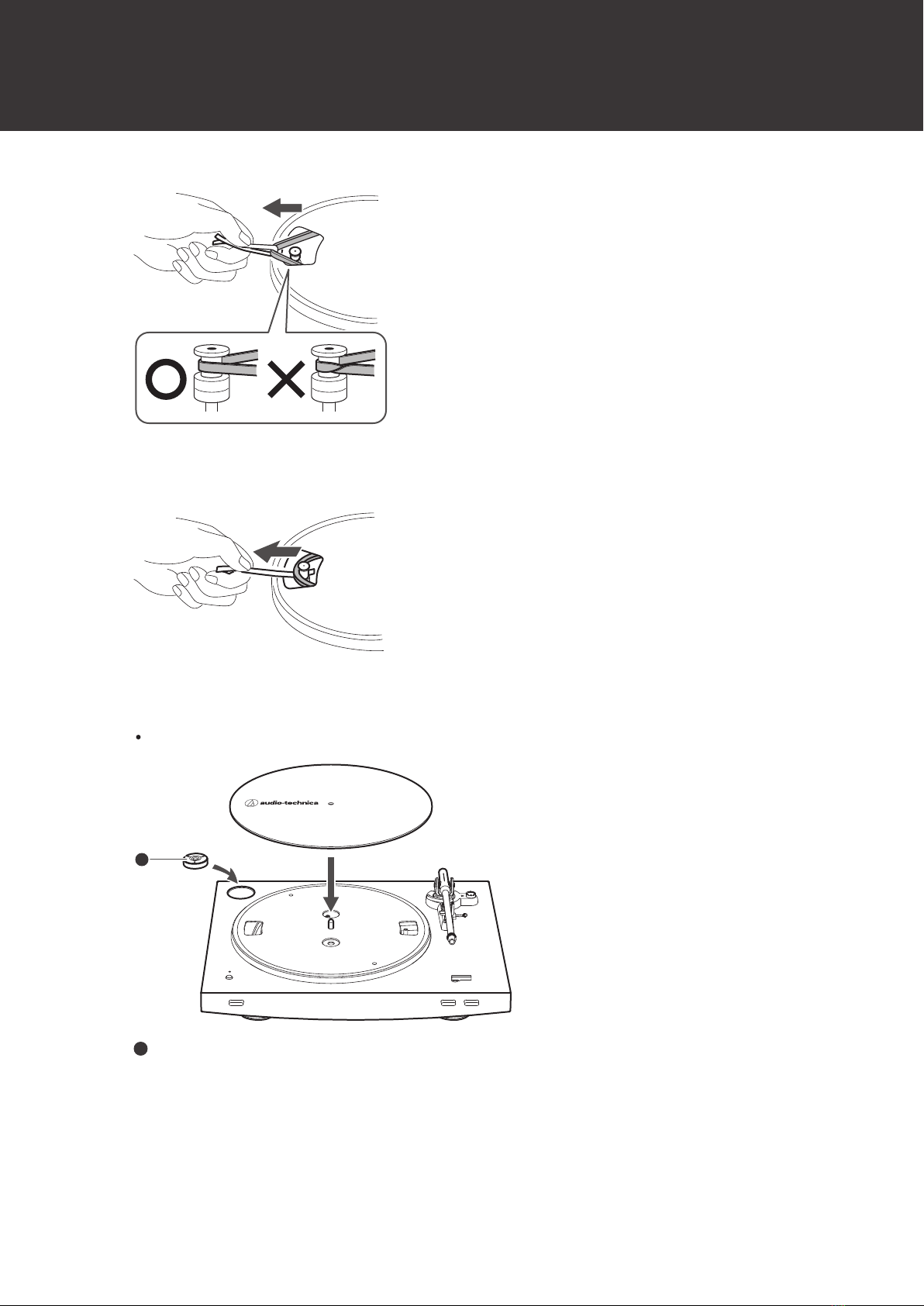

2Attach the drive belt to the motor pulley (brass-colored).
Align one of the platter openings with the brass motor pulley, and, while pulling both ends of the red ribbon
that comes attached to the belt, place the belt on the motor pulley, as per the diagram. When doing this, be
careful not to twist the belt.
Preparation for use
12
3Remove the red ribbon from the belt.
4Set the felt mat on the platter.
After setting the felt mat, put the 45 RPM adapter into the space made for it on the upper left.
1
1
45 RPM adapter
