Aube Technologies TI073-3W Manuel utilisateur

www.aubetech.com 1-800-831-AUBE

TI073-3W

SwitcheS

For Lights

3year

warranty

Do-it-yourself installation and both

the ﬂexibility of 7-day programming

and the convenience of automatic

sunset / sunrise activation

MODEL & RATINGS

TI073-3W 500 W max./ 40 W min. 120 V, 60 Hz 4 A (R)

SPECIFICATIONS

PROGRAMMING

7-day programming, up to 42 events

Solar timetable can be used simultaneously

with daily programs*

OPERATING MODES

Manual (conventional on/off switch)

Automatic

Random

CONNECTION

Single pole (2 wire) or multiswitch (3-way)

DIMENSIONS (H•W•D)

68 x 43 x 43 mm / 2.7 x 1.7 x 1.7 inches

INSTALLATION

FEATURES

Sleek design mounts ﬂush with wallplate

Works with incandescent, halogen and

ﬂuorescent lighting (compatible with

electronic ballasts)

Large white backlit display with a night light

mode option for easy reading in dark areas

Conﬁrmation LED for at-a-glance load status

(on or off)

Random mode activates lights randomly to

simulate a presence when away from home

Easy intuitive 3-button interface – no door to open

Automatic daylight savings – no need to

reprogram

Hidden lock feature prevents tampering without

requiring costly security cover

PROGRAMMING

Up to 21 programs (21 on/off times) per week.

A program can apply to a single day or repeat

every day. Sunset/sunrise times are calculated

automatically every day. *For each day of the

week, the user can choose: sunset /sunrise

programming or their own on/off time, or one

of each (e.g. sunset and midnight).

3-WAY SWITCH

3-Way (Yellow)

Load (Black)

Red

Black

Jumper

Line (Black)

Ground (Green)

3-way installation shown

www.aubetech.com 1-800-831-AUBE

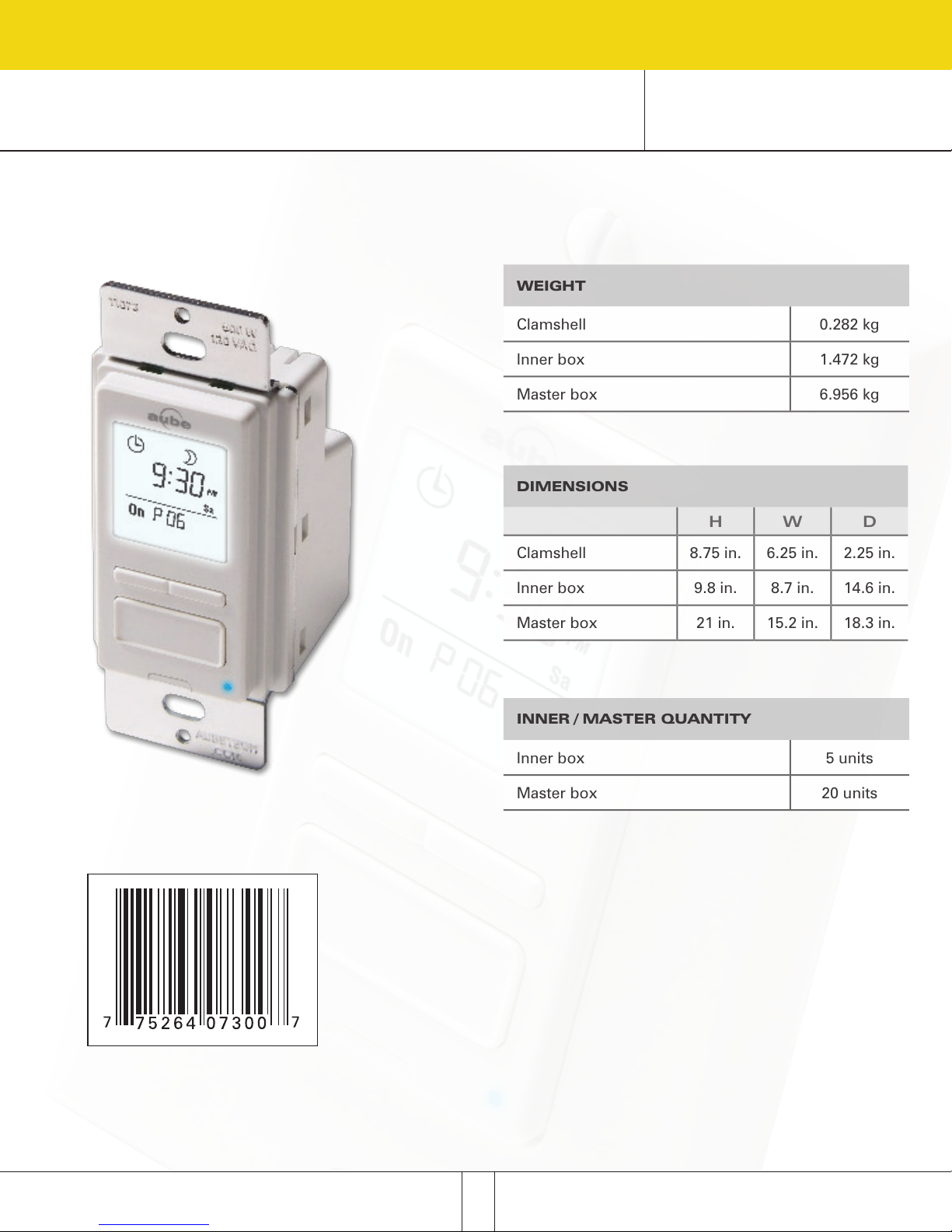

TI073-3W

WEIGHT

Clamshell 0.282 kg

Inner box 1.472 kg

Master box 6.956 kg

Dimensions

HWD

Clamshell 8.75 in. 6.25 in. 2.25 in.

Inner box 9.8 in. 8.7 in. 14.6 in.

Master box 21 in. 15.2 in. 18.3 in.

INNER / MASTER QUANTITY

Inner box 5 units

Master box 20 units

SPECIFICATIONS

PRODUCT

SwitcheS

67-6503 CB March 2009
