Atmel SAM9753PIA-DK Manuel utilisateur

SAM9753PIA-DK

..............................................................................................

User Guide

SAM9753PIA-DK User Guide i

2661A–DRMSD–07/02

Table of Contents

Section 1

Connecting the SAM9753PIA-DK......................................................... 1-1

1.1 Introduction ...............................................................................................1-1

1.2 Connection Instructions.............................................................................1-1

1.3 Visualization of SAM9753PIA-DK .............................................................1-2

1.4 View of SAM9753PIA-DK Pedal Pinout ....................................................1-3

1.5 View of SAM9753PIA-DK Front Panel......................................................1-4

1.6 Implementation .........................................................................................1-5

Section 2

Atmel Dream Sales Contacts................................................................ 2-1

2.1 Europe ......................................................................................................2-1

2.2 Asia ...........................................................................................................2-1

2.3 USA and the Rest of the World.................................................................2-1

Table of Contents

ii SAM9753PIA-DK User Guide

2661A–DRMSD–07/02

SAM9753PIA-DK User Guide 1-1

Rev. 2661A–DRMSD–06/02

Section 1

Connecting the SAM9753PIA-DK

1.1 Introduction The SAM9753PIA-DK is a high quality evaluation board based on the SAM9753 Inte-

grated Digital Musical Instrument and dedicated to digital piano and keyboard

instruments. (See Figure 1-1.)

1.2 Connection

Instructions

Connect the front panel to the main board

Connect the main board to a FATAR TPxx common anode keyboard.

Connect the main board to the pedal (see Figure 1-2 for pinout).

Connect the main board audio outputs to the line level inputs of a mixer or a stereo

sound system.

Connect the main board to a 9 to 12V DC power supply (- to tip, + to ring).

Connecting the SAM9753PIA-DK

1-2 SAM9753PIA-DK User Guide

2661A–DRMSD–06/02

1.3 Visualization of

SAM9753PIA-DK

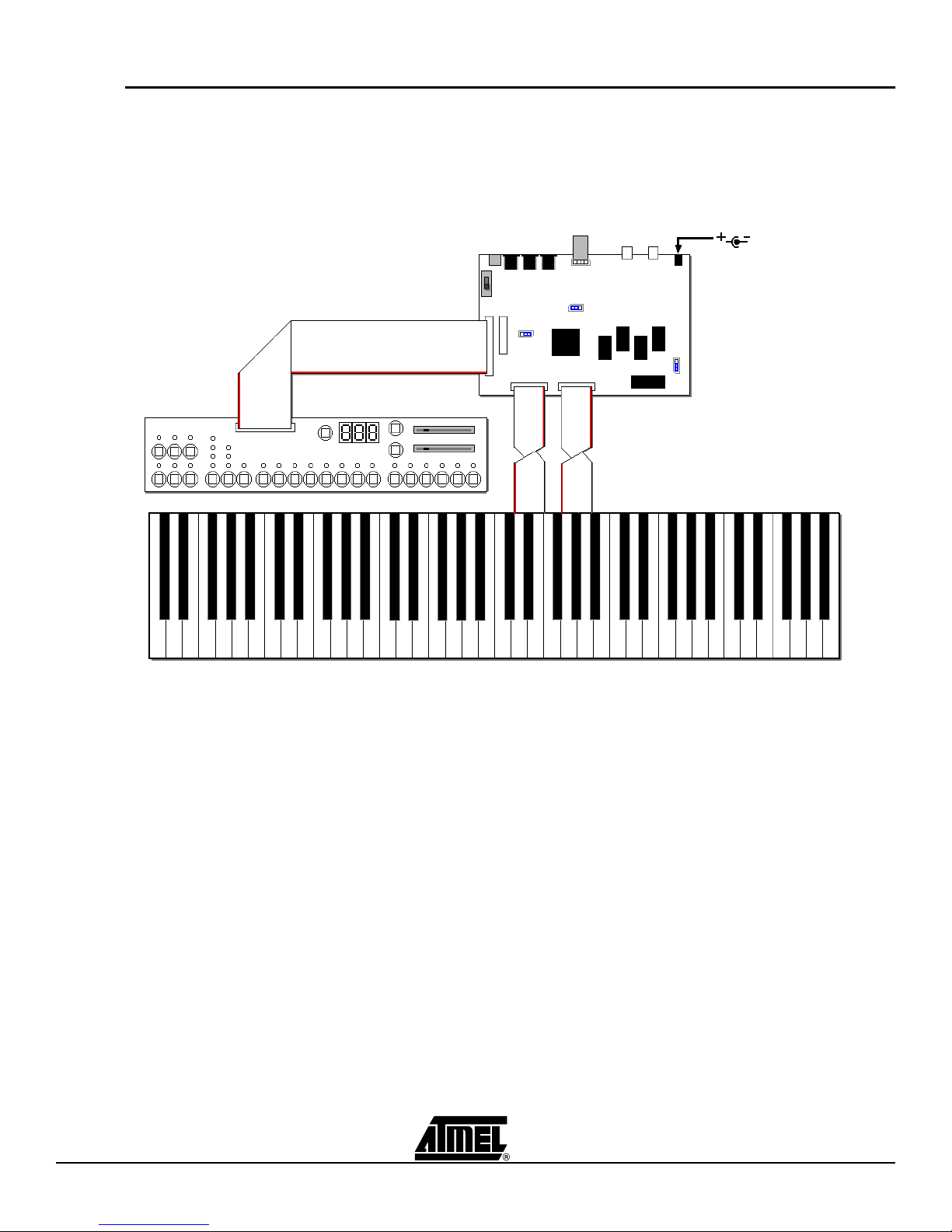

Figure 1-1.

SAM9753PIA-DK Configuration

MIDI

Pedals Audio

Outputs 9/12V DC

Power Supply

Fatar TPxx Keyboard

SAM9753PIA-DK

Main Board

SAM9753PIA-DK

Front

Panel

Connecting the SAM9753PIA-DK

SAM9753PIA-DK User Guide 1-3

2661A–DRMSD–06/02

1.4 View of

SAM9753PIA-DK

Pedal Pinout

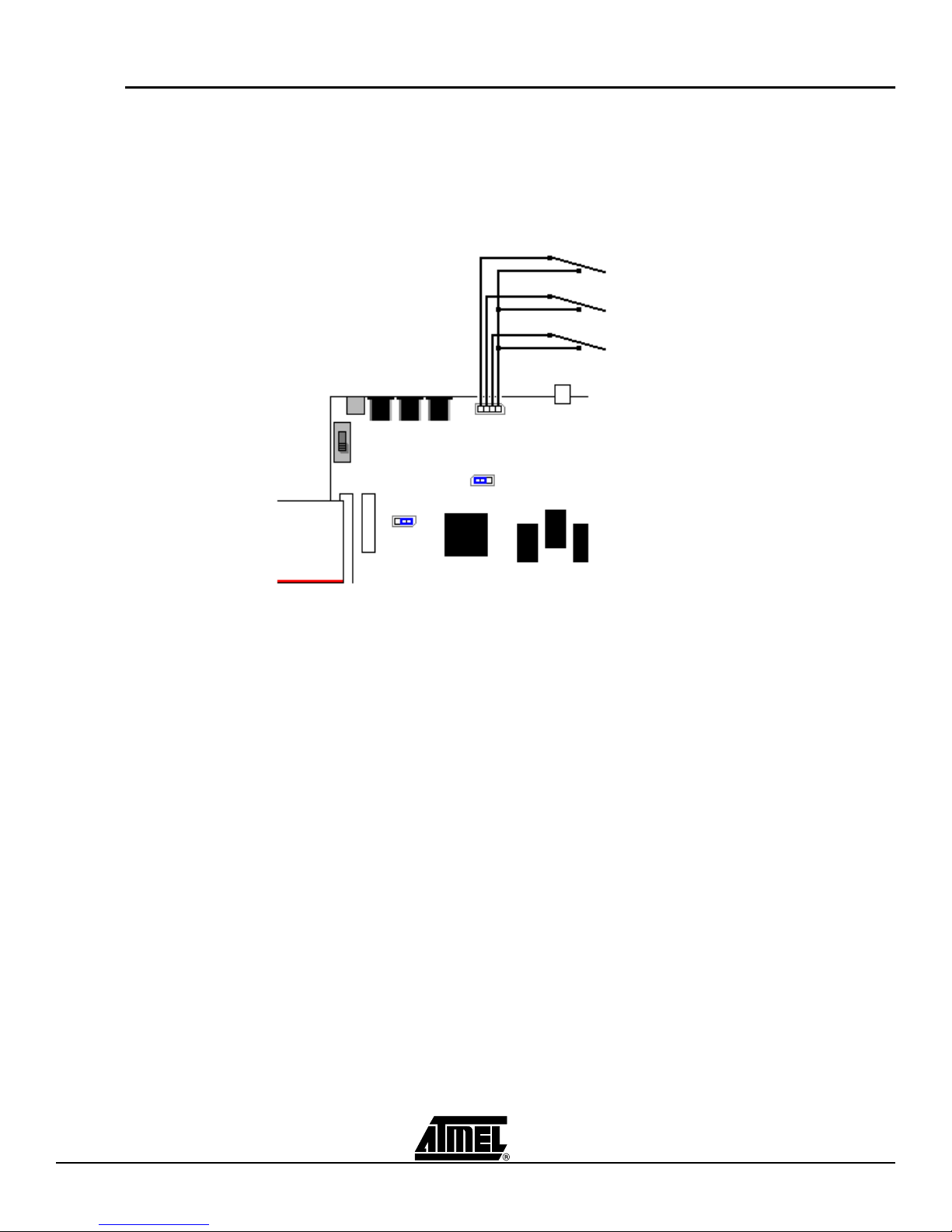

Figure 1-2.

SAM9753PIA-DK Pedal Pinout

Soft Pedal

Sostenuto Pedal

Damper Pedal

Connecting the SAM9753PIA-DK

1-4 SAM9753PIA-DK User Guide

2661A–DRMSD–06/02

1.5 View of

SAM9753PIA-DK

Front Panel

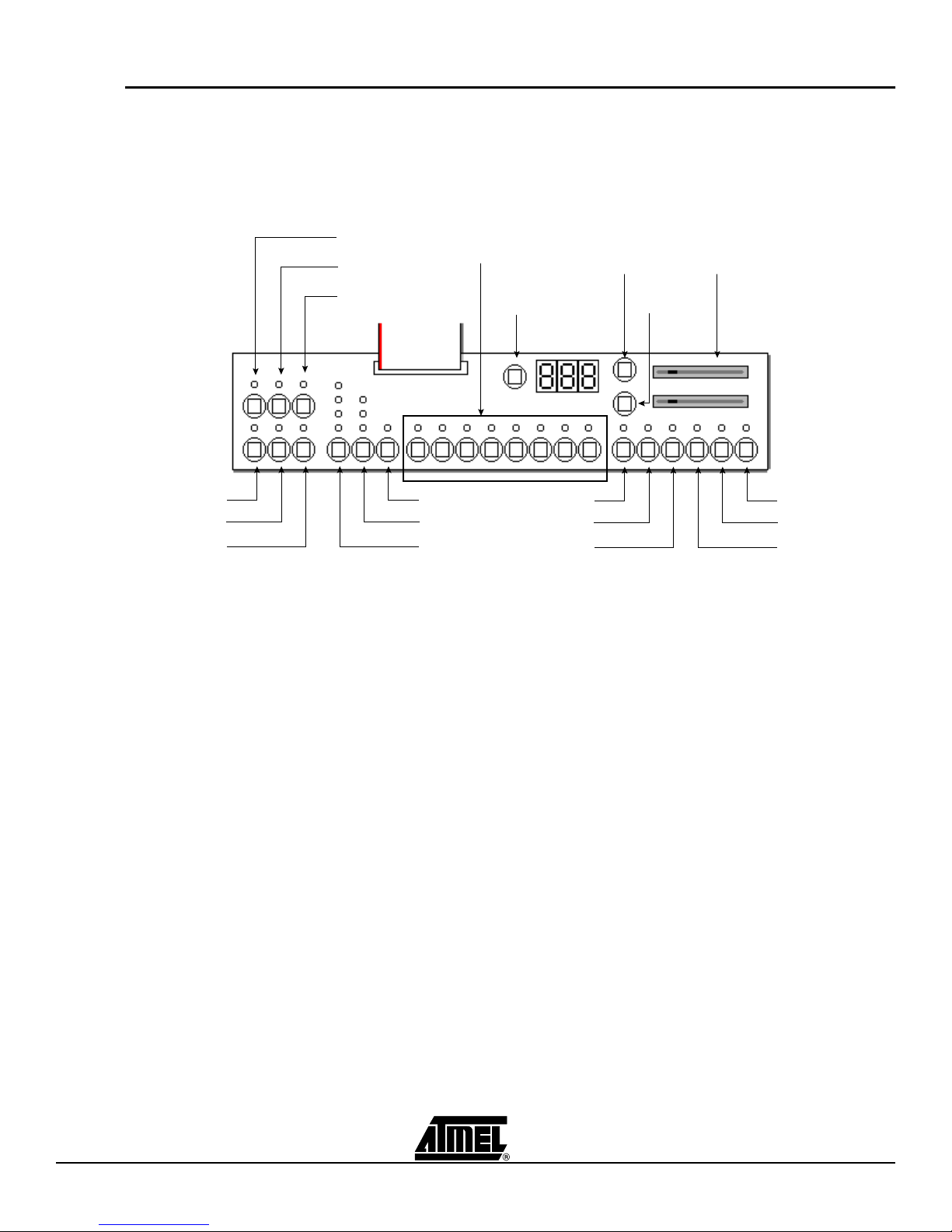

Figure 1-3.

SAM9753PIA-DK Front Panel

Memory

Rhythm only

Variation

Chorus

Dynamic

ReverbIntro/Ending

Fill In/Key Start

Start/Stop Play

Record

Track2Track1

Metronome

Demo

Instrument

Select

Set

Tempo +

Tempo -

General-purpose

Sliders

Connecting the SAM9753PIA-DK

SAM9753PIA-DK User Guide 1-5

2661A–DRMSD–06/02

1.6 Implementation The settings on the SAM9753PIA-DK front panel (Figure 1-3) are implemented as

follows:

1.6.1 Reverb Type Room 1/Room 2/Hall

1.6.2 Dynamic Curve Normal/Hard/Soft/Fixed Velocity (64)

1.6.3 Chorus On/Off

1.6.4 Instrument Select 1to8:

1. Studio Grand Piano

2. Concert Grand Piano

3. Electric Piano 1

4. Electirc Piano 2

5. Harpsichord

6. Vibes

7. Strings

8. Church Organ

1.6.5 Demo On/Off. (Three chained demos)

1.6.6 Metronome On/Off. Not implemented in this version.

1.6.7 Sequencer

Functions

Record/Play/Track1/Track2. Not implemented in this version.

1.6.8 Arrangement

Functions

Intro-Ending/Fill In/Start-Stop/Variation/Rhythm only/Memory.

Not implemented in this version.

1.6.9 Pedals Damper/Sostenuto/Soft

Connecting the SAM9753PIA-DK

1-6 SAM9753PIA-DK User Guide

2661A–DRMSD–06/02
