Atlona AT-HDMI-24M Manuel utilisateur

AtlonA

2x4 HDMI™ Matrix Switch

HDMI™ version 1.3

AT-HDMI-24M

User Manual

TABLE OF CONTENTS

1. Introduction .................................................. 1

2. Features .................................................. 1

3. Package Contents .................................................. 1

4. Operation Controls and Functions ............................. 2

4.1 Front Panel .................................................. 2

4.2 Rear Panel .................................................. 3

4.3 Remote Control .................................................. 3

4.4 RS-232 Protocol .................................................. 4

4.4.1 Pin Denition .................................................. 4

4.4.2 Commands .................................................. 4

5. Specications .................................................. 5

5.1 General Specication ....................................... 5

5.2 Support Resolution ....................................... 5

6. Connection and Installation ....................................... 5

7. Safety .................................................. 6

8. Warranty .................................................. 7

Introduction

Features

Package Contents

AT-HDMI-24M is a high performance HDMI™ Matrix with remote control. It offers you maxi-

mum convenience in HDMI™ signal distribution when you have multiple HDMI™ sources and

displays to connect together.

Each of the two HDMI™ sources can be directed to any one of the four outputs, so four dis-

plays can show 4 identical or 2 pairs of different sources at the same time. AT-HDMI-24M

provides a maximum of 8 possible connection scenarios between sources and displays. When

HDMI™ signal progresses through AT-HDMI-24M, it is re-timed, level compensated, phase

error corrected, and data jitter eliminated, so the output is a regenerated brand new HDMI™

signal that can run for another 25 meters and can be cascaded.

1. HDMI™ version 1.3, HDCP 1.1 and DVI 1.0 compliant.

2. HDMI™ input is compensated, clock / phase adjusted, and jitter eliminated so

the output is a well tuned standard HDMI™ signal.

3. Input source LED indicators on each output select.

4. Ideal for home theater integration, conference room and retail stores.

5. Compatible with all HDMI™ sources and displays.

6. Supports high resolution input/output:

PC: VGA, SVGA, XGA, SXGA and UXGA (1600X1200) &

HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p

7. RS-232 control.

8. IR remote control.

1. AT-HDMI-24M HDMI™ Matrix

2. 5VDC Power Supply Adaptor

3. Operation Manual

Operation Controls and Functions

4.1. Front Panel

1. Remote control sensor.

2. Power Switch & LED Indicator:

The LED will illuminate when the power is turned on.

3. Input Select/Indicators (A):

Press the “HDMI™ OUT A” button repeatedly to switch to your desired source, and the

LED will illuminate to indicate which input source is being selected, and routed to HDMI™

A display.

4. Input Select/Indicators (B):

Press the “HDMI™ OUT B” button repeatedly to switch to your desired source, and the

LED will illuminate to indicate which input source is being selected, and routed to HDMI™

B display.

5. Input Select/Indicators (C):

Press the “HDMI™ OUT C” button repeatedly to switch to your desired source, and the

LED will illuminate to indicate which input source is being selected, and routed to HDMI™

C display.

6. Input Select/Indicators (D):

Press the “HDMI™ OUT D” button repeatedly to switch to your desired source, and the

LED will illuminate to indicate which input source is being selected, and routed to HDMI™

D display.

1 5 6

Power

HDMI OUT

INPUT

1 2

INPUT

1 2

INPUT

1 2

HDMI OUT

INPUT

1 2

A B C D

AtlonA

2 3

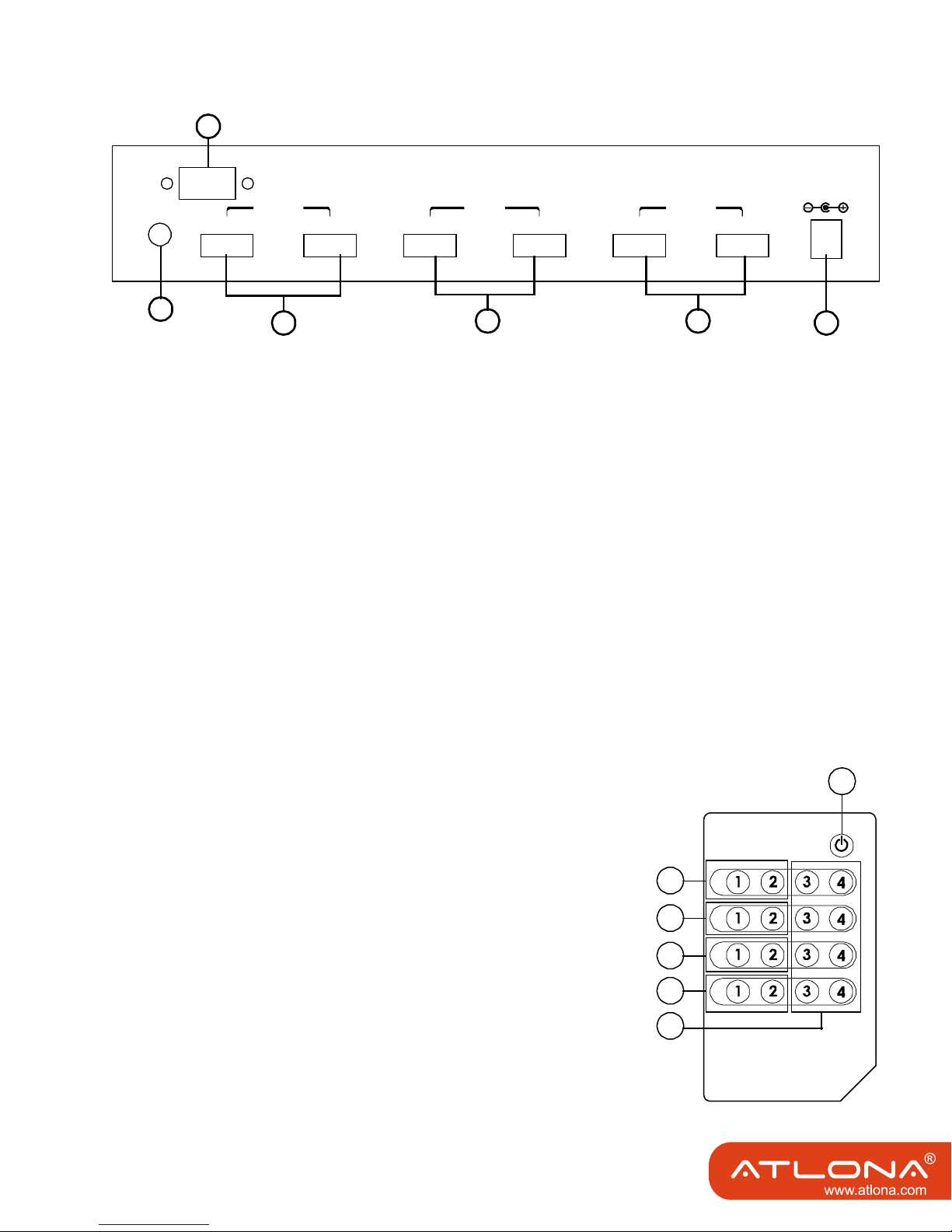

4.2 Rear Panel

4.3 Remote Control

1. IR IN Socket:

Plug the IR extender sensor (optional) into the socket for IR extension control.

2. RS-232 Communication Port:

Connect to the COM port of your PC for the distant control over RS-232 channel.

3. HDMI™ outputs A and B:

Connect each of these output ports to the HDMI™ input of an HDMI™ display.

4. HDMI™ inputs 1 and 2:

Connect to the HDMI™ output of your source equipment such as DVD player or set-top-

box.

5. HDMI™ outputs C and D:

Connect each of these output ports to the HDMI™ input of an HDMI™ display.

6. Power:

Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.

1. Power:

Press the button to turn on/off the unit.

2. Input Select for HDMI™ OUT A:

Press 1 or 2 to select the desired input source for HDMI™ OUT

3. Input Select for HDMI™ OUT B:

Press 1 or 2 to select the desired input source for HDMI™ OUT

4. Input Select for HDMI™ OUT C:

Press 1 or 2 to select the desired input source for HDMI™ OUT

5. Input Select for HDMI™ OUT D:

Press 1 or 2 to select the desired input source for HDMI™ OUT

1346

A B 1

HDMI

INPUT 2

HDMI

OUTPUT

HDMI

OUTPUT

RS-232

DC 5V

IR IN

OUTPUT

POWER

4.4 RS-232 Protocol

4.4.1 Pin Denition

4.4.2 Commands

COMMAND ACTION

P0 Power Off (standby)

P1 Power On *

ST System Status *

VR Firmware Version

A1 Output A select Input1

A2 Output A select Input2

B1 Output B select Input1

B2 Output B select Input2

C1 Output C select Input1

C2 Output C select Input2

D1 Output D select Input1

D2 Output D select Input2

*RS-232 transmission format:

Baud Rate: 9600 bps

Data bit: 8 Bits

Parity: None

Stop Bit: 1 bit

AT-HDMI-42M Remote Control Console

PIN Denition PIN Denition

1 NC 1 NC

2 Tx 2 Rx

3 Rx 3 Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

4 5

DVD

PS3

HDTV 1 HDTV 3HDTV 2 HDTV 4

Specifications

Connection and Installation

5.1 General Specication

* Frequency bandwidth: 2.25Gbps (single link)

* HDMI™ v1.3

* Input/Output: 2-in to 4-out HDMI™ female ports

* 5V DC power supply

* Dimensions: 240 (W) x 165 (D) x 49 (H)mm

* Weight: version 1.35Kgs

INTPUT

PC VGA, SVGA, XGA, SXGA, UXGA

TV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

OUTPUT

PC VGA, SVGA, XGA, SXGA, UXGA

TV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accesible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-HDMI-24M. Opening the product will

void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorised

ATLONA reseller or contact ATLONA

directly.

WARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the

accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be

free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event

applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of

receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-

gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet

this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited

Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-

uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-

ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES

CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-

RISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-

GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-

TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS

OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER

PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA

TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA

TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT

SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-

RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

2151 O’toole Ave, Ste D

San Jose CA 95131

Toll Free: 1-877-536-3976

International: 408-954-8782

FAX: 408-954-8792

Website: www.atlona.com

E-MAIL: [email protected]

Autres manuels pour AT-HDMI-24M

Table des matières

Autres manuels Atlona Changer

Atlona

Atlona AT-HDMI-V42 Manuel utilisateur

Atlona

Atlona AT-HDKVM-V21 Manuel utilisateur

Atlona

Atlona AT-HD-SC-500 Manuel utilisateur

Atlona

Atlona AT-UHD-SW-52 Manuel utilisateur

Atlona

Atlona AT-HDVS-150-TX-WP Manuel utilisateur

Atlona

Atlona AT-HDVS-200-TX-WP Manuel utilisateur

Atlona

Atlona AT-APC21A Manuel utilisateur

Atlona

Atlona AT-PC81A Manuel utilisateur

Atlona

Atlona AT-RGB0802 TO AT-RGB6464 Manuel utilisateur

Atlona

Atlona AT-UHD-SW-510W Guide de référence rapide

Atlona

Atlona AT-HDKVM-V21 Manuel utilisateur

Atlona

Atlona junox AT-JUNO-451 Manuel utilisateur

Atlona

Atlona AT-HDMI-31 Manuel utilisateur

Atlona

Atlona AT-HD-V12x2 Manuel utilisateur

Atlona

Atlona AT-JUNO-451-HDBT Manuel utilisateur

Atlona

Atlona AT-UHD-SW-510W Manuel utilisateur

Atlona

Atlona AT-HDVS-200-TX Manuel utilisateur

Atlona

Atlona AT-UHD-CLSO-612 Manuel utilisateur

Atlona

Atlona Omega AT-OME-EX-KIT Manuel utilisateur

Atlona

Atlona AT-HD4-V42 Manuel utilisateur

Atlona

Atlona AT-HDVS-150-TX Manuel utilisateur

Atlona

Atlona AT-HDVS-210H-TX-WP Manuel utilisateur

Atlona

Atlona AT-HD600 Manuel utilisateur

Atlona

Atlona AT-DVI-81A Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
