The AT-HDVS-200-TX-WP is a 2×1 wall plate switcher for HDMI and VGA inputs with HDBaseT

output. It features a US, two-gang, Decora form factor with one HDMI and one VGA input with an

always-on 3.5mm audio connector. HDMI signals up to 4K/UHD @ 60Hz (YUV 4:2:0 color sub-sampling),

VGA input signals up to 1920×1200, embedded audio, and control signals can be extended up to

328 feet (100 meters). The switcher receives power from the AT-HDVS-200-RX scaler via Power over

Ethernet and together they create a standalone AV switching and control system with scaling for

classrooms and huddle rooms. Display control and volume commands are transmitted via CEC, IP,

or RS-232 to any display, control system, switcher or other controllable device.

• 1 x AT-HDVS-200-TX-WP (w/face plate - LAN port exposed)

• 1 x Captive screw connector (3 pin: RS-232)

• 1 x Face plate (w/LAN port covered)

• 1 x Installation Guide

Package Contents

AT-HDVS-200-TX-WP Installation Guide

Please check http://www.atlona.com/product/AT-HDVS-200-

TX-WP for the most recent firmware update or manual.

Two-Input Wall Plate Switcher

for HDMI and VGA with

Ethernet-Enabled HDBaseT

Output

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

LINK

PWR

DISPLAY

INPUT

VOL -

VOL +

HDMI IN

VGA IN

AUDIO IN

RS-232

RX TX

Panel Description

1. INPUT button:Use to switch between VGA and HDMI sources

2. DISPLAY button:Can be programmed to perform different functions

Default action will turn video output on/off for the switcher

Send on/off command to CEC, RS-232, or TCP/IP controllable displays or other connected

devices

Sends RS-232 or TCP/IP trigger command when used with a compatible switcher

(e.g. CLSO PoE series)

3. PW LED:Will illuminate when receiving power

LINK LED:Illuminates when receiving signal from the receiver

4. VOLUME buttons:Adjust output volume of the switcher or connected device when programmed

Note: To mute or unmute output audio, press both volume buttons together. LED will turn red when muted

5. AUDIO IN port:Connect analog audio here

6. HDMI IN port:Connect HDMI source here

7. LAN (black) port:Connect network switch or router to this port for Ethernet, TCP/IP, or

webGUI control

8. VGA IN port:Connect VGA source here

9. RS-232 port:Connect control system to RS-232 port

10. HDBaseT (blue) port:Connect to an HDBaseT PoE receiver

e.g. AT-HDVS-200-RX or UHD-CLSO PoE series switcher/scalers

4 5

Note: To ensure compatibility, please be certain both transmitter and receiver have blue or blue bordered

HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible

with PoCC (black RJ45, 24V) devices

Connecting

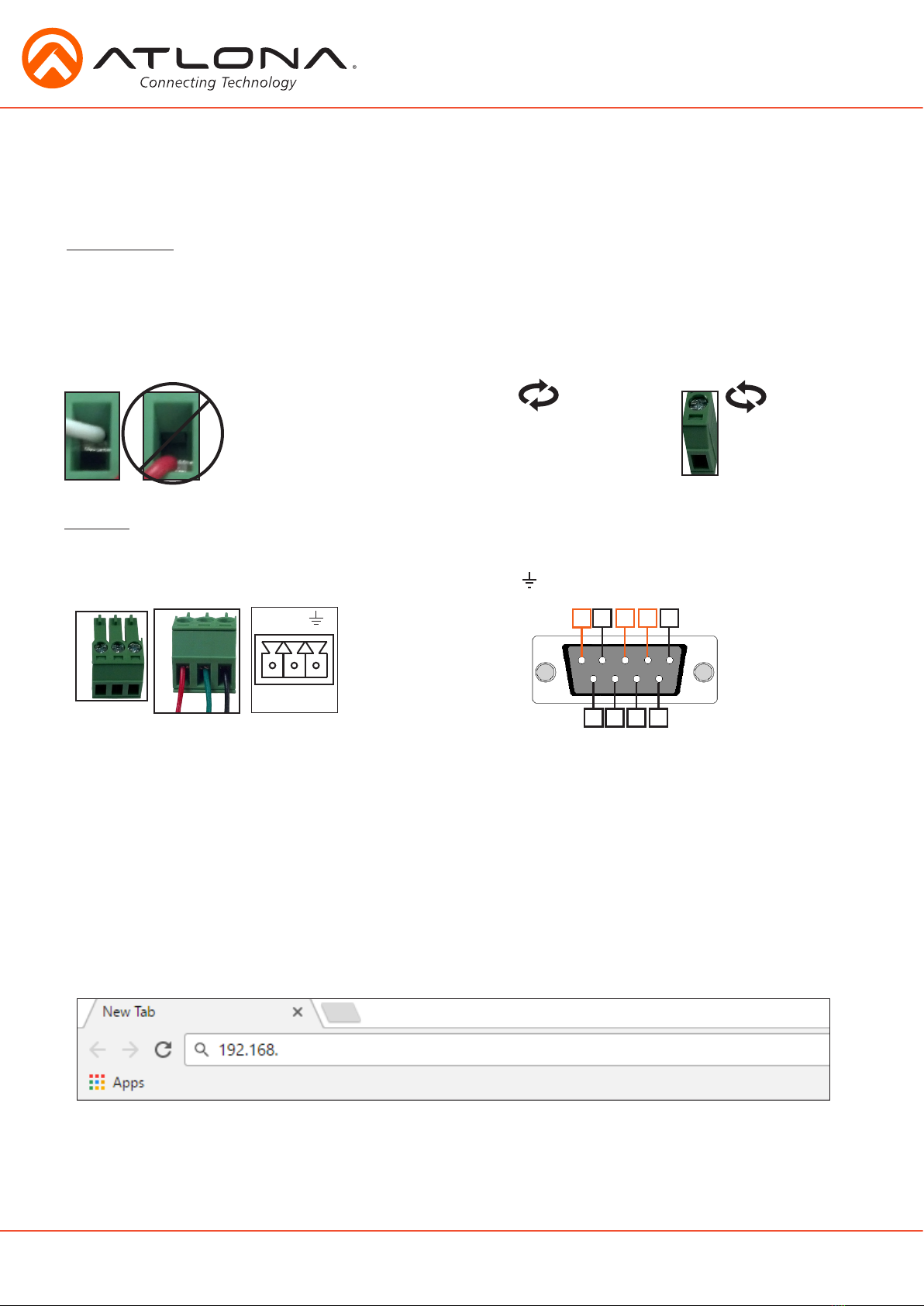

The captive screw connectors have

a contact bar that is adjusted to

compress the wire against the top

contact plate. Use the screws at the

top of the connector to compress

the wire against the contact plate.

When connecting the cables to the female captive screw connector it is important that the wires be

terminated correctly. The female captive screw connector has a contact plate at the top and must

have the wires touching it for signal to pass. When wired correctly (see picture A) the signal will pass,

incorrectly (see picture B) no signal will pass.

Clockwise Counter

Clockwise

Turn the screws clockwise to

raise the contact bar to the

upper contact plate and hold

the wires in place.

Turn the screws counter

clockwise to lower the

contact bar to release the

wires.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

RS-232 captive screw connector is included. RS-232 pin out will be determined by the RS-232

cable and will connect as Rx (receiver), Tx (transmitter), and (ground). (See picture 1)

RS-232

Typical pin out:

2 - TX - Transmitter

3 - RX - Receiver

5 - GND - Ground

Pin out color will differ

per RS-232 cable.

154 3 2

9876

RS-232

RX TX

The captive screw connectors allow you to cut cables to a suitable length, reducing cable clutter

while providing a more reliable connection.

Captive Screw

Note: IP addresses may also be found using common free IP scanner software such as “Advanced IP Scanner”

*Atlona does not assume responsibility for damage caused by other programs installed onto a computer, verify programs before installing*

webGUI

Atlona has created an easy to use webGUI for setup and changes to the configuration of the

HDVS-200-TX-WP.

To begin, plug a LAN cable into the LAN port of the HDVS-200-TX-WP and the network switch,

then type the IP address of the unit into a web browser of a PC connected to the same network (as

seen below).

Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with

network communication to the switcher. Once set up is done and the switcher webGUI is no

longer being used, the firewall and anti-virus can be re-enabled.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

A login screen will appear (this is the same log in for admin and general users). For the first log in (and future

admin changes) the username is “root” and password is “Atlona”.

Note: Only the admin password can be changed (see User Manual). The username will always remain “root”.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

LINK

PWR

DISPLAY

INPUT

VOL -

VOL +

HDMI IN

VGA IN

AUDIO IN

RS-232

RX TX

Connection Diagram (with HDVS-200-RX)

Video

HDBaseT

Audio

Ethernet

Dry CC

Control

AT-HDVS-200-TX-WP

Laptop

RELAY

AT-HDVS-200-RX

C1 C2COM

HDBaseT INLAN HDMI OUT

-+-

RX RXTX TX

AUDIO RS-232 MENU AUTO

LINK

DC 48V

ROUTER

2.4 5 1234

AT-PA100-G2

Drop down projector screen

(contact closure controlled)

AT-HDVS-200-RX

Router

Projector

Dry CC

Audio

HDBaseT

Video

Control

Ethernet

Audio

Video

Document Camera

Audio

Video

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

LINK

PWR

DISPLAY

INPUT

VOL -

VOL +

HDMI IN

VGA IN

AUDIO IN

RS-232

RX TX

Connection Diagram (with PoE UHD-CLSO series)

Video

HDBaseT

Audio

Ethernet

LAN

12 1 2

34LRL R

2 3 4

INPUT

AT-UHD-CLSO-824

OUTPUT

5 6 7 8

RS-232 MIC/LINE IN

LINE

MIC

48V

AUDIO IN

TX RX TX RX TX RX TX +-+ +

PWRIR

- -

+ - + -

DC 48V

RS-232IRAUDIO OUT

MASTER

OUTIN

RX TX

+-+-

12 3 4

5ENTER

678

RX TX RX TX

RS-232

RX TX RX TX

910

RX TX RX TX

LINE

MIC

48V

+-+-

L R

+-+-

AUDIO OUT

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

ROUTER

2.4 5 1234

Router

AT-UHD-EX-100CE-RX

AT-UHD-CLSO-824

Display

HDBaseT

Ethernet

HDBaseT

Audio

Video

AT-HDVS-200-TX-WP

Laptop

Document Camera

Troubleshooting

1. The Auto-Switch feature isn’t working. How do I enable it?

You can enable Auto-switching by using the AutoSW on command via TCP/IP or RS-232, or

through the WebGU.

2. I want to pass only analog audio without video. How do I do this?

Place the unit in “standalone” mode. This mode can be enabled using the FreeRun on

command via TCP/IP or RS-232, or through the webGUI.

3. How do I update the firmware?

The firmware can be updated using the USB port or through the webGUI.

4. How do I find the IP address?

Run the IPCFG command using either RS-232 or TCP/IP. You can also get the IP address

through the webGUI and AMS.

5. How do I switch between DHCP and Static IP modes?

For the AT-HDVS-200-TX, DHCP can be turned on/off by pressing the INPUT button for 15

seconds. For the AT-HDVS-200-RX, DHCP can be turned on/off by pressing the AUTO button

for 15 seconds. You can also toggle between DHCP and Static IP modes using the IPDHCP

command via TCP/IP or RS-232, or by using the webGUI or AMS.

6. What is the default IP address?

The default static IP address is 192.168.1.254. Please note that the default static IP for both

the wall plate/transmitter (HDVS-200-TX-WP) and the receiver (HDVS-200-RX) are the same.

7. I can’t control my display. What’s wrong?

First, check that the desired control method is selected (TCP/IP, RS-232, or CEC). If you are

using RS-232, make sure that the baud rate for RXZone 1 (found under the webGUI)

matches your display settings. The baud rate can be set through the webGUI or by using the

RxRSparaZ1 command via TCP/IP or RS-232. When using the RxRSparaZ1 command, use the

following syntax: RxRSparaZ1[baudrate,data-bits,parity,stop-bits].

Example: RxRSparaZ1[115200,8,0,1]

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515
