AM4 USER GUIDE
ATL User Guide
AM4 G.SHDSL Modem
2
ATL Part No 1/359/031/610
Issue 02 June 2005
Disclaimer
The information contained in this document is confidential to ATL Telecom Ltd. and may not be disclosed or
reproduced in whole or in part without their written consent.
© ATL Telecom Ltd 2005.
Note: The information contained in this document is supplied without liability for errors or omissions.
ATL Telecom Limited reserves the right to make changes to this document at any time without notice.
ATL User Guide
AM4 G.SHDSL Modem
3
COMPLIANCE NOTES & SAFETY INSTRUCTIONS
Caution: - Hazardous voltages inside the equipment
Safety Instructions:
This apparatus must be installed and maintained by SERVICE PERSONNEL only
There are NO user serviceable parts inside the modem.
Caution: - Electrostatic sensitive devices inside the equipment
Electrostatic discharge (ESD) Warning:
Antistatic precautions should be observed at all times.
Power Rating Information - DC Version:
Voltage Rating 9V
Maximum Current 1000mA
Disconnect Device Statement:
For the AM4 the DC input socket serves as the disconnect device.
Safety Classification of traffic Ports
The DSL line connection has a safety status of TNV-3
10/100BaseT - 8 WAY RJ45 connections have a safety status of UNEARTHED SELV.
Safety Status Classification of non-traffic PORTS
DC Input - TNV-2
Management Port Interface - 9 WAY FEMALE D-Type connection has a safety status of EARTHED SELV.
Definitions
Exposed Environment
A TELECOMMUNICATIONS NETWORK is considered to be an exposed environment if one or more conditions
for an unexposed environment are not fulfilled.
ATL User Guide
AM4 G.SHDSL Modem
4
Unexposed Environment
A TELECOMMUNICATIONS NETWORK is considered to be an unexposed environment if the following
conditions apply to all parts of the network
a) The possible effect of indirect lightening has been reduced by measures described in IEC 61312-1.
b) The possibility of having different earth potentials has been reduced by connecting all equipment
within the network to the same equipotential bonding system.
c) The possibility of power cross/contact has been reduced.
d) The possibility of induced transients and voltages has been reduced.
Manufacturers Declaration*
ATL Telecom Limited declares that this product is in conformity
with the essential requirements of the 'R&TTE directive 1999/5/EC'.
*A copy of the Declaration of Conformity is available upon request from ATL Telecom Ltd.
ATL User Guide
AM4 G.SHDSL Modem
5
1SCOPE 9
2INTRODUCTION 10
3EXAMPLE APPLICATIONS 11
3.1 AM4 BACK TO BACK SET-UP 11
3.2 AM4 TO INTERNET VIA A DSLAM 11
E 4 CONSTRUCTION 12
4.1 AM4 FRONT PANEL 12
4.3 AM4 REAR PANEL 13
4.3.1 REAR CONNECTIONS 13
4.3.2 CABLES 13
4.3.3 POWER SUPPLY 13
5INSTALLATION 14
5.1 LED POWER ON SEQUENCE 14
5.2 DEFAULT SETTINGS 14
6SETTING UP USING THE WEB BROWSER 15
6.1 INTERNET/EXPLORER SET-UP 15
6.2 BASIC SETUP 18
6.3 BRIDGE 18
6.3.1 BRIDGE EXAMPLE - LAN TO LAN CONNECTION 18
6.3.1.1 AT THE CO UNIT 19
6.3.1.1.1 STEP 1 19
6.3.1.1.2 STEP 2 19
6.3.1.1.3 STEP 3 20
6.3.1.2 AT THE CPE UNIT 20
6.3.1.2.1 STEP 1 20
6.3.1.2.2 STEP 2 21
6.3.1.2.3 STEP 3 21
6.3.2 BRIDGE EXAMPLE - LAN TO DSLAM CONNECTION 22
6.4 ROUTING 24
6.4.1 DHCP SERVER 24
6.4.2 DHCP CLIENT 24
6.4.3 DCHCP RELAY 24
6.4.4 PPPOA & PPPOE 24
6.4.5 ROUTER EXAMPLE - LAN TO LAN CONNECTION 25
6.4.5.1 AT THE CO UNIT 25
6.4.5.1.1 STEP 1 25
6.4.5.1.2 STEP 2 26
6.4.5.1.3 STEP 3 26
6.4.5.1.4 STEP 4 27
ATL User Guide
AM4 G.SHDSL Modem
6
6.4.5.1.5 STEP 5 27
6.4.5.2 AT THE CPE UNIT 28
6.4.5.2.1 STEP 1 28
6.4.5.2.2 STEP 2 28
6.4.5.2.3 STEP 3 29
6.4.5.2.4 STEP 4 29
6.4.5.2.5 STEP 5 30
6.5 ADVANCED SETUP 31
6.5.1 SHDSL 31
6.52 WAN 33
6.5.3 BRIDGE 35
6.5.4 VLAN 36
6.5.4.1 802.1Q VLAN 37
6.5.4.1 PORT-BASED VLAN 38
6.5.5 ROUTE 39
6.5.6 NAT/DMZ 42
6.5.6 VIRTUAL SERVER 44
6.5.7 FIREWALL 46
6.5.7.1 BASIC FIREWALL SECURITY 47
6.5.7.2 AUTOMATIC FIREWALL SECURITY 48
6.5.7.3 ADVANCED FIREWALL SECURITY 49
6.5.7.4FILTERING RULE FOR SMTP CONNECTION 52
6.6 STATUS 55
6.6.1 SHDSL 55
6.6.2 LAN 56
6.6.3 WAN 56
6.6.4 ROUTE 57
6.6.5 INTERFACE 57
6.7 ADMINISTRATION 58
6.7.1 SECURITY 58
6.7.2 SNMP 60
6.7.3 TIME SYNC 62
6.8 UTILITY 63
6.8.1 SYSTEM INFO 63
6.8.2 CONFIG TOOL 64
6.8.3 UPGRADE 65
6.7.4 LOGOUT 65
6.7.5 RESTART 65
7CONFIGURATION VIA THE CONSOLE PORT 66
7.1 CONNECTION VIA THE CONSOLE PORT 66
ATL User Guide
AM4 G.SHDSL Modem
7
7.2 CONNECTION VIA TELNET 66
7.3 MENU DRIVEN INTERFACE 67
7.3.1 MENU STRUCTURE 68
7.3.2 ENABLE 69
7.3.2.1 SETUP 70
7.3.2.1.1 MODE 71
7.3.2.1.2 SHDSL 71
7.3.2.1.3 WAN 72
7.3.2.1.4 BRIDGE 74
7.3.2.1.5 VLAN 75
7.3.2.1.6 ROUTE 77
7.3.2.1.7 LAN 78
7.3.2.1.8 IP SHARE 78
7.3.2.1.9 FIREWALL 83
7.3.2.110 DHCP 85
7.3.2.1.11 DNS PROXY 86
7.3.2.1.12 HOSTNAME 86
7.3.2.1.13 DEFAULT 86
7.3.2.2 STATUS 86
7.3.2.3 SHOW 87
7.3.2.4 WRITE 88
7.3.2.5 REBOOT 88
7.3.2.6 PING 88
7.3.2.7 ADMIN 89
7.3.2.8 UTILITY 93
7.4 COMMAND LINE INTERFACE 93
7.4.1 SETTING UP THE CLI INTERFACE 94
7.4.2 SETTING UP THE MENU DRIVEN INTERFACE 94
8COMMISSIONING 95
9SPECIFICATION 96
9.1 AM4 DIMENSIONS 96
9.2 TRANSMISSION PERFORMANCE 97
9.2.1 2-WIRE NOISE FREE RANGE 97
9.2.2 4-WIRE NOISE FREE RANGE 98
9.3 ENVIRONMENTAL 99
9.3.1 TRANSPORTATION 99
9.3.2 STORAGE 99
9.3.3 OPERATIONAL 99
9.4 LAN CONNECTION CABLE 100
9.5 CONSOLE CONNECTION CABLE 100
ATL User Guide
AM4 G.SHDSL Modem
8
10 COMPLIANCE NOTES 101
10.1 TELECOMMUNICATION STANDARDS 101
11 ORDERING INFORMATION 102
12 APPENDIX 1 GLOSSARY 103
ATL User Guide
AM4 G.SHDSL Modem
9
1
1SCOPE
This User Guide applies to the AM4 G.SHDSL Modem supplied by ATL Telecom Limited in the U.K. It provides
guidance for installation, commissioning and operation of the AM4 as well as reference information covering
maintenance, specification and compliance.
ATL User Guide
AM4 G.SHDSL Modem
10
2INTRODUCTION
The AM4 SHDSL (Single-Paired High Speed Digital Subscriber Loop) modem complies with the G.991.2
standard with 10/100 Base-T auto-negotiation. It provides business-class, multi-range from 64kbps to
2.304Mbps. The AM4 is designed not only to optimize the service bit rate from central office to customer
premises, it also integrates high-end Bridging/Routing capabilities with advanced Multi-DMZ, virtual server
mapping and VPN pass-through functions.
Because of the rapid growth of networks, virtual LAN has become one of the major new areas in the
internetworking industry. The AM4 supports port-based and IEEE 802.1q VLAN over ATM network.
The AM4 provides not only advanced functions, Multi-DMZ, virtual server mapping and VPN pass-through but
advanced firewall, SPI, NAT, DoS protection serving as a powerful firewall to protect the secure connection
from outside intruders. (Note: Firewall available only on AM4F variant - see Ordering Information for details.)
The AM4 supports four port 10Base-T /100Base-T auto-negotiation and auto-MDIX switching ports to meet
the enterprise needs of modern networks.
The AM4 allows customers to leverage the latest in broadband technologies to meet their growing data
communication needs. Through the power of SHDSL products, you can access superior manageability and
reliability.

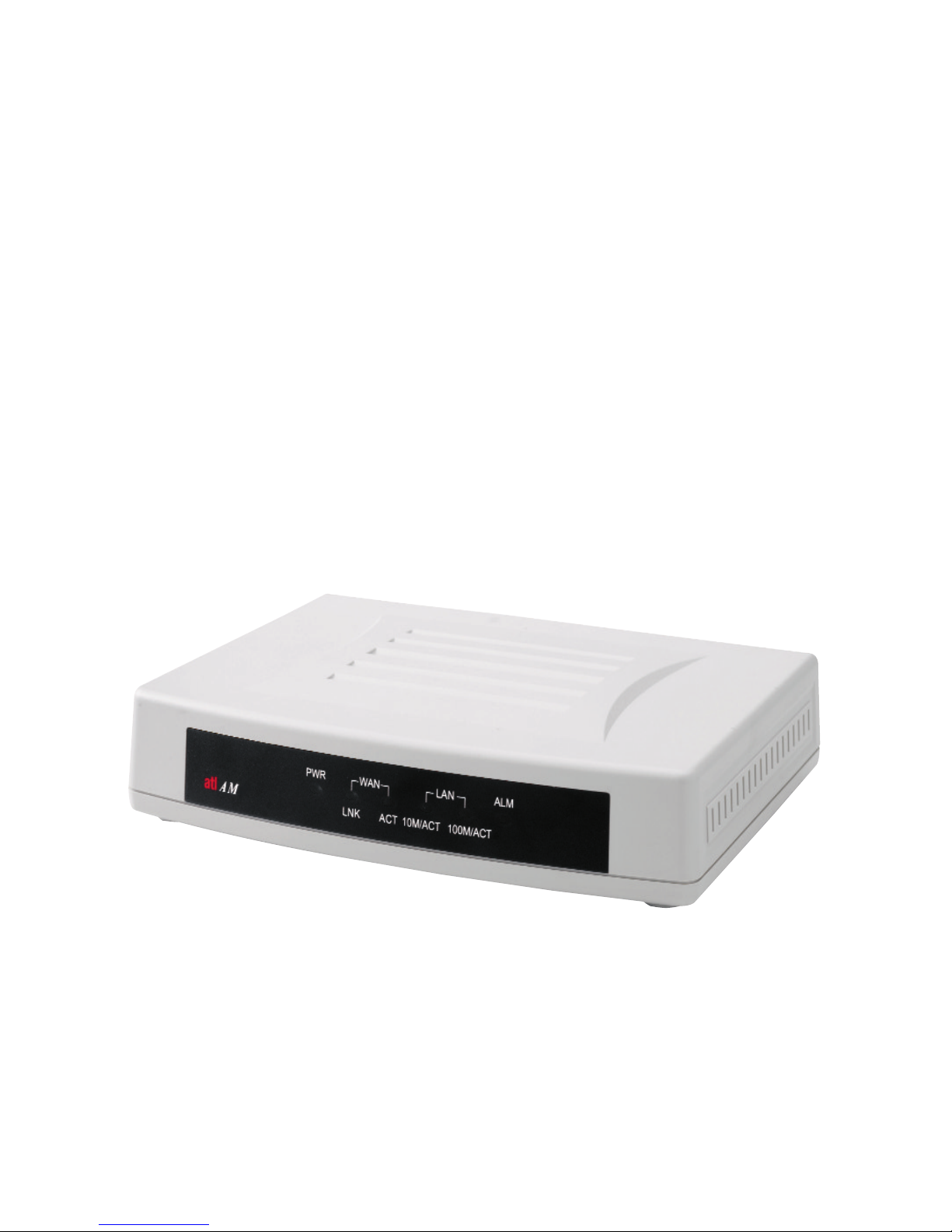

Figure 1 : AM4
