Scorpion X2 Pad

Part # A.5.10.1015

-Installation Instructions-

Thank you for purchasing an ATI product!

Buttpad Installation

Point the shotgun in a safe direction and place the safety in the "on" position. Next pull back the

slide, and carefully inspect the chamber to be sure the shotgun is unloaded.

www. ATIgunstocks.com Page 1

Step #1

Cut out the buttpad template below.

Note: If your ATI buttstock already has pre-drilled

holes for buttpad installation, skip to step #7.

Step #2

Pull down the latch lever and slide the ATI buttstock away

from the buffer tube.

Figure 1

Step #3

Place the buttpad template onto the buttstock and

secure the template to the buttstock with tape.

NOTE: Make sure the paper template is aligned

perfectly with the outside profile of the

buttstock. If the template is not aligned correctly,

the buttpad will not correctly assemble to the

stock.

Figure 2

Figure 3

Scorpion X2 Pad

Part # A.5.10.1015

-Installation Instructions-

Thank you for purchasing an ATI product!

Buttpad Installation

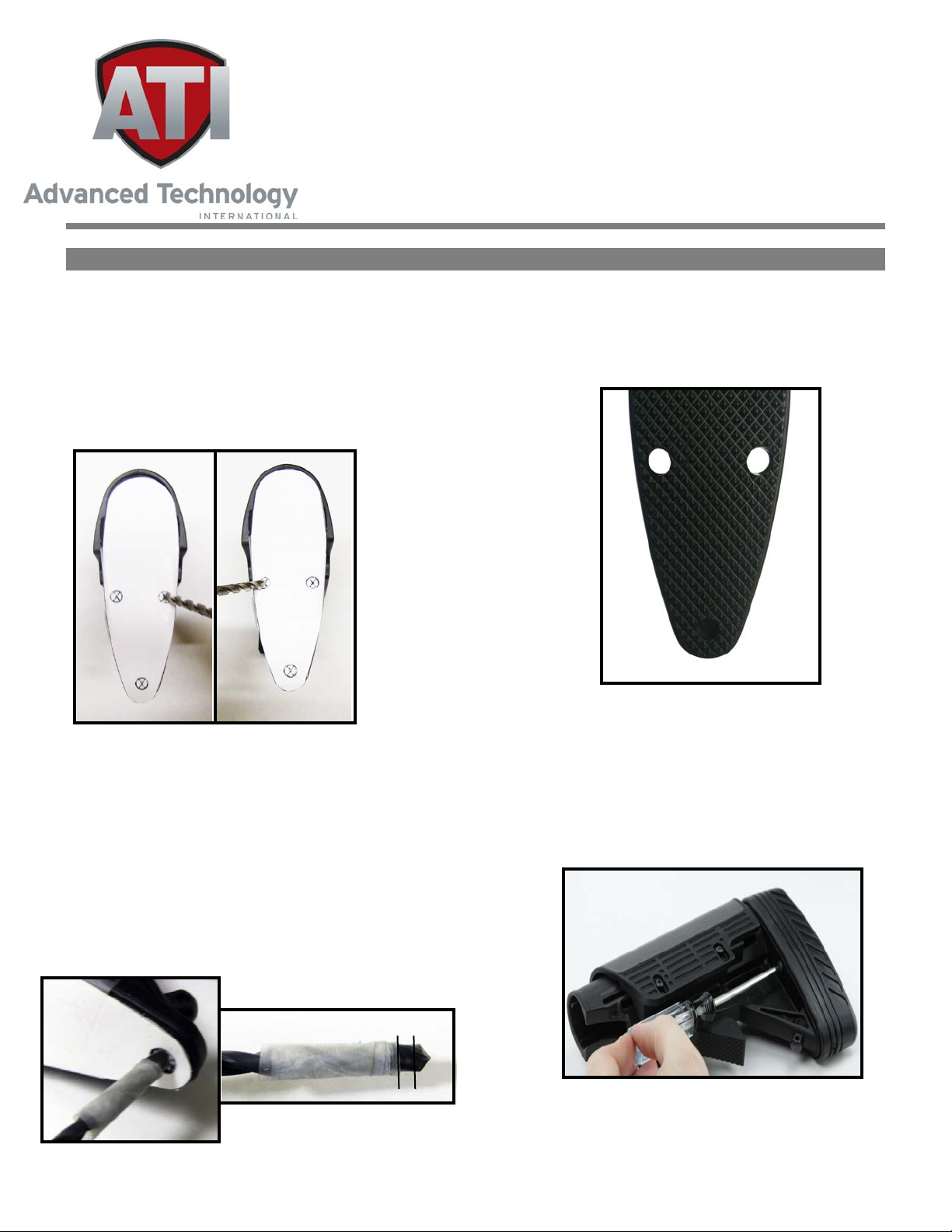

Step #4

With the template secured to the buttstock, use a

1/4" drill bit to drill 2 straight holes on each side of

the buttstock. Use the designated "X" in circles on

the template as markers for these 2 holes.

NOTE: ATI is NOT responsible for broken drill bits

Figure 4

Step #5

Using the circle on the template and the same 1/4"

drill bit, drill the single hole on the bottom of the

buttstock 1/8" deep.

NOTE: This hole will not be drilled through, you

must only drill 1/8" into the buttstock. The best

way to drill 1/8" is to measure 1/8" from the edge

of the drill bit and then place tape at the 1/8"

mark so you don't drill any deeper.

1/8"

Figure 5A

Figure 5B

Step #6

Remove the buttpad template and clean the

buttstock of any burrs and drilling material.

Figure 6

Step #7

Place the buttpad on the rear of the buttstock and

using a T-20 torx driver, install the (2) 8 x 48-2 x 1/2"

plastite torx head screws until snug.

Page 2

Figure 7
