CS1822 / CS1824

2/4-Port USB 3.0 4K HDMI

KVMP™ Switch

User Manual

CS1822 / CS4824 RS-232 Commands

Compliance Statements

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE

STATEMENT

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC ules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

The device complies with Part 15 of the FCC ules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC Caution

Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

Warning

Operation of this equipment in a residential environment could cause radio

interference.

Achtung

Der Gebrauch dieses Geräts in Wohnumgebung kann Funkstörungen

verursachen.

KCC Statement

CS1822 / CS4824 RS-232 Commands

Industr Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

HDMI Trademark Statement

The terms HDMI, HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc.

RoHS

This product is oHS compliant.

CS1822 / CS4824 RS-232 Commands

RS-232 Operation

Overview

The CS1822 / CS1824’s built-in bi-directional S-232 serial interface allows

system control through a high-end controller or PC. S-232 serial operations

in a CS1822 / CS1824 installation are managed via HyperTerminal sessions on

systems that are running Windows. In order to use this feature to send

commands to the CS1822 / CS1824, you must first download and install a

HyperTerminal application. For detailed instructions and information about

each of the commands provided in this manual, please refer to the CS1822 /

CS1824 user manual.

Setup

Install a HyperTerminal application on a computer that is not part of the

installation, which will be used to control the switch via the S-232

connection. HyperTerminal applications can be download from the Internet,

and many operating systems are embedded with HyperTerminal applications.

Hardware Connection

Use a J-11 to DB-9 serial adapter (LIN5-04A2-J11G) to connect a

computer’s serial port to the serial port on the CS1822 / CS1824, as shown

below:

Note: The unit used in the diagram below is CS1824, the procedure for

connecting CS1822 is identical with fewer KVM ports.

RJ-11 to DB-9 Adapter

CS1822 / CS4824 RS-232 Commands

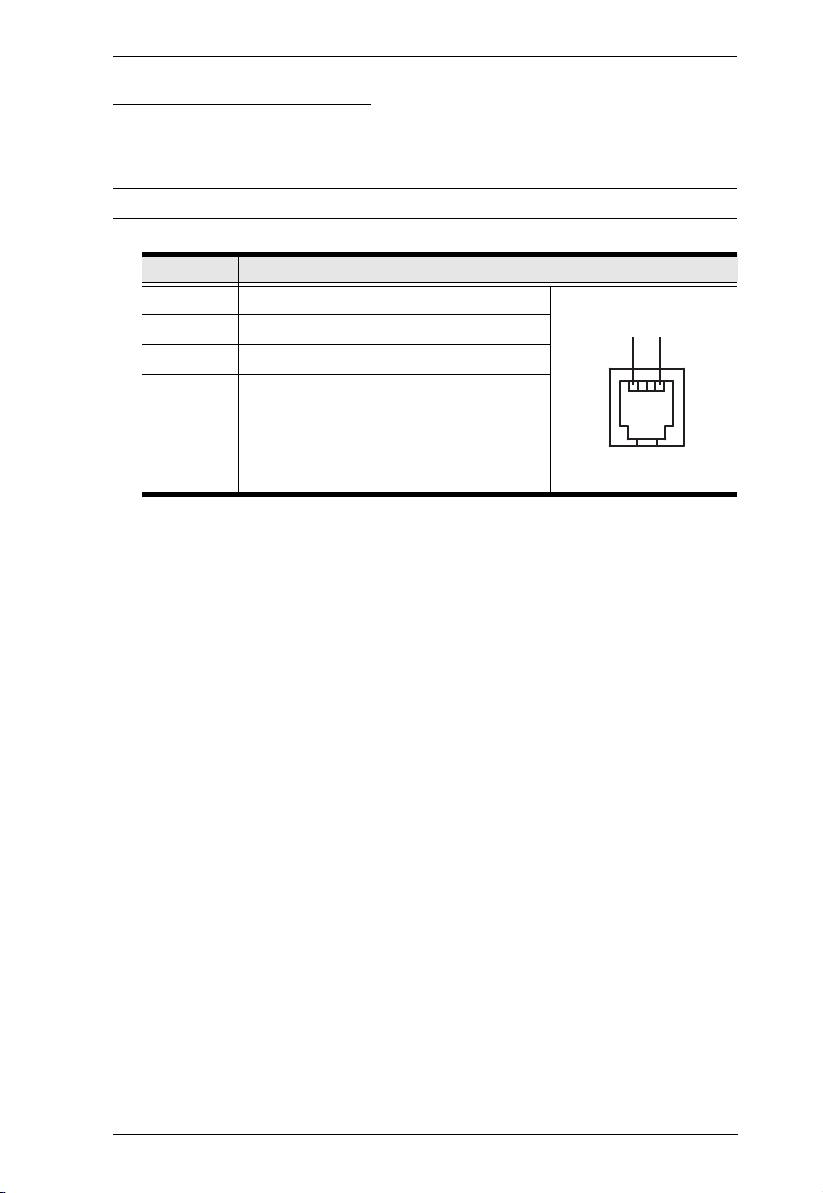

RS-232 Pin Assignments

Pin assignments for the CS1822 / CS1824’s rear J-11 Serial Port that is used

for connecting to a serial terminal are given in the table, below:

Note: This J-11 female connector is 4P4C.

Pin Assignment

1 TXD: Transmit Data

RJ-11 Female

2 RXD: Receive Data

3 N/A

4 GND: Si nal Ground

1 4

CS1822 / CS4824 RS-232 Commands

Console ogin - HyperTerminal

Once a physical connection from the computer to the CS1822 / CS1824 has

been made, you can establish a HyperTerminal session using the instructions

below.

1. Open the HyperTerminal application, and configure the port settings for

COM1 port, then click OK.

Bits per Second: 19200, Data Bits: 8, Parity: None, Stop bits: 1, Flow Control:

None.

2. After configuring the port settings you must enable serial control on the

switch by typing the command: Open + [Enter].

CS1822 / CS4824 RS-232 Commands

RS-232 Commands

After you login via HyperTerminal (see Console Login - HyperTerminal) use

the instructions below to send S-232 commands to control the switch from the

computer.

When S-232 control is enabled via the Open + [Enter] command, the

CS1822 / CS1824’s front panel pushbuttons, mouse switching and hotkeys will

be disabled, until the serial connection is closed.

For detailed information about the controls listed in this guide, please refer to

the CS1822 / CS1824 user manual.

Verification

After entering a command, a verification message appears, as shown below, at

the end of the command line, as follows:

With all commands in the sections that follow:

Each command string can be separated with a space.

The [Enter] command can be replaced with the ASCII code: 0x0D0A

Response Message Description

Command OK Command or parameter is correct.

Command incorrect Command or parameter is incorrect.

CS1822 / CS4824 RS-232 Commands

Open / Close

The Open and Close commands allows you to start and end the link between

the computer sending S-232 commands and the CS1822 / CS1824. When the

link is open, the CS1822 / CS1824 only accepts S-232 commands and will

not respond to front panel pushbuttons, mouse switching and hotkeys – until

the link is closed. The link starts with the open command and ends with the

close command or after 2 minutes if no command is sent. The default value is

close.

Use the Formula - to set Parameters - to create a Command.

Formulas:

Command + [Enter]

Parameters:

Open/Close RS-232 ink Command

The available formulas for the Open/Close S-232 Link commands are as

follows:

1. Command + [Enter]

For example, to open the S-232 link between the computer and CS1822 /

CS1824, type the following:

open [Enter]

2. Command + [Enter]

For example, to close the S-232 link between the computer and CS1822 /

CS1824, type the following:

close [Enter]

Command Description

open Open RS-232 Link command

close Close RS-232 Link command

Enter Description

Enter Enter and send out command

CS1822 / CS4824 RS-232 Commands

Switch Port

The Switch Port command allows you to switch ports. The default port is 01.

Use the Formula - to set Parameters - to create a Command.

Formula:

Command + Control + [Enter]

Parameters:

Switch Port Commands

Some available formulas for the Switch Port commands are as follows:

1. Command + Control + [Enter]

For example, to switch to port 2, type the following:

sw i02 [Enter]

Note: The Control command can be skipped and the default value will be

used.

Command Description

sw Switch Port Command

Control Description

ixx Input Port Number

xx= 01~02 (CS1822) / 01~04 (CS1824)

Enter Description

Enter Enter and send out command

CS1822 / CS4824 RS-232 Commands

Switch to Next Port

The Switch to Next Port command allows you to switch ports from 01~02 and

02~01 (CS1822); 01~02, 02~03, 03~04, and 04~01 (CS1824).

Note: This command is only supported by CS1822 / CS1824 using firmware

v. 1.1.101 or later.

Use the Formula - to set Parameters - to create a Command.

Formula:

Command + [Enter]

Parameters:

Switch to Next Port Command

The available formula for the Switch to Next Port command is as follows:

Command + [Enter]

For example, to switch to from port 1 to port 2, type the following:

sw [Enter]

Command Description

sw Switch Port Command

Enter Description

Enter Enter and send out command
