1、Installation and access

......................................................................................................

Ø Installation

...............................................................................................................................

Ø Feet installation instruction

...............................................................................................

Ø Check IP

...................................................................................................................................

Ø Login to AT840's webpage

................................................................................................

2、Configure AT840 to make VoIP calls

............................................................................

Ø Network

....................................................................................................................................

Ø Set password

..........................................................................................................................

Ø SIP Settings

............................................................................................................................

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

、

Installation

Installation and

and

and access

access

�

Installation

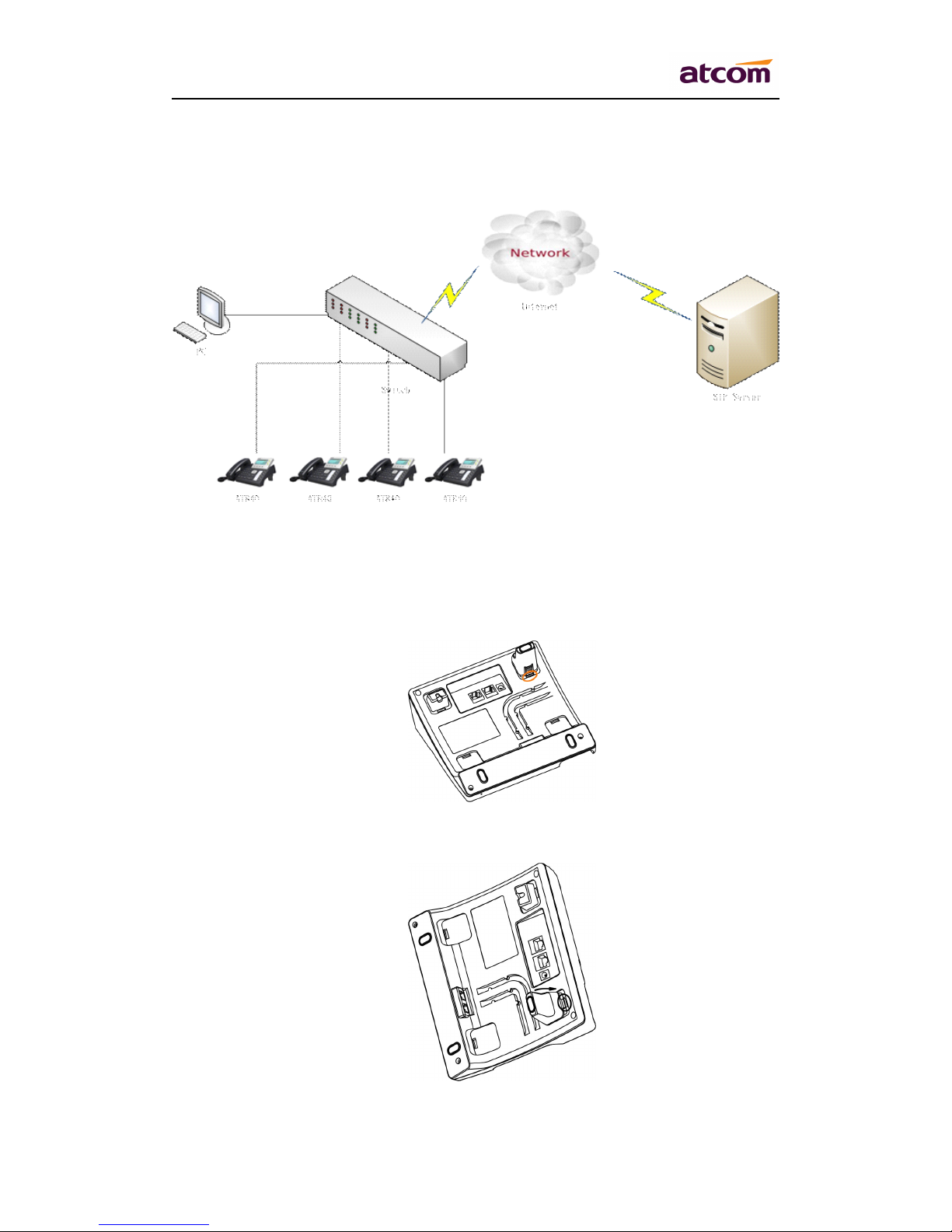

Set up AT840 as below:

�

Feet

Feet installation

installation

installation instruction

instruction

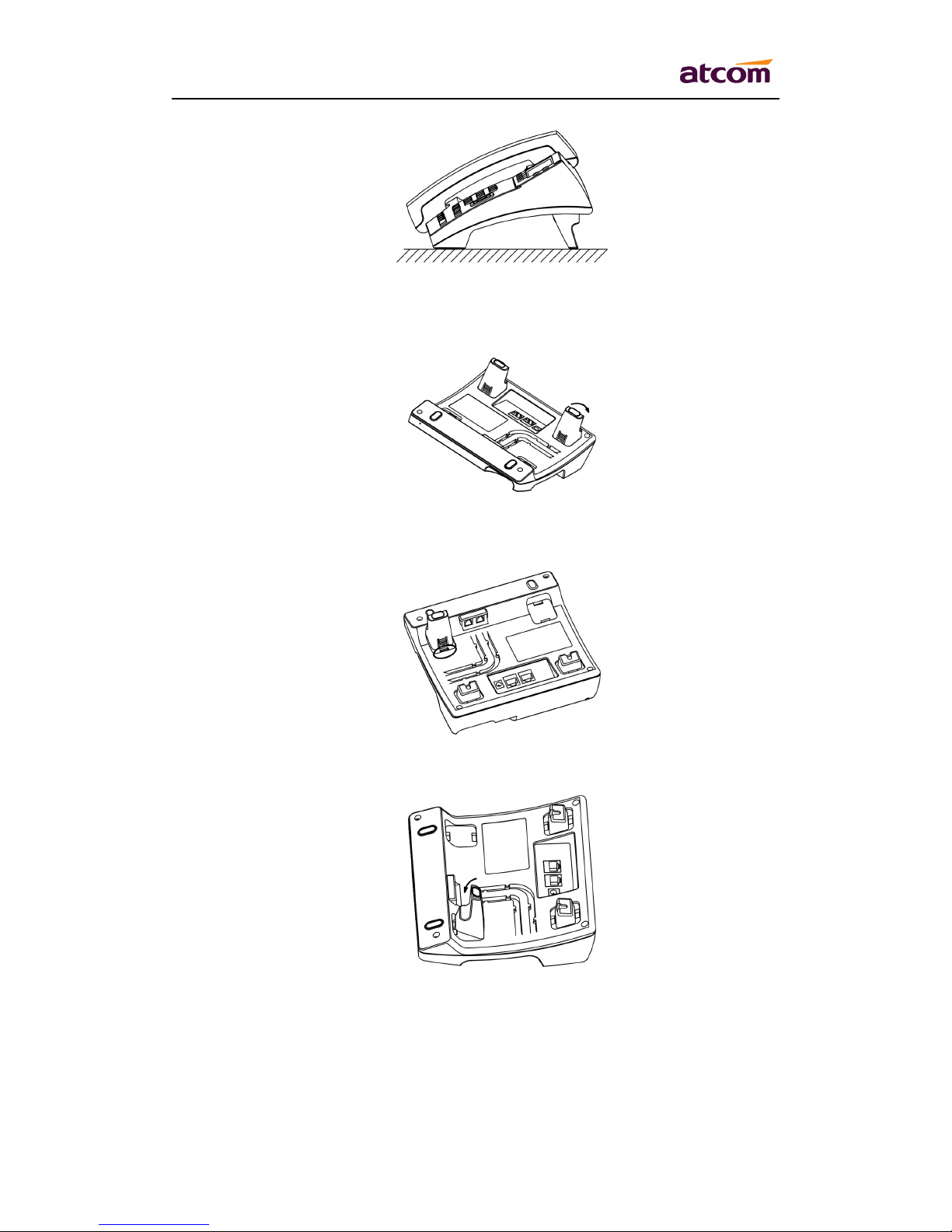

1) Desktop position:

A. Put the bottom side of the IP phone upside and press the plate with letter

“ PUSH ” into the slot, please refer the picture as below:

B. Press the other plate into the slot in accordance with the direction of the

arrow

C. Repeat A and B. It is the right picture of putting on desk after fixing the

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

two feet below:

D. Disassemble the feet:

Press the plate with word “ PUSH ” and pull the feet with the direction of

arrow. When the plate is pull out of the slot (there will be a sound of “ pa ” )

you can take off the feet

2) On wall position

A. Put the bottom side of the IP phone upside and push the plate with letter

“ PUSH ” into the slot, please refer the picture as below:

B. Push the other plate into the slot in accordance with the direction of the

arrow

C. Repeat A and B. It is the picture of wall mounting after fixing the two feet

below:

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

D. Disassemble the feet way:

Press the plate with word “ PUSH ” and pull the feet with the direction of

arrow. When the plate is pull out of the slot (there will be a sound of “ pa ” )

you can take off the feet

�

Check

Check IP

If AT840 is connect to your network. AT840 WAN default to use DHCP, and after

connect WAN to Switch, it will obtain IP automatically. Press "Menu"->

"9.Network" you will see AT840 's current

IP.

�

to AT840's

AT840's

AT840's webpage

webpage

Modify your computer

’

s IP address to the same network as AT840 . Enter AT840

IP addresses in the web browser to go to the log in page, then you will access

AT840 's user web page.

Click "admin" which is on the right corner to enter administrator webpage.

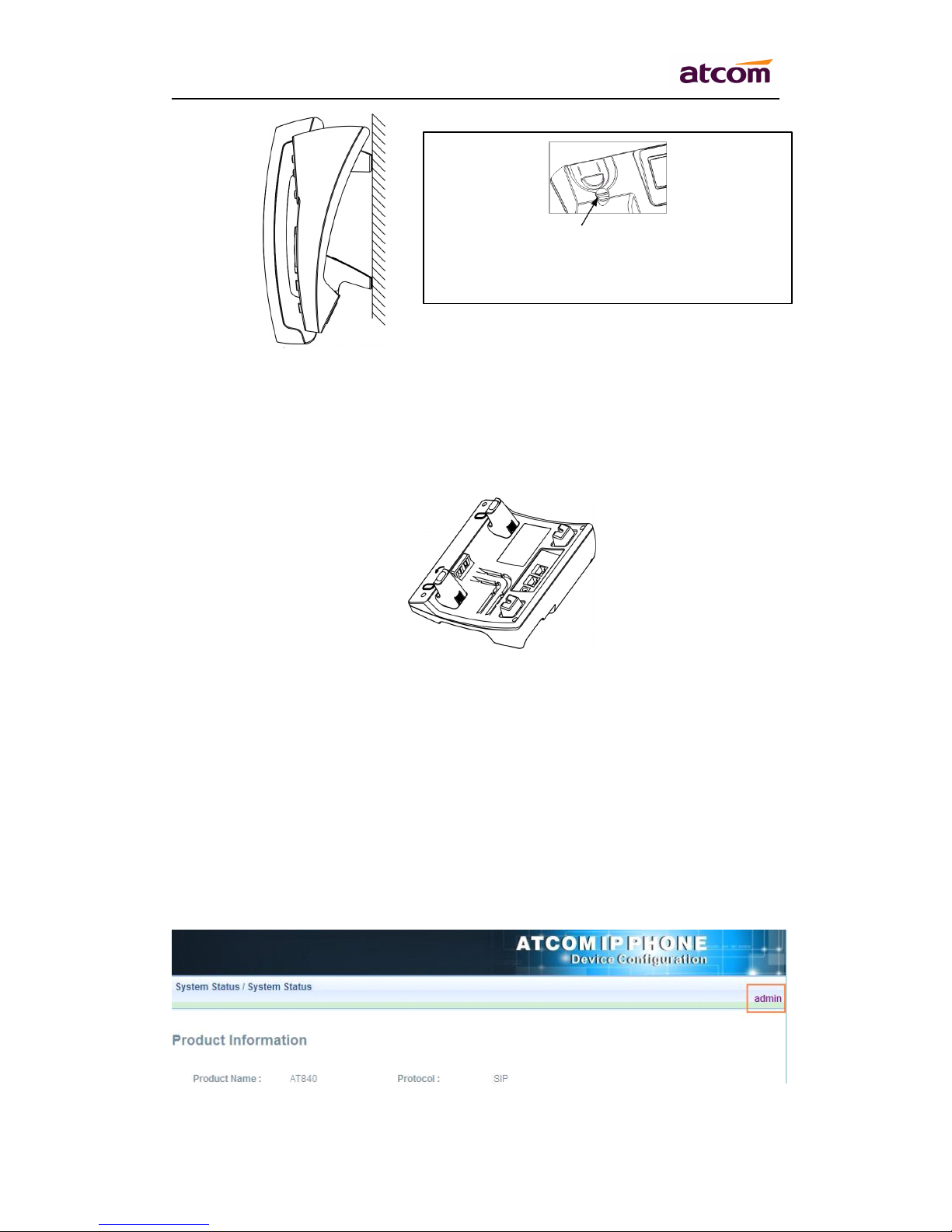

Attention: Please rotate the hook to the position as in

picture with a coin or other tools

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

、

Configure

Configure AT840

AT840

AT840 to

to make

make

make VoIP

VoIP

VoIP calls

calls

�

Network

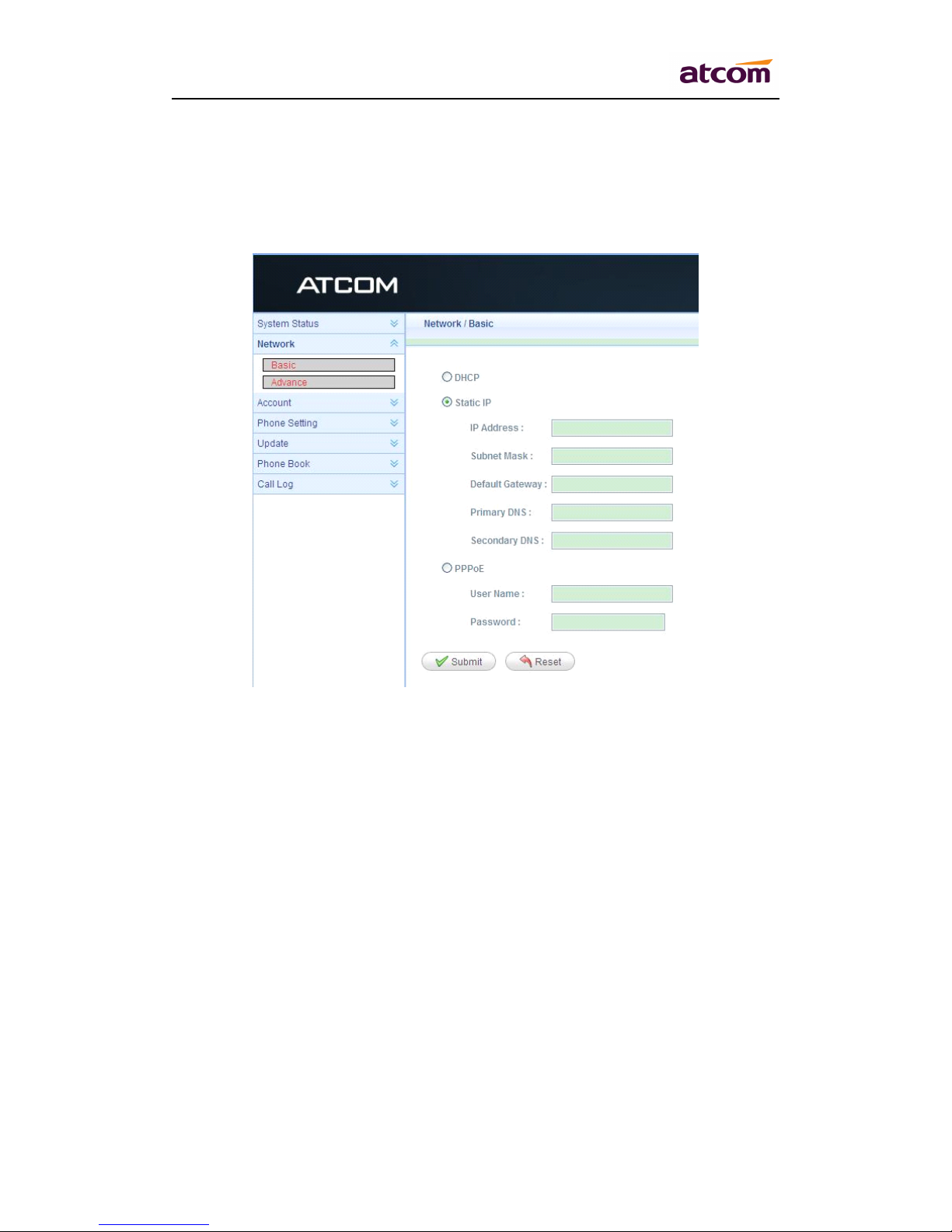

Enter "Network" -> "Basic" page.

There are 3 ways to connect to the internet DHCP, Static and PPPoE, please

choose one according to your own situation.

�

Network mode: you can choose DHCP, Static and PPPoE

�

DHCP: AT840 default to use DHCP to obtain dynamic

IP.

�

Static: If you want to set your ip as static, you should fill ip, netmask,

gateway and DNS information.

�

PPPoE: If connect AT840 to modem, you should fill ADSL account and the

password which assigned by your network service provider.

�

Set

Set password

password

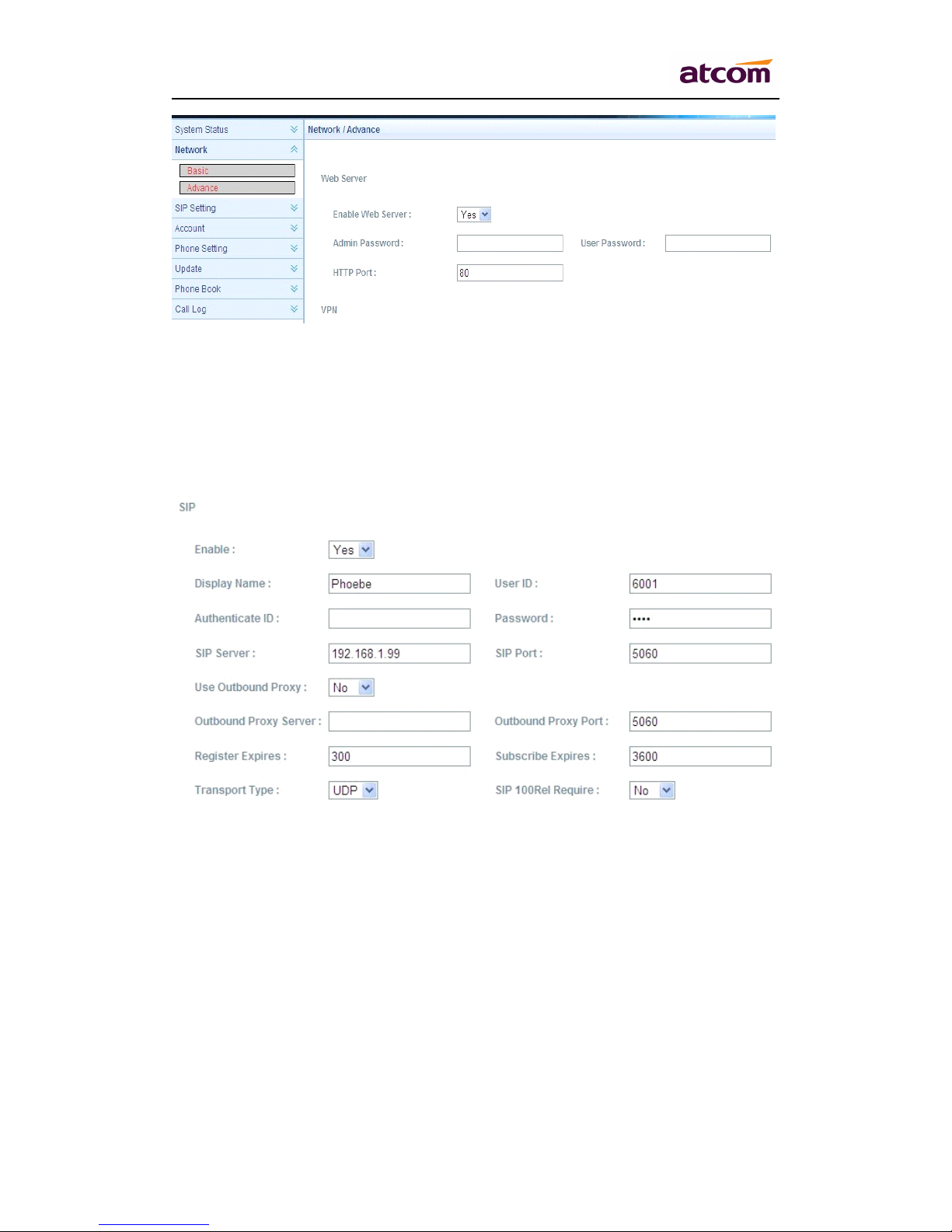

Enter "Network" -> "Advance" page.

There are 2 models to set the authority of web accessing and command line:

User model and Admin model. All the parameters can be visible and changed in

Admin mode while part of them can be visible in User mode .

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

�

Enable Web Server: enable or disable web access. If choose "no", you can

not access AT840 webpage.

�

Admin password: set admin webpage access password.(username:admin)

�

User password: set user webpage access password.(username:user)

�

SIP

SIP Settings

Settings

Enter "Account" -> "SIP" page.

�

Enable : whether enable this sip register.

�

Display Name: This name will display on your screen. It will show the User

ID instead if leave display name as blank.

�

User ID: Username of sip account.

�

Authenticate ID : normally is the same with User ID, can also leave it as

blank if there is no special requirement form your sip server.

�

Password: Password of sip account.

�

S ip Server : SIP server address , support both IP address and domain name.

�

S ip Port: SIP server port , default is 5060.

�

Use Outbound Proxy : Whether to use outbound proxy.

�Outbound Proxy Server ：Normally the Proxy server is the same as SIP server.

If they are different then fill in the correct information that provided by ISP.

�

Outbound Proxy Port: Set your proxy server port.

AT840

AT840 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

�

auto configure this expire time to the server recommended setting if it is

different from the SIP server.

�

Subscribe Expires: The Expires value in SUBSCRIBE message, default is

3600 seconds.

�

Transport Type: UDP/TCP/TLS.

�

SIP 100Rel Require : Require 100rel or not, default is no. If set to yes, the

INVITE message sent will contain the

require:100rel

header field.

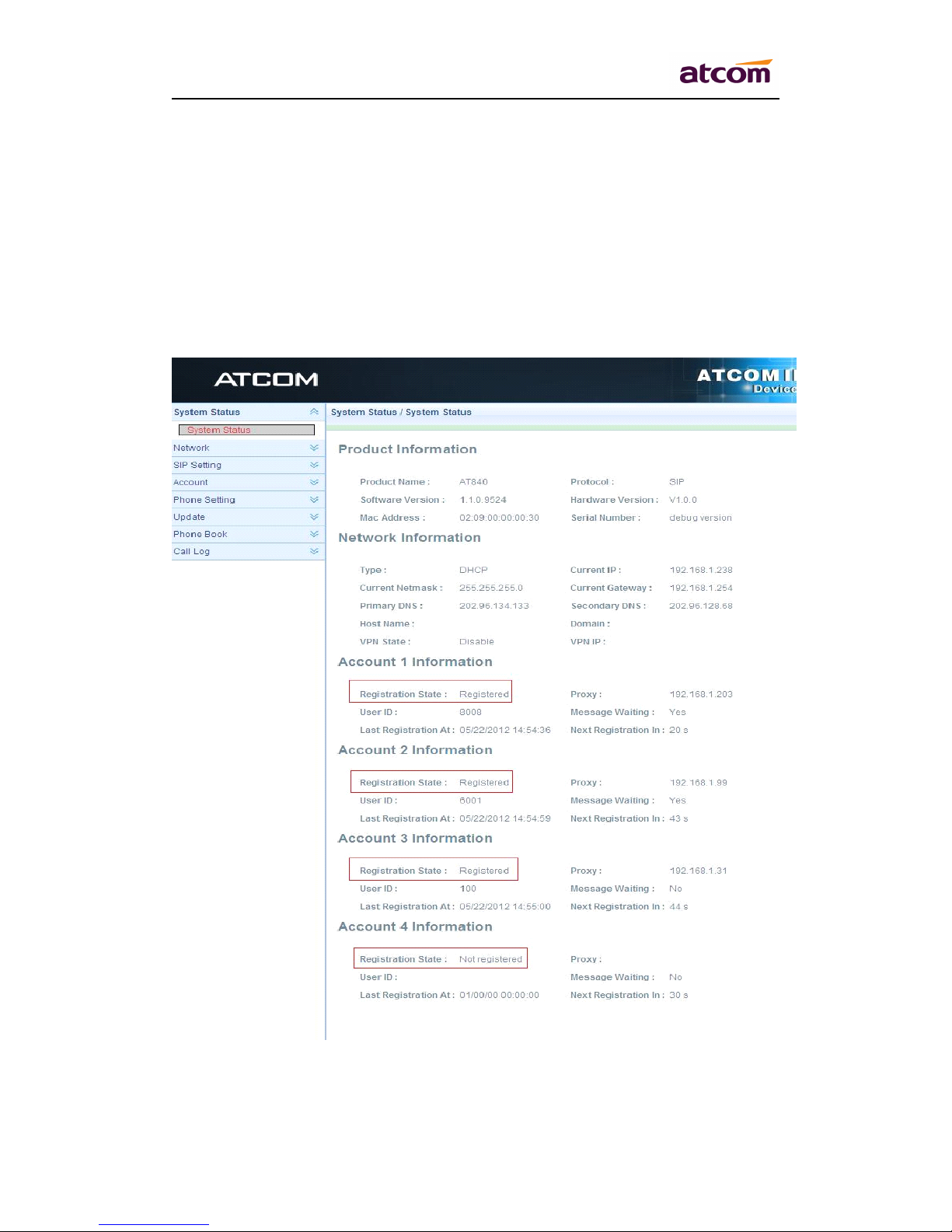

After configured and enabled register this account, please check the status of

this account in System Status page.
