AT&T CL80100 Manuel utilisateur

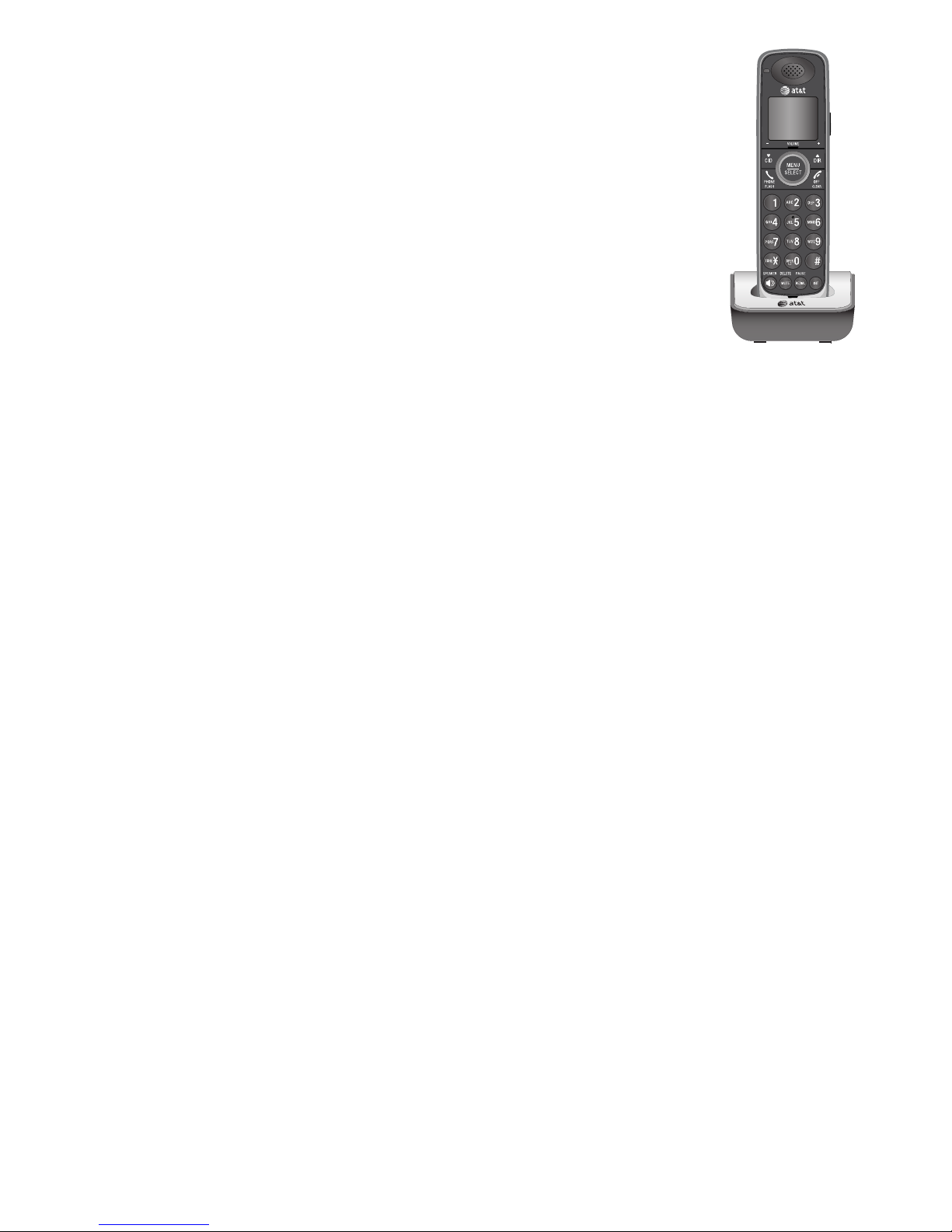

User’s manual

CL80100

DECT 6.0 expansion handset

for use with AT&T models

CL81100/CL81200/CL81300/

CL82100/CL82200/CL82250/

CL82300/CL82350/CL82400/

CL82500/CL82550/CL84100/

CL84200/CL84300

Congratulations

on your purchase of this AT&T product. Before using this AT&T

product, please read the Important safety information on

pages 20-22 of this manual. For complete instructions, please refer

to the manual provided with your CL81100/CL81200/CL81300/

CL82100/CL82200/CL82250/CL82300/CL82350/CL82400/

CL82500/CL82550/CL84100/CL84200/CL84300 telephone. You

can also visit our website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

Model #: CL80100

Type: DECT 6.0 expansion handset

Serial #:

Purchase date:

Place of purchase:

Both the model and serial number of your AT&T product can be

found on the bottom of the telephone base.

Save your sales receipt and original packaging in case it is

necessary to return your telephone for warranty service.

Telephones identified with this logo have reduced noise and

interference when used with most T-coil equipped hearing aids and

cochlear implants. The TIA-1083 Compliant Logo is a trademark of

the Telecommunications Industry Association. Used under license.

the AT&T logo are trademarks of AT&T Intellectual Property licensed to

Advanced American Telephones, San Antonio, TX 78219. Printed in China.

The ENERGY STAR® program (www.energystar.gov) recognizes and

encourages the use of products that save energy and help protect

our environment. We are proud to supply this product with an

ENERGY STAR® qualified power adapter meeting the latest energy

efficiency guidelines.

Compatible with

Hearing Aid T-Coil

TIA-1083

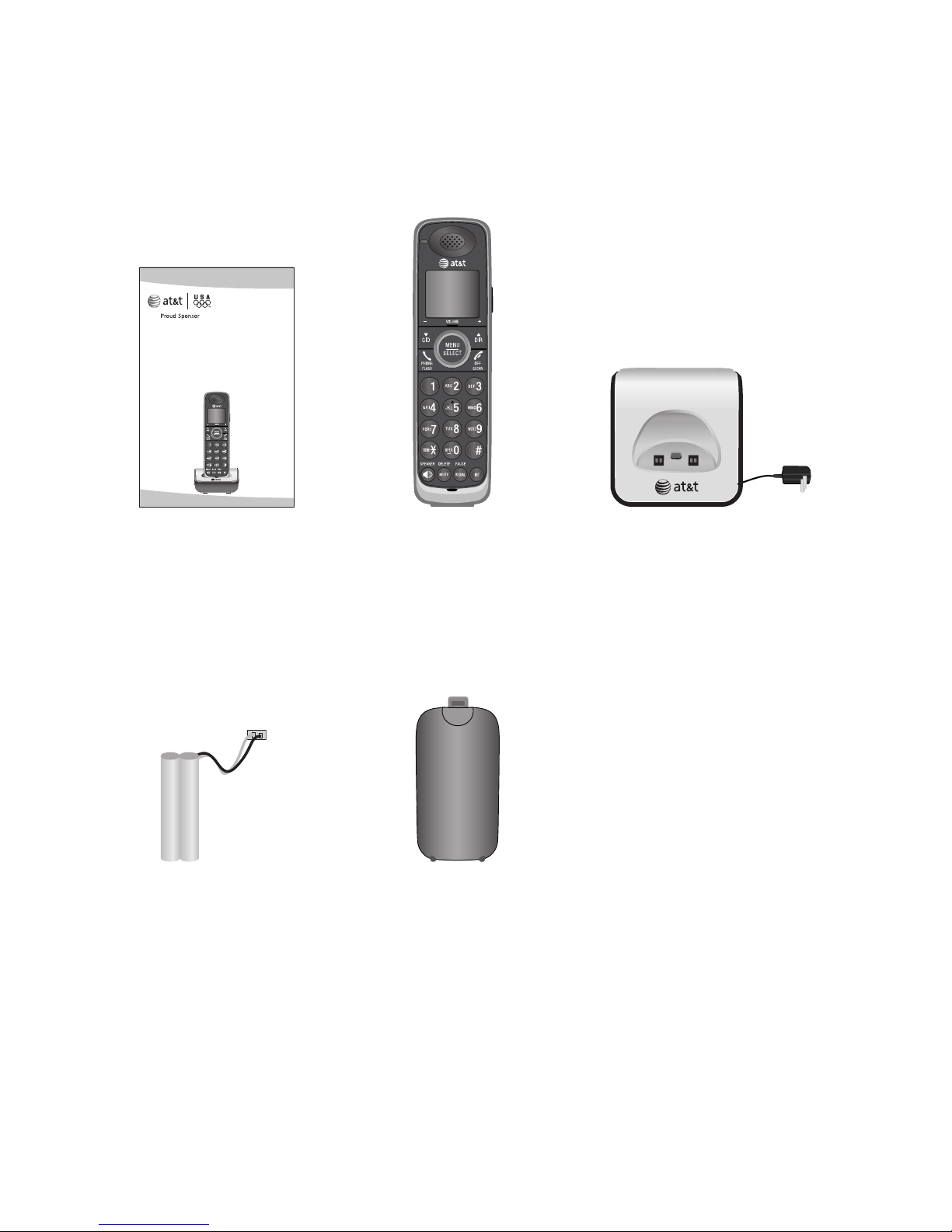

Parts checklist

Your telephone package contains the following items. Save your

sales receipt and original packaging in the event warranty service

is necessary.

Battery for

cordless handset

Cordless handset

Charger for cordless

handset with power

adapter installed

Battery

compartment

cover

User's manual

User’s manual

CL80100

DECT 6.0 expansion handset

for use with AT&T models

CL81100/CL81200/CL81300/

CL82100/CL82200/CL82250/

CL82300/CL82350/CL82400/

CL82500/CL82550/CL84100/

CL84200/CL84300

User’s manual

CL80100

DECT 6.0 expansion handset

for use with AT&T models

CL81100/CL81200/CL81300/

CL82100/CL82200/CL82250/

CL82300/CL82350/CL82400/

CL82500/CL82550/CL84100/

CL84200/CL84300

Table of contents

Getting started

Quick reference guide - handset......................................................................1

Installation...................................................................................................................4

Charger installation.................................................................................................5

Battery installation and charging.....................................................................6

Adding the handset to your telephone base

Adding and registering handsets .....................................................................8

To register a handset to your telephone base......................................9

Deregistering a handset.....................................................................................10

To deregister all handsets ............................................................................10

Appendix

Troubleshooting .....................................................................................................11

Maintenance.............................................................................................................19

Important safety information ..........................................................................20

FCC Part 68 and ACTA........................................................................................23

FCC Part 15..............................................................................................................25

Limited warranty....................................................................................................26

Technical specifications .....................................................................................29

DECT 6.0 digital technology.........................................................................29

Telephone operating range..........................................................................29

Redefining long range coverage and clarity........................................29

Quick reference guide - handset

CHARGE indicator

On when the handset is charging in the

telephone base or charger.

qCID/-VOLUME

Press qCID to show caller ID history.

Press to scroll down while in menus.

While entering names or numbers, press to

move the cursor to the left.

Press to decrease the listening volume when on

a call.

PHONE/FLASH

Press to make or answer a call.

During a call, press to answer an incoming call

when you receive a call waiting alert.

While reviewing a call log entry, press

repeatedly to add or remove 1 in front of the

telephone number before dialing or saving it in

the directory.

MUTE/DELETE

During a call, press to mute the microphone.

While reviewing the caller ID history, the

directory or the redial memory, press to delete

an individual entry.

While predialing, press to delete digits.

/SPEA�ERSPEA�ER

Press to switch between speakerphone

and handset.

Getting started

TONE

Press to switch to tone dialing temporarily

during a call if you have pulse service.

Quick reference guide - handset

Getting started

pDIR/+VOLUME

Press pDIR to show directory entries.

Press to scroll up while in menus.

While entering names or numbers, press to

move the cursor to the right.

Press to increase the listening volume when on

a call.

OFF/CLEAROFF/CLEAR

During a call, press to hang up.

While in a menu, press to cancel an operation,

back up to the previous menu, or exit the

menu display.

Press and hold while the telephone is not in use

to erase the missed calls indicator.

Press repeatedly to display other dialing options

when reviewing a call log entry.

REDIAL/PAUSE

Press repeatedly to view the last 20 numbers dialed.

While entering numbers, press and hold to insert

a dialing pause.

INT

Press to begin an intercom conversation or to

transfer a call.

MENU/SELECT

Press to show the menu.

While in the menu, press to select an item or

save an entry or setting.

Quick reference guide - handset

Getting started

Main menu

The >symbol highlights

a menu item.

>Play messages

Answering sys

Main menu

Play messages

Answering sys

Directory

Call log

Ringers

Settings

Website

Using menus

Press MENU/SELECT to show the

first menu item, Play messages.

Press qCID or pDIR to scroll

through menu items.

Press MENU/SELECT to select or

save changes to a highlighted

menu item.

Press OFF/CLEAR to cancel an

operation, back up to the previous

menu, or exit the menu display.

During an outside call, intercom call, message

or announcement playback, press to change the

quality of the audio to best suit your hearing.

For complete instructions, please refer to the manual provided with

your CL81109/CL81100/CL81200/CL81300/CL82100/CL82200/

CL82250/CL82300/CL82350/CL82400/CL82500/CL82550/

CL84100/CL84200/CL84300 telephone. If you are unable to find

your manual, go to www.telephones.att.com to read and/or

download the manual.

See pages 6-7

for easy instructions.

You must install and

charge the battery before

using the telephone. STOP!

Installation

Your product may be shipped with a protective sticker covering the

handset or telephone base display - remove it before use.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (800) 222-3111.

In Canada, dial 1 (866) 288-4268.

Avoid placing the telephone base too close to:

Communication devices such as: television sets, VCRs, or other

cordless telephones.

Excessive heat sources.

Noise sources such as a window with traffic outside, motors,

microwave ovens, refrigerators, or fluorescent lighting.

Excessive dust sources such as a workshop or garage.

Excessive moisture.

Extremely low temperature.

Mechanical vibration or shock such as on top of the washing

machine or workbench.

•

Getting started

IMPORTANT INFORMATION

1. Use only the power adapter(s) supplied with this product. To order a replacement

power adapter, visit our website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

2. The power adapters are intended to be correctly oriented in a vertical or floor

mount position. The prongs are not designed to hold the plug in place if it is

plugged into a ceiling, under-the-table or cabinet outlet.

Plug the power adapter into an

electrical outlet not controlled by

a wall switch.

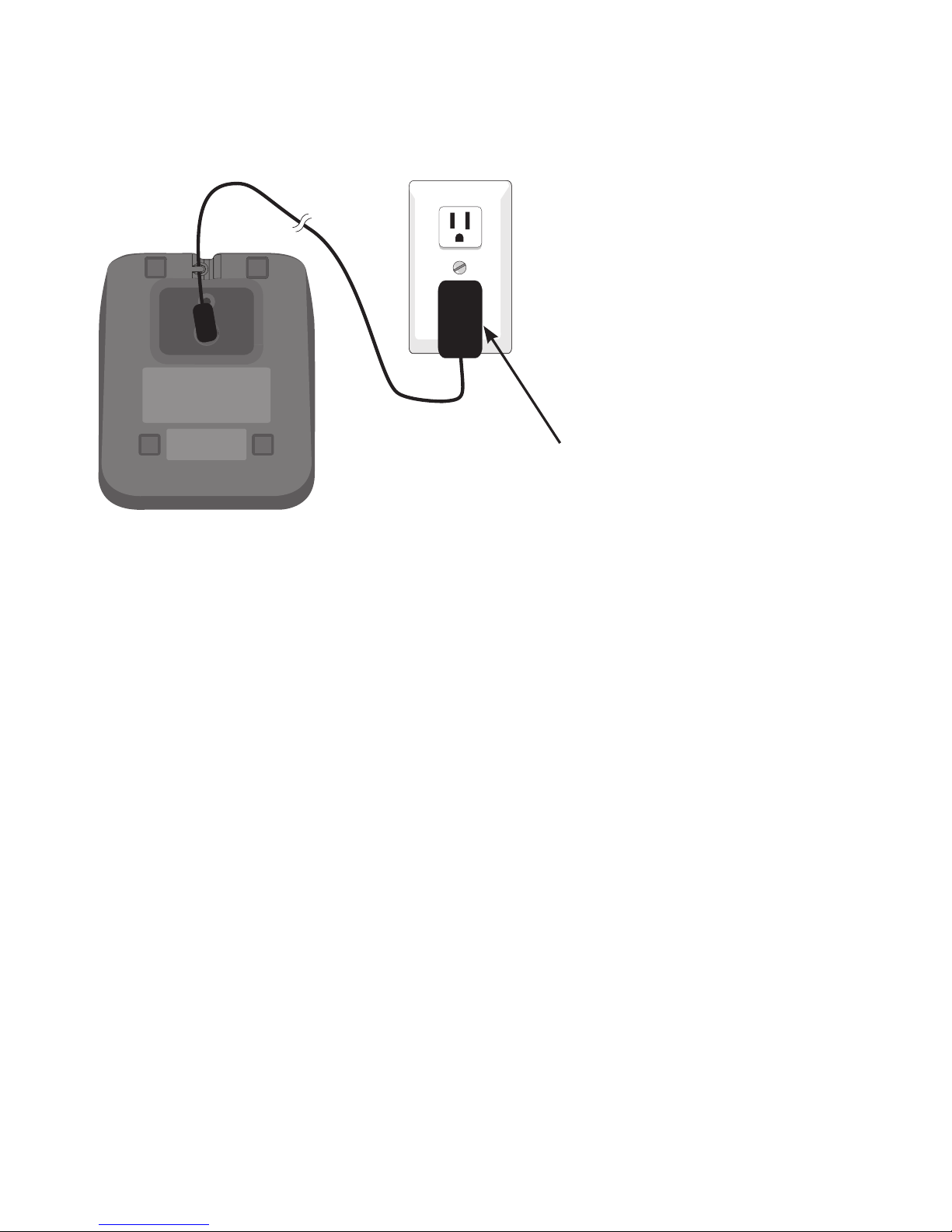

Charger installation

Install the charger as shown below.

Getting started

Battery installation and charging

Install the battery as shown on page 7. Once you have installed

the battery, the screen indicates the battery status (see table

below). If necessary, place the handset in the telephone base or

charger to charge the battery. For best performance, keep the

handset in the telephone base or charger when not in use. The

battery is fully charged after 16 hours of continuous charging. See

the table on page 29 for battery operating times.

If the screen shows Low battery, you need to charge the handset

without interruption for at least 30 minutes to give the handset

enough charge to use the telephone for a short time. The following

table summarizes the battery charge indicators and actions to take.

Getting started

Battery indicators Battery status Action

The screen is blank

or shows

Place in charger.

Battery has no or

very little charge. The

handset cannot be used.

Charge without interruption until

the screen shows Low battery

or HANDSET X (at least 30

minutes).

The screen shows

Low battery and

flashes.

Battery has enough

charge to be used for a

short time.

Charge without interruption until

the screen shows HANDSET X (at

least 30 minutes).

The screen shows

HANDSET X.

Battery is charged. To keep the battery charged,

place it in the telephone base or

charger when not in use.

NOTE: If you are on a phone call in low battery mode, you hear four short

beeps every minute.

Autres manuels pour CL80100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AT&T Combiné

AT&T

AT&T AT3101 Manuel utilisateur

AT&T

AT&T BL102-0 Manuel utilisateur

AT&T

AT&T 2400 Manuel utilisateur

AT&T

AT&T TL77008 Manuel utilisateur

AT&T

AT&T SB67108 - AT&T Manuel utilisateur

AT&T

AT&T E5902B Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AT&T

AT&T G1AR Manuel d'instructions

AT&T

AT&T E5640 Manuel utilisateur

AT&T

AT&T GL2113-0 Manuel utilisateur

AT&T

AT&T CL80109 Manuel utilisateur

AT&T

AT&T Synapse SB67040 Manuel utilisateur

AT&T

AT&T E560-1 Manuel utilisateur

AT&T

AT&T CLP99003 Manuel utilisateur

AT&T

AT&T BL102-2S Manuel utilisateur

AT&T

AT&T BL103-0K Manuel utilisateur

AT&T

AT&T 5800 Manuel utilisateur

AT&T

AT&T MS2025 Manuel utilisateur

AT&T

AT&T CL82214 Manuel utilisateur

AT&T

AT&T EP590-2 - AT&T 5.8 GHz Expansion Handset Manuel utilisateur

AT&T

AT&T CL81201 Manuel utilisateur

AT&T

AT&T EP562 Manuel utilisateur

AT&T

AT&T 5865 Manuel utilisateur

AT&T

AT&T TL90073 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur

Sony

Sony SBH52 Manuel utilisateur
