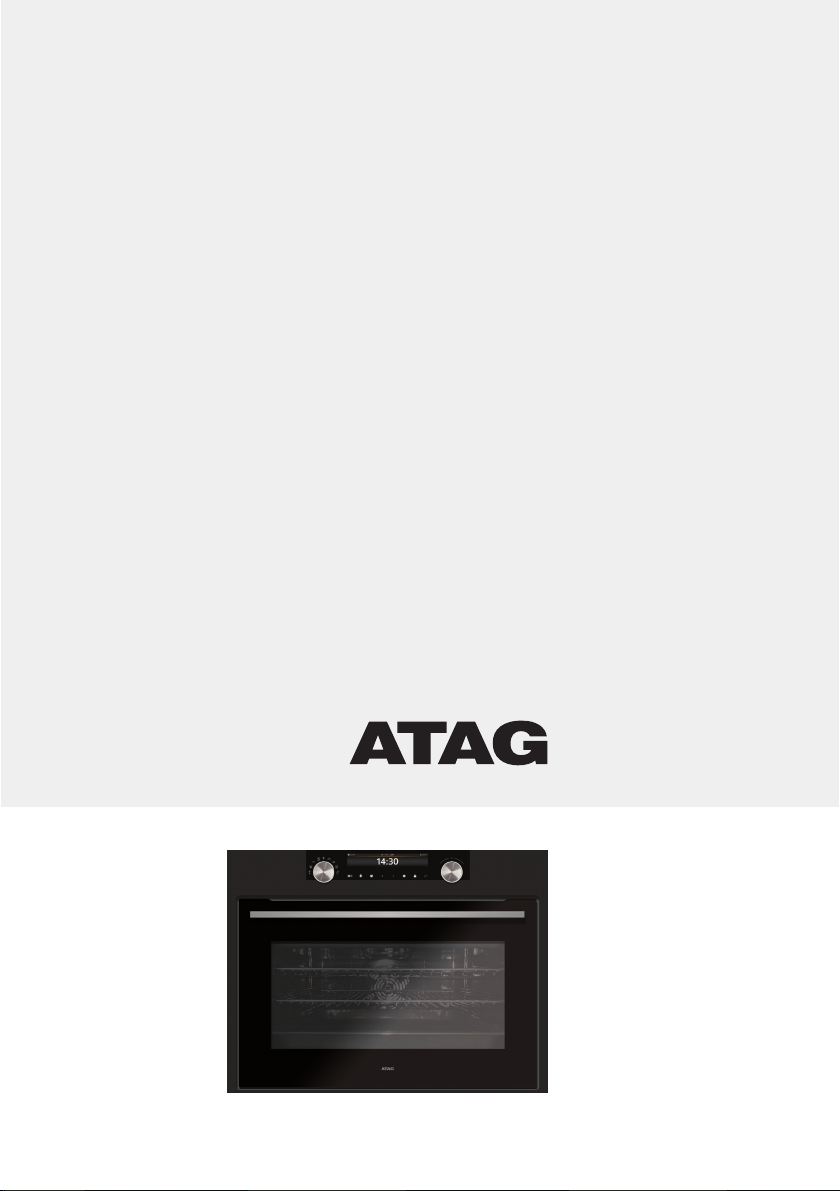

Atag CX4511D Manuel utilisateur

instructions for use

Combi microwave oven

CX4511D

CX4592D

EN Manual EN 3 - EN 41

Pictograms used

Important information

Tip

EN 3

YOUR OVEN

Your oven

Introduction 4

Control panel 5

Description 6

Guide rails/Telescopic guide rails 6

Accessories 6

Door 7

Cooling fan 7

Main functions 8

Keys 9

Navigation 10

Initial use

What to do first 12

Operation

Selecting your function 14

Function settings mode 14

Progress mode 16

Finish display 16

Changing settings during the progress 18

Use

Functions table 19

Using the microwave 23

Settings menu 26

Plus menu 28

Cooking information 29

Fast preheat 29

Delayed start 30

Gratin 30

Stage cooking 30

Go to manual cooking 31

Programs and Favourites 31

Egg timer 32

Child lock 32

Warming 33

Defrost 33

Cleaning

Cleaning the appliance 34

Aqua clean 34

Removing and cleaning the guide rails 35

Replacing the oven lamp 36

Solving problems

General 37

Your oven and the environment

Disposal of the appliance and packaging 39

Cooking test

Food tested in compliance with the EN 60350-1 standard 40

Food tested in compliance with the EN 60705-2 standard 41

EN 4

Introduction

Congratulations on choosing this Atag combi microwave oven.

This product is designed to offer simple operation and optimum

user-friendliness. The oven has a wide range of settings enabling you

to select the correct cooking method every time.

This manual shows how you can best use this oven. In addition to

information about operating the oven, you will also find background

information that may be useful when using the appliance.

Please read the separate safety instructions

carefully before using the appliance!

Read this manual before using the appliance and keep it in a safe

place for future use.

Installation instructions are supplied separately.

YOUR OVEN

EN 5

YOUR OVEN

Control panel

12 13 14 15 16 17 18 19

1 10 116 7 8 95432

1. Function knob (in ‘Off’ position)

2. Defrost

3. Programs & Favourites

4. Fast preheat

5. Oven

6. Microwave

7. Combi microwave

8. Warming

9. Aqua clean

10. Display

11. Selection knob

12. On/off key and stop key (cancel)

13. Light key

14. Timer key

15. Navigation key left

16. Navigation key right

17. Plus key

18. Child lock key (lock key)

19. Confirm key (+ 30 seconds microwave (6) time)

Note:

The keys respond best if you touch them with a large area of your

fingertip. Every time you press a key during use, a short acoustic signal

will sound.

EN 6

YOUR OVEN

Description

1. Control panel

2. Oven levels

3. Oven door

4. Door handle

Guide rails/Telescopic guide rails

• The oven has four or five guide rails (Level 1 to 4/5), depending on

the model. Level 1 is mainly used in combination with bottom heat.

The two upper levels are mainly used for the grill function.

• Place the oven rack, baking tray or steam dish in the gap between

the guide rail sliders.

• A number of shelf levels can have fully-retractable telescopic guide

rails, depending on the model.

▷Pull the telescopic guide rails out of the oven cavity completely

and place the oven rack / baking tray / steam dish on them.

Then slide the oven rack / baking tray / steam dish on the

telescopic guide rails, back into the oven cavity.

▷Only close the oven door when the telescopic guide rails have

been returned completely back into the oven cavity.

Accessories

Your appliance is accompanied by a range of accessories, depending

on the model. Only use original accessories; they are specially suited

to your appliance.

Level 1

Level 2

Level 3

Level 4

EN 7

Note: not all accessories are suitable/available for every appliance

(it may also differ by country). When purchasing, always provide the

exact identification number of your appliance. Please see the sales

brochures or check online for more details about optional accessories.

Accessories that can be supplied with your appliance (depending on the model)

Enamelled baking tray; to be used for pastries and cakes.

• Do not use the enamelled baking tray for microwave functions!

• Suitable for pyrolysis cleaning.

Oven rack; mainly used for grilling. A steam dish or pan with food

can also be placed on the oven rack.

• The oven rack is equipped with a safety peg. Lift the rack slightly

at the front to slide it out of the oven.

• Do not use the oven rack for microwave functions!

Deep enamelled baking tray; to be used for roasting meat and

baking moist pastry. It can also be used as a drip tray. Place

the deep baking tray into the first level for use as a drip tray

during grilling.

• Do not use the deep enamelled baking tray for microwave

functions!

• Suitable for pyrolysis cleaning.

Glass baking tray; for microwave and oven use.

• NOT suitable for pyrolysis cleaning.

Door

• The door switches interrupt the operation of the oven when the door

is opened during use. The oven continues operating when the door

is closed.

• This oven has a ‘Soft close door system’. When closing the oven

door, this system dampens the movement, from a certain angle, and

silently closes the oven door.

Cooling fan

• The appliance is equipped with a cooling fan that cools the casing

and control panel.

YOUR OVEN

EN 8

YOUR OVEN

Main functions

With the function knob you can select the main functions of your oven.

Setting Description

Off/standby mode

Oven

Hot air

Hot air + bottom heat

Bottom + top heat

Large grill

Grill

Large grill + fan

Upper heat

Bottom heat

Bottom heat + fan

Pro roasting

Eco hot air

Fast preheat

Programs and favourites

Favourites

Programs

Defrost

Manual defrost

Microwave

My microwave

Microwave

Combi microwave

Hot air + microwave

Large grill + fan + microwave

EN 9

Warming

Plate warming

Keep warm

Aqua clean

Keys

In the table below you can find the discription of the different keys.

Keys Description of the keys

On/off key and stop key

- Press short: cancel operation or go one step back in

the menu.

- Press long: turn the appliance off or on.

Light key

- To turn the cavity light on or off.

Egg timer

- The egg timer can be used independently from the

oven function.

- The longest possible alarm time is 23:59.

Navigation key left

- To move the active area to the left.

Navigation key right

- To move the active area to the right.

Plus key

- To open or exit the settings menu (in standby-

mode).

- To open or exit the plus menu with the extra options

possible at that moment (in on-mode).

YOUR OVEN

EN 10

YOUR OVEN

Child lock key

- Press and hold the lock key to lock the appliance.

Confirm key

- To confirm all the white settings/elements in the

screen.

- Add 30 seconds microwave time (microwave

function).

Navigation

active area

stop key confirm keyfunction knob selection knobnavigation keys

By turning the function knob away from the 0-position, the icon of the

chosen main function is lit. The display will show the icon and name

of the activated function for about 1,5 seconds. Next you will see the

chosen main function and sub-function at the top of the display in the

feedback bar. Also the function settings mode will become active (grey

background). In this activated area you can select your settings using

the selection knob.

180 °C

OVEN l HOT AIR 14:30

Within every menu the navigation is as follows:

• Use the navigation keys or press the selection knob to move the

active area (grey background).

• The setting in the active area can be changed by turning the

selection knob (left = less, right = more). This setting will be saved

automaticallly.
