ASUSTeK COMPUTER H610I-IM-A Manuel utilisateur

Industrial Motherboard

H610I-IM-A

E21366

First Edition

January 2023

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Chapter 1 Product overview

1.1 Package contents......................................................................... 1-1

1.2 Features ........................................................................................ 1-1

1.3 Specications............................................................................... 1-2

Chapter 2 Motherboard information

2.1 Before you proceed ..................................................................... 2-1

2.2 Motherboard layout...................................................................... 2-2

2.3 Central Processing Unit (CPU) ................................................... 2-4

2.3.1 Installing the CPU ........................................................... 2-5

2.3.2 CPU heatsink and fan assembly installation................... 2-7

2.4 System memory ........................................................................... 2-9

2.5 Jumpers ...................................................................................... 2-11

2.6 Connectors ................................................................................. 2-14

2.6.1 Rear panel connectors.................................................. 2-14

2.6.2 Internal connectors ....................................................... 2-16

Chapter 3 BIOS setup

3.1 BIOS setup program .................................................................... 3-1

3.1.1 BIOS menu screen.......................................................... 3-2

3.2 Main menu .................................................................................... 3-2

3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2

3.2.2 System Time [HH:MM:SS] .............................................. 3-2

3.3 Advanced menu ........................................................................... 3-3

3.3.1 LVDS Conguration ........................................................ 3-3

3.3.2 PCH-FW Conguration ................................................... 3-4

3.3.3 Trusted Computing ......................................................... 3-4

3.3.4 CPU Conguration .......................................................... 3-4

3.3.5 Graphics Conguration ................................................... 3-5

3.3.6 Power Management........................................................ 3-6

3.3.7 PCI Express Conguration.............................................. 3-6

3.3.8 Super IO Conguration ................................................... 3-7

3.3.9 Serial Console Redirection ............................................. 3-8

3.3.10 SATA Conguration ........................................................ 3-9

3.3.11 Network Stack Conguration ........................................ 3-10

3.3.12 USB Conguration ........................................................ 3-10

3.3.13 NVMe Conguration...................................................... 3-10

3.3.14 Onboard Devices Conguration.................................... 3-10

3.3.15 APM Conguration........................................................ 3-11

3.3.16 EZ-Flash ....................................................................... 3-12

3.3.17 IO Expander Conguration ........................................... 3-12

3.3.18 Watchdog Timer............................................................ 3-12

3.4 Hardware Monitor menu............................................................ 3-12

3.5 Security menu ............................................................................ 3-13

3.6 Boot menu .................................................................................. 3-14

3.7 Exit menu.................................................................................... 3-15

Appendix

Notices.......................................................................................................A-1

Service and Support.................................................................................A-5

1-1

Chapter 1: General information

1.1 Package contents

Check your industrial motherboard package for the following items.

1 x ASUS H610I-IM-A Industrial Motherboard

1 x SATA 6.0 Gb/s cable

2 x M.2 screw packages

1 x ASUS I/O Shield

NOTE: If any of the above items is damaged or missing, contact your

distributor or sales representative immediately.

1.2 Features

• LGA1700 socket for Intel®12th Gen. Core™ i9/ i7/ i5/ i3, Pentium®, and

Celeron®Processors

• Two Dual Channel DDR4 3200/2933/2666/2400 MHz Non-ECC SO-DIMMs up

to 64GB

• 3 x SATA 6.0 Gb/s, 4 x USB 3.2 Gen 1, 6 COM ports

• 1 x PCIe 4.0 x16 slot, 1 x M.2 Socket 3 with Key M, type 2242/2260/2280

(SATA/PCIe x4 mode),1 x M.2 Socket 1 with Key E, type 2230 for WIFI/BT

device (PCIe & CNVi)

• Multi-display: 2 x HDMI®, 1 x DisplayPort, 1 x LVDS, 1 x Embedded

DisplayPort (colay with LVDS, optional)

Chapter 1

Product overview

Chapter 1 Product overview

H610I-IM-A

1-2

1.3 Specications

(continued on the next page)

CPU

LGA1700 socket for Intel®12th Gen. Core™ i9/ i7/ i5/ i3,

Pentium®, and Celeron®Processors

Supports up to 65W

Chipset Intel®H610 Chipset

Memory 2 x SO-DIMM, max.64GB, DDR4 3200/2933/2666/2400 MHz

SDRAM

Graphics

Integrated graphics processor - Intel®HD Graphics support

Multi-output support: HDMI®/DisplayPort/LVDS/eDP ports*

- Supports HDMI®output with a maximum resolution of 4096 x

2160 @ 60Hz

- Supports DisplayPort output with a maximum resolution of

4096 x 2160 @ 60Hz

- Supports LVDS output with a maximum resolution of 1920 x

1200 @ 60Hz

- Supports Embedded DisplayPort output with a maximum

resolution of 4096 x 2160 @ 60Hz (colay with LVDS,

optional)

* The system supports up to three displays simultaneously.

Expansion slots

1 x PCIe 4.0 x16 slot

1 x M.2 Socket 3 with key M, type 2242/2260/2280 (SATA/PCIe

x4 mode)

1 x M.2 Socket 1 with Key E, type 2230 for WIFI/BT device (PCIe

& CNVi)

Storage

3 x SATA Gen 3.0, up to 6.0 Gb/s ports

1 x M.2 Socket 3 with key M, type 2242/2260/2280 (SATA/PCIe

x4 mode)

LAN

2 x LAN (RJ45) ports:

1 x Intel®i219V

1 x Intel®i210AT

Audio Realtek ALC 897 High Denition Audio

Line-Out, Mic in

Rear I/O ports

1 x HDMI®port

1 x DisplayPort

4 x USB 3.2 Gen 1 ports

2 x LAN (RJ45) ports

2 x COM ports (RS232/422/485)

2 x Audio jacks

Internal I/O

connectors

4 x COM headers (RS232)

2 x USB 2.0 header supports 4 additional USB 2.0 ports

1-3

Chapter 1: General information

Internal I/O

connectors

1 x CPU Fan header (PWM mode)

1 x Chassis Fan header (PWM mode)

1 x LVDS/ eDP selection jumper

1 x Chassis Intrusion header

1 x Front Panel Audio header (AAFP)

1 x System Panel header

1 x Clear CMOS header

1 x Speaker header

1 x COM Debug header

1 x GPIO header (8-bit)

1 x AT/ATX mode selection jumper

1 x 24-pin ATX power connector

2 x 4-pin ATX power connectors

1 x SPI TPM header

1 x LCD Panel monitor switch header

Watch dog timer Yes

Power

requirement AT/ATX mode

Operation

Temperature 0~60°C

Non-Operation

Temperature -40~85°C

Relative Humidity 10%~95% (non-coagulation)

OS support

Windows®10 (64-bit)

Windows®10 IoT Enterprise

Ubuntu

RedHat Enterprise

Fedora Workstation

OpenSUSE

Certication CE, FCC

Form Factor ATX Form Factor, 12”x 13” (24.4cm x 30.5cm)

NOTE: Specications are subject to change without notice.

H610I-IM-A

1-4

2-1

Chapter 2: Motherboard information

Chapter 2

Motherboard information

2.1 Before you proceed

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

CAUTION!

• Unplug the power cord from the wall socket before touching any

component.

• Before handling components, use a grounded wrist strap or touch a safely

grounded object or a metal object, such as the power supply case, to avoid

damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic

pad or in the bag that came with the component.

• Before you install or remove any component, always remove the AC power

by unplugging the power cord from the power outlet. Failure to do so may

cause severe damage to the motherboard, peripherals, or components.

Chapter 2 Motherboard information

H610I-IM-A

2-2

17.0cm(6.7in)

EATXPWR

DDR4 SO-DIMM_A1 (64bit, 260-pin module)

DDR4 SO-DIMM_B1 (64bit, 260-pin module)

LGA1700

M.2(SOCKET3)

PCIE SATA

3.0 X4 V

AT_ATX_SEL

BKLTEN_SEL

CHASSIS

F_PANEL

SPEAKER

LCD_BLKT_PANEL

COM3

USB78USB56

COM4 COM5

COM6

SATA6G_3SATA6G_2SATA6G_1

BATTERY

CLRTC

AAFP

COM_DEBUG

AUDIO

Super

I/O

LAN2_U32G1_34

LAN1_U32G1_12

COM1_SEL

COM2_SEL

128Mb

BIOS

HDMI1_DP

HDMI2

LVDS_EDP

Intel®

H610

ALC

897

PCIEX16(G4)

CPU_FAN

CHA_FAN

PANEL_SW

VCC_PWR SEL

GPIO_CON

TPM

M.2(WIFI)

2280 2260 2242

EATX12V

COM2

COM1

Intel®

I219V

Intel®

I210AT

18 17

2021 19

7 9 10 11 1232 6 84 51

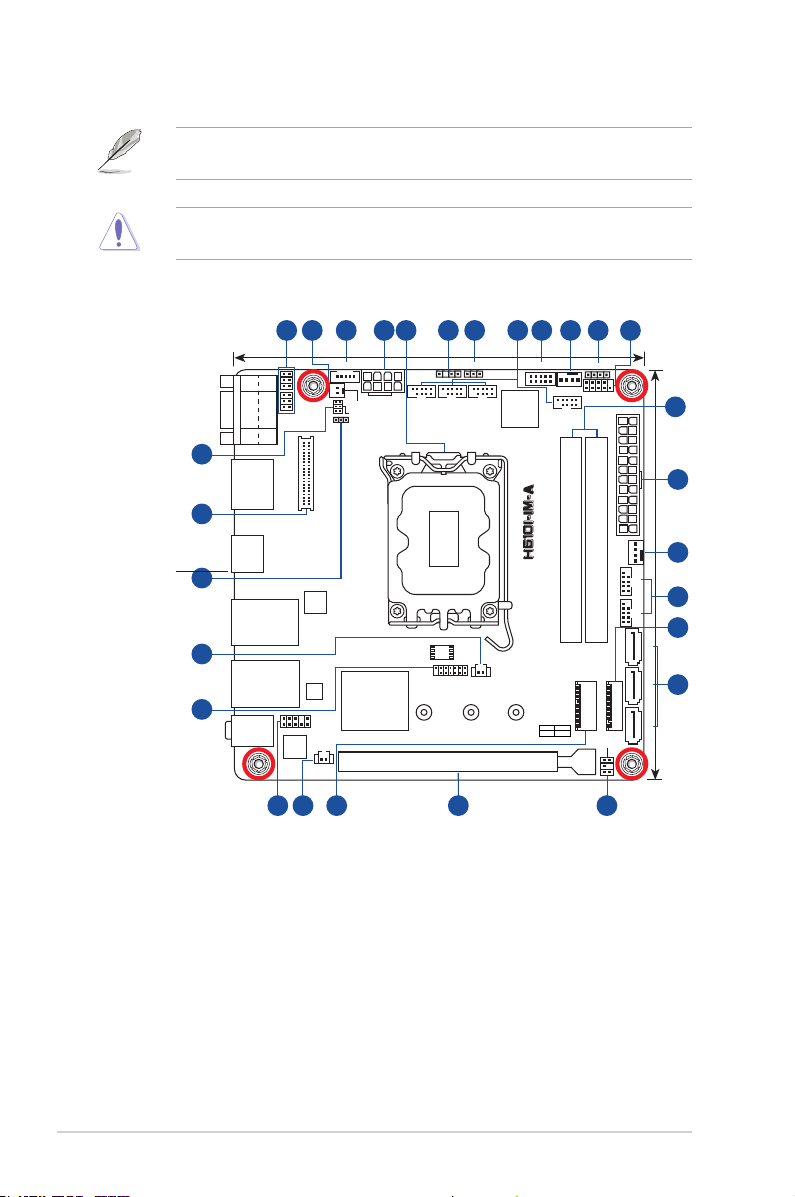

2.2 Motherboard layout

Place this side

towards the rear

of the chassis

NOTE: Place nine screws into the holes indicated by circles to secure the

motherboard to the chassis.

CAUTION! Do not overtighten the screws! Doing so can damage the

motherboard.

Table des matières

Autres manuels ASUSTeK COMPUTER Carte mère

ASUSTeK COMPUTER

ASUSTeK COMPUTER COK-002 Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER WI-FI AC Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER ROG STRIX 8660-G GAMING WIFI Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER H110T-CM-A R2.0 Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER Strix H270I Gaming Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER REPUBLIC OF GAMERS ROG STRIX X570-I GAMING Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER H310I-IM-B Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER ROG STRIX B660-F GAMING WIFI Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER W480EI-IM-A Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER H310I-IM-A R3.0 Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER H81I-CM-AA Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER ROG STRIX X299-E GAMING Manuel utilisateur

ASUSTeK COMPUTER

ASUSTeK COMPUTER Pro B460M-C Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
