Asus RT-N12 Series Manuel utilisateur
User Manual
RT-N12
ASUS Wireless SuperSpeed N Router
RT-N12
300M SuperSpeed
2
Copyright © 2009 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK Computer Inc.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
E4809
First Edition V1
July 2009
3
Table of contents
About this guide .................................................................................... 4
How this guide is organized .............................................................. 4
Conventions used in this guide ......................................................... 5
Chapter 1: Knowing your wireless router
Package contents .................................................................................. 6
System requirements ............................................................................ 6
Before you proceed............................................................................... 6
Hardware features ................................................................................. 7
Front panel ........................................................................................ 7
Rear panel......................................................................................... 8
Bottom panel ..................................................................................... 9
Mounting options................................................................................. 10
Chapter 2: Getting started
Setting up the wireless router .............................................................11
Using the Quick Internet Setup (QIS)..................................................11
Setting up the wireless router in Router mode................................ 12
Setting up the wireless router in Repeater mode............................ 15
Setting up the wireless router in AP mode ...................................... 17
Chapter 3: Conguring the network clients
Accessing the wireless router............................................................ 19
Setting an IP address for wired or wireless clients.......................... 19
Chapter 4: Conguring via the web GUI
Conguring via the web GUI............................................................... 27
Using the Network Map....................................................................... 29
Creating multiple SSID proles ....................................................... 30
Managing bandwidth with EzQoS ...................................................... 31
Upgrading the rmware ...................................................................... 32
Restoring/Saving/Uploading settings................................................ 33
4
Table of contents
About this guide
This user guide contains information that you need to install and congure the
ASUS Wireless Router.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Knowing your wireless router
This chapter provides information on the package contents, system
requirements, hardware features, and LED indicators of the ASUS Wireless
Router.
• Chapter 2: Getting started
This chapter provides instructions on setting up the Router, Repeater, and
Access Point modes of the ASUS Wireless Router.
• Chapter 3: Conguring the network clients
This chapter provides instructions on setting up the clients in your network to
work with your ASUS Wireless Router.
Chapter 5: Installing the utilities
Installing the utilities........................................................................... 34
Device Discovery ................................................................................. 36
Firmware Restoration.......................................................................... 37
WPS Wizard.......................................................................................... 38
Using WPS Wizard.......................................................................... 38
Chapter 6: Troubleshooting
Troubleshooting................................................................................... 44
ASUS DDNS Service............................................................................ 47
Frequently Asked Questions (FAQs)............................................... 47
Appendices
Notices.................................................................................................. 49
ASUS Contact information.................................................................. 57
5
• Chapter 4: Conguring via the web GUI
This chapter provides instructions on conguring the ASUS Wireless Router
using its web graphics user interface (web GUI).
• Chapter 5: Installing the utilities
This chapter provides information on the utilities that are available from the
support CD.
• Chapter 6: Troubleshooting
This chapter provides you with a troubleshooting guide for solving common
problems you may encounter when using the ASUS Wireless Router.
• Appendices
This chapter provides you with the regulatory Notices and Safety Statements.
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
6RT-N12 Chapter 1: Knowing your wireless router
1
Knowing your
wireless router
Package contents
Check the following items in your ASUS Wireless Router package.
RT-N12 Wireless Router x1
Power adapter x1
Support CD (manual, utilities) x1
RJ45 cable x1
Detachable antenna x2
Quick Start Guide x1
Note: If any of the items is damaged or missing, contact your retailer.
System requirements
Before installing the ASUS Wireless Router, ensure that your system/network
meets the following requirements:
• An Ethernet RJ-45 port (10Base-T/100Base-TX)
• At least one IEEE 802.11b/g/n device with wireless capability
• An installed TCP/IP and Internet browser
Before you proceed
Take note of the following guidelines before installing the ASUS Wireless Router:
• The length of the Ethernet cable that connects the device to the network (hub,
ADSL/cable modem, router, wall patch) must not exceed 100 meters.
• Place the device on a at and stable surface as far from the ground as
possible.
• Keep the device clear from metal obstructions and away from direct sunlight.
• Keep the device away from transformers, heavy-duty motors, uorescent lights,
microwave ovens, refrigerators, and other industrial equipment to prevent
signal loss.
• Install the device in a central area to provide ideal coverage for all wireless
mobile devices.
7
Chapter 1: Knowing your wireless router RT-N12
Status indicators
LED Status Indication
(Power) Off No power
On System ready
Flashing-slow Rescue mode
Flashing-quick WPS processing
(Wireless) Off No power
On Wireless system ready
Flashing Transmitting or receiving data (wireless)
LAN 1-4
(Local Area
Network)
Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
WAN (Wide
Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
• Install the device at least 20cm from a person to insure that the product is
operated in accordance with the RF Guidelines for Human Exposure adopted
by the Federal Communications Commission.
Hardware features
Front panel
RT-N12
300M SuperSpeed
8RT-N12 Chapter 1: Knowing your wireless router
Rear panel
Label Description
WAN Connect an RJ-45 Ethernet cable to this port to establish
WAN connection.
LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to establish
LAN connection.
DC IN Insert the AC adapter into this port to connect your router
to a power source.
WPS Press this button to establish wireless connection.
Restore Press this button for more than ve seconds to restore the
system to its factory default settings.
Item Description
Operation
mode
selector
Use this selector to choose an operation mode:
Router (IP Sharing mode): In the Router mode, the wireless
router connects to the Internet via PPPoE, Automatic IP, PPTP,
L2TP, or Static IP, and provides you with wireless radio signal.
The NAT, rewall, and IP sharing services for LAN clients are
enabled.
Repeater: In this mode, the wireless router extends your wireless
network coverage and provides you with higher quality wireless
radio signal. The NAT, rewall, and IP sharing services are
disabled.
Access Point (AP): In this mode, the wireless router receives
the WAN IP address from the router connected to the WAN port
and provides you with wireless radio signal. The NAT, rewall,
and IP sharing services are disabled.
Operation mode
selector
9
Chapter 2: Setting up the hardware RT-N12
Bottom panel
1
2
Item Description
1Mounting hooks
Use the mounting hooks to mount your router on concrete or
wooden surfaces using two round head screws.
2Air vents
These vents provide ventilation to your router.
Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting
options on the next page of this user manual.
10 RT-N12 Chapter 2: Setting up the hardware

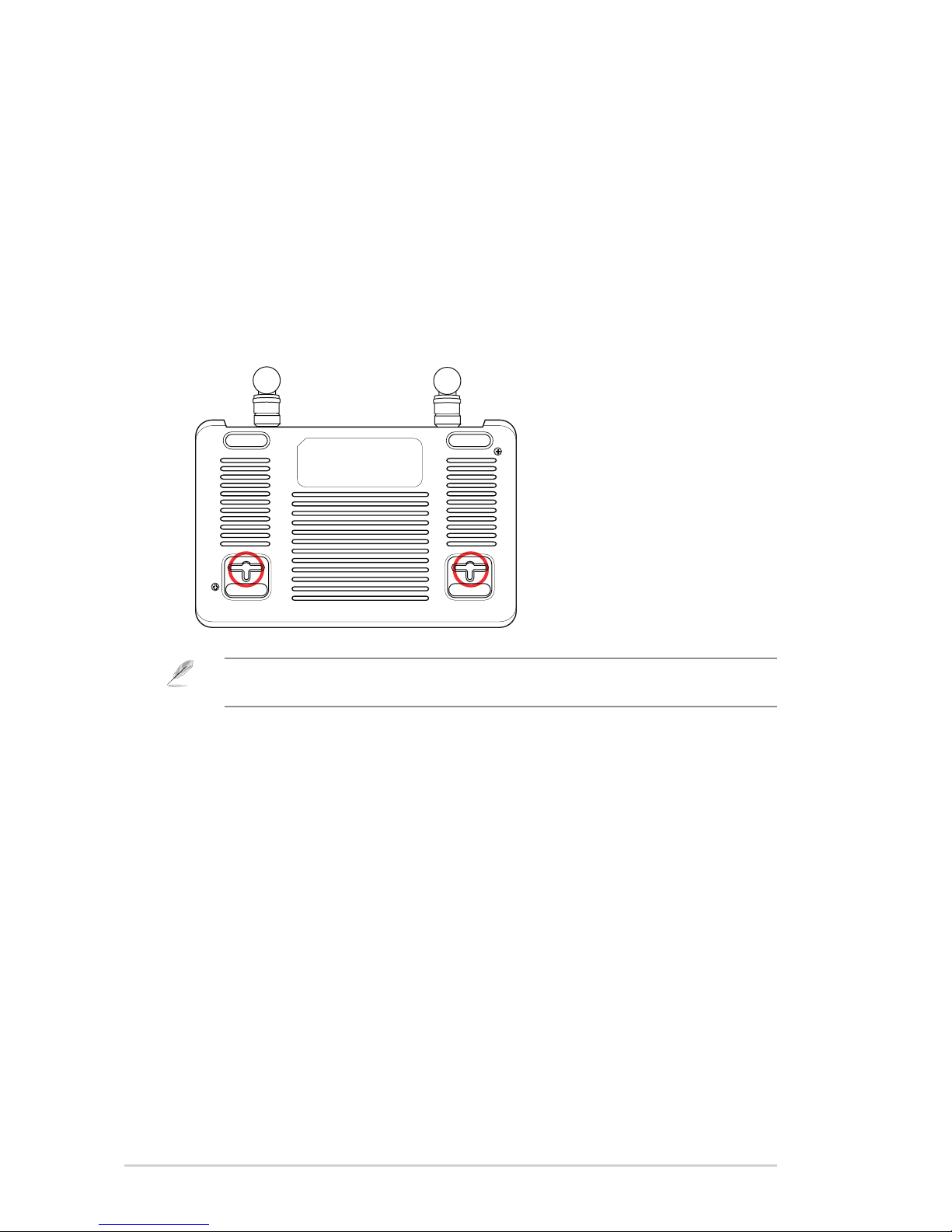

Mounting options
Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface
like a le cabinet or book shelf. The unit may also be converted for mounting to a
wall or ceiling.
To mount the ASUS Wireless Router:
1. Look on the underside for the two mounting hooks.
2. Mark two upper holes in a at surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if
it is too loose.
Autres manuels pour RT-N12 Series
8
Table des matières
Autres manuels Asus Routeur sans fil
Asus
Asus RT-AX82U Manuel utilisateur
Asus
Asus V-M.2 PCIE Manuel utilisateur
Asus
Asus AX3000 Manuel utilisateur
Asus
Asus ExpertWiFi EBM68 Manuel utilisateur
Asus
Asus RT-G32 - Wireless Router Manuel utilisateur
Asus
Asus ZenWiFi XP4 Manuel utilisateur
Asus
Asus RT-AX88U Manuel utilisateur
Asus
Asus RT-AC66U B1 Manuel utilisateur
Asus
Asus RT-AC66U Manuel utilisateur
Asus
Asus DSL-N11 Manuel utilisateur
Asus
Asus DSL-N66U Manuel utilisateur
Asus
Asus WL-330N3G Manuel utilisateur
Asus
Asus DSL-N14U B1 Manuel utilisateur
Asus
Asus ExpertWiFi EBM68 Manuel utilisateur
Asus
Asus DSL-AX82U Manuel utilisateur
Asus
Asus RT-AX57 GO Manuel utilisateur
Asus
Asus RT-ACRH17 Manuel utilisateur
Asus
Asus Lyra Trio MAP-AC1750 Manuel utilisateur
Asus
Asus RT-N14U Manuel utilisateur
Asus
Asus DSL-N16U Series Manuel utilisateur
