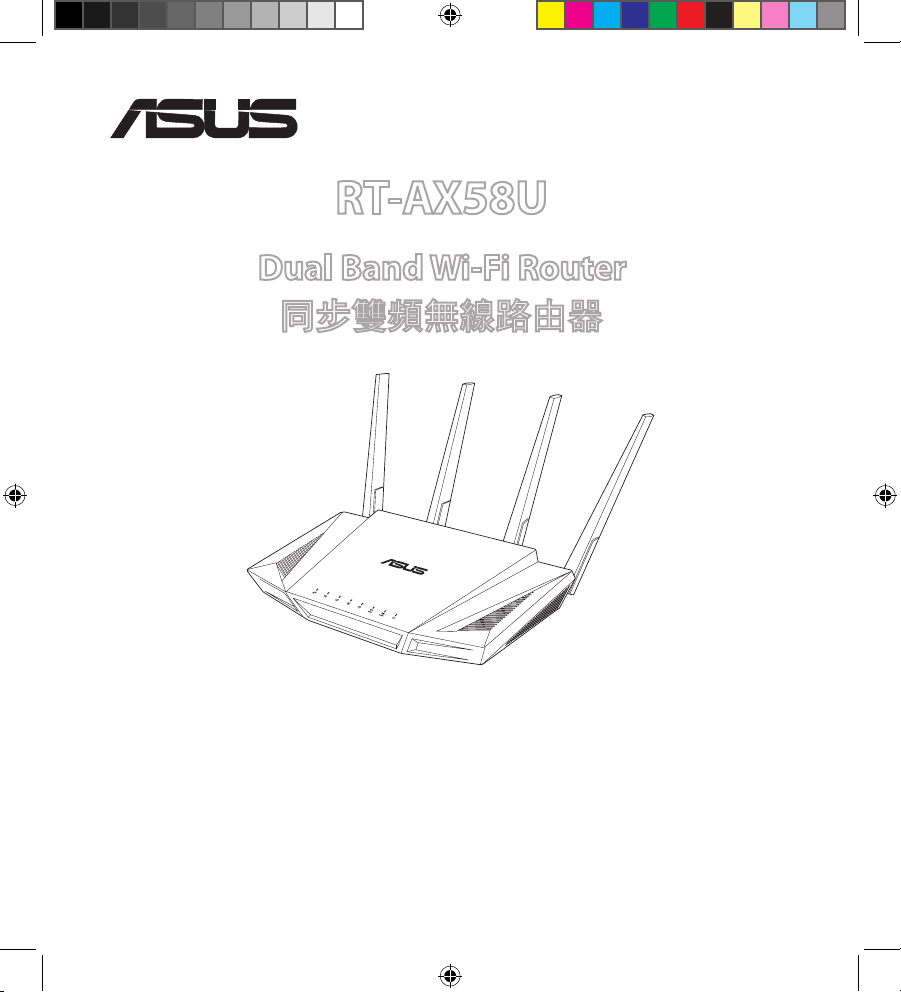

Asus RT-AX58U Manuel utilisateur

Quick Start Guide

RT-AX58U

Dual Band Wi-Fi Router

同步雙頻無線路由器

Q15622 / First Edition / July 2019

Q15622_RT-AX58U_QSG.indb 1 2019/8/23 9:39:48

Table of contents

Package contents ........................................................................3

A quick look at RT-AX58U.........................................................3

Position your wireless router...................................................4

Preparing your modem.............................................................5

Setting up your RT-AX58U .......................................................6

A. Wired connection .............................................................................6

B. Wireless connection.........................................................................6

FAQ ...................................................................................................8

Networks Global Hotline Information .................................65

English

繁體中文

Français

Bahasa Indonesia

Bahasa Malaysia

Português

Español

ไทย

Tiếng Việt

This QSG contains these languages:

Q15622_RT-AX58U_QSG.indb 2 2019/8/23 9:39:48

English

A quick look at RT-AX58U

WAN (Internet) LED Power button

LAN 1~4 LEDs USB3.0 port

5GHz LED LAN 1 ~ 4 ports

2.4GHz LED WAN (Internet) port

Power LED WPS button

Power (DC-IN) port Reset button

Package contents

RT-AX58U Wireless Router AC adapter

Network cable (RJ-45) Quick Start Guide

Q15622_RT-AX58U_QSG.indb 3 2019/8/23 9:39:50

English

Position your wireless router

For optimal wireless transmission between the wireless router and connected

wireless devices, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage

for the network devices.

• Keepthewirelessrouterawayfrommetalobstructionsandawayfromdirect

sunlight.

• Keepthewirelessrouterawayfrom802.11gor20MHzonlyWi-Fidevices,

2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other

industrial equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat

http://www.asus.comtogetthelatestrmwareupdates.

• Toensurethebestwirelesssignal,orientthefournon-detachableantennasas

shown in the drawing below.

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +19V with 1.75A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

45°45°

Q15622_RT-AX58U_QSG.indb 4 2019/8/23 9:39:50

English

Preparing your modem

1. Unplug the power cable/DSL modem. If it has a

battery backup, remove the battery.

NOTE: If you are using DSL for Internet, you

will need your username/password from your

Internet Service Provider (ISP) to properly

conguretherouter.

2. Connect your modem to the router with the

bundled network cable.

3. Power on your cable/DSL modem.

4. Check your cable/DSL modem LED lights to ensure

the connection is active.

Unplug

Q15622_RT-AX58U_QSG.indb 5 2019/8/23 9:39:51

English

Setting up your RT-AX58U

You can set up your router via wired or wireless connection.

A. Wired connection

1. Plug your router into a power outlet and

power it on. Connect the network cable

from your computer to a LAN port on your

router.

2. The web GUI launches automatically when you open a web browser. If it does

not auto-launch, enter http://router.asus.com.

3. Set up a password for your router to prevent unauthorized access.

B. Wireless connection

1. Plug your router into a power outlet and

power it on.

Laptop

Tablet

Smart phone

Modem

Wall Power Outlet

LINE LAN RESET PWR

Power

WAN

RT-AX58U

Modem

Wall Power Outlet

LINE LAN RESET PWR

Power aWANLAN

Laptop

RT-AX58U

Q15622_RT-AX58U_QSG.indb 6 2019/8/23 9:39:51

English

2. Connect to the network with SSID shown on the product label on the back side

of the router. For better network security, change to a unique SSID and assign

a password.

ASUS router

2.4G Wi-Fi Name (SSID): ASUS_XX_2G

5G Wi-Fi Name (SSID): ASUS_XX_5G

* XX refers to the last two digits of 2.4GHz

MACaddress.Youcannditonthelabel

on the back of your router.

3. You can choose either the web GUI or ASUS Router app to set up your router.

a. Web GUI Setup

 • 

Once connected, the web GUI launches automatically when you open a

web browser. If it does not auto-launch, enter http://router.asus.com.

•

Set up a password for your router to prevent unauthorized access.

Q15622_RT-AX58U_QSG.indb 7 2019/8/23 9:39:52

English

b. App Setup

Download ASUS Router App to set up your

router via your mobile devices.

 • 

Turn on Wi-Fi on your mobile devices

and connect to your router’s network.

 • 

Follow ASUS Router App setup

instructions to complete the setup.

ASUS Router

ASUS

Router

Remembering your wireless router settings

• Rememberyourwirelesssettingsasyoucompletetheroutersetup.

Router Name: Password:

2.4 GHz network SSID: Password:

5GHz network SSID: Password:

FAQ

1. WherecanIndmoreinformationaboutthewirelessrouter?

 • OnlineFAQsite:https://www.asus.com/support/faq

 • Technicalsupportsite:https://www.asus.com/support

 • Customerhotline:refertotheSupportHotlinesectioninthisQuickStart

Guide

 • Youcangettheusermanualonlineathttps://www.asus.com/support

Q15622_RT-AX58U_QSG.indb 8 2019/8/23 9:39:52

繁體中文

認識您的無線路由器

WAN（網際網路）指示燈 USB 3.1 連接埠

LAN 1~4 指示燈 LAN 1 ~ 4 網路連接埠

5GHz 指示燈 WAN （網際網路）連接埠

2.4GHz 指示燈 WPS 按鈕

電源指示燈重置按鈕

電源（DC-IN）連接埠

電源開關

產品包裝內容

RT-AX58U 無線路由器電源變壓器

RJ-45 網路線快速使用指南

Q15622_RT-AX58U_QSG.indb 9 2019/8/23 9:39:53

繁體中文

放置您的路由器

為獲得無線路由器與所連線的網路裝置之間傳送最佳無線訊號，請確認以下

幾點：

• 建議將路由器放置在中心區域，以獲得最佳無線訊號覆蓋範圍。

• 請勿將裝置放在靠近金屬物品與陽光直射的地方。

• 請遠離其它 802.11g 或 20MHz Wi-Fi 裝置、2.4GHz 電腦周邊裝置、藍

牙裝置、無線室內電話、傳送器、重型發動機、日光燈、微波爐、電冰

箱與其他工業裝置，以防止訊號干擾或減損。

• 請經常更新至最新版本韌體。您可以登入華碩官網 https：//www.asus.

com/tw/ 獲得最新韌體。

• 請依據下圖所示擺放路由器上的四根非可拆式天線以獲得最佳無線訊號

覆蓋範圍。

注意：

• 請僅使用包裝中的電源變壓器。使用其他種類的電源變壓器可能

會造成裝置損毀。

• 規格：

直流電源變壓器 DC 輸出： +19V 電壓，支援最大 1.75A 電流

運作溫度 0~40°C 儲存溫度 0~70°C

運作濕度 50~90% 儲存溫度 20~90%

45°45°

Q15622_RT-AX58U_QSG.indb 10 2019/8/23 9:39:53
