English
Quick Start Guide
GX1026
Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
2 Quick Start Guide
English
Introduction
Thank you for purchasing the ASUS GX1026 rack mountable switch! The GX1026
provides non-blocking, wire-speed performance to meet your intensive network
needs. This switch comes with 24 Fast Ethernet ports and 2 Gigabit Ethernet ports
with auto-sensing and auto MDI/MDIX capabilities. With easy connectivity, ow
control, and QoS, the GX1026 is guaranteed to enhance your network performance
and productivity.
Features
• 24 x 10/100Mbps Fast Ethernet ports
• 2 x 10/100/1000Mbps Gigabit Ethernet ports
• Up to 200Mbps transmit speed for all ports in full-duplex mode
• Switch capacity: 8.8Gbps Forwarding rate: 3.6Mpps
• Plug and play–auto MDI/MDIX, and auto-sensing for speed and duplex mode
on all ports
• Flow control schemes (802.3x in full-duplex mode) to support zero loss under
temporary network congestion
• Head of Line (HOL) blocking preventions
• IEEE802.1p/TOS/DS supported to meet QoS requirements
• 4K MAC address learning and aging for concurrent connections to 4K nodes
• Easy-to-read LEDs provide quick indication of link status and speed
• Fanless design for quiet operation
• Desktop or rack mount placement options
Quick Start Guide 3
English
Package contents
Before installing the GX1026 switch, check your package for the following items.
• ASUS GX1026 switch x 1
• Power cable x 1
• User guide x 1
• Mounting kit x 1 (2 brackets and 6 screws)
Contact your retailer if any of the items is damaged or missing.
Technical specications
Physical dimensions 444mm (W) x 180mm (D) x 43.5mm (H)
Environmental
specications
Operating temperature: 0ºC ~ 50ºC (32ºF to 122ºF)
Storage temperature: -25ºC ~ 70ºC (-13ºF to 158ºF)
Operating humidity: 0 to 90%
Storage humidity: 0 to 90%
Operating altitude: up to 15,000 ft (4,500m)
Storage altitude: up to 40,000 ft (12,000m)
Power Input: 100V ~ 240V AC/50-60Hz
Power Consumption:12 Watts
Certication FCC Class A, CE

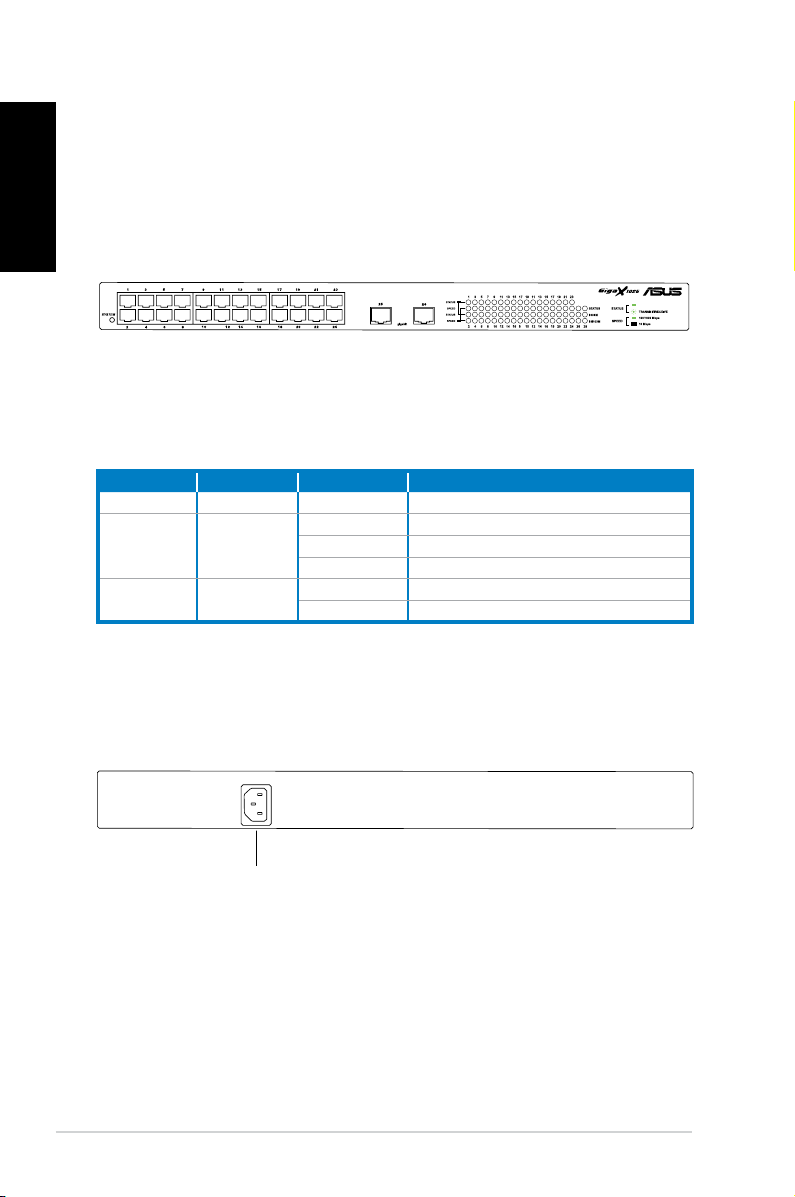

4 Quick Start Guide
English
Rear panel
The rear panel of GX1026 contains the power connector.
Hardware
Front panel
The front panel of GX1026 includes 24 10/100Mbps Fast Ethernet ports, 2
10/100/1000Mbps Gigabit Ethernet ports, and LED indicators that show the
working conditions of the switch.
Table 1. LED indicators
LED Color Status Description
SYSTEM Green ON The power is ON
STATUS Green
ON A device is connected to the port
Flashing Transmitting data
OFF No device connected
SPEED Green ON 100/1000Mbps
OFF 10Mbps
Power connector
Figure 1. GX1026 front panel
Figure2. GX1026 rear panel
Quick Start Guide 5
English
Placement options
Desktop placement
Place the GX1026 switch on a at and stable surface. Ensure that the location
meets the operating environmental specications. See page 3 for details.
Mounting the switch on a 19-inch rack
You can mount the GX1026 switch on a rack with the supplied mounting brackets
and screws.
To mount the switch on a rack:
1. Locate three screw holes on both sides of the switch.
2. Align the mounting brackets with the switch screw holes.
3. Secure the mounting brackets with three screws supplied in the mounting kit
on both sides of the switch.
4. Place the switch in a 19-inch rack, then secure both sides with four rack
mount screws.
The length of the UTP Category 5 cable length cannot exceed 100 meters (328
feet).
The rack mount screws are not supplied.
6 Quick Start Guide
English
Connecting network devices
To connect network devices to the GX1026 switch:
1. Connect one end of the Ethernet cable to an Ethernet port on the switch
front panel. Connect the other end to the Ethernet port of the network device.
Repeat this step to connect additional network devices.
2. Plug one end of the power cable to the power connector on the switch rear
panel, then plug the other end to a power outlet.
3. The Power LED and LAN LED indicators for active Ethernet ports light up
when the switch is powered on and active nodes are connected to the LAN
ports. Refer to the front panel illustration and LED table in page 4 for details.
• We recommend the use of Category 5 Ethernet straight-through cables to
ensure proper connections between the switch and other network devices.
• You can use either cross-over or straight-through cables to connect other
network devices such as bridges, switches, hubs, and repeaters.
1 2
Desktop Router
Printer
Server Wireless AP
Switch / Hub
NAS
Notebook
Server
Quick Start Guide 7
English
Troubleshooting
This section provides solutions to some common problems which you may
encounter when installing or using the ASUS GX1026 switch. Contact the
ASUS technical support if the problem still exists after you have performed the
troubleshooting solutions.
Problem Solution
The POWER LED does not light up. Check if the power cable is properly
connected to the switch and to a power
outlet with a correct voltage output.
The STATUS/SPEED LED
does not light up even after a network
device is connected to the port.
Check if the Ethernet cable is properly
connected to the switch and to the network
device.
Ensure that the switch and your network
device are powered on.
Check if the Ethernet cable meets your
network requirements. To connect a gigabit
switch port, you need a Category 5 cable to
get gigabit transfer speed.
8 Quick Start Guide
English
Glossary
10BASE-T 10 Mbps Ethernet over twisted pair cable (Category 3).
100BASE-T 100 Mbps Ethernet over twisted pair cable (Category 5)
1000BASE-T 1000 Mbps Ethernet over twisted pair cable (Category 5)
Auto MDI/MDIX Allows network connections using either straight or cross
cables.
Ethernet The most commonly installed computer network technology,
usually using twisted pair wiring. Ethernet data rates are
10Mbps, 100Mbps, and 1000Mbps.
Mbps Abbreviation for Megabits per second, or one million bits per
second. Network data rates are often expressed in Mbps.
network A group of computers that are connected together to
communicate with each other and share resources,
such as software, or les. A network can be small, such as a
LAN, or very large, such as the Internet.
